Control Cable ‣ Ronin 2 to DJI Focus Pro LiDAR Hub

DJI RS4 Pro and Focus Pro LiDAR Hub were released in April 2024.

According to numerous DJI influencer YouTube videos, the Focus Pro LiDAR Hub is advertised as including a D-Tap to 7-Pin Lemo cable for off gimbal use.

However, this has been found to be false as the cable is not actually included in the box.

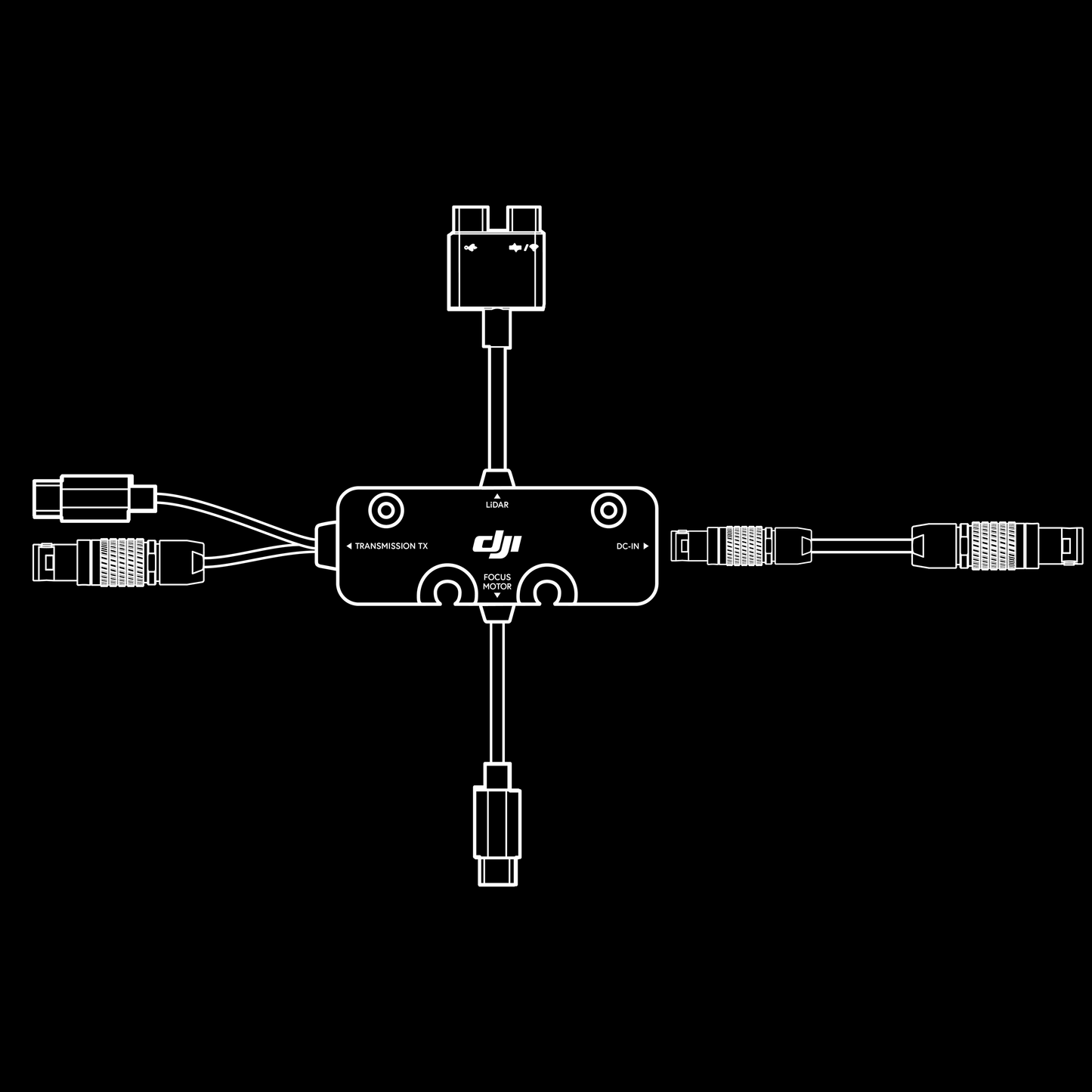

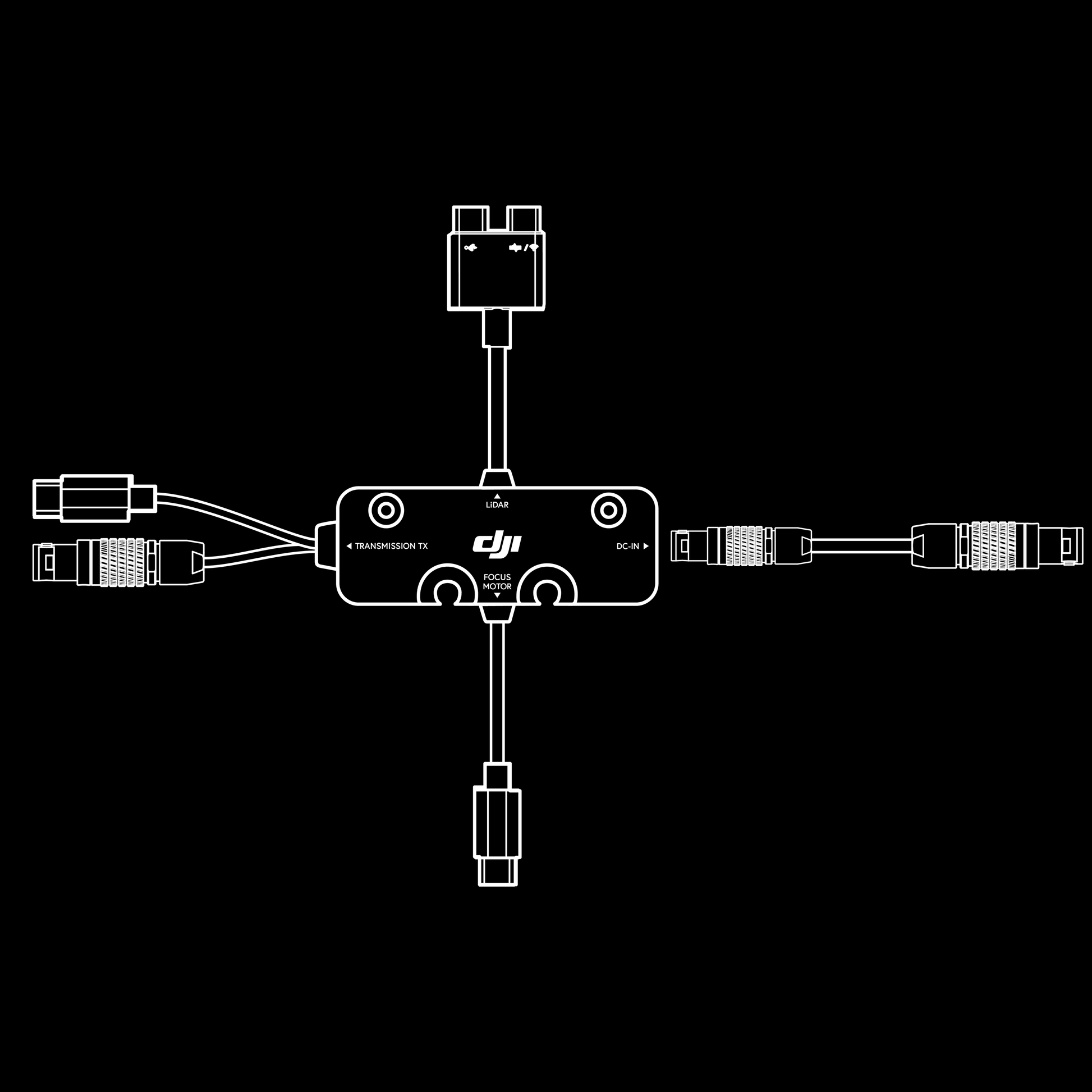

The only included cable is a Dual USB-C to 7-Pin Lemo that connects RS3 Pro, or RS4 Pro to the LiDAR Hub.

DJI Store call it the "Dual USB-C Stabilizer Power Cable"

At this point in time (September 2024), DJI are not selling a D-Tap to 7-Pin Lemo cable, or a 2-Pin Lemo to 7-Pin Lemo cable.

We expect many customers would like to use the Focus Pro LiDAR Hub on Ronin 2, MōVI Pro and off gimbal. This is the reason for creating these cables.

Our cables have been tested feeding the Focus Pro LiDAR Hub up to 17V with no issues.

The Transmission TX, Focus Pro LiDAR and Focus Pro Motors are all rated to receive that voltage.

COMPATIBLE WITH
DJI Focus Pro LiDAR Hub (2024)

❌ NOT COMPATIBLE WITH
❌ DJI RS LiDAR Hub (2023)

CONNECTOR SPECS
6-Pin (male) 1B Lemo Straight connector
7-Pin (male) 0B Lemo Straight connector

LENGTH
20-inch / 50cm

WEIGHT
1.34oz / 38g
