IG.100506

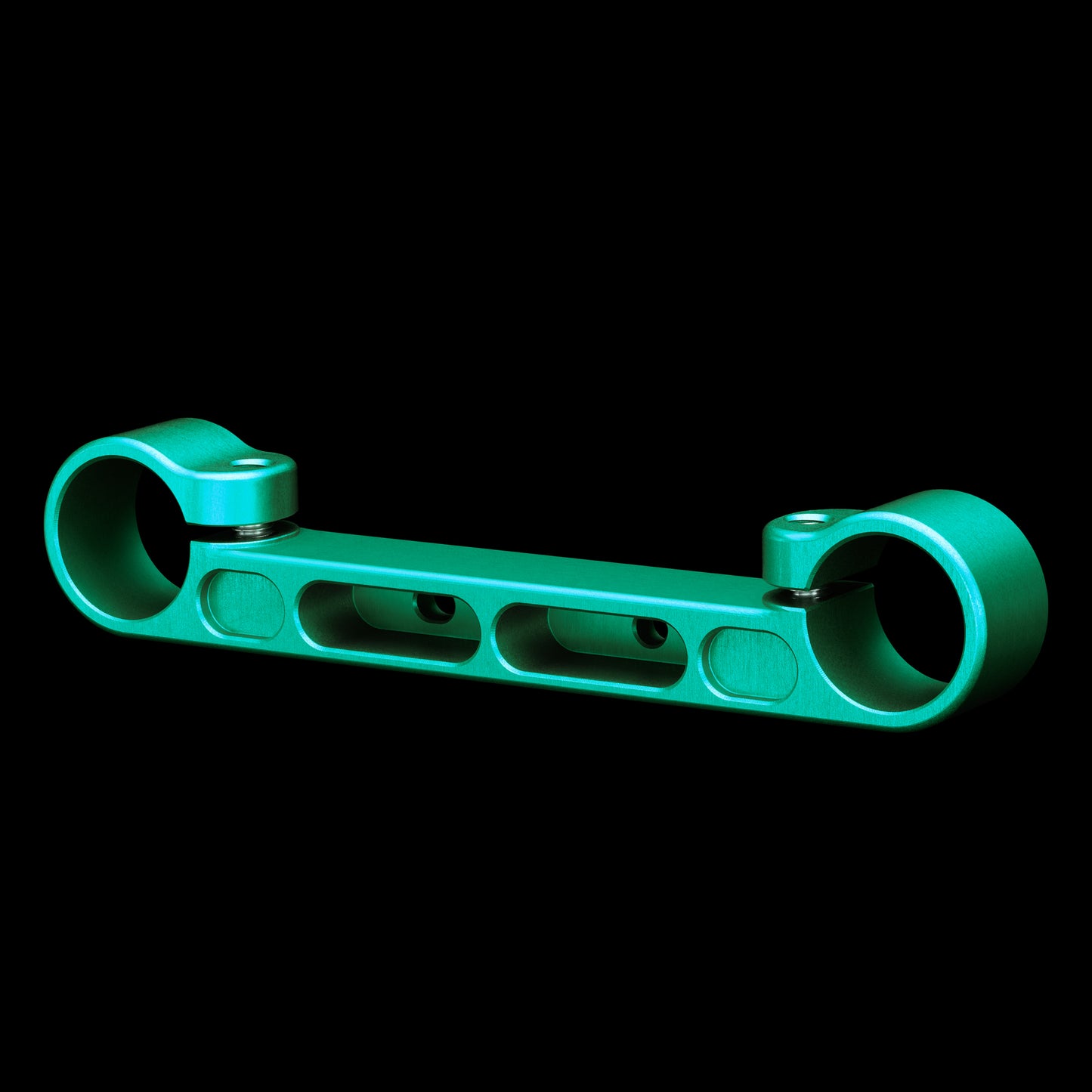

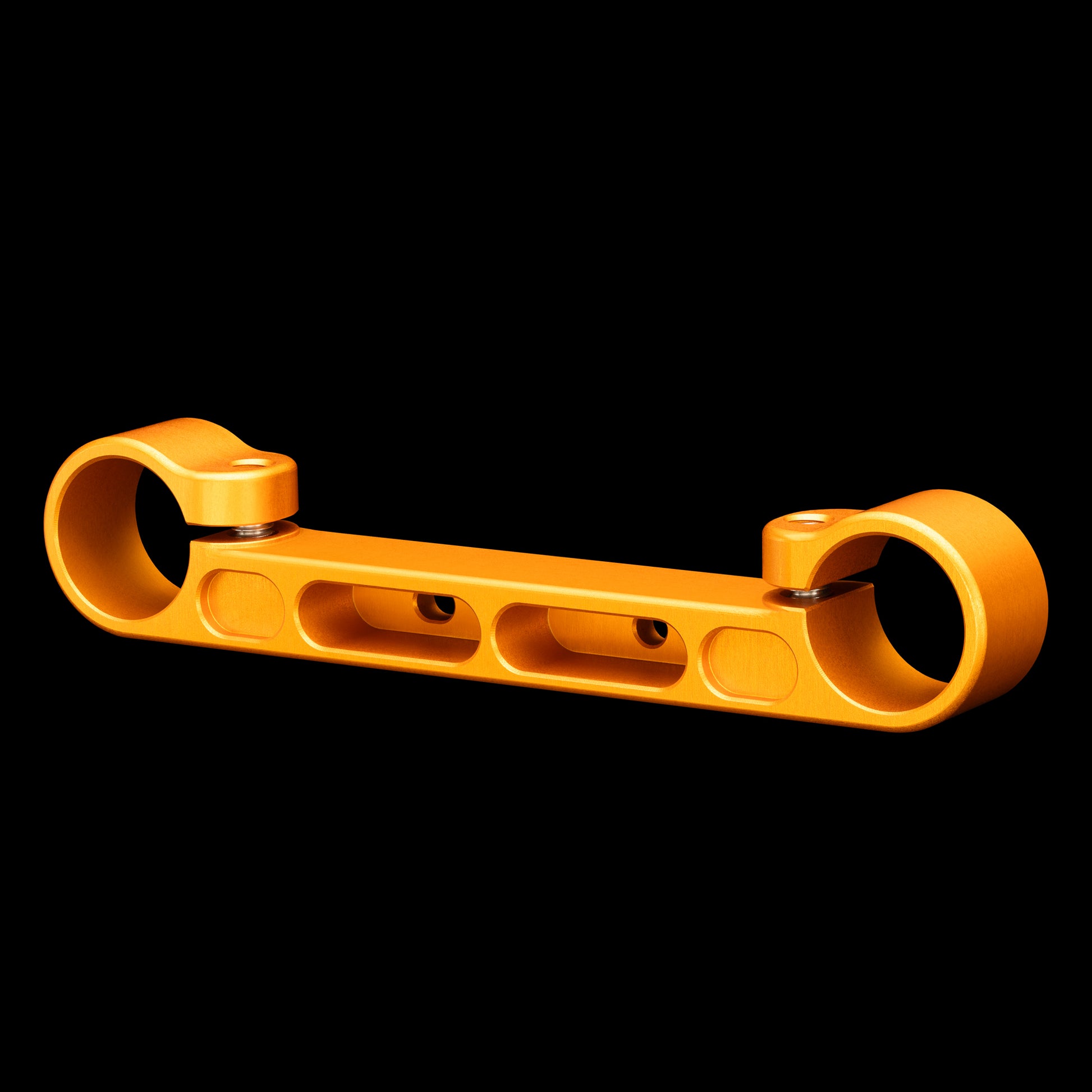

80mm Rod Mount

$195.80 AUD

For clean builds on and off gimbal! 🎥🔥

80mm Rod Mount supports two 15mm rods for your FIZ motors. Designed to work in tandem with our 80mm Lens Support and Gimbal Mate.

Each rod clamp is spaced 80mm apart — centre to centre. The 80mm spacing helps create a 'flat' camera package. More on that below.

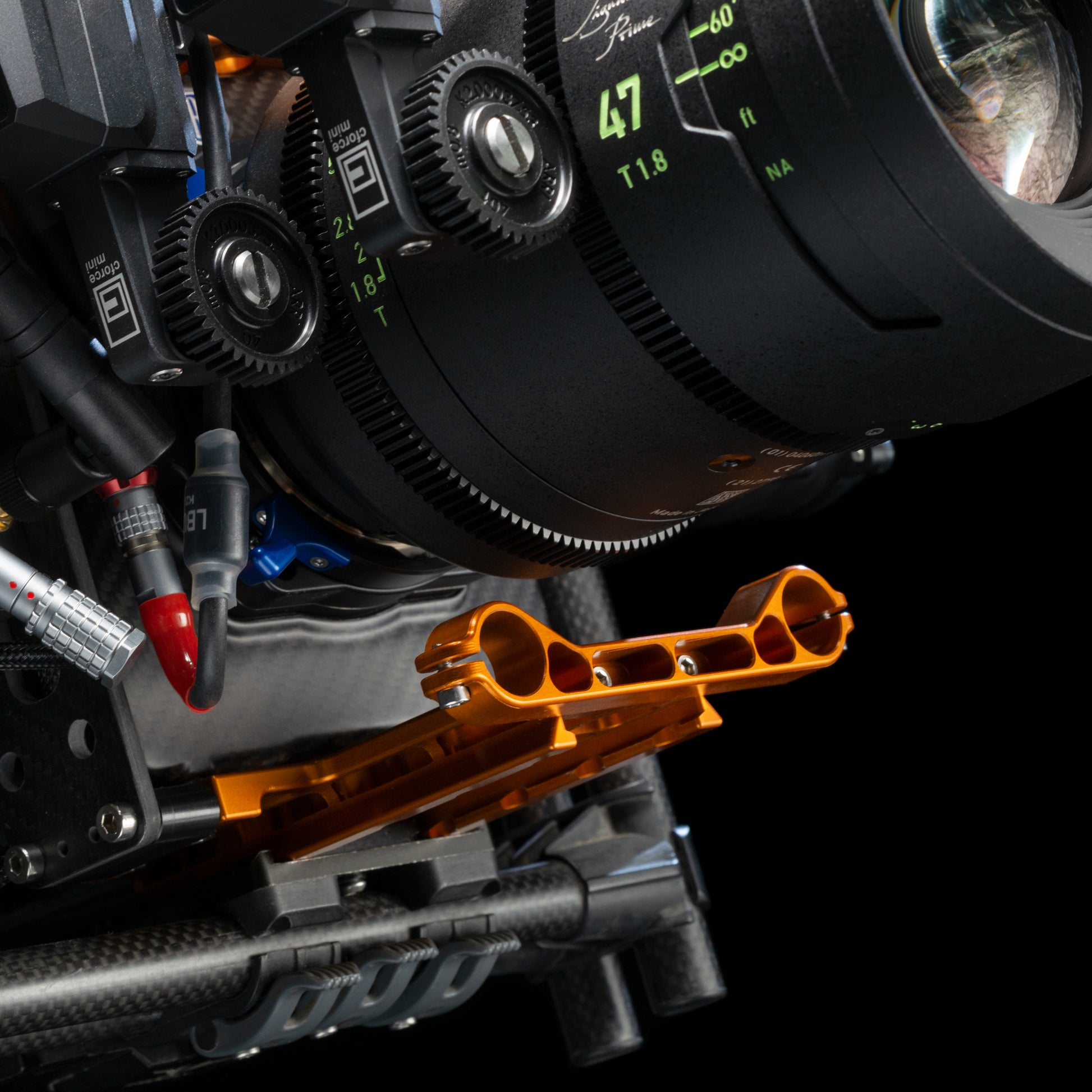

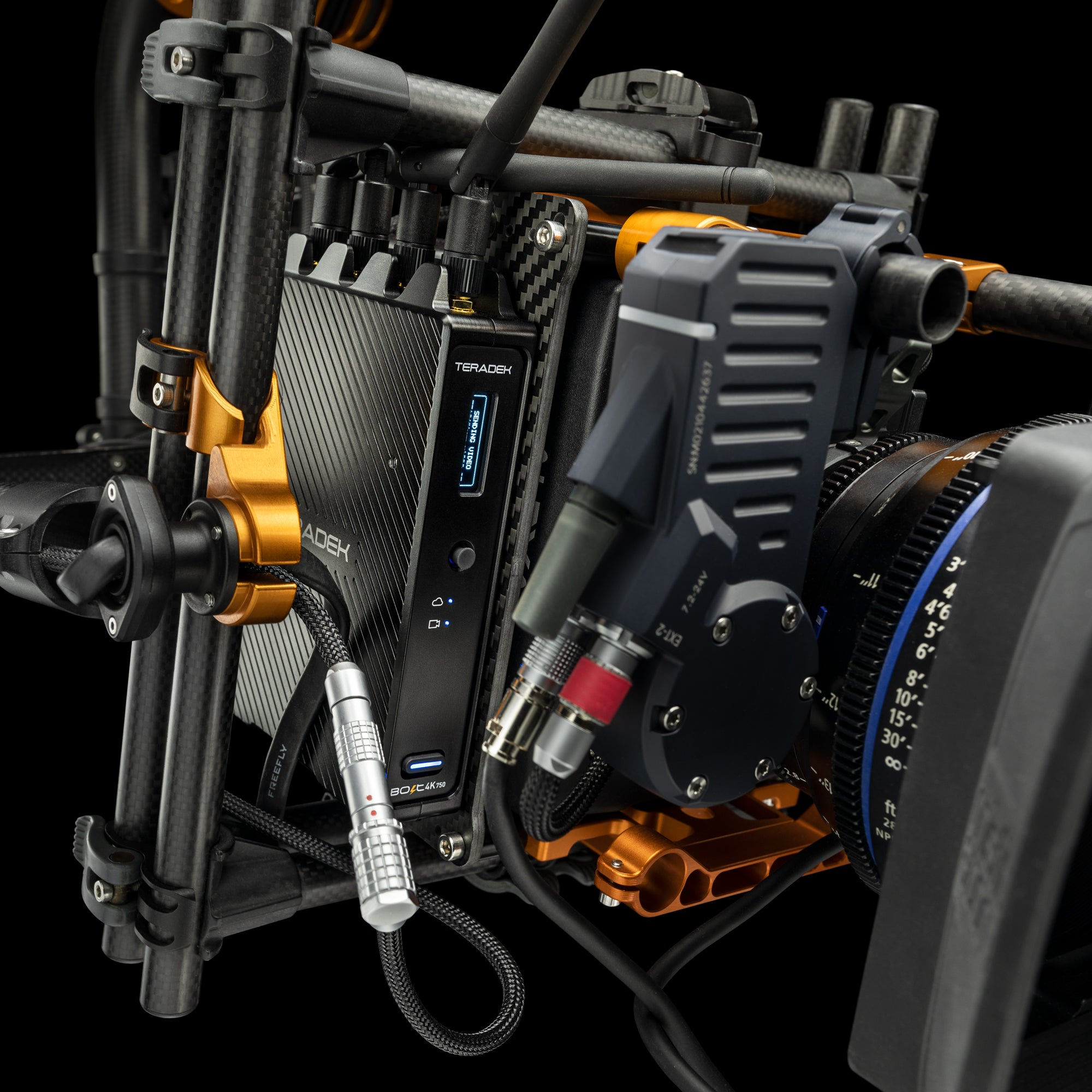

Most of the time, this accessory will live at the bottom of your rig attached to Gimbal Mate. But it can also be used on any front and rear surface of KEYSTONE!

80mm Rod Mount mounts to:

60mm vs 80mm Spacing

The 60mm standard that's been around for decades does provide correct lens height — the downside, the rod clamps and FIZ motors can clash with the gimbal cage. Preventing you from sliding the camera package further back and perfecting the balance point!

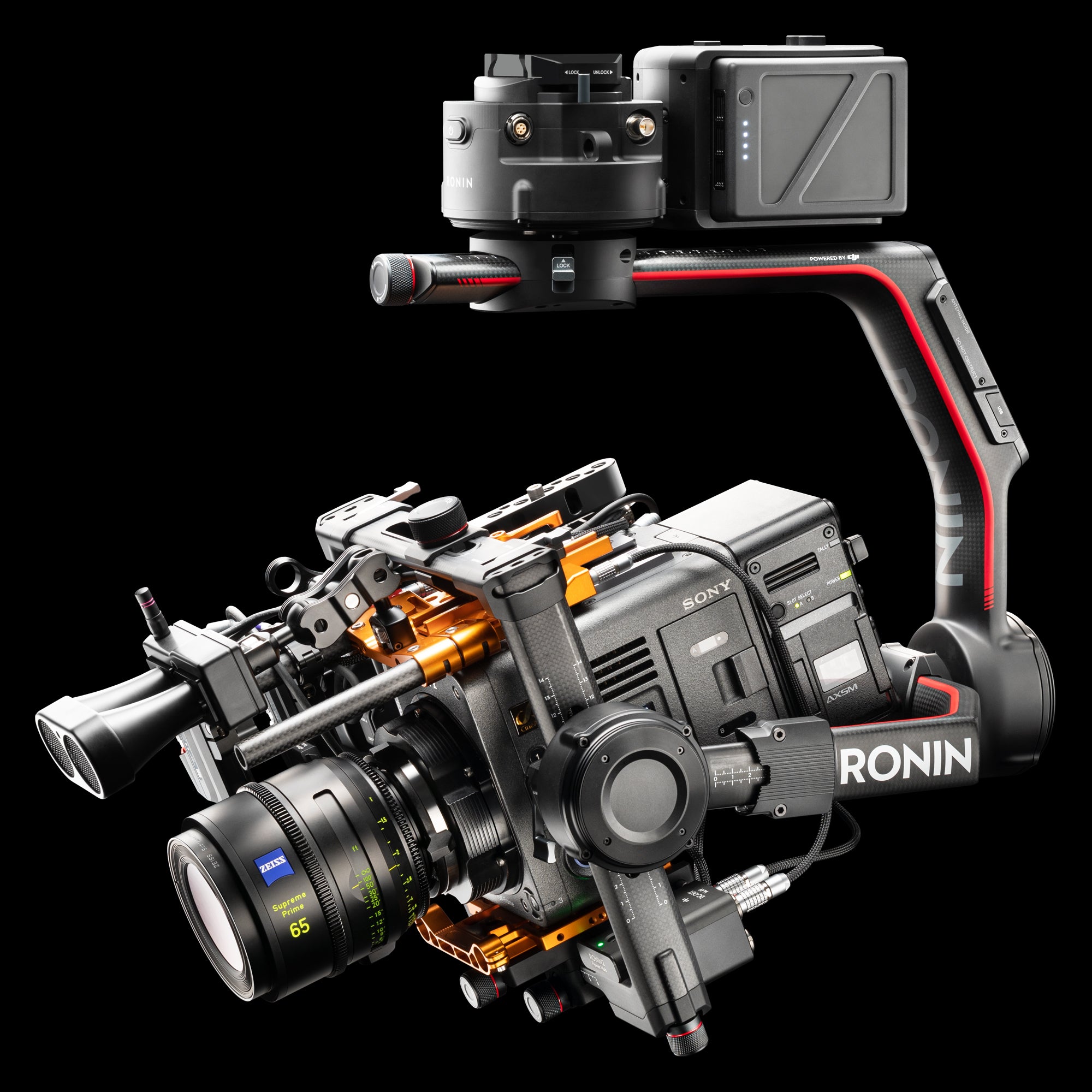

This is what drove us to design our 80mm Rod Mount and 80mm Lens Support. These help create a 'flat' camera package ideal for all gimbals 🔥

————————————

M3 x 8mm socket head cap screws mount this accessory to Gimbal Mate and KEYSTONE.

M4 x 12mm socket head cap screws clamp the rods in place.

We include these screws in the bag plus spares!

CNC machined from a single block of high-grade aluminium.

Designed and manufactured in Tasmania, Australia.

MADE FROM
High-grade 6061-T651 aluminium billet
Hard anodised

SHIPS WITH
Four M3 x 8mm socket head cap screws
Four M4 x 12mm socket head cap screws

WEIGHT
0.84oz / 24g

DIMENSIONS
3.89 x 0.47 x 0.74” / 99 x 12 x 19mm
