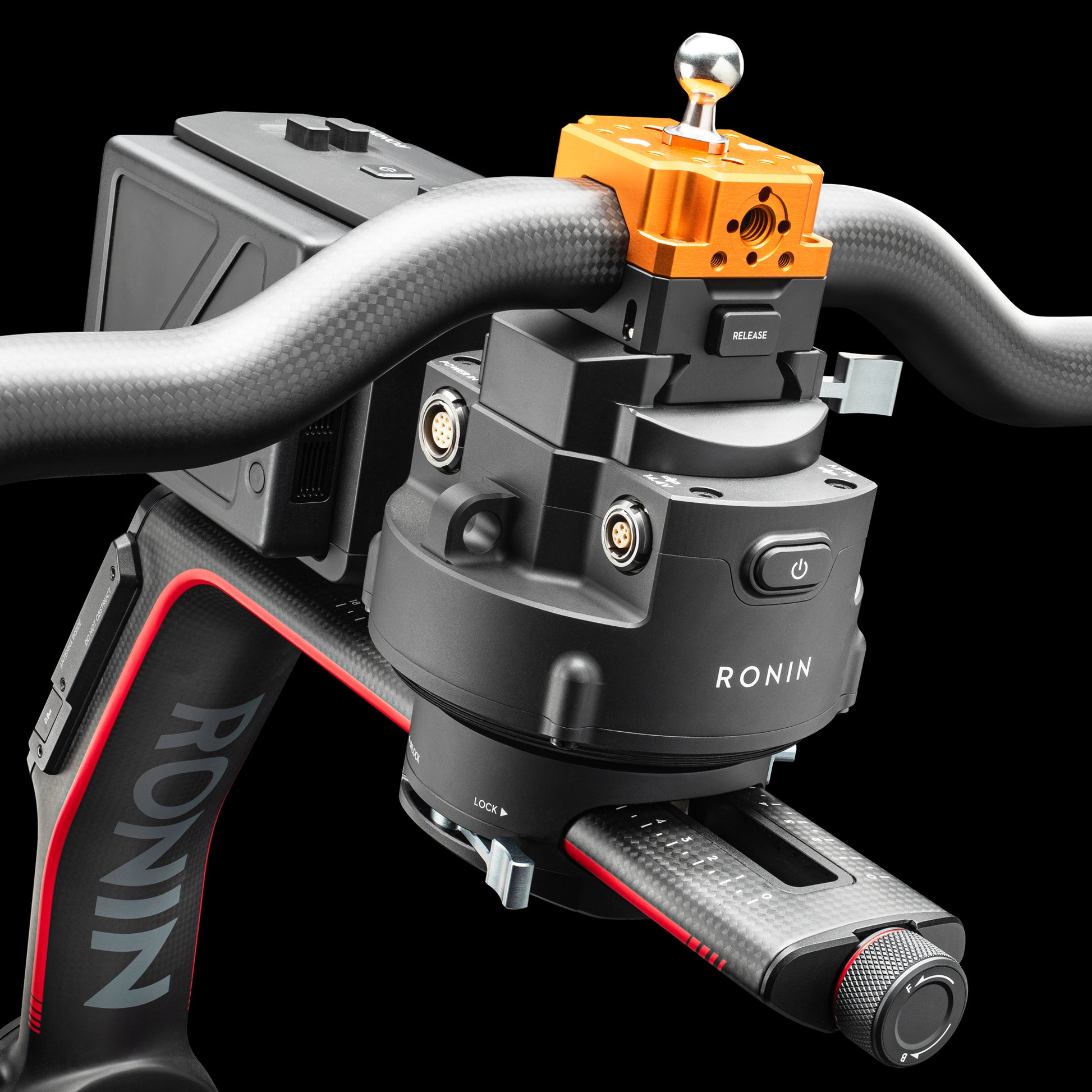

The mount installs onto Ronin 2 Grip with four M4 x 10mm socket head cap screws. The underside of the mount follows the octagonal contours of the ring to prevent twist and rotation.

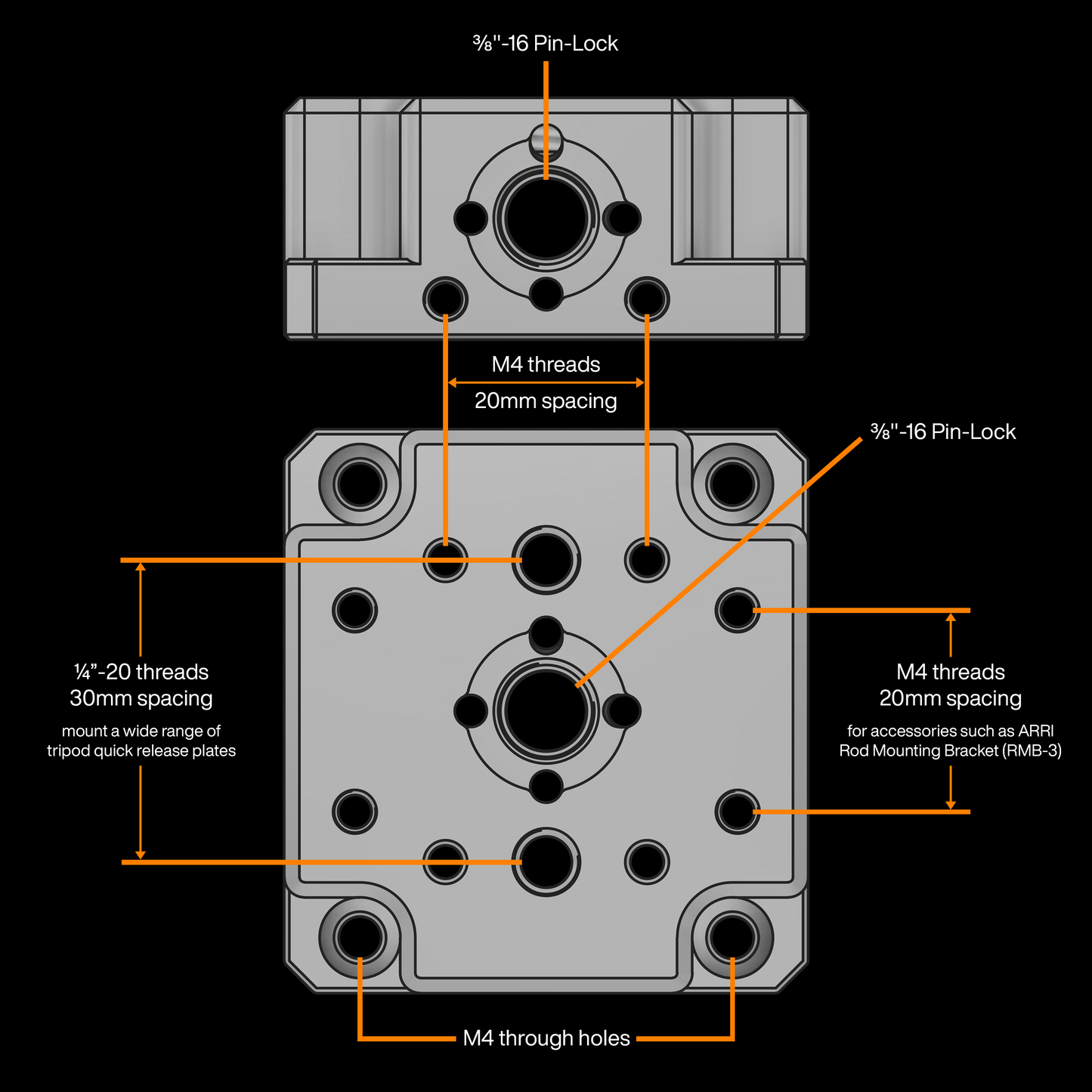

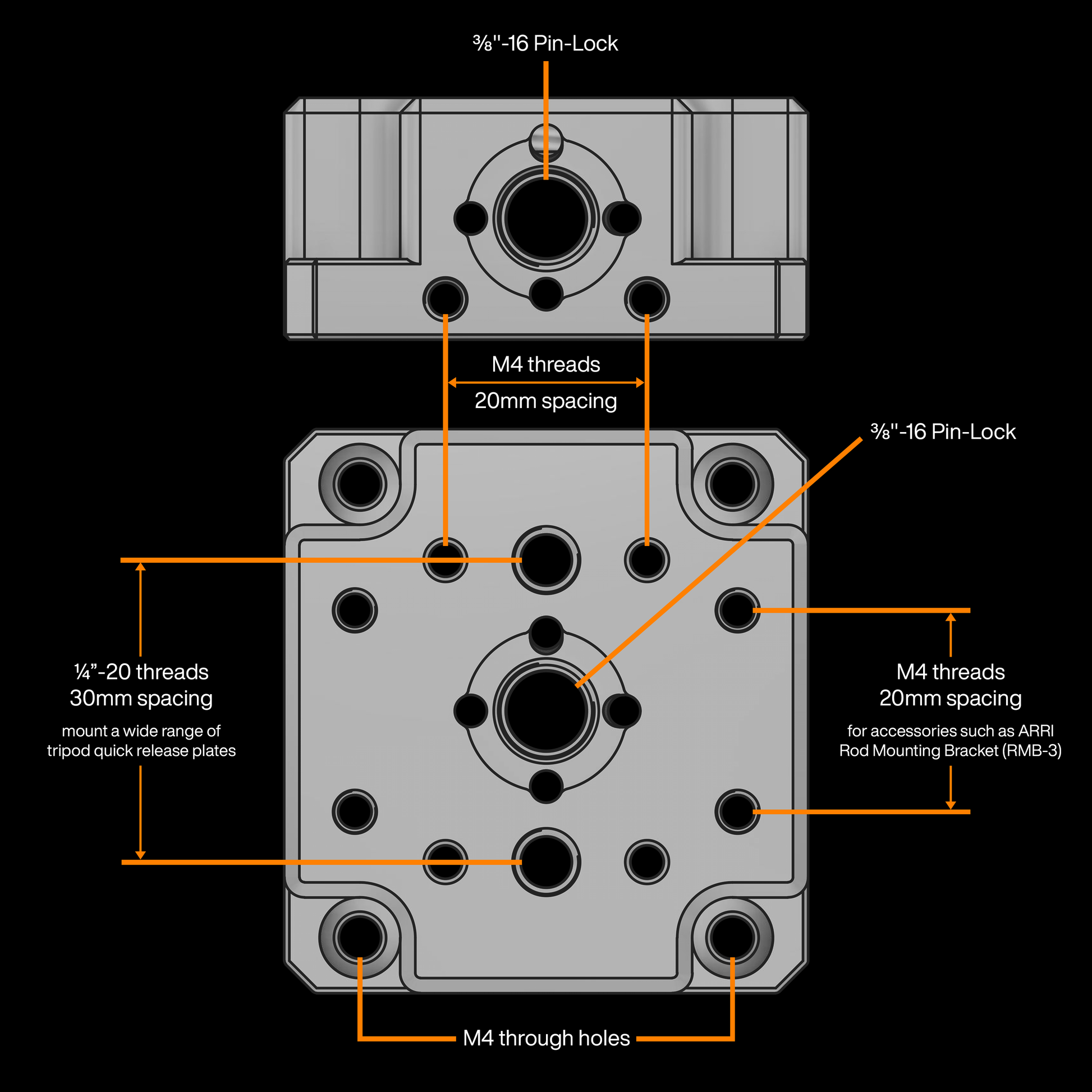

On the front, back, and top surfaces you'll find multiple pairs of ARRI spaced M4 threads. These threads are ideal for mounting an ARRI RMB-3 and rod mounted EVF for example.

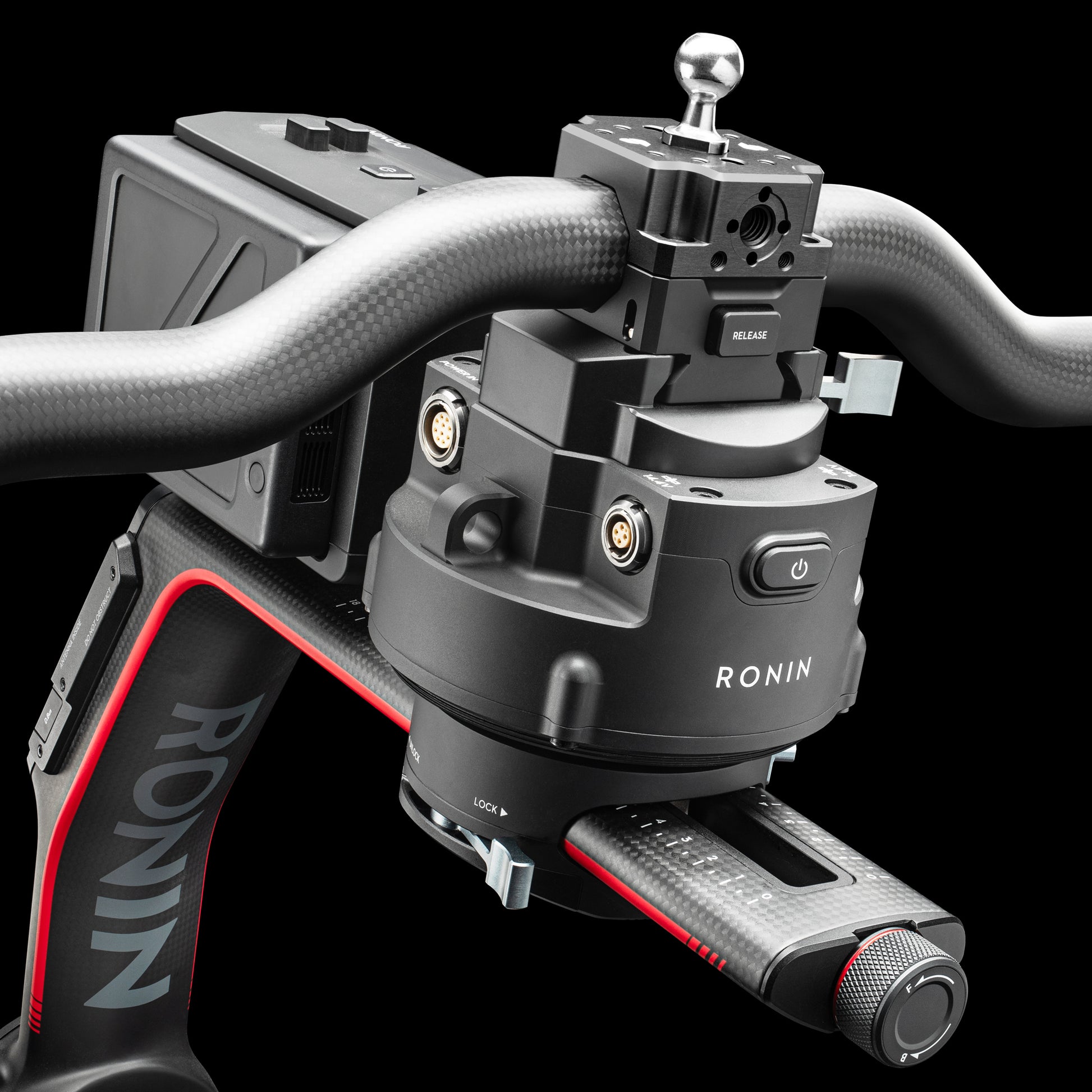

Our Accessory Mount is similar to the Ronin 2 Top Mounting Block which ships with the Ronin 2 Professional Combo. They differ in a few ways:
‣ DJI version only provides four ¼”-20 threads + two pairs of M4’s on top
‣ Ignite Digi version provides three ⅜"-16 threads with ARRI pin-loc + 6 pairs of M4’s on multiple sides
An additional benefit of our design is the centrally located ⅜"-16 thread on the top surface. This means when using an Easyrig, the gimbal is centred and balanced.

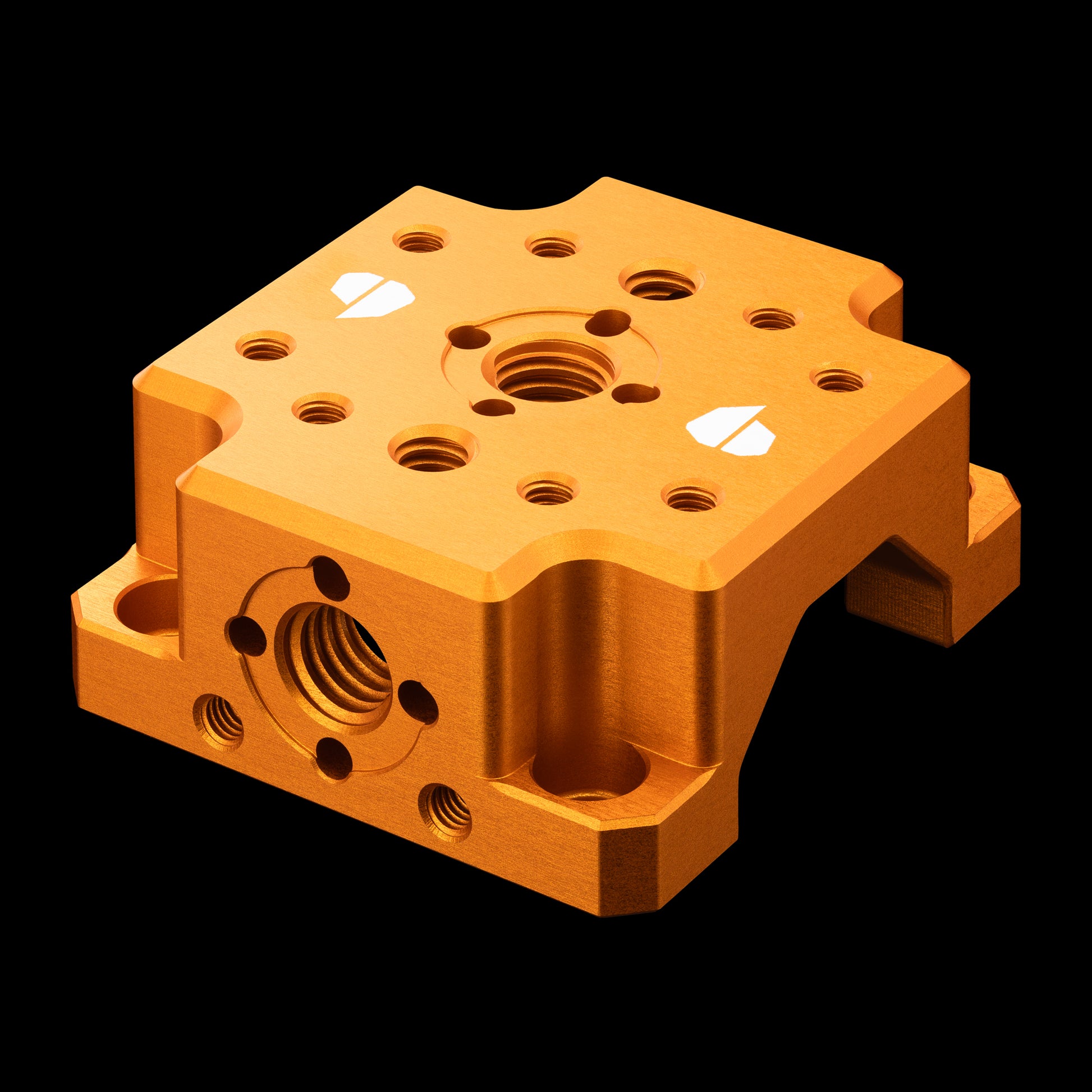

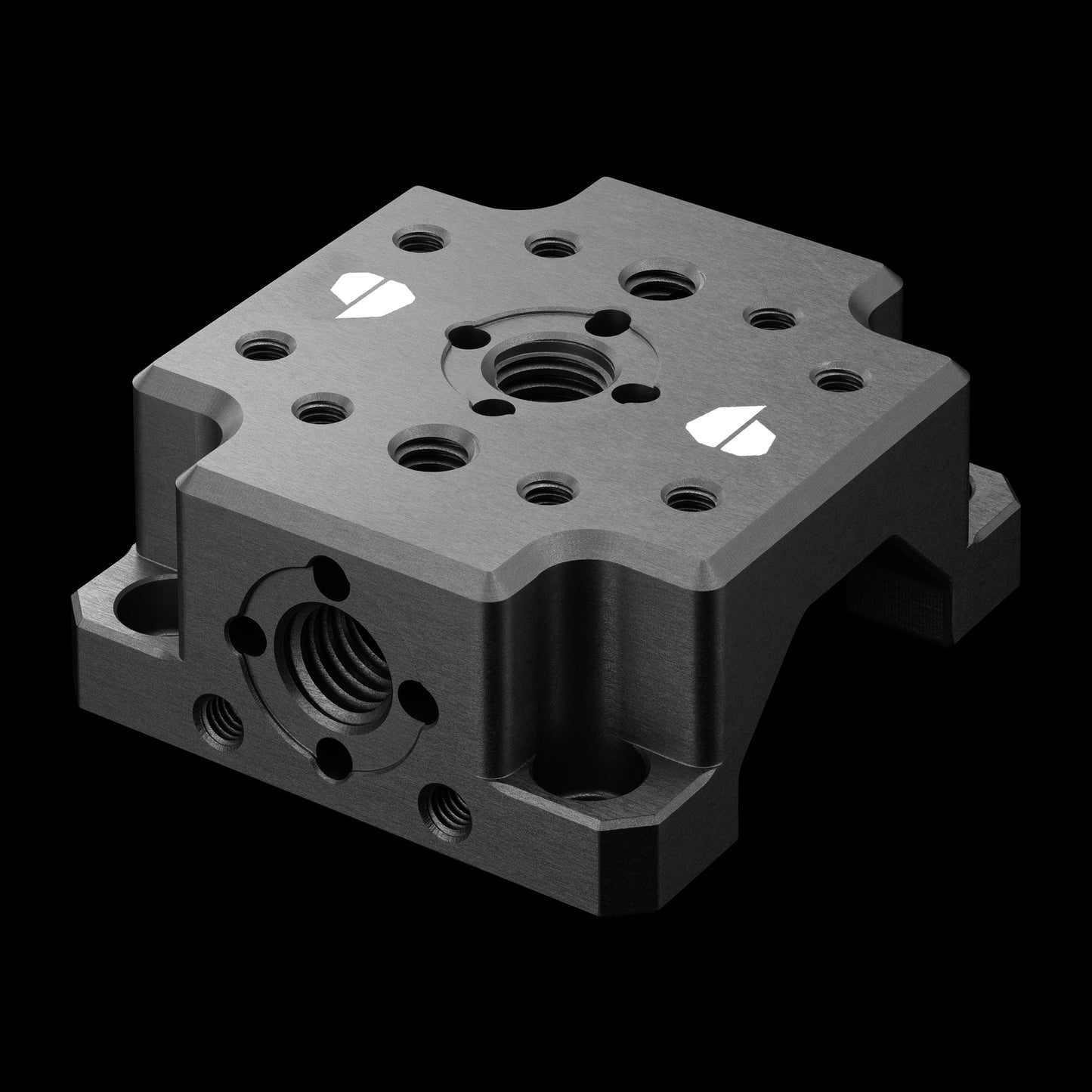

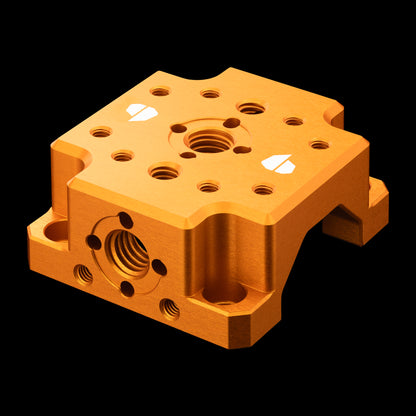

CNC machined from a single block of high-grade aluminium.
Designed and manufactured in Tasmania, Australia.
