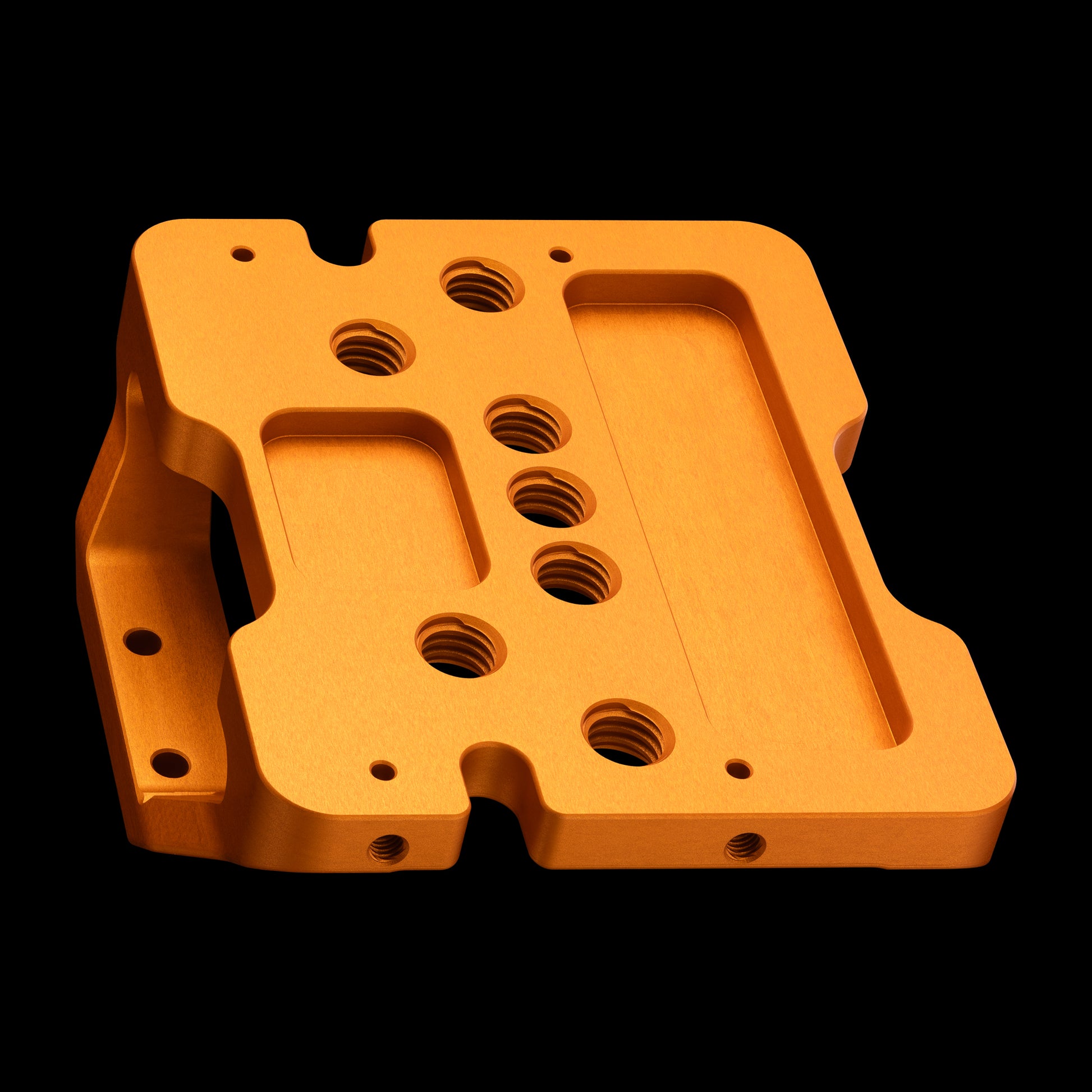

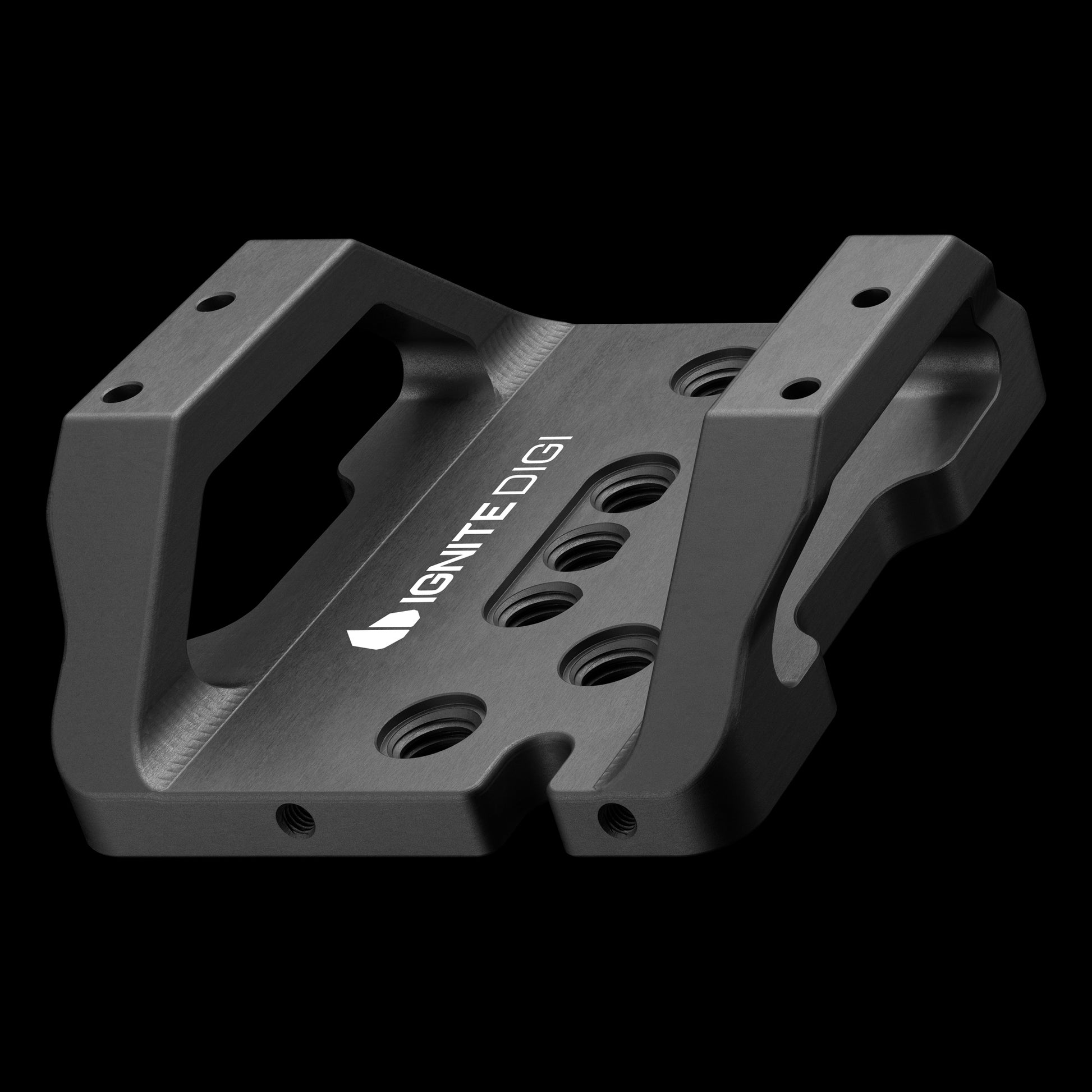

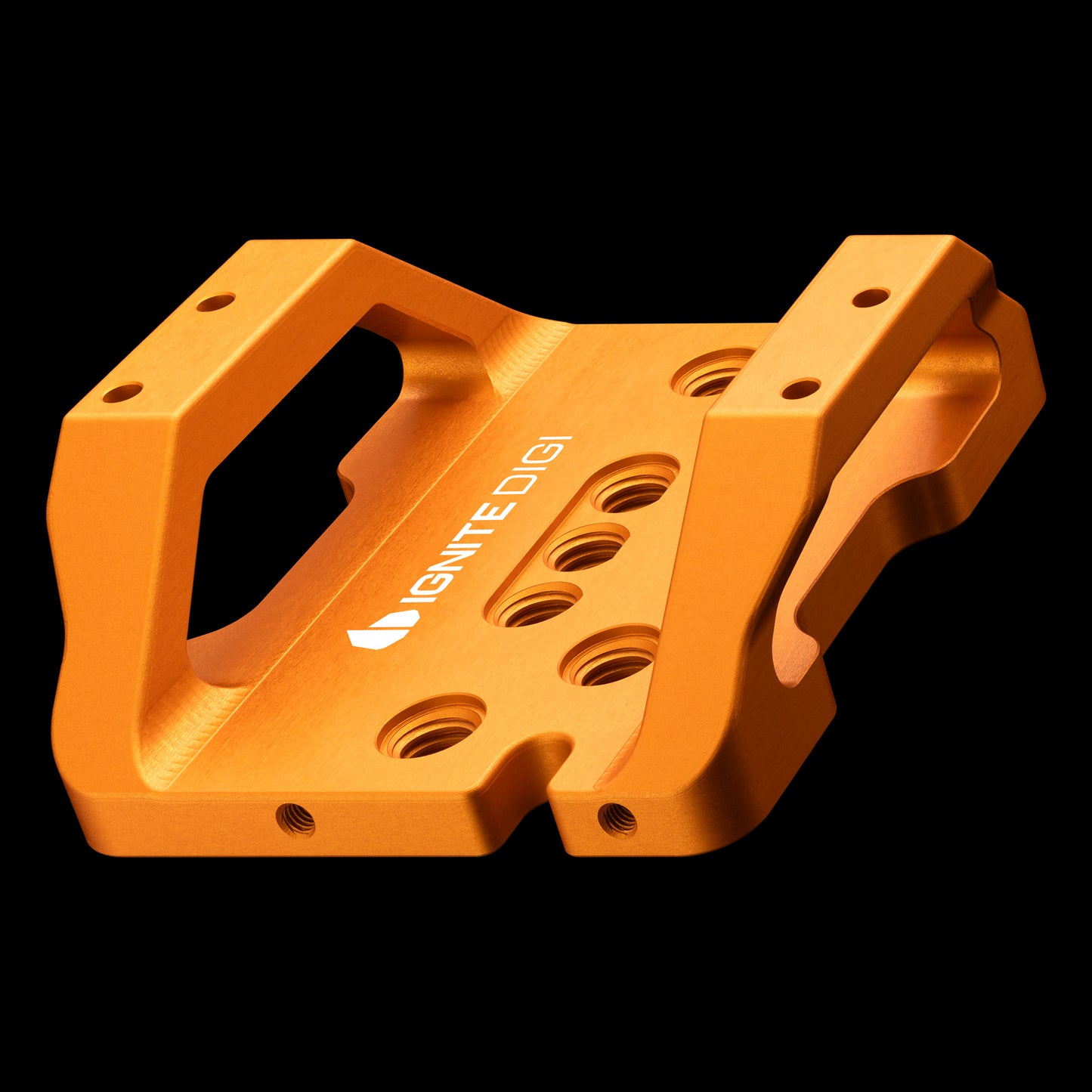

Bridge Plate Booster Seat

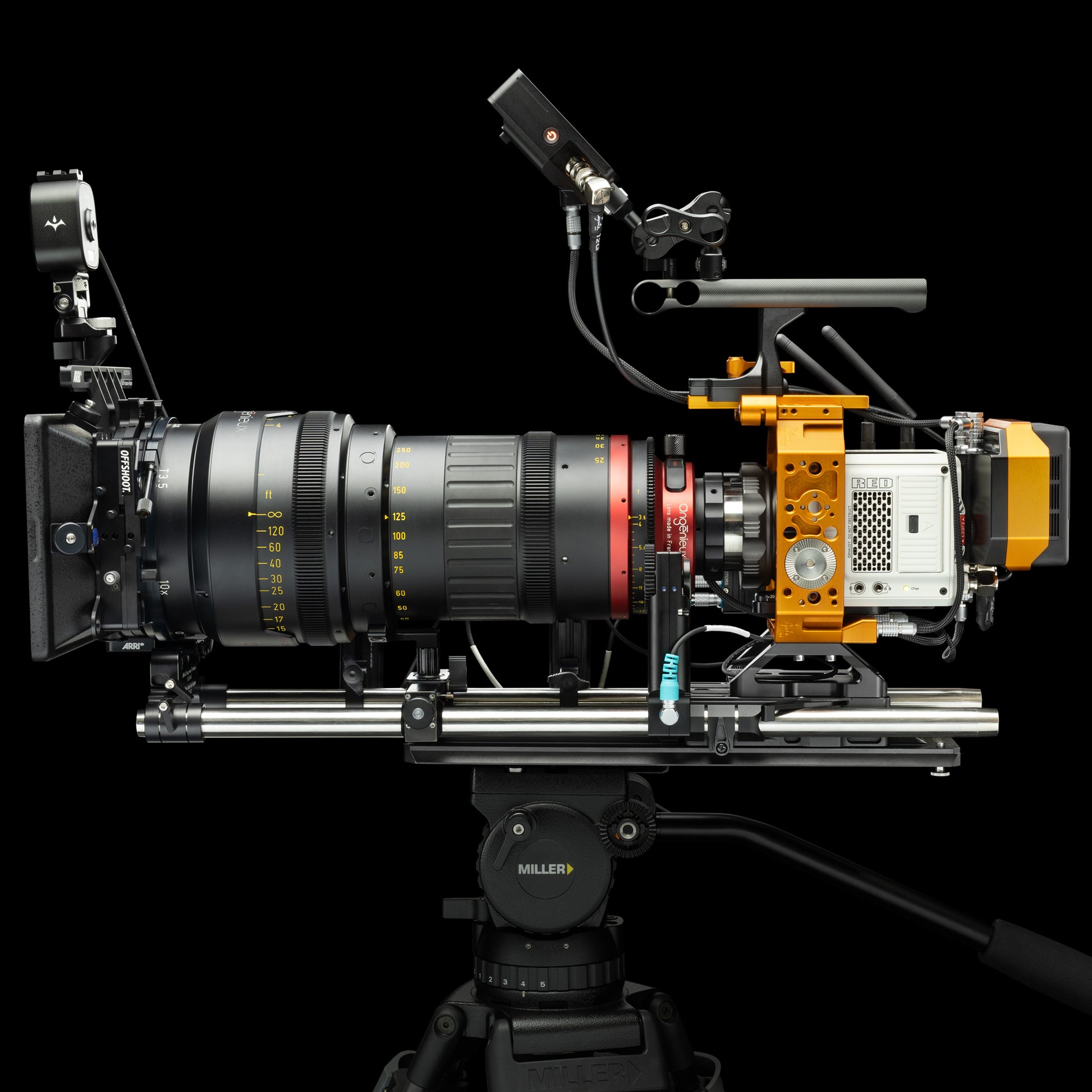

Correct lens height is important when using large diameter cinema lenses like the Angénieux Optimo Style 25-250mm and rod mounted matte boxes.The Booster Seat simplifies your build and avoids having to stack an ARRI MAP-2 and BPA-4 spacer.

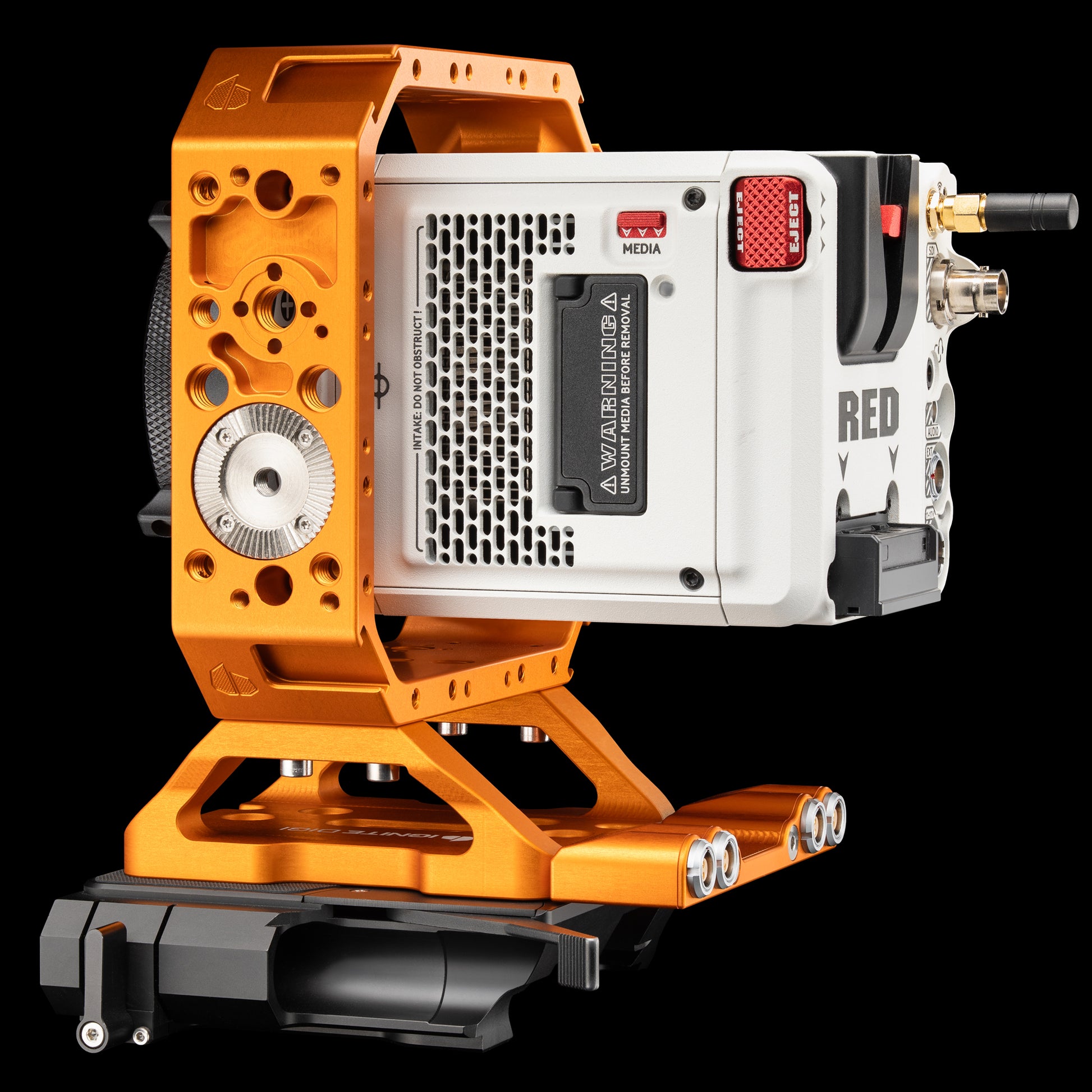

Four M4 x 12mm socket head cap screws mount the Booster Seat to KEYSTONE for a firm, anti-twist connection.

If you’re using our Power Breakout, there’s two positions with M4 mounting holes. One at the front, the other at the back.

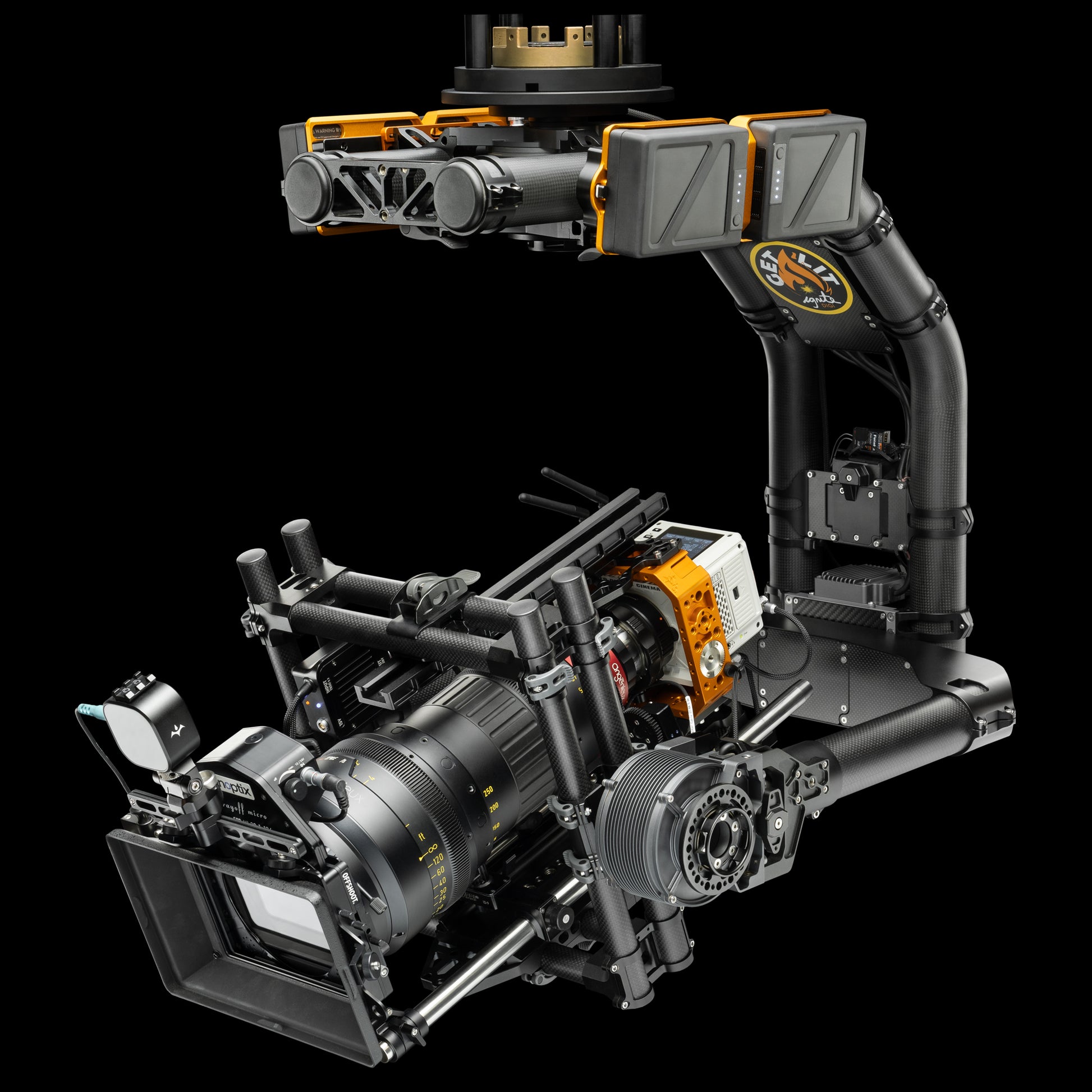

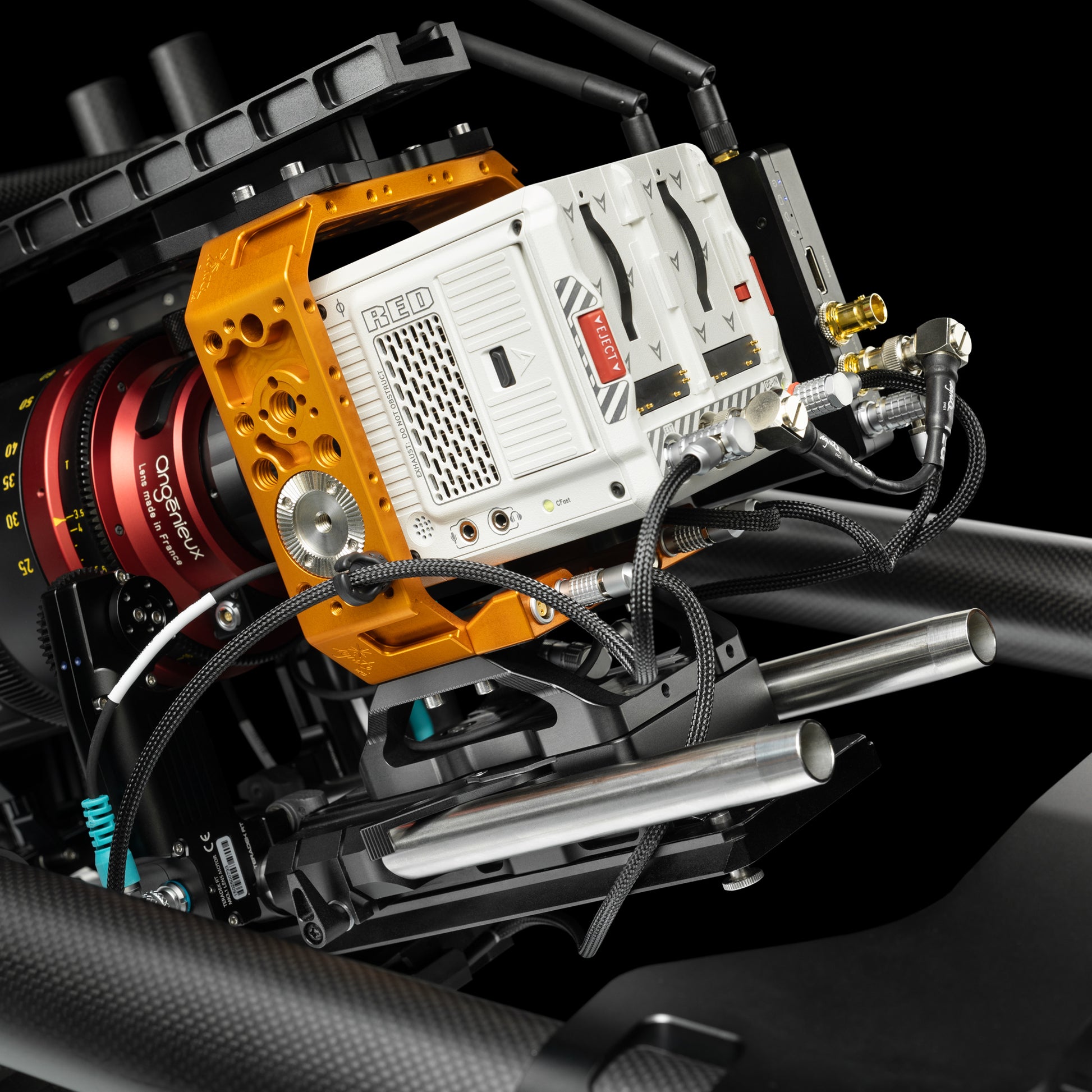

The Booster Seat is compatible with the Freefly MōVI XL 19mm Camera Plate, as well as other industry standard 15mm and 19mm studio bridge plates. Examples listed below.

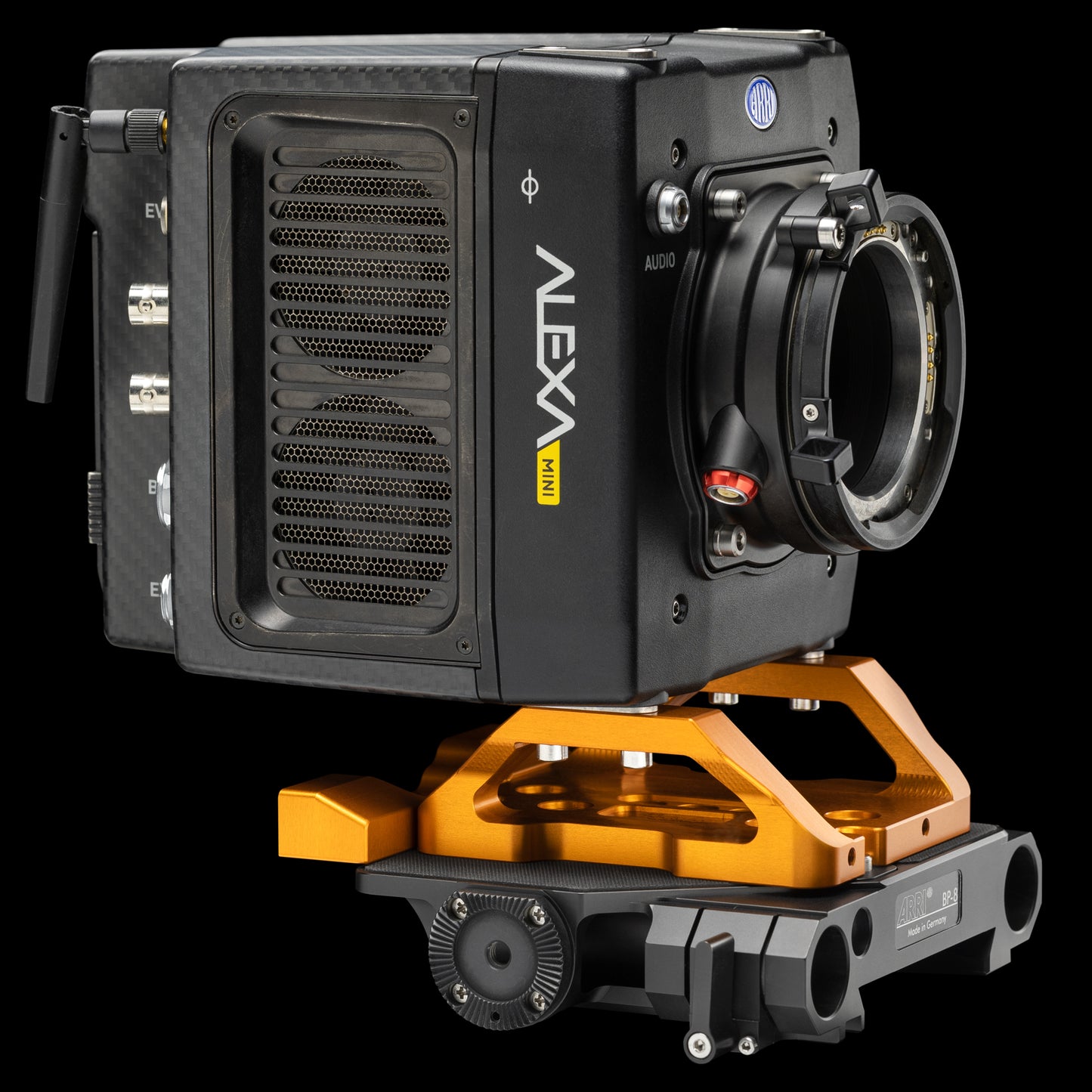

Last but not least! Booster Seat is also compatible with ARRI ALEXA Mini and Mini LF.

Designed and manufactured in Tasmania, Australia.

COMPATIBLE WITH
Freefly MōVI XL 19mm Camera Bridge Plate
ARRI BP-8 19mm Bridge Plate
ARRI BP-9 15mm Bridge Plate
Bright Tangerine 19mm Left Field Studio Bridge Plate
Bright Tangerine 15mm Left Field Studio Bridge Plate
Wooden Camera Unified & Quick Release
ARRI ALEXA Mini
ARRI ALEXA Mini LF

MADE FROM
High-grade 6061-T651 aluminium billet
Hard anodised

SHIPS WITH
Eight M4 x 12mm socket head cap screws

WEIGHT
7.19oz / 204g including four M4 screws

DIMENSIONS
3.93 x 3.77 x 1.39” / 100 x 96 x 35.5mm
