Carbon Back Plate for Teradek / V-RAPTOR

Name: Carbon Back Plate for Teradek / V-RAPTOR
Brand: Ignite Digi
SKU: IG.100247
Price: 110.40 AUD
Availability: OutOfStock

SKU:IG.100247

Out of stock

$110.40 AUD

~~$138.00 AUD~~ $110.40 AUD

Sale Sold out

Quantity

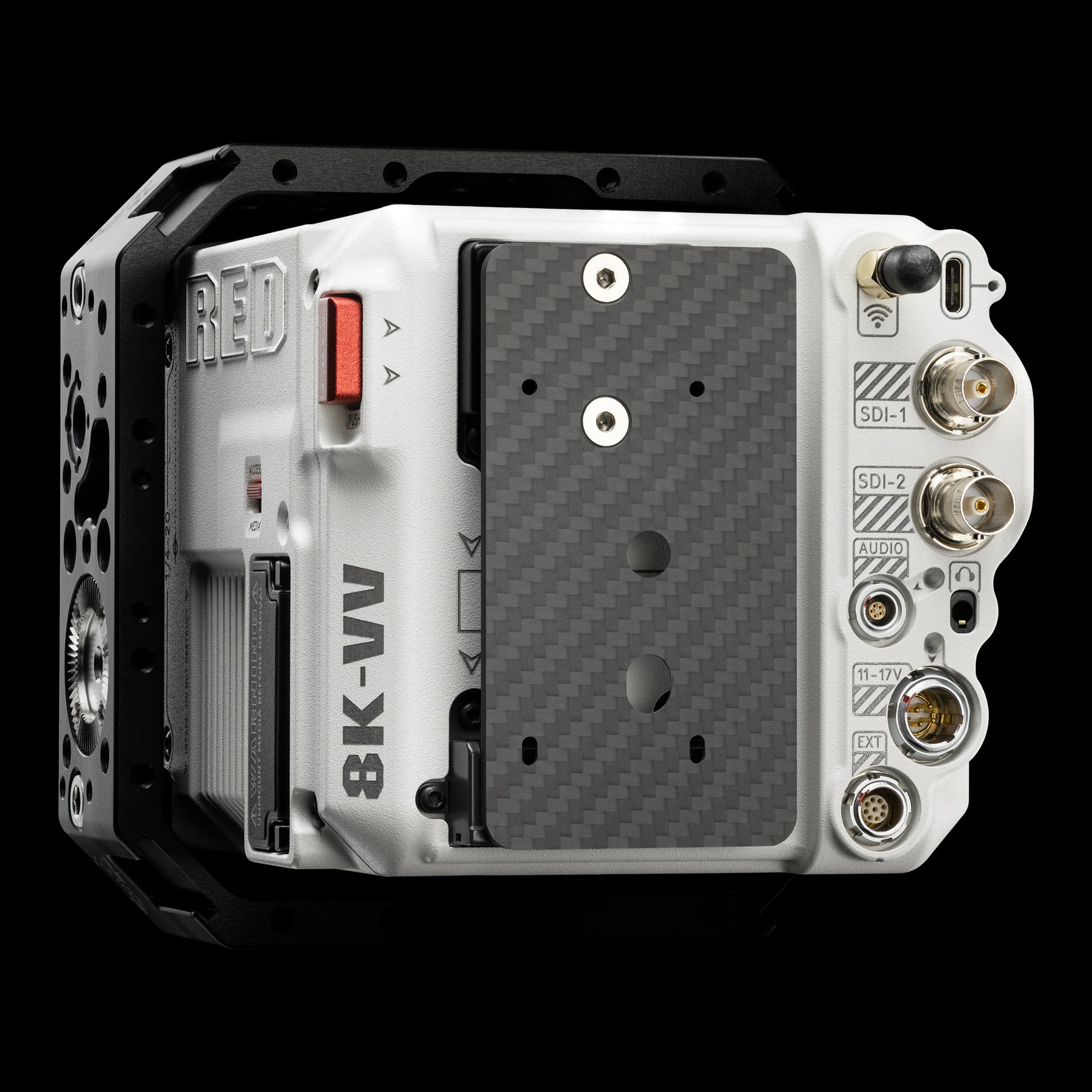

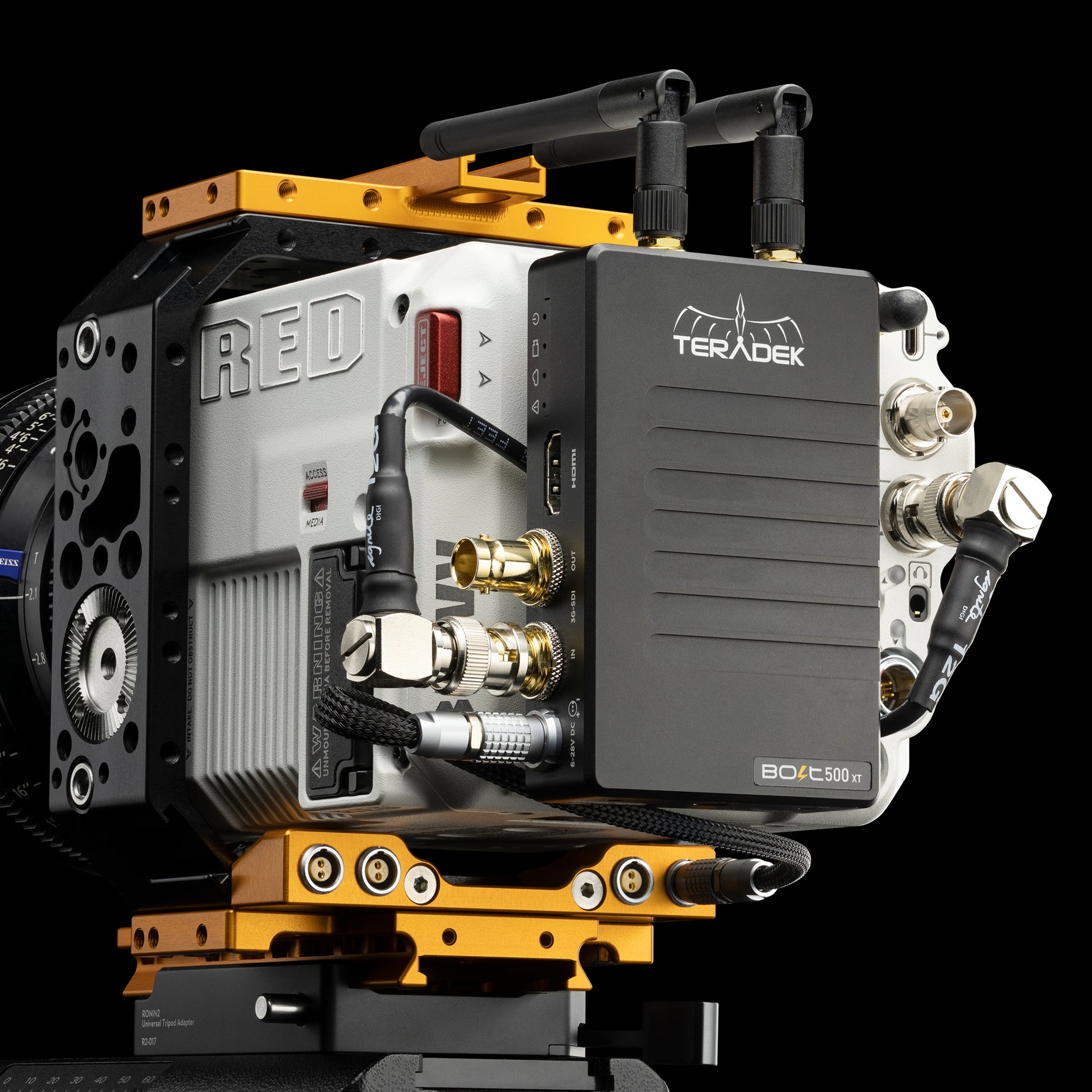

This ultra slimline Carbon Back Plate enables these Teradek transmitters:

Gen 4: Teradek Bolt LT/XT 500, 1000, 3000
Gen 5: Teradek Bolt 4K LT 750, 1500, MAX
Gen 6: Teradek Bolt 6 LT 750, 1500, MAX

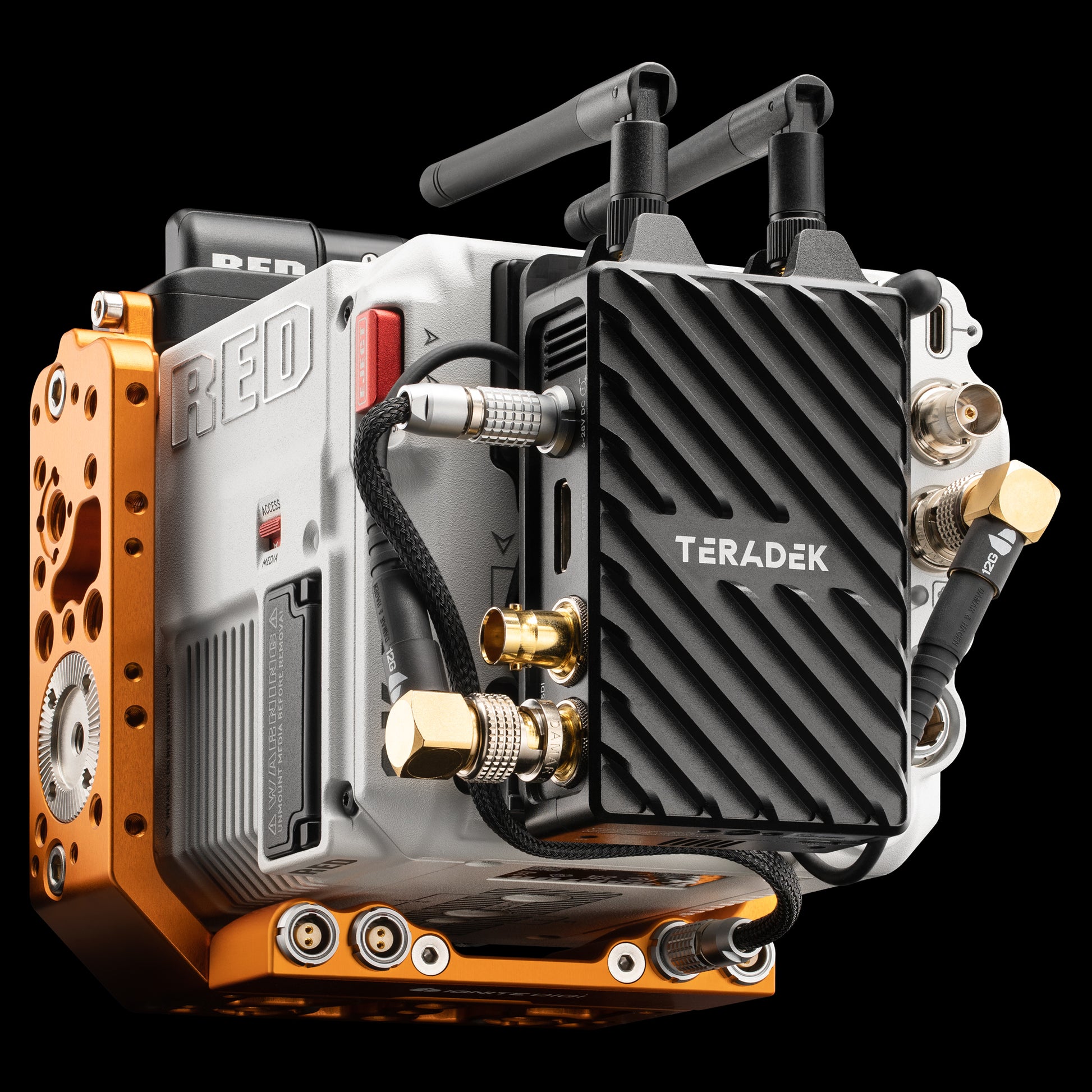

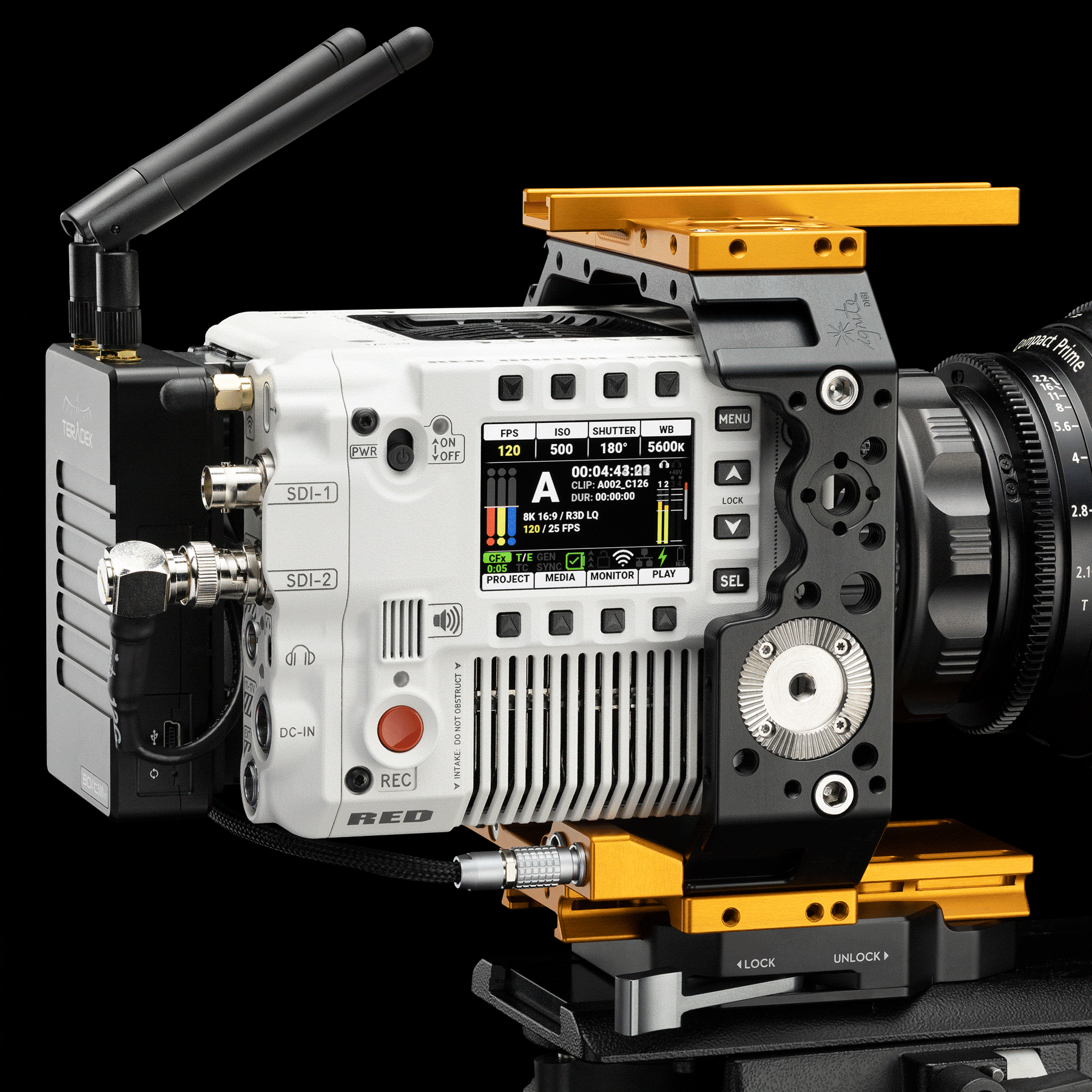

...to mount the V-Lock receiver of RED V-RAPTOR and V-RAPTOR-XL!

What about KOMODO-X?

This plate will work with K-X but it's a loose fit. This is due to RED slightly changing their V-Lock receiver design. We suggest packing out the V wedge with a small bit of tape.

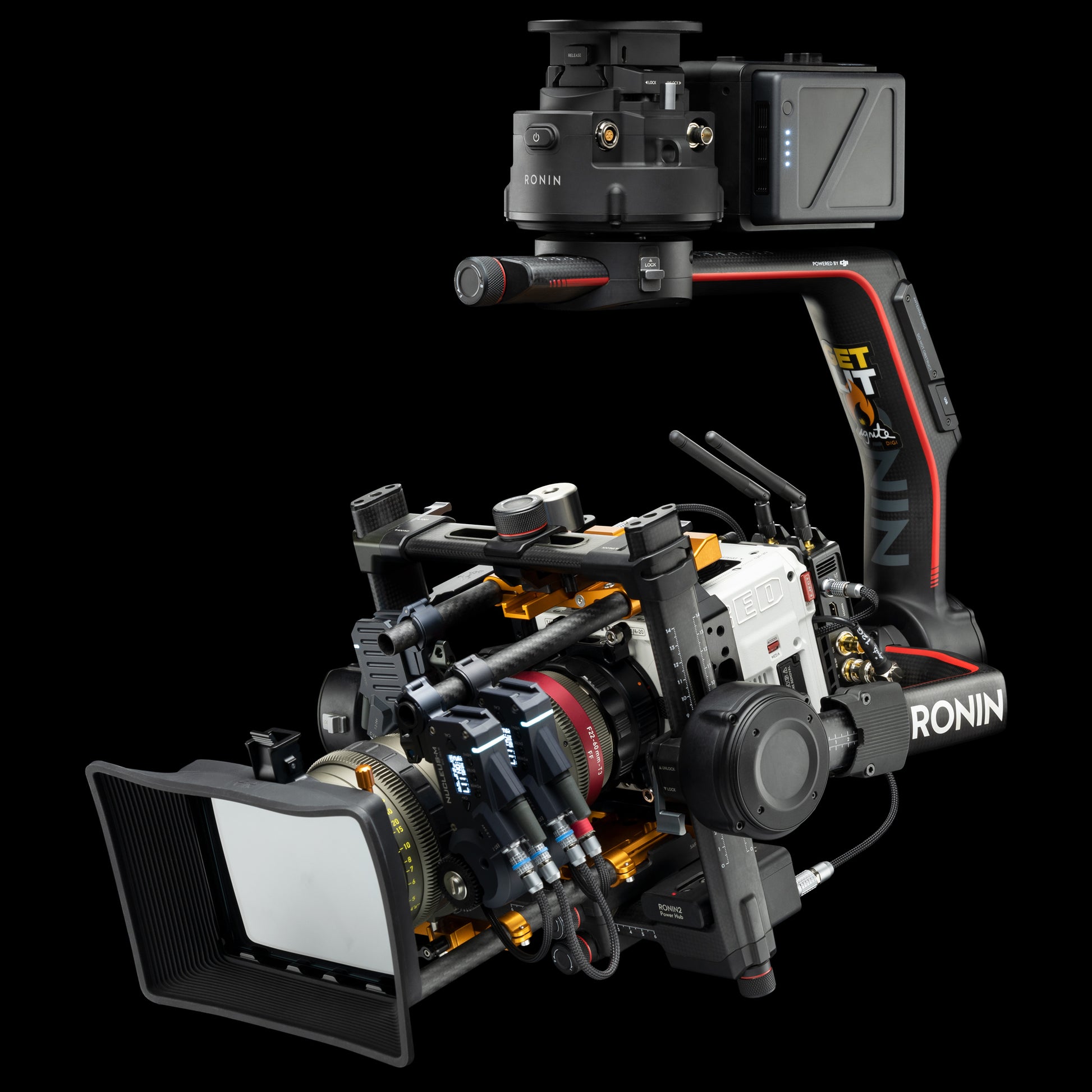

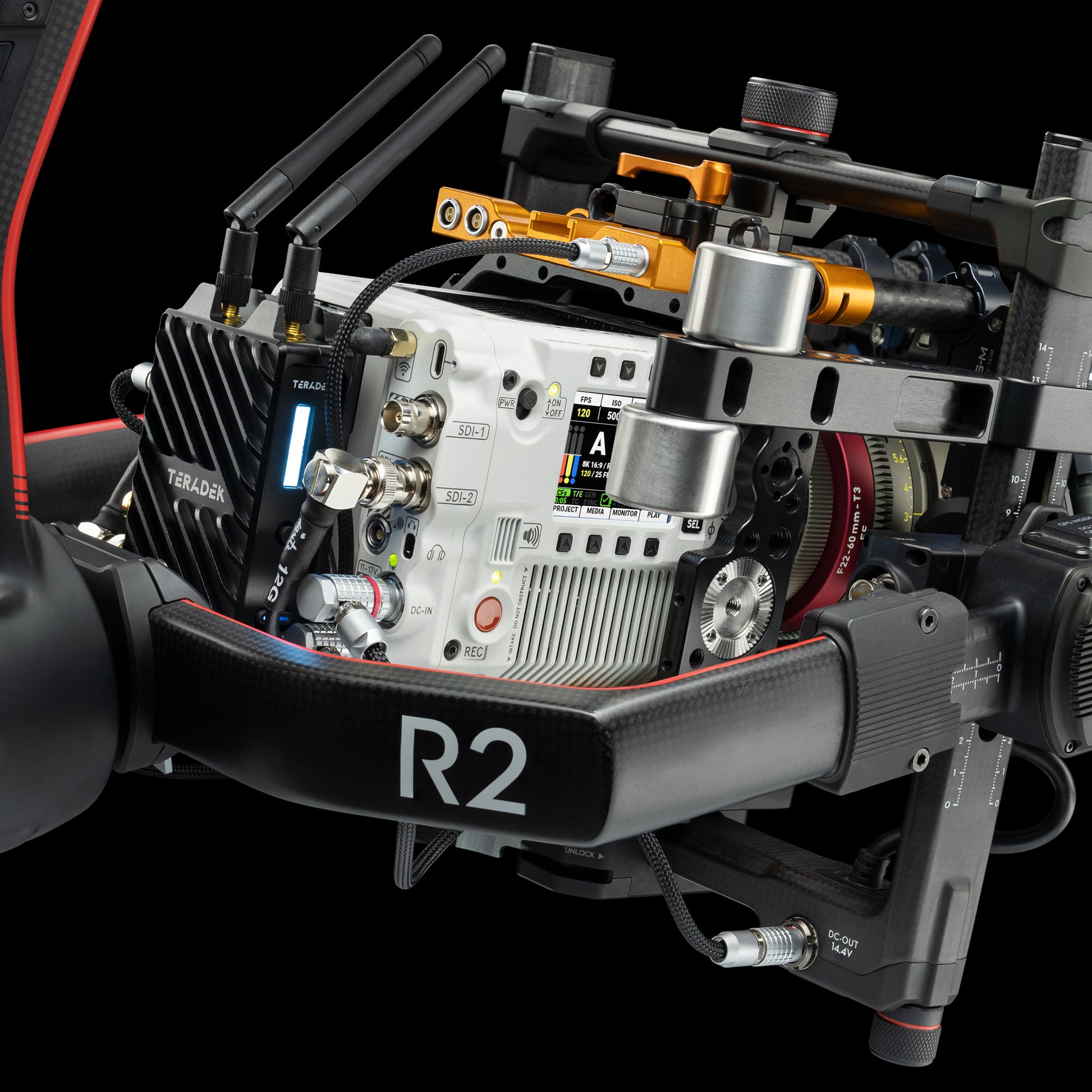

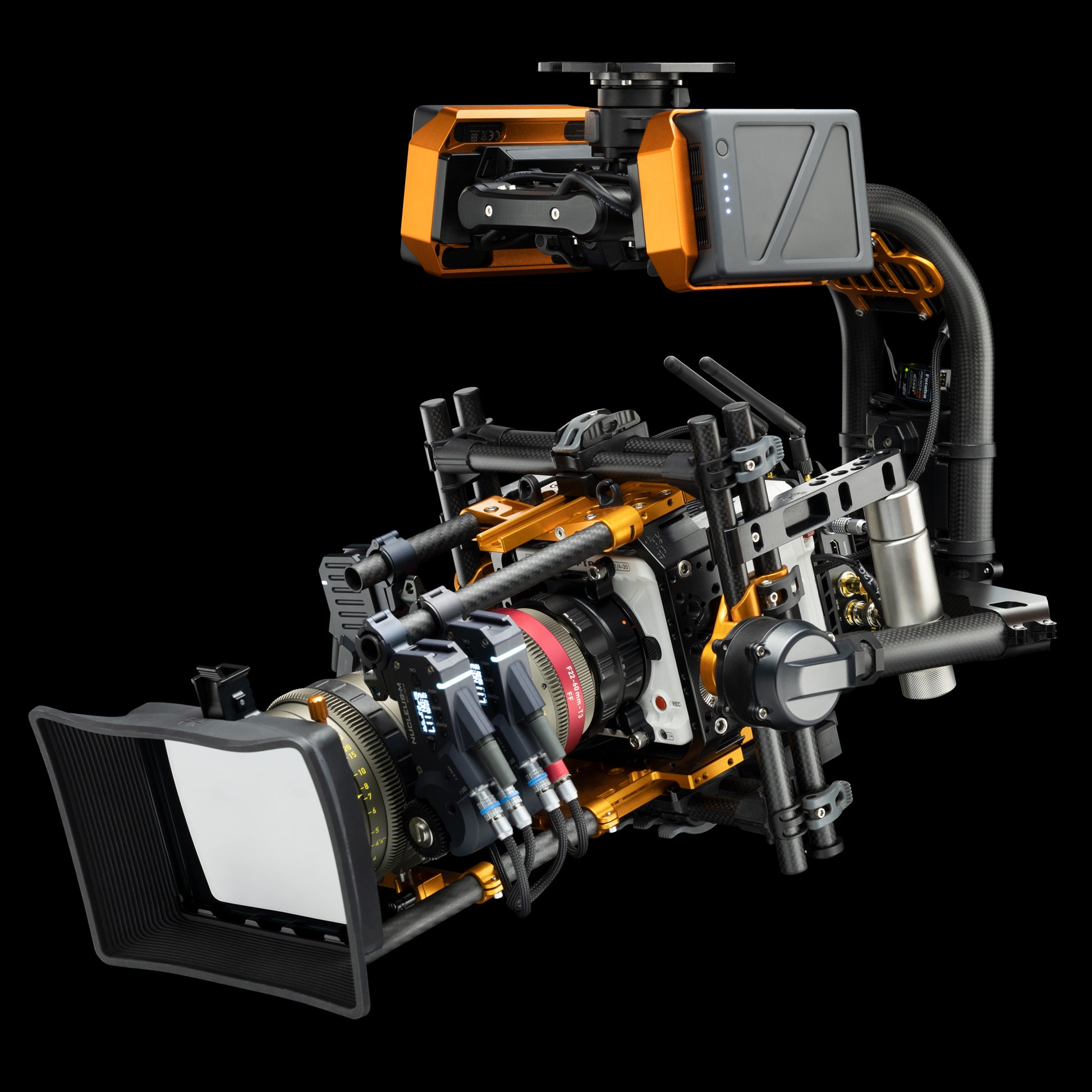

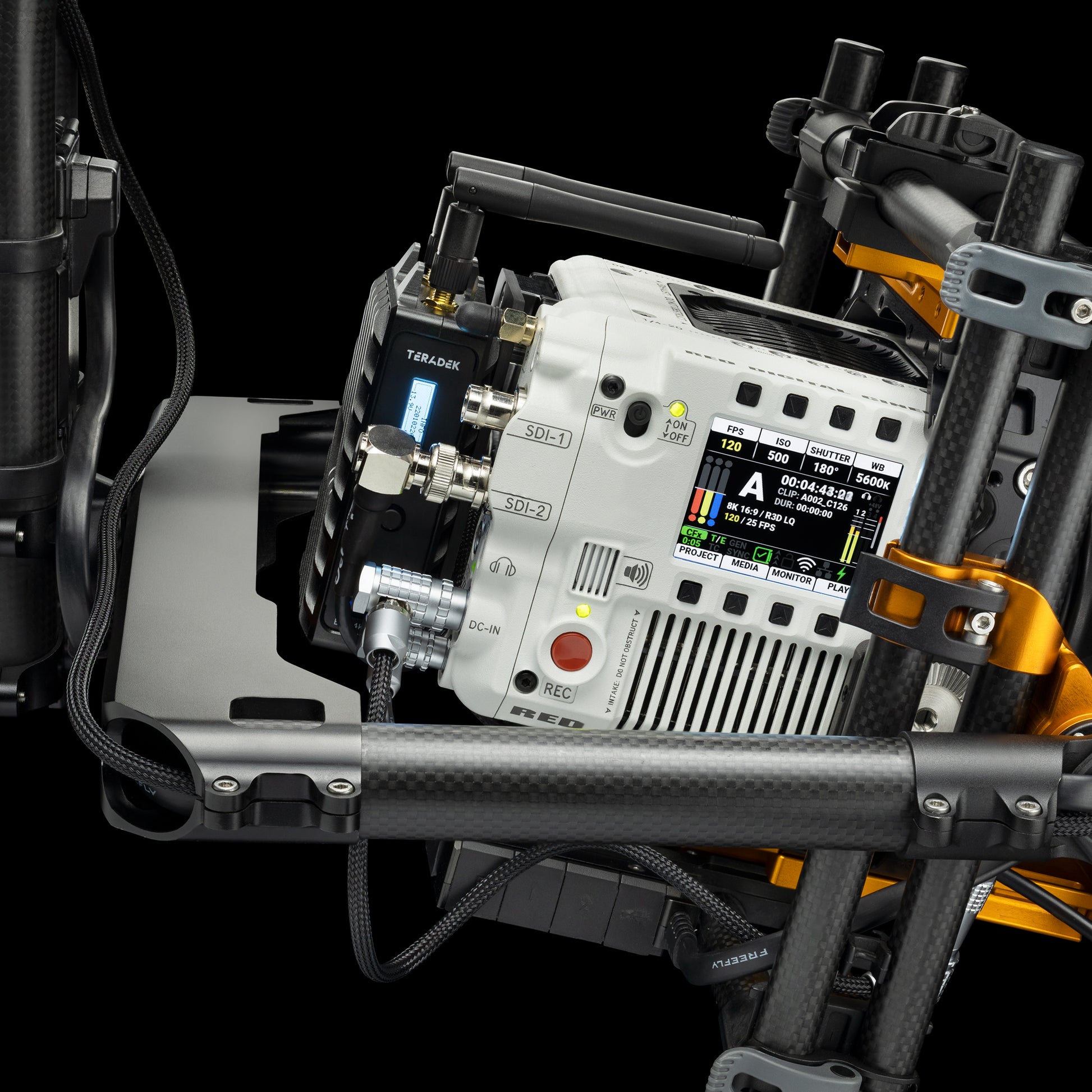

Rigging this way helps keep cables short and tucked away, and the TX becomes useful counterweight on gimbal! Furthermore, enjoy full access to the V-RAPTOR side LCD and buttons 🔥

More Info

INSTALLTION

The following screws are included with the Carbon Back Plate. And we throw in some spares!

Use four M2 x 6mm socket head cap screws to mount a Gen 4 Teradek Bolt.

Use two ¼”-20 x ½" countersunk screws to mount a Gen 5 Teradek Bolt.

Use two ¼”-20 x ½" countersunk screws to mount a Gen 6 Teradek Bolt.

————————————————

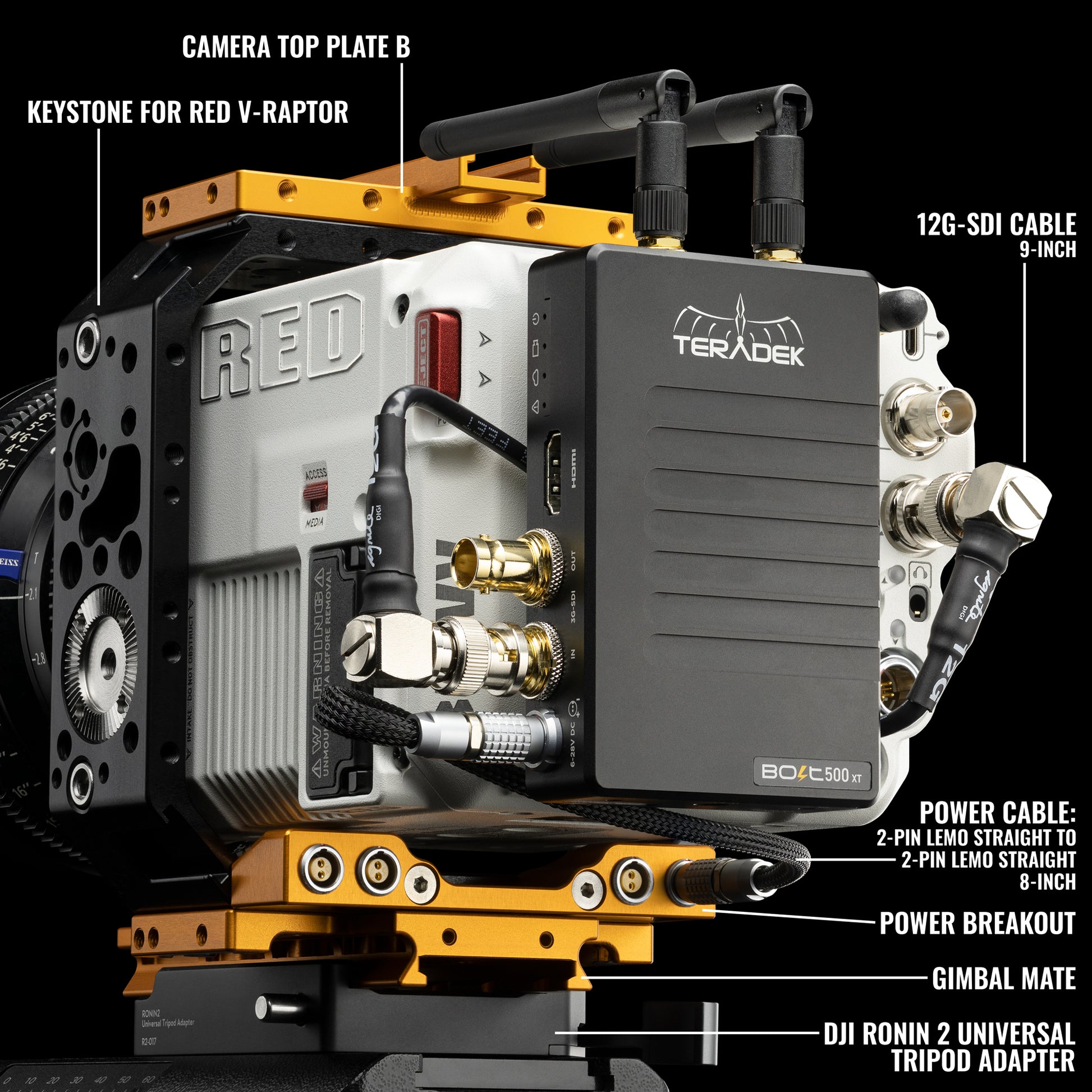

TRANSMITTER POWER CABLES

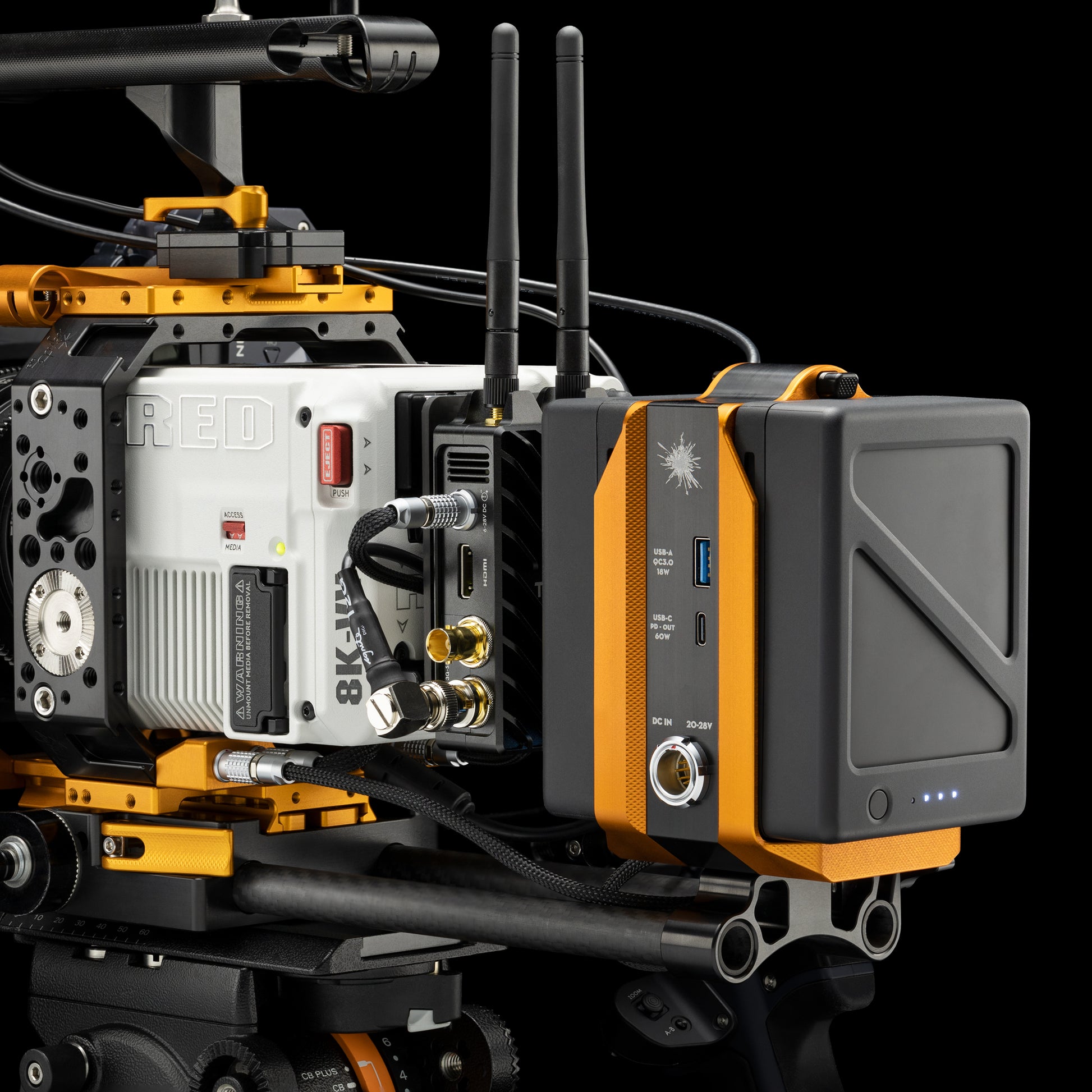

We recommend using the following power cables to truly achieve a fast and clutter free Ignite LIT RIG! 🔥✨

Gen 4: Teradek Bolt LT/XT 500, 1000, 3000

Use a 2-Pin Lemo Straight to 2-Pin Lemo Straight / 8-inch when sourcing power from our Power Breakout.

————————

Gen 5: Teradek Bolt 4K LT 750, 1500, MAX

Use a 2-Pin Lemo Straight to 2-Pin Lemo Straight / 8-inch when sourcing power from our Power Breakout.

————————

Gen 6: Teradek Bolt 6 LT 750, 1500, MAX

Use a 2-Pin Lemo Straight to 2-Pin Lemo Straight / 8-inch when sourcing power from our Power Breakout.

————————

Compatibility

COMPATIBLE TRANSMITTERS
Gen 4: Teradek Bolt LT/XT 500, 1000, 3000
Gen 5: Teradek Bolt 4K LT 750, 1500, MAX
Gen 6: Teradek Bolt 6 LT 750, 1500, MAX

COMPATIBLE CAMERAS
RED KOMODO-X (w/ a bit of tape)
RED V-RAPTOR S35
RED V-RAPTOR VV
RED V-RAPTOR [X]
RED V-RAPTOR-XL S35
RED V-RAPTOR-XL VV
RED V-RAPTOR-XL [X]

Specs

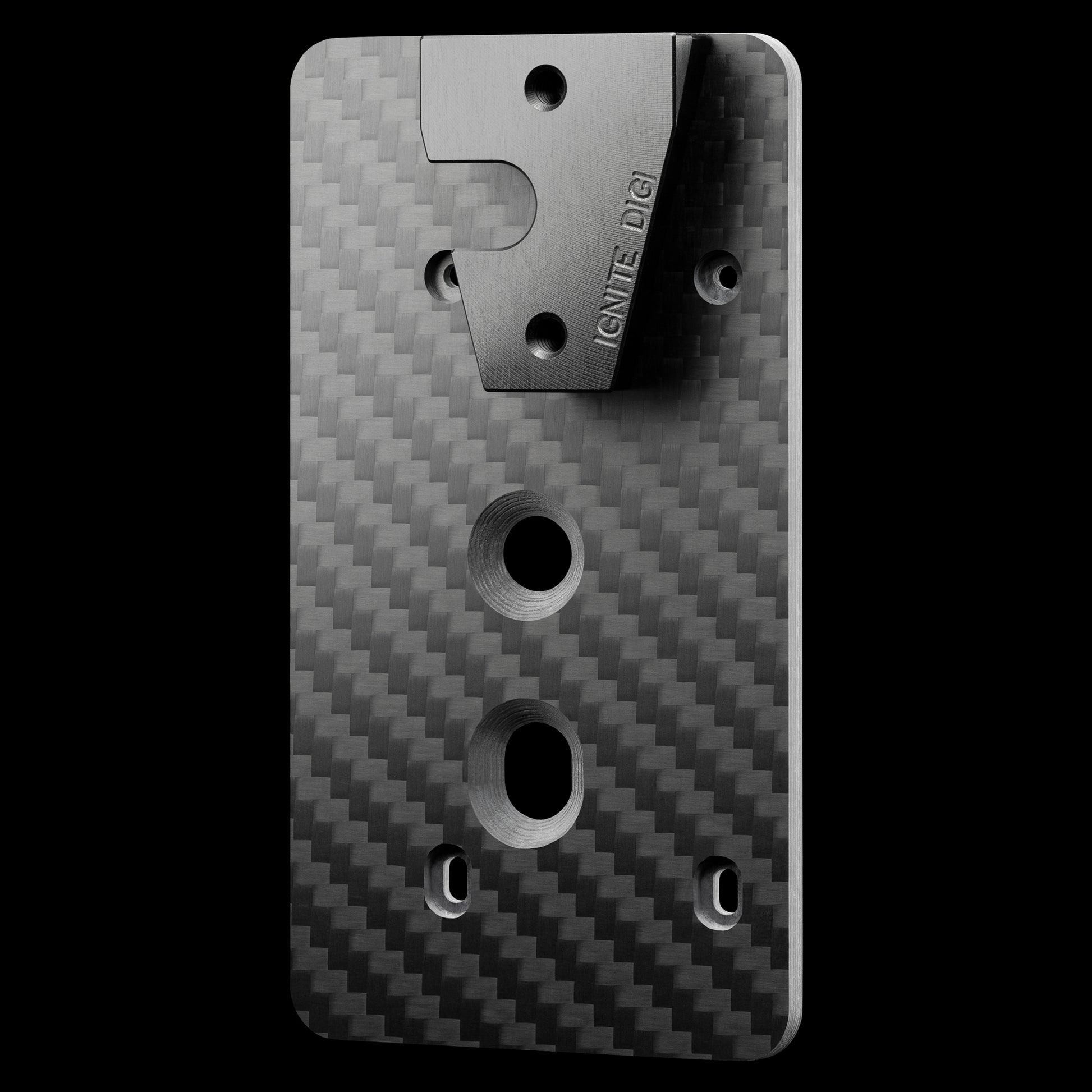

MADE FROM
V Wedge: High-grade 6061-T651 aluminium billet
3mm carbon fibre

SHIPS WITH
Eight M2 x 6mm socket head cap screws
Three ¼”-20 x ½" countersunk screws

WEIGHT
1.2oz / 36g

DIMENSIONS
2.0 x 0.5 x 3.7” / 52 x 13 x 95mm
