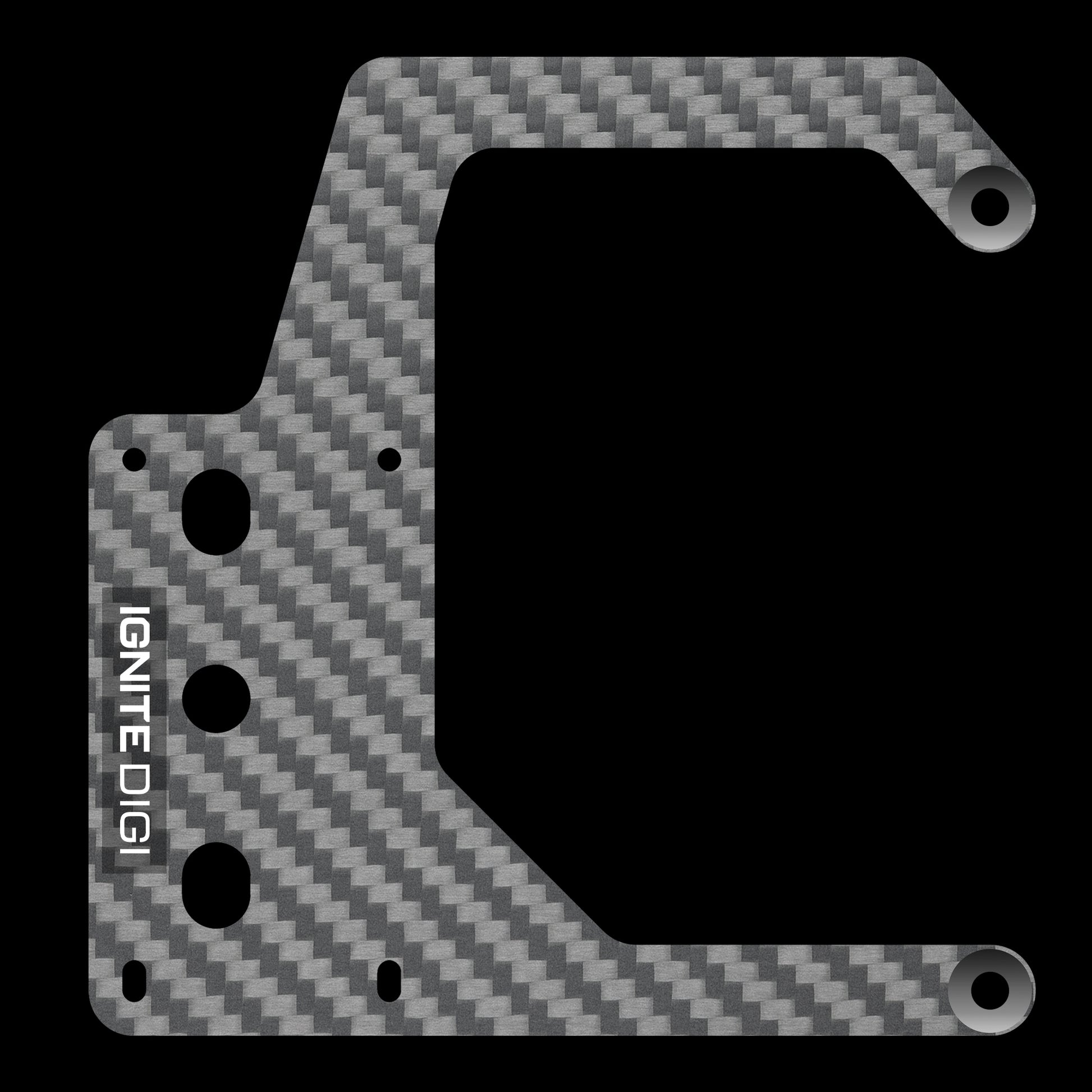

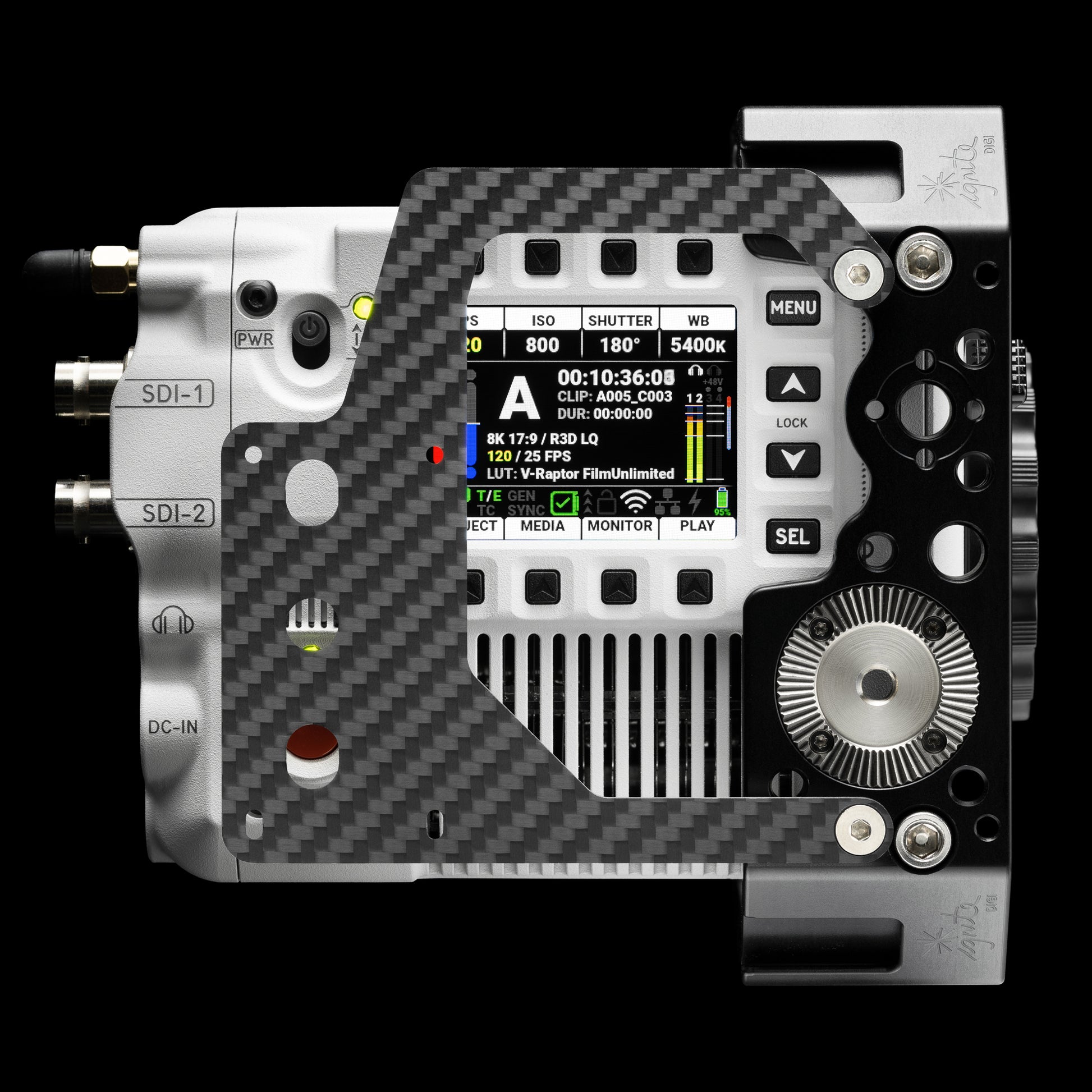

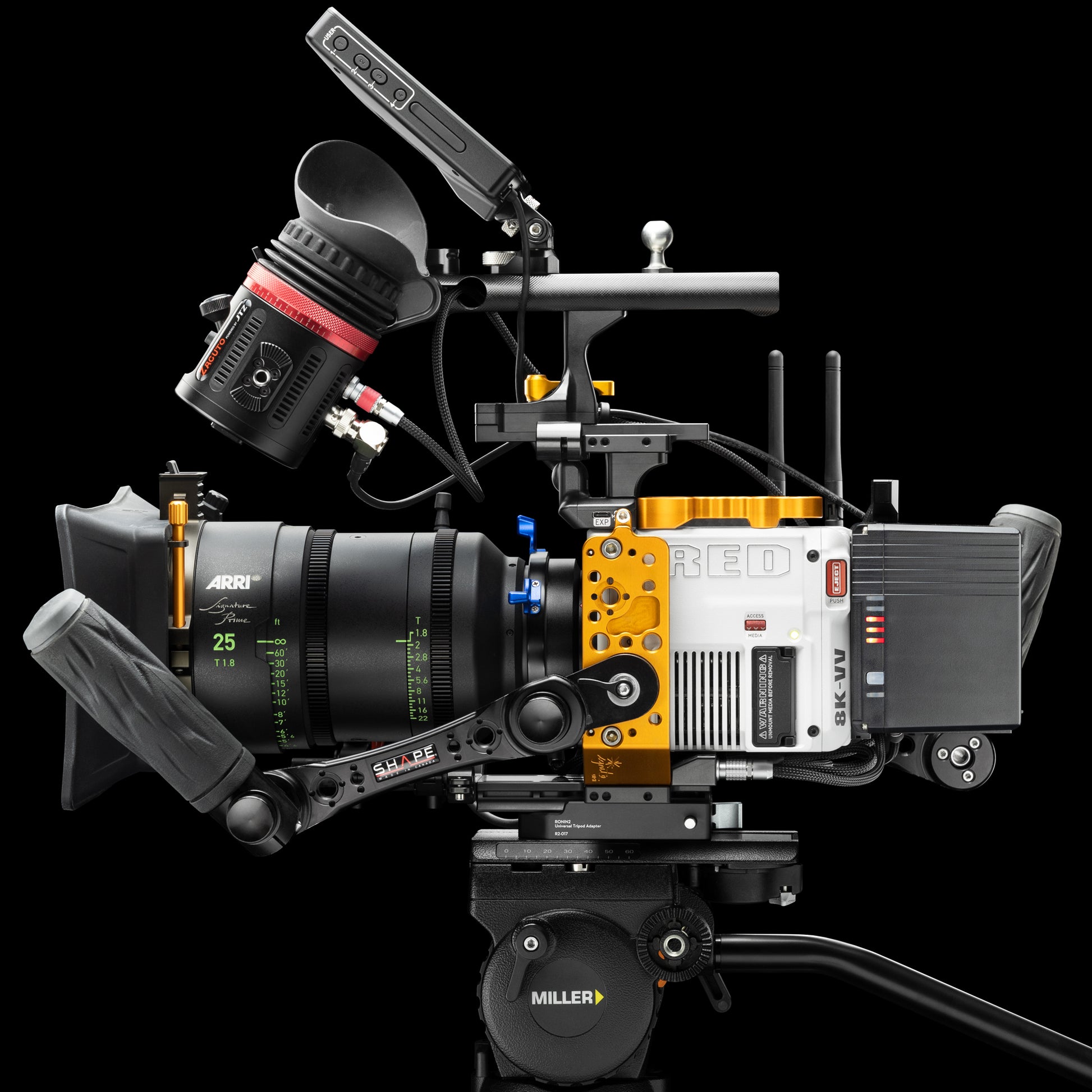

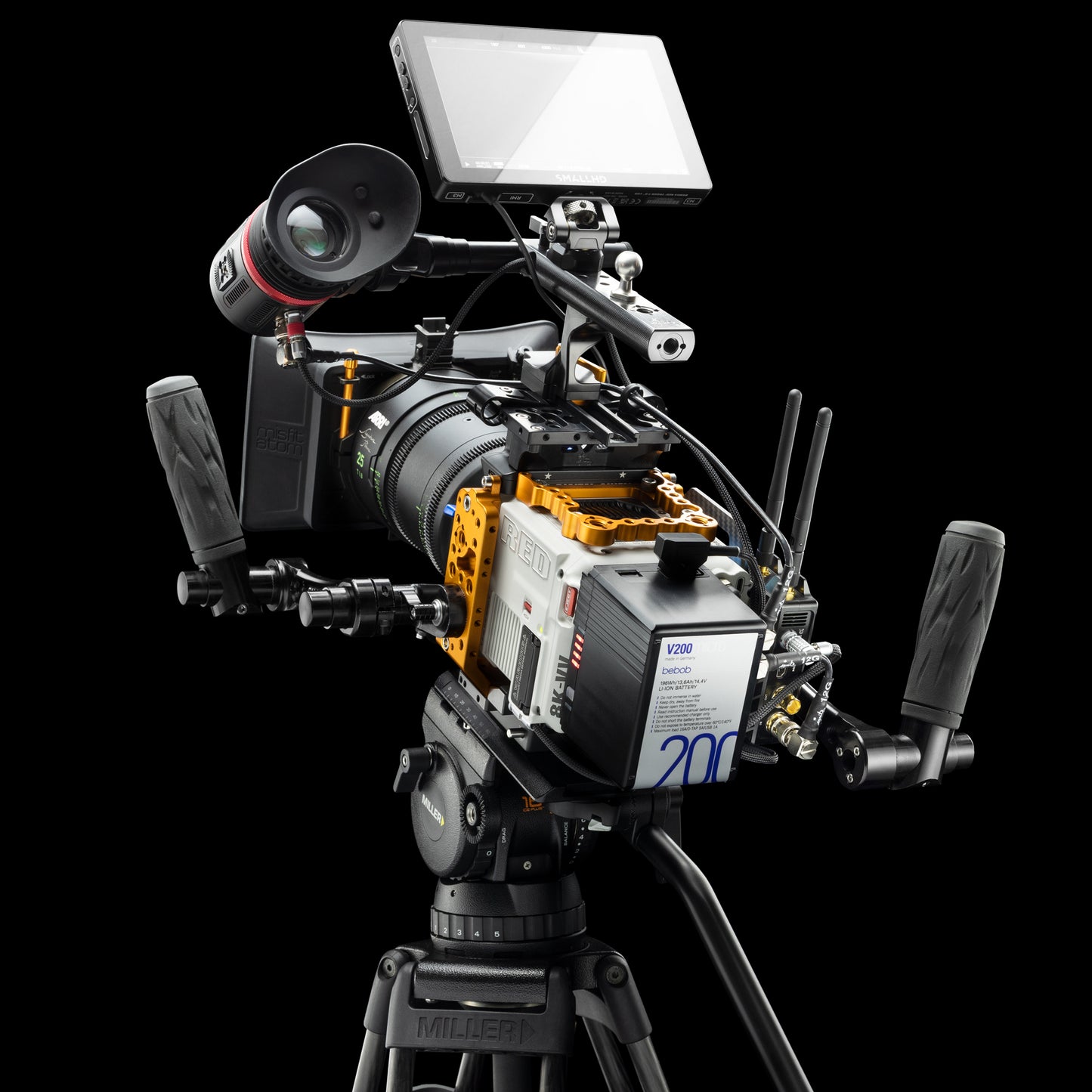

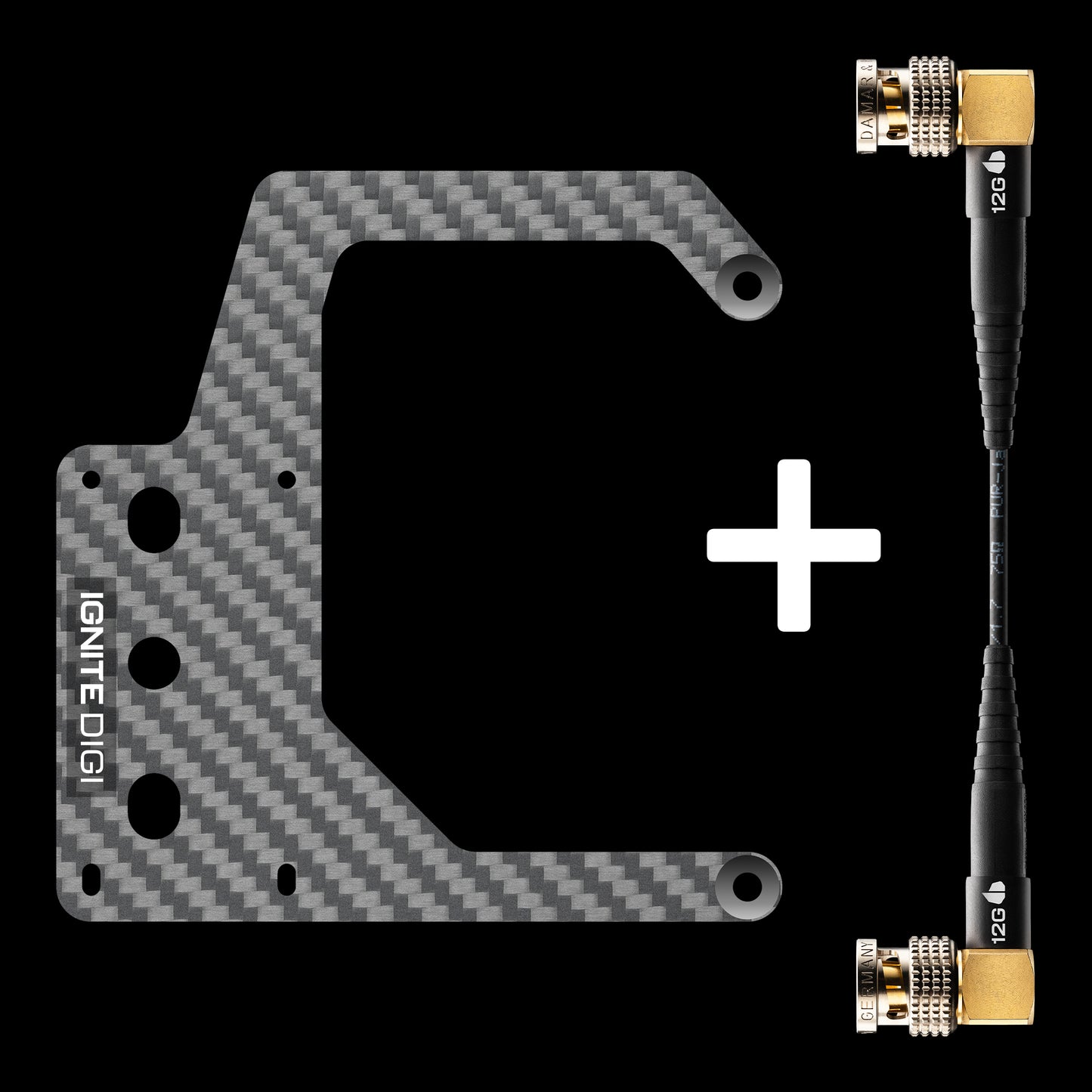

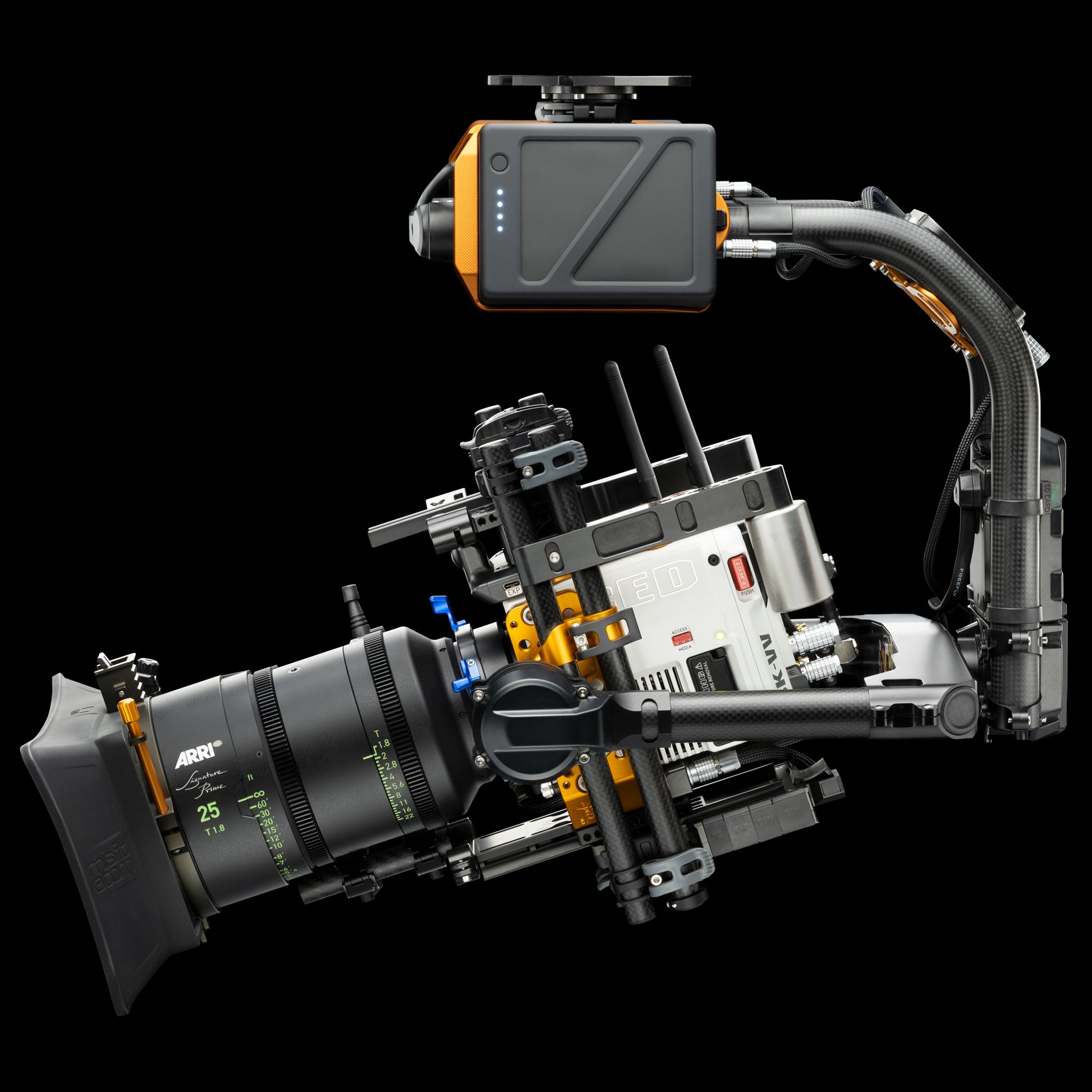

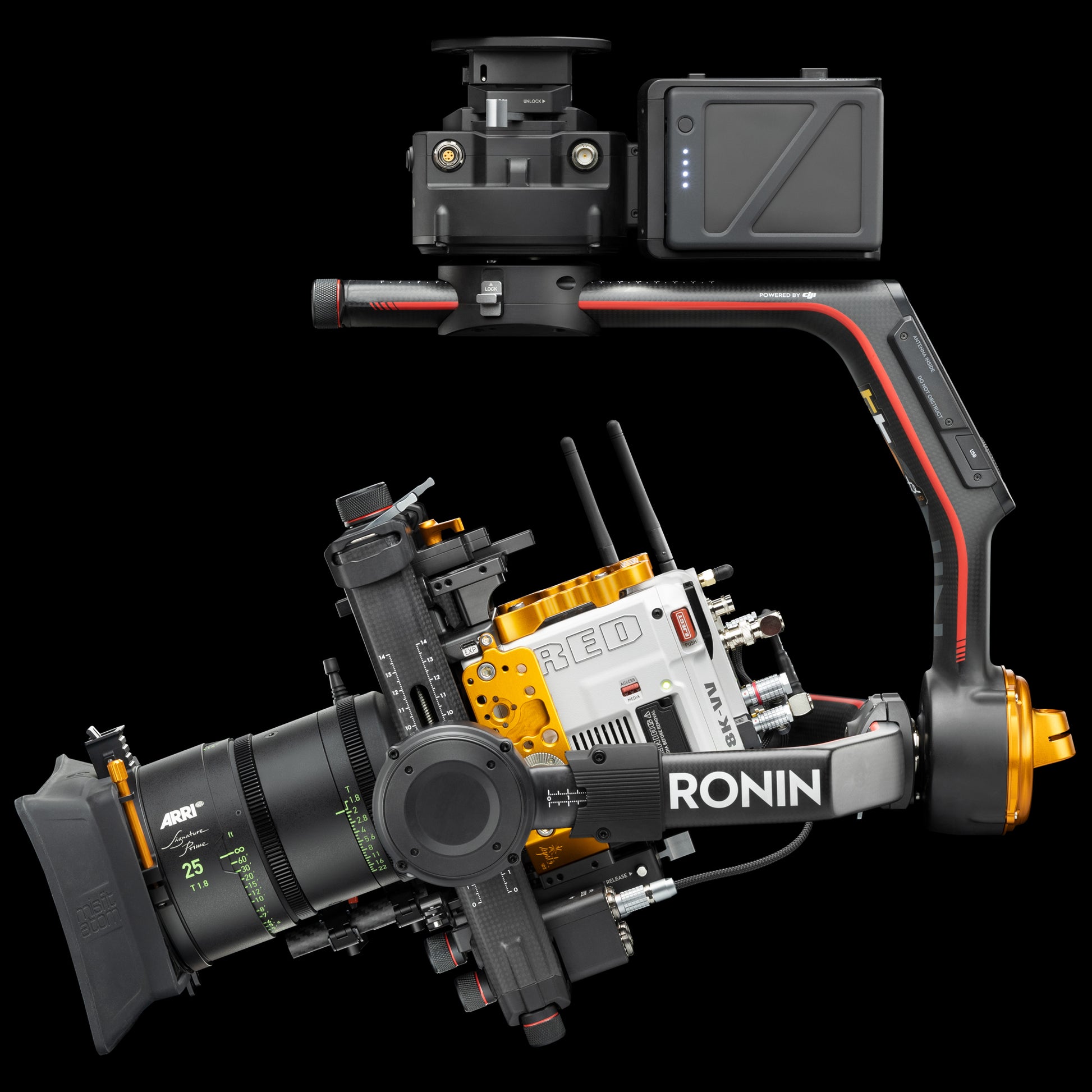

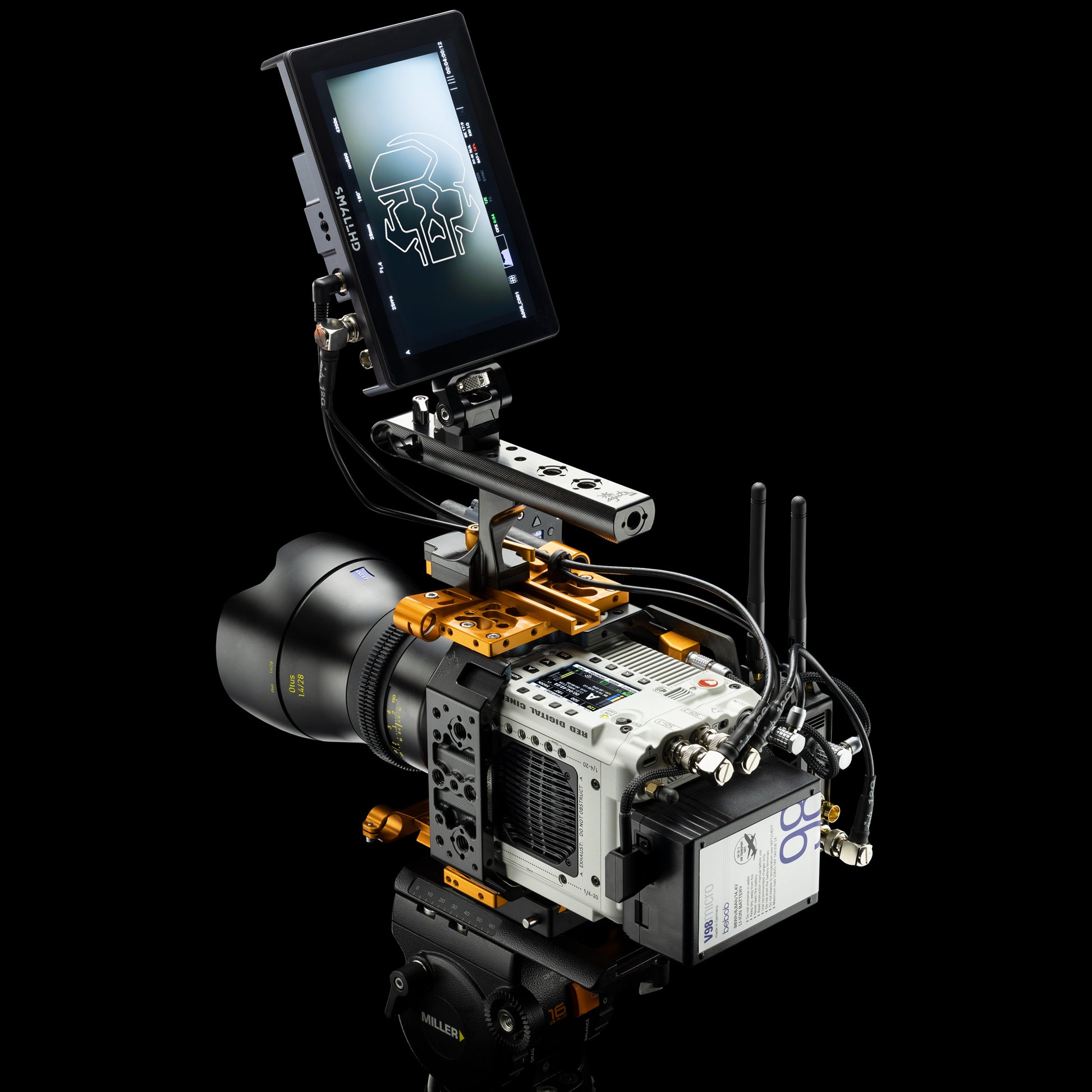

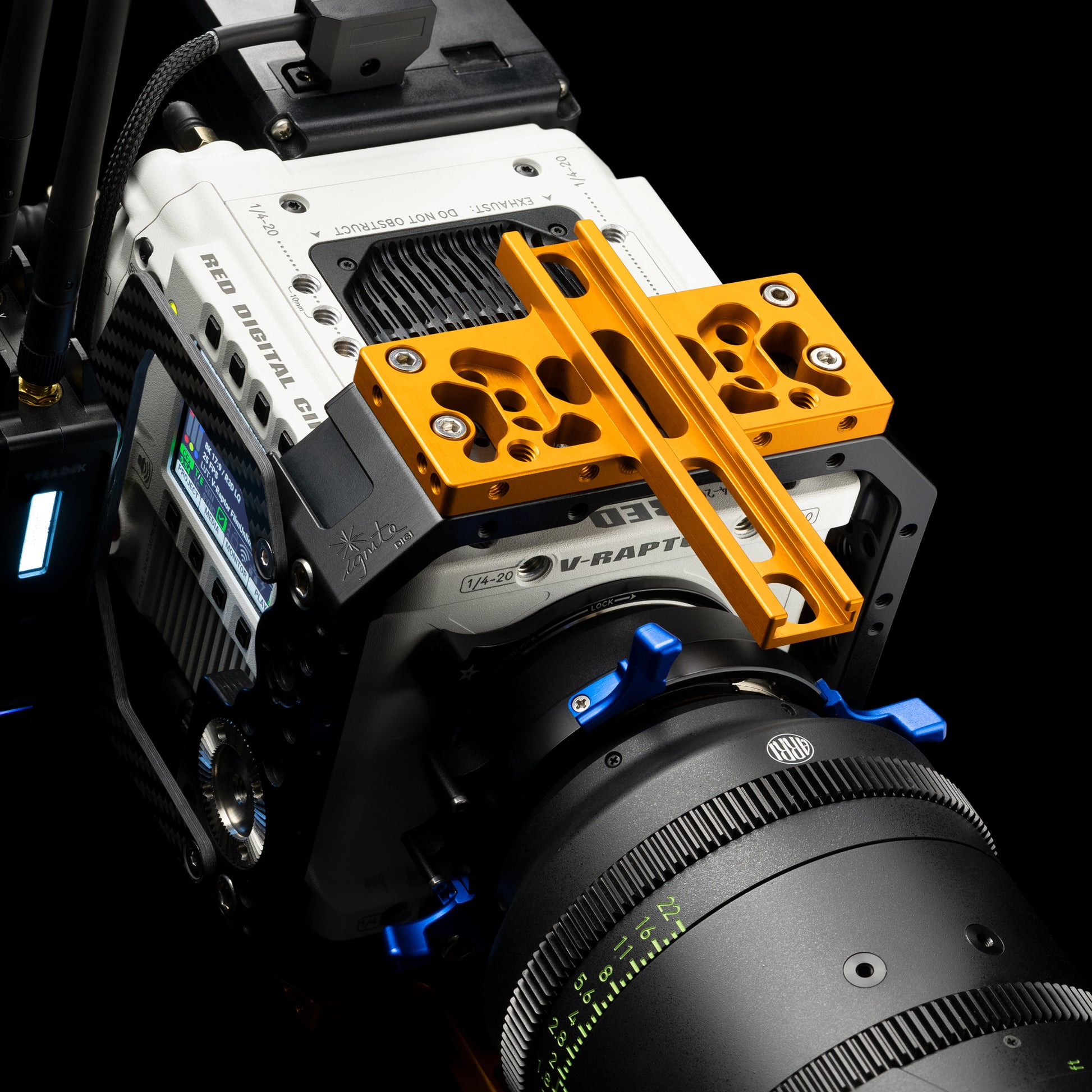

Carbon Side Plate for Teradek / KEYSTONE / V-RAPTOR

INSTALLATION

The following screws are included with the Carbon Side Plate. And we throw in some spares!

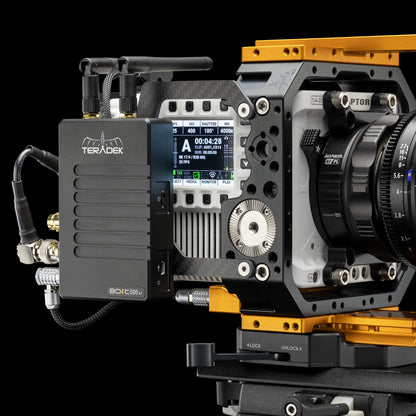

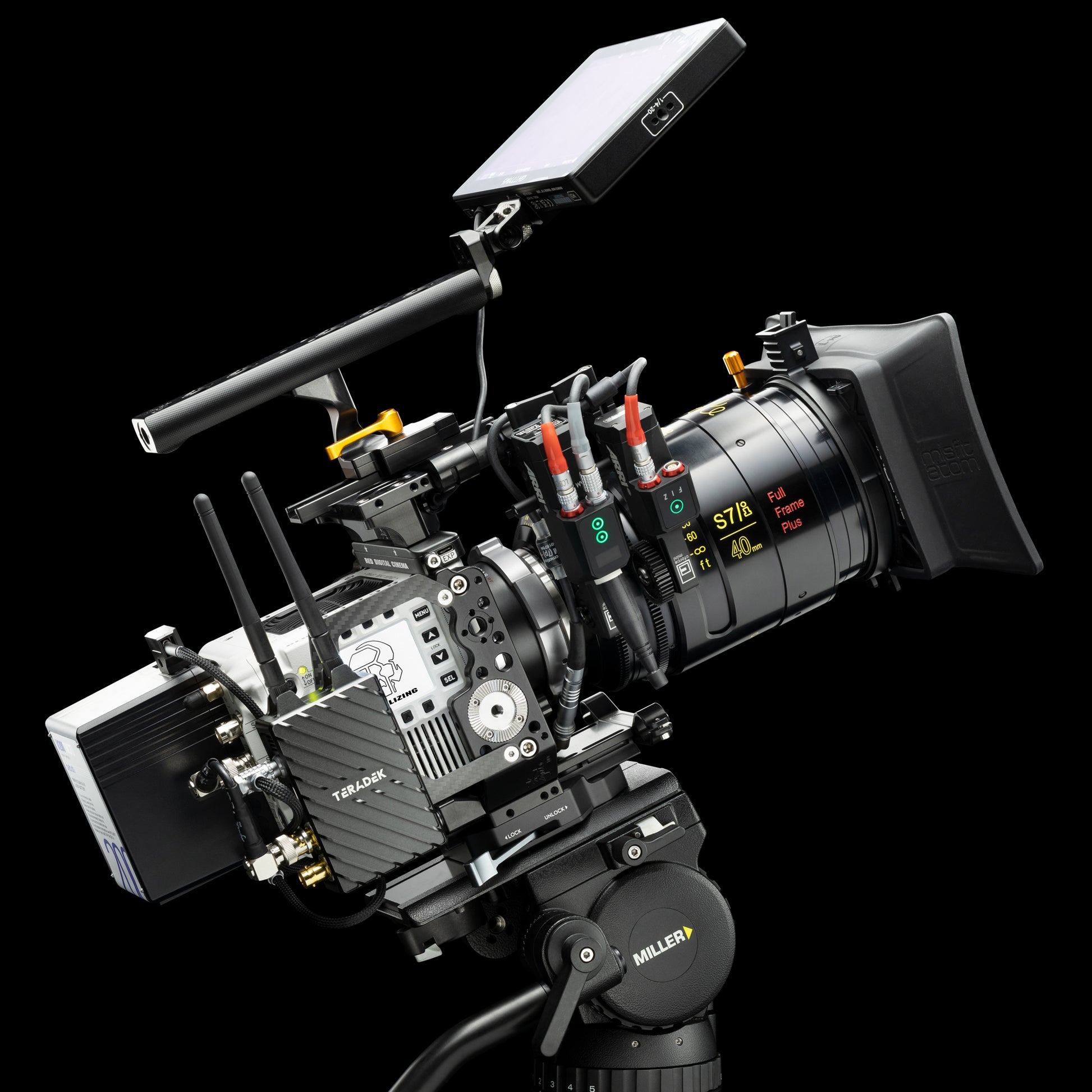

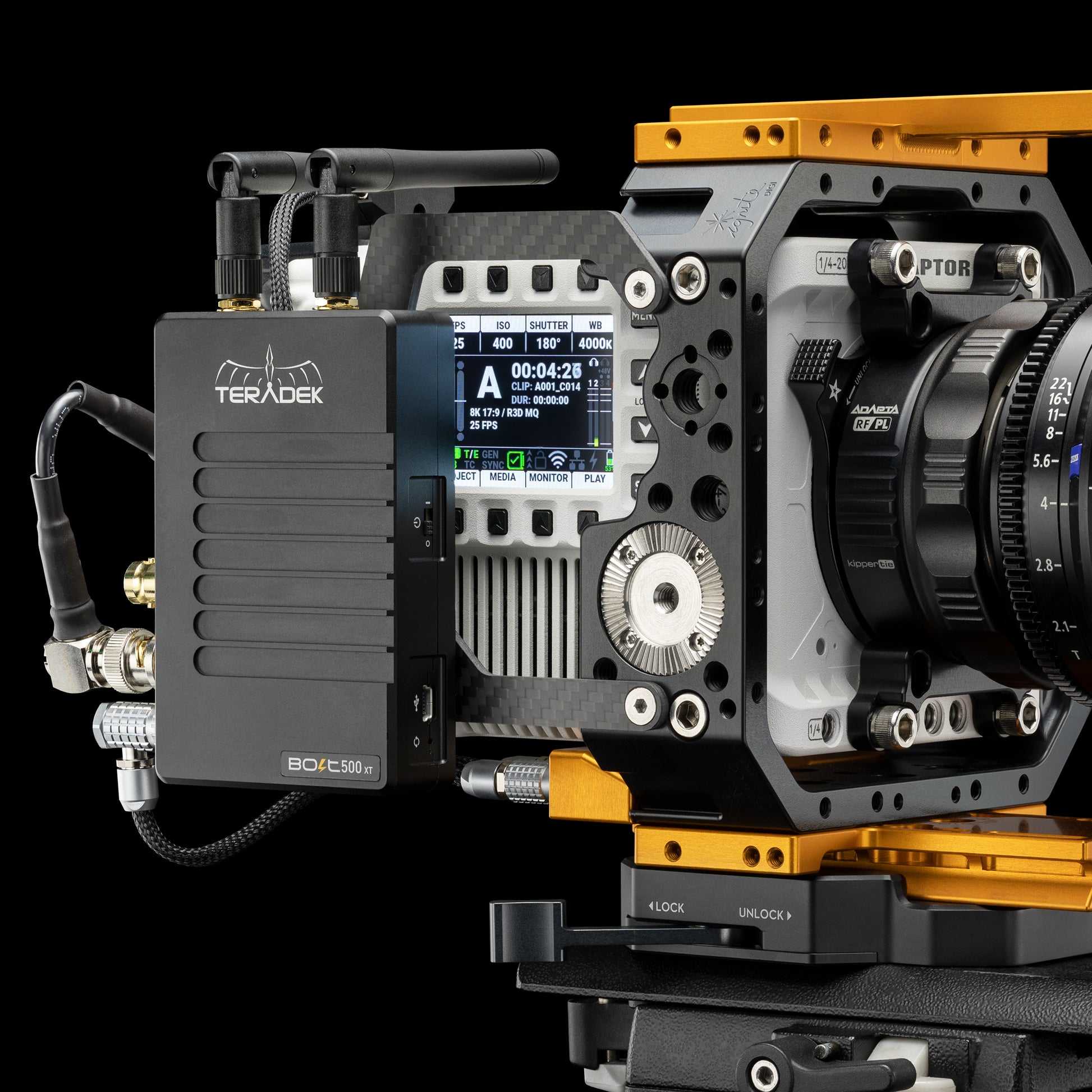

Use four M2 x 6mm socket head cap screws to mount a Gen 4: Teradek Bolt 500, 1000 & 3000 XT / LT.

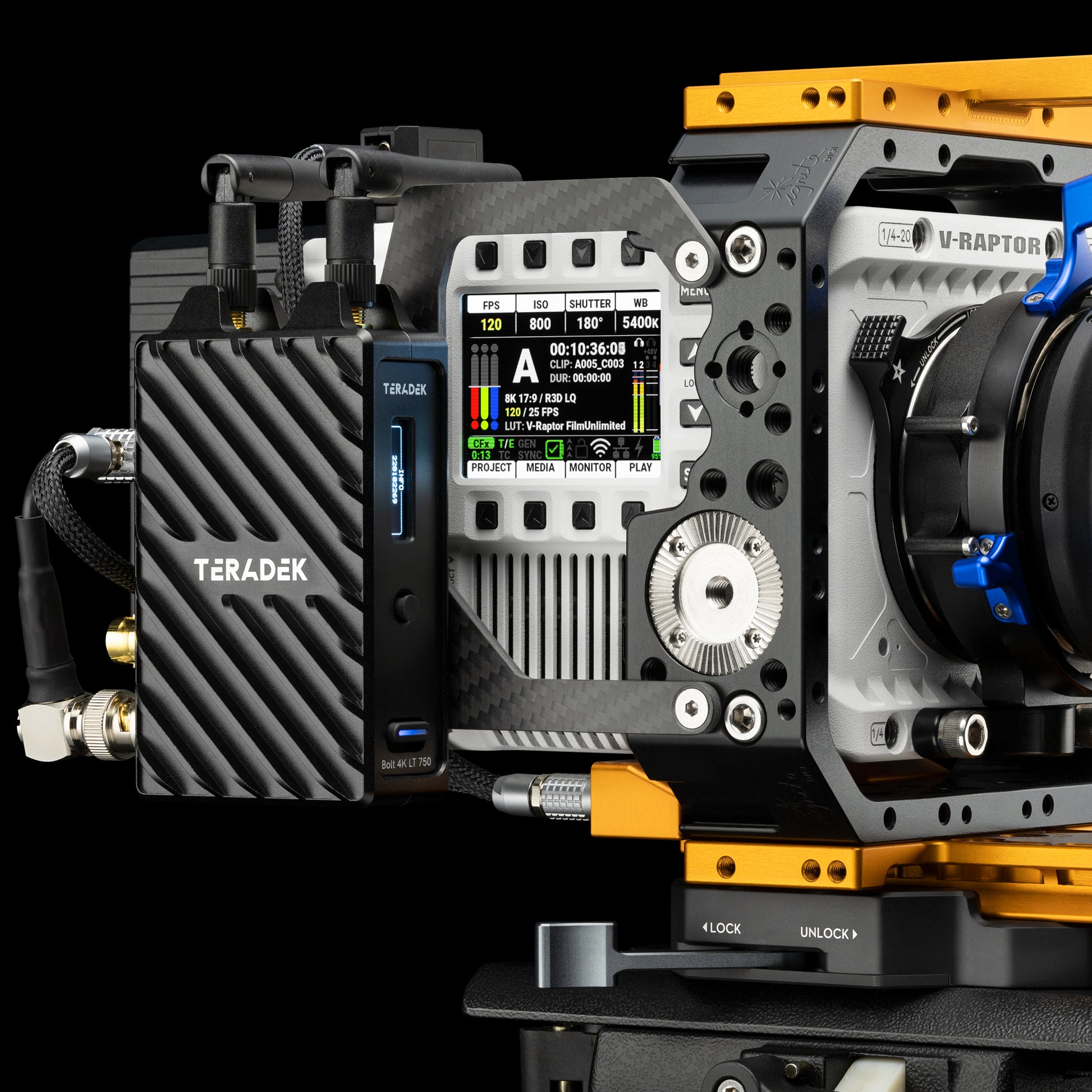

Use two ¼”-20 x ½" countersunk screws to mount a Gen 5: Teradek Bolt 4K LT 750, 1500 & MAX.

Use two ¼”-20 x ½" countersunk screws to mount a Gen 6: Teradek Bolt 6 LT 750, 1500 & MAX.

Use two M4 x 8mm countersunk screws to mount the Carbon Side Plate to KEYSTONE.

————————————————

TRANSMITTER POWER CABLES

We recommend using the following power cables for your TX to truly achieve a fast and clutter free Ignite LIT RIG! 🔥✨

————————

Gen 4: Teradek Bolt LT/XT 500, 1000, 3000

Use a 2-Pin Lemo Right Angle to 2-Pin Lemo Straight / 5-inch when sourcing power from our Power Breakout.

————————

Gen 5: Teradek Bolt 4K LT 750, 1500, MAX

Use a 2-Pin Lemo Right Angle to 2-Pin Lemo Straight / 8-inch when sourcing power from our Power Breakout.

————————

Gen 6: Teradek Bolt 6 LT 750, 1500, MAX

Use a 2-Pin Lemo Right Angle to 2-Pin Lemo Straight / 8-inch when sourcing power from our Power Breakout.

————————

COMPATIBLE TRANSMITTERS
Gen 4: Teradek Bolt LT/XT 500, 1000, 3000
Gen 5: Teradek Bolt 4K LT 750, 1500, MAX
Gen 6: Teradek Bolt 6 LT 750, 1500, MAX

COMPATIBLE KEYSTONES
KEYSTONE for V-RAPTOR
KEYSTONE Chopped for V-RAPTOR

SHIPS WITH
Four M4 x 8mm countersunk screws
Eight M2 x 6mm socket head cap screws
Three ¼”-20 x ½" countersunk screws

WEIGHT
0.07oz / 20g with M4 screws

DIMENSIONS
4.0 x 4.2 x 0.1” / 104 x 107.5 x 3mm
