IG.100263

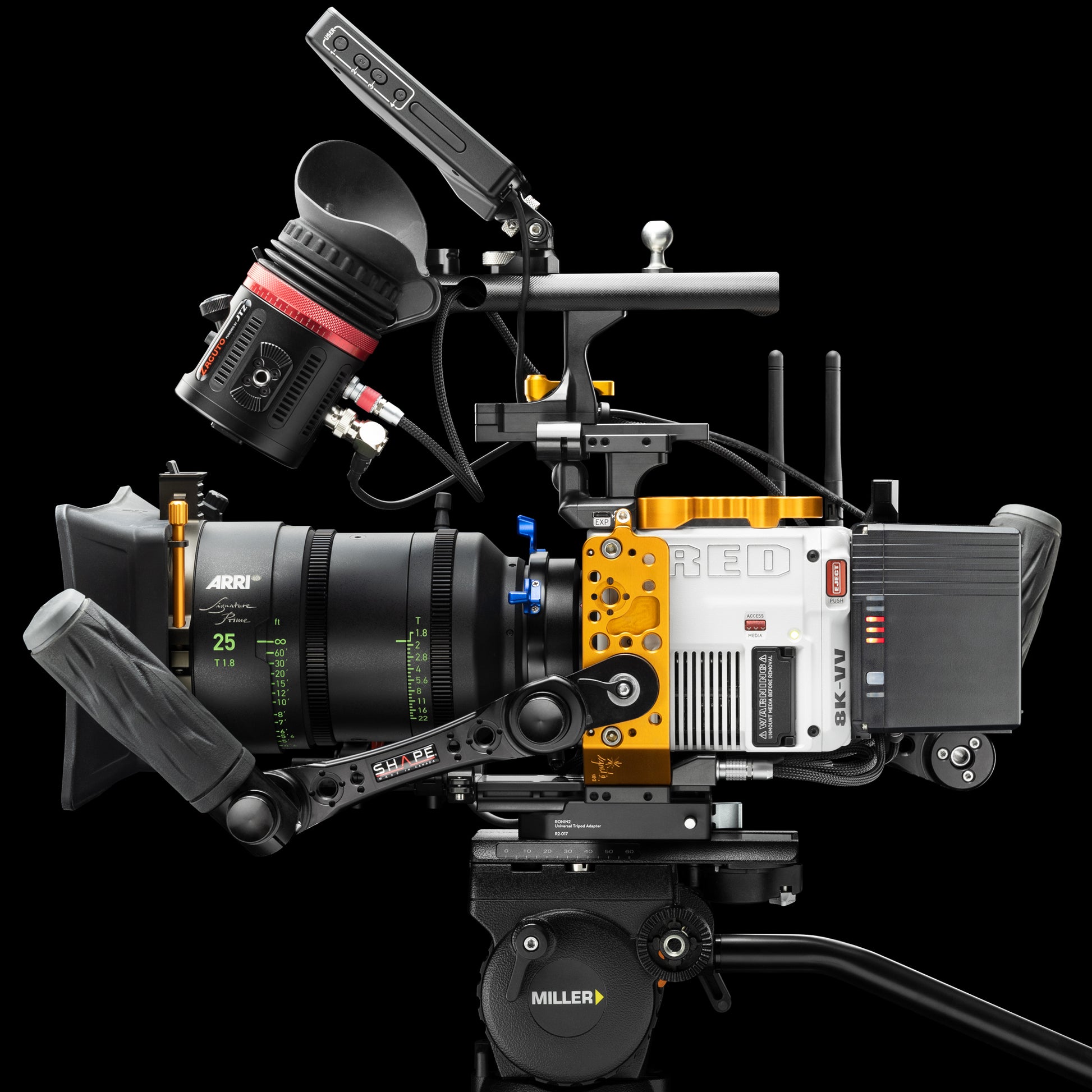

EXO Plate adds even more rigging flexibility to RED V-RAPTOR and V-RAPTOR [X]!
We offer two models: EXO Plate RMI and EXO Plate mini. Both feature multiple ¼”-20 and ⅜"-16 Pin-Locs.
Mount an articulating arm, transmitter, EXT breakout or keep your cables tidy with SPRIG!
In addition, EXO Plate RMI includes M4’s for mounting our Camera Top Plate and Quick Release Top Handle.
Expand ↓ for more features and specs.
KEY FEATURES
USE CASE & DESCRIPTION

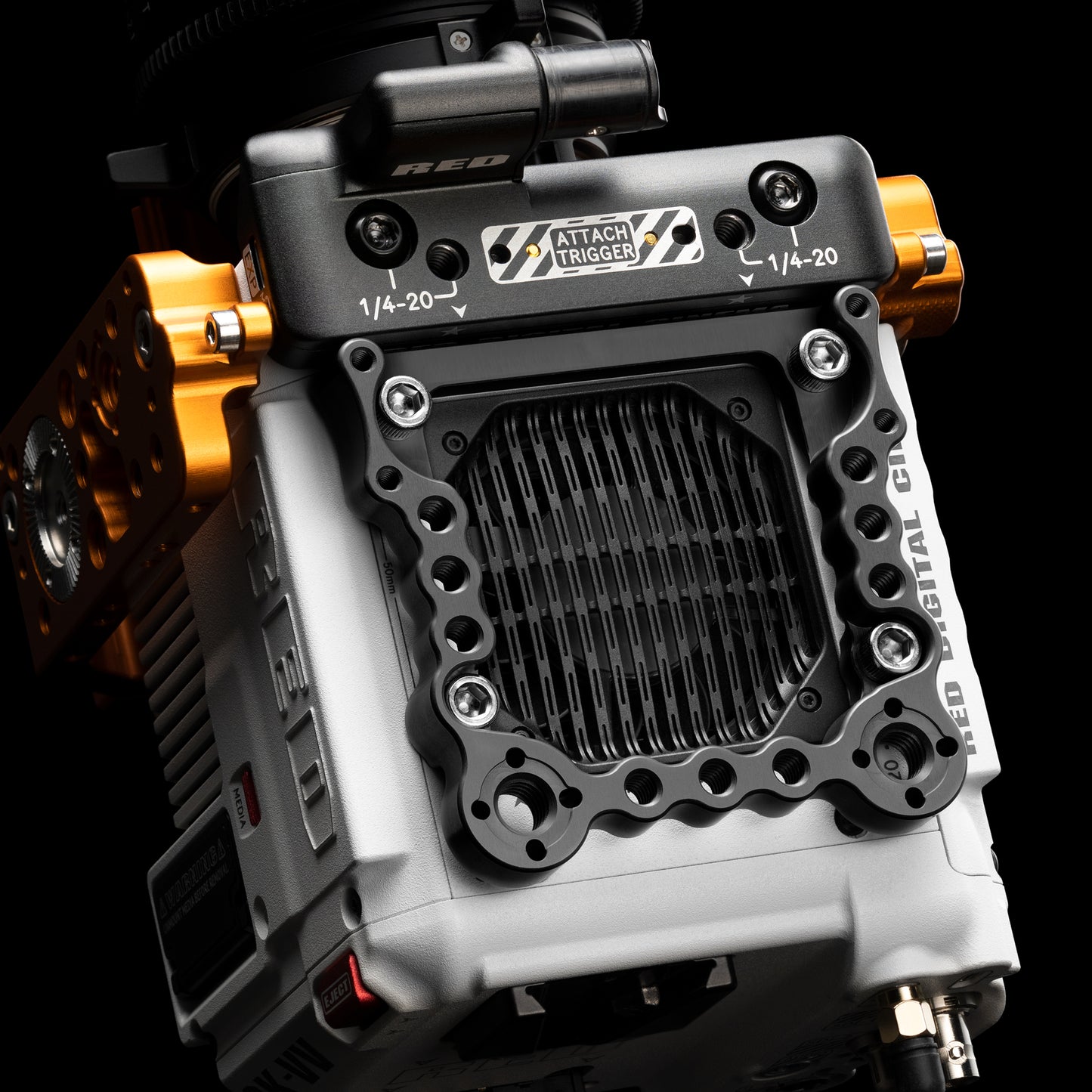

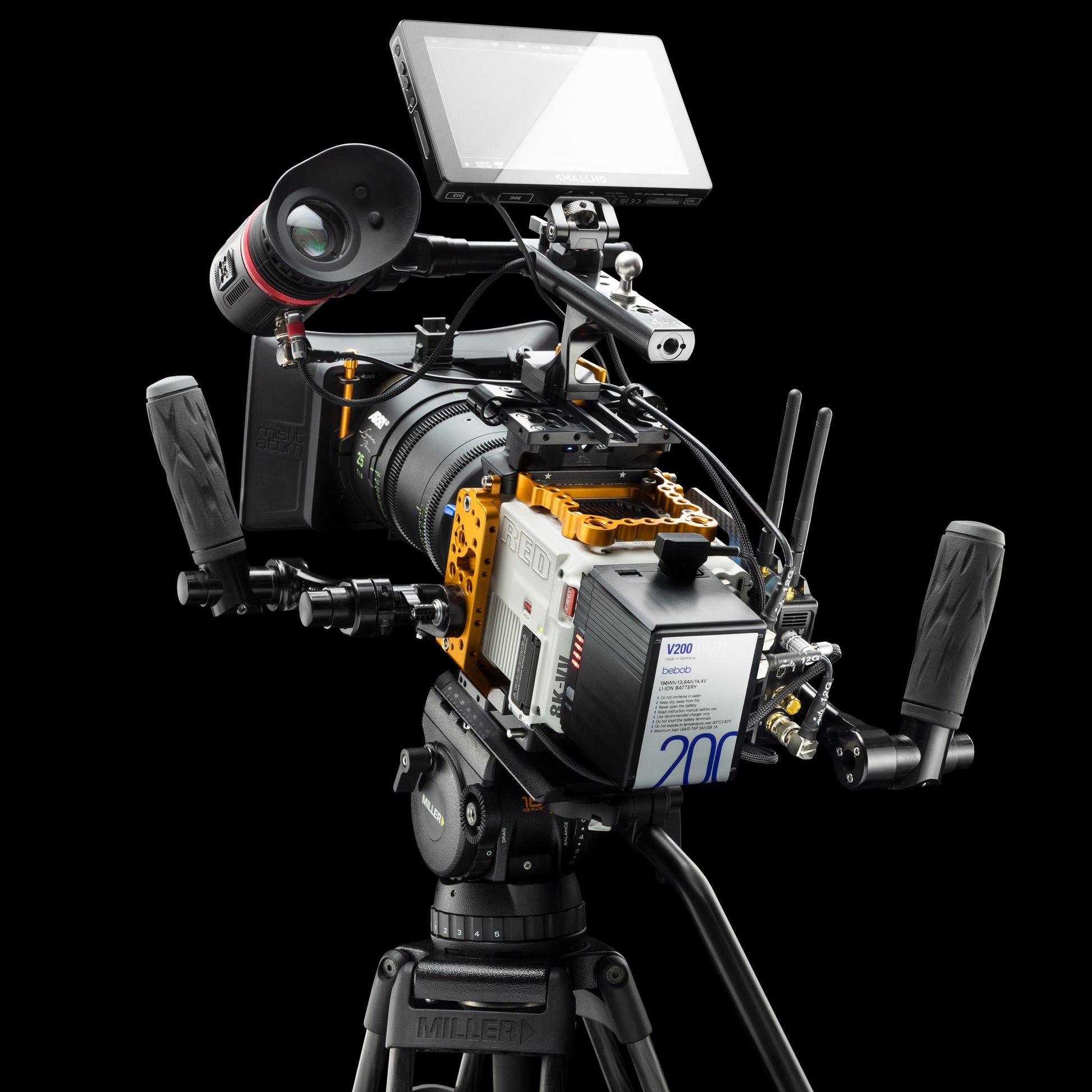

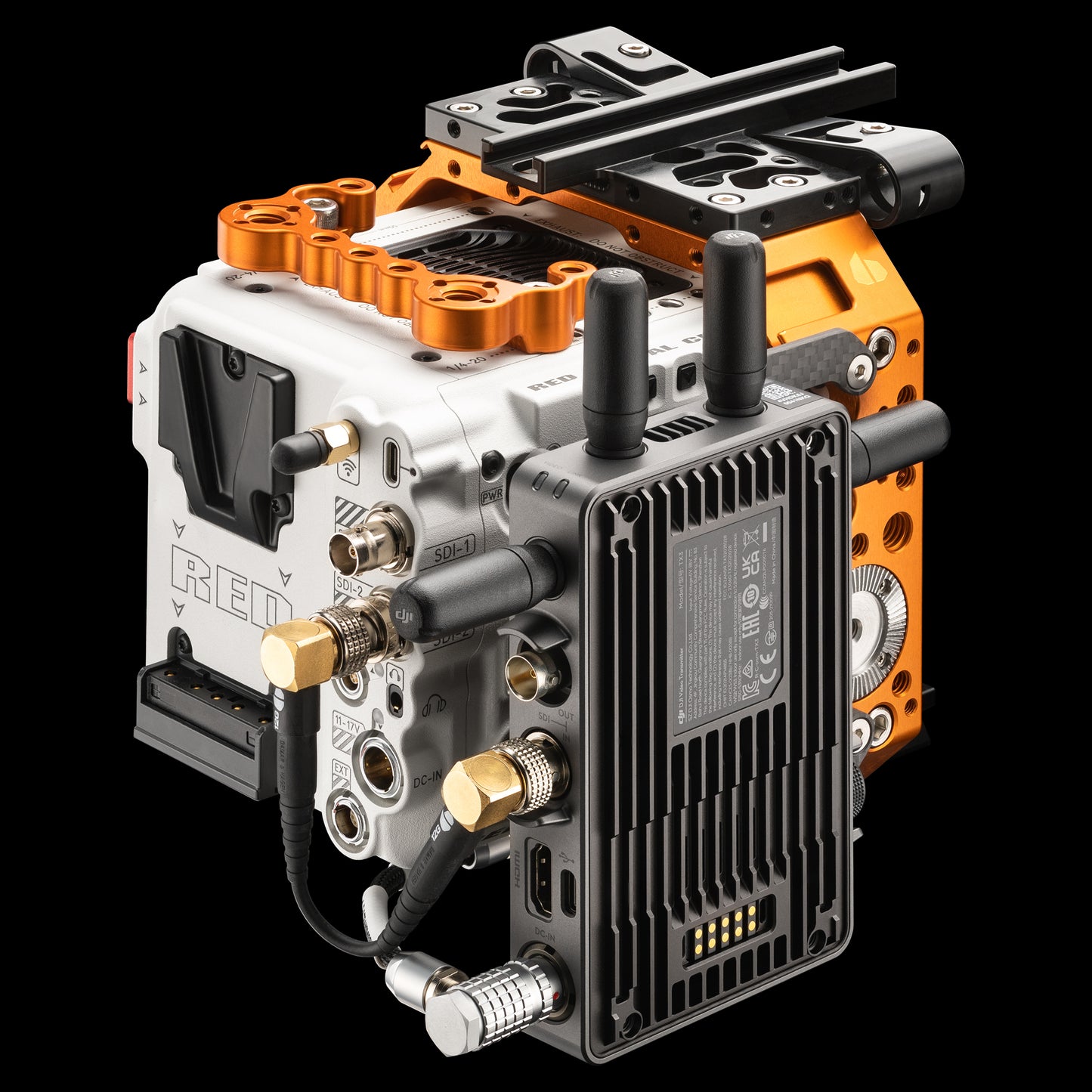

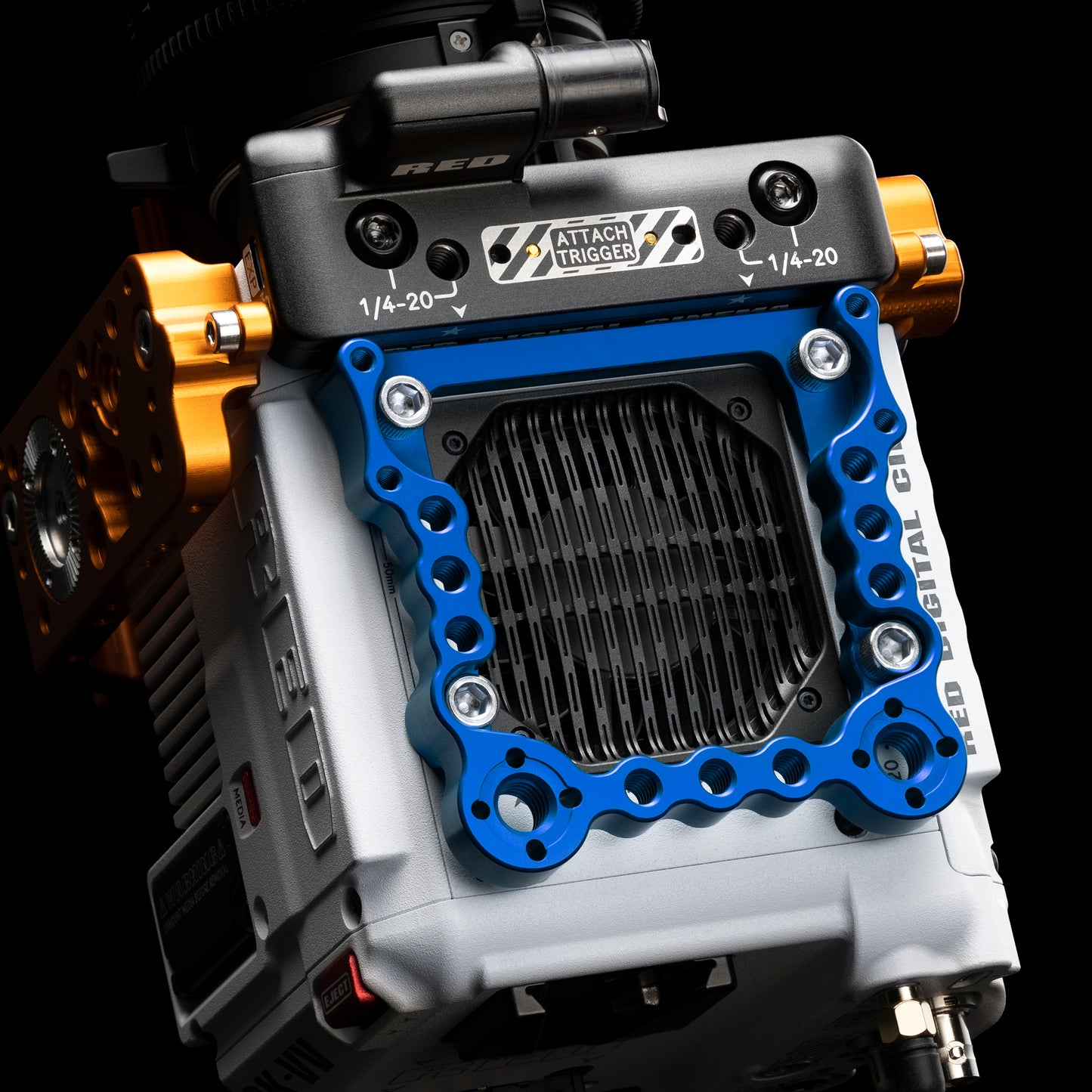

EXO Plate RMI provides a rigid foundation for accessories like a monitor, transmitter, EXT breakout and SPRIGs.
The design allows V-RAPTOR to breathe 🔥 while working alongside the RED Touch 7.0" RMI (RED Monitor Interface).

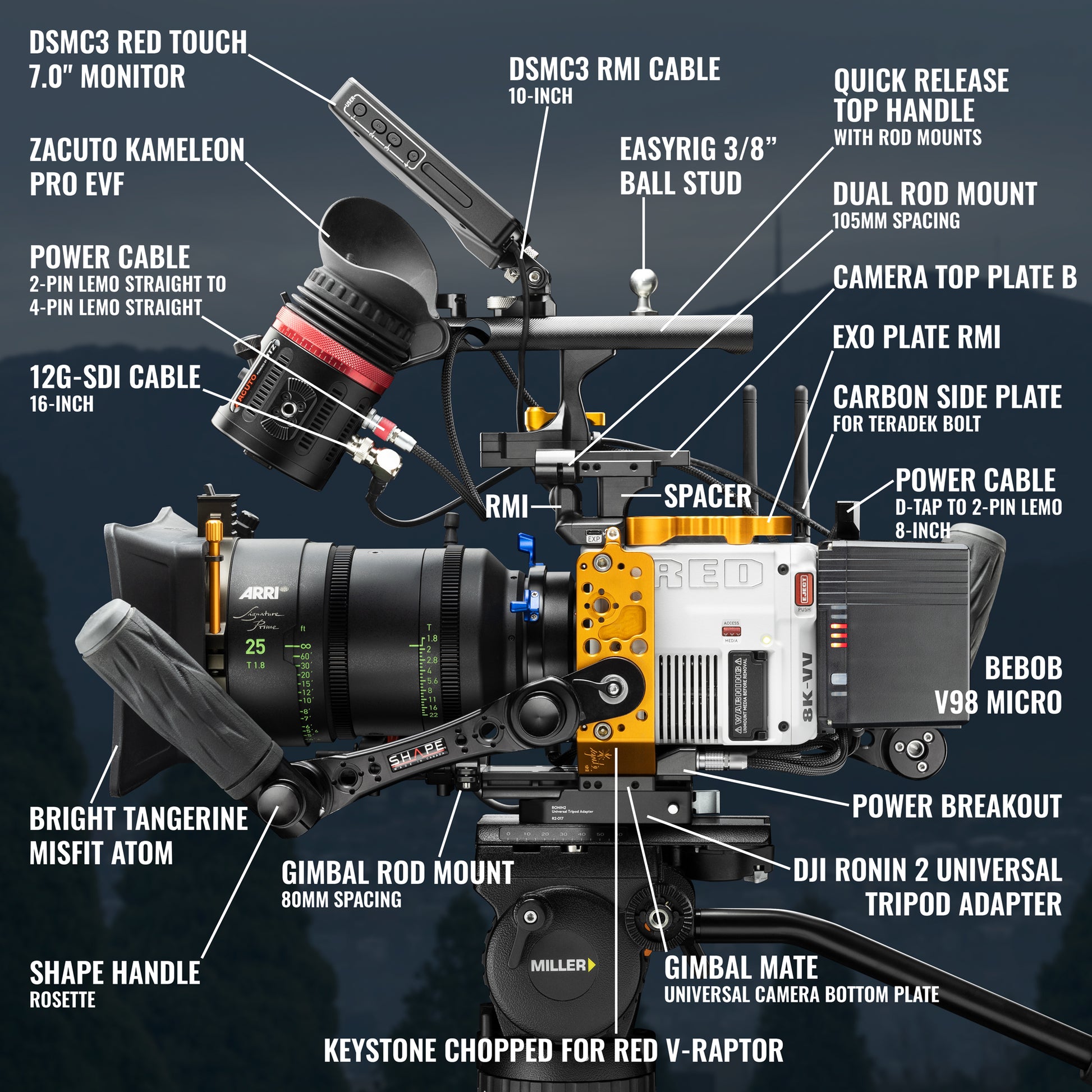

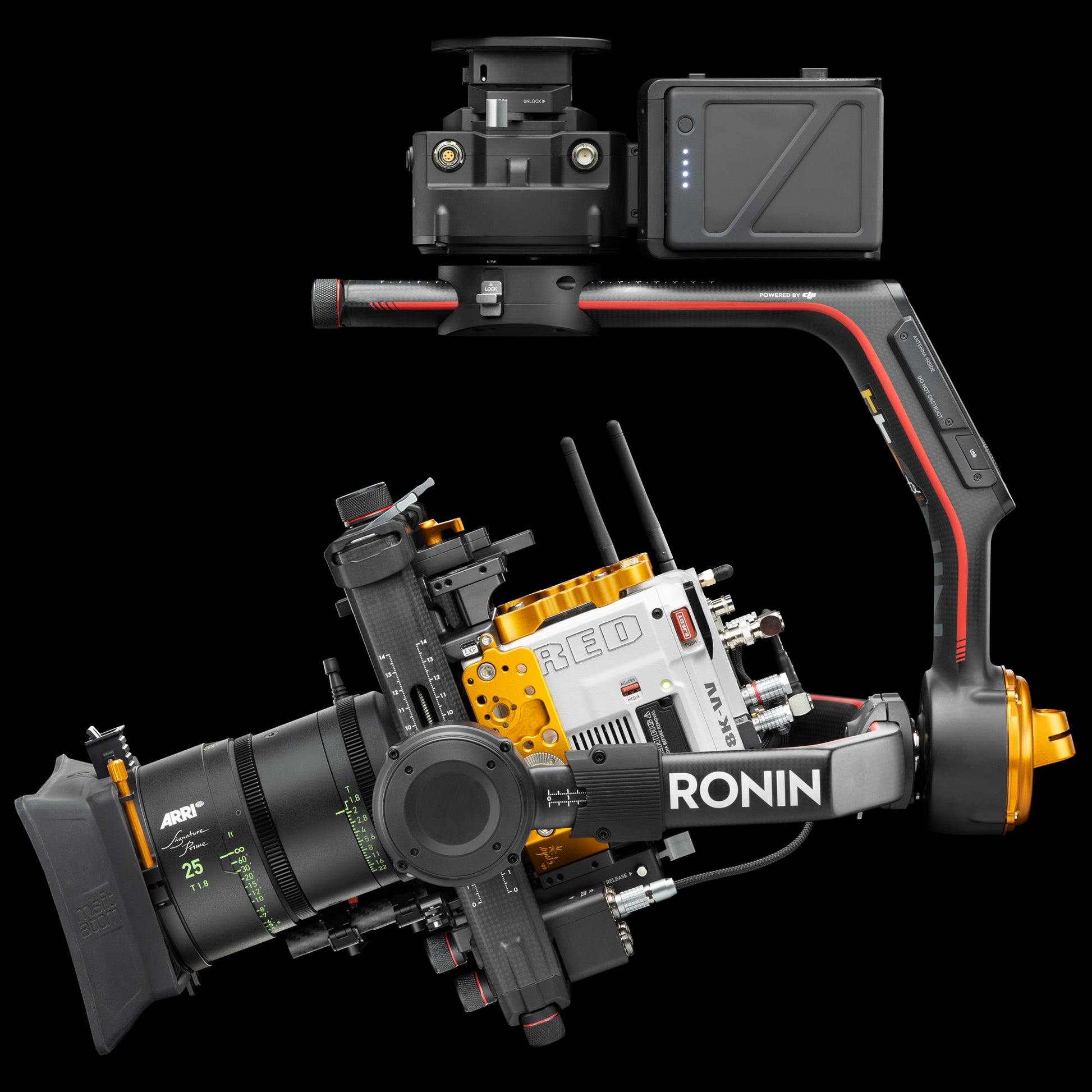

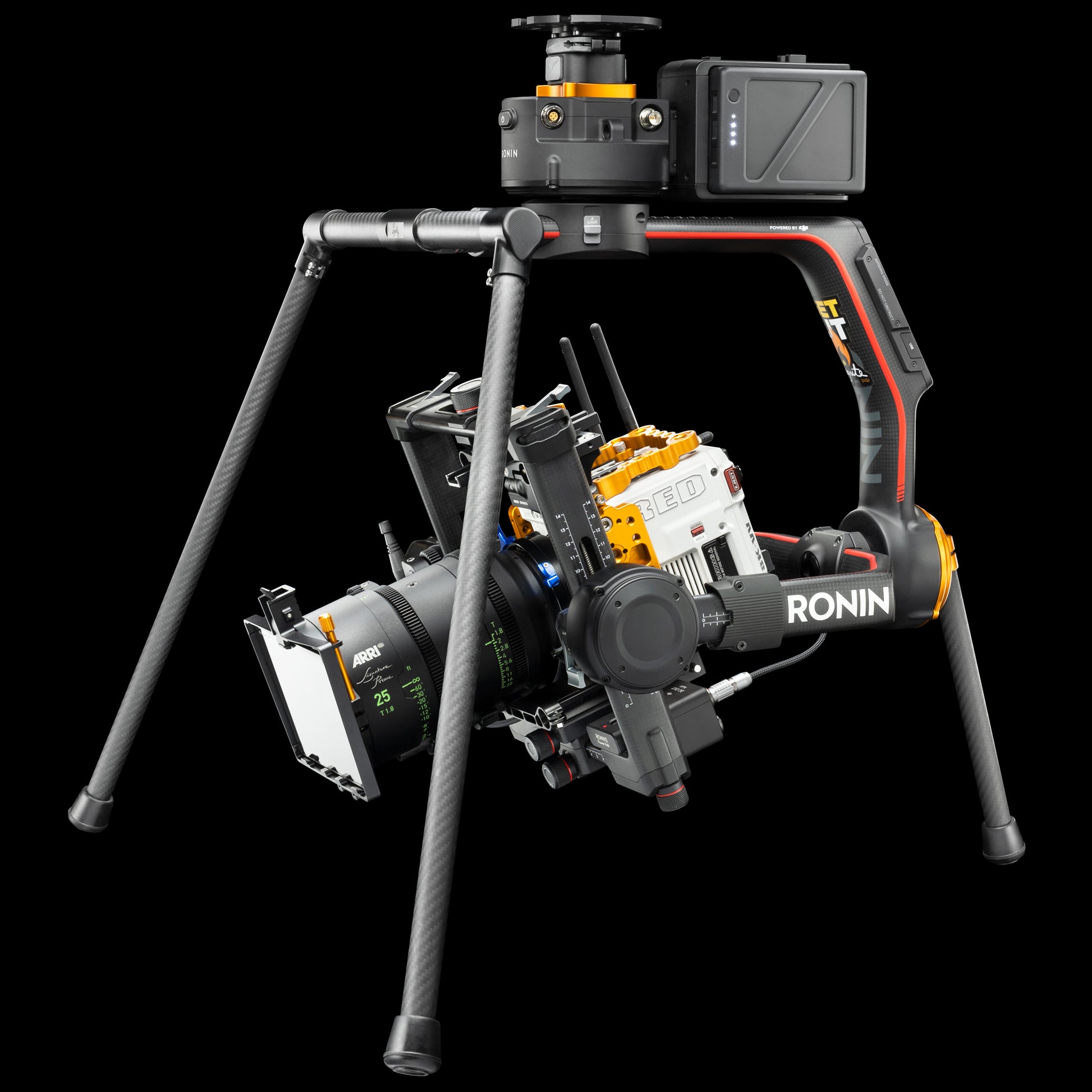

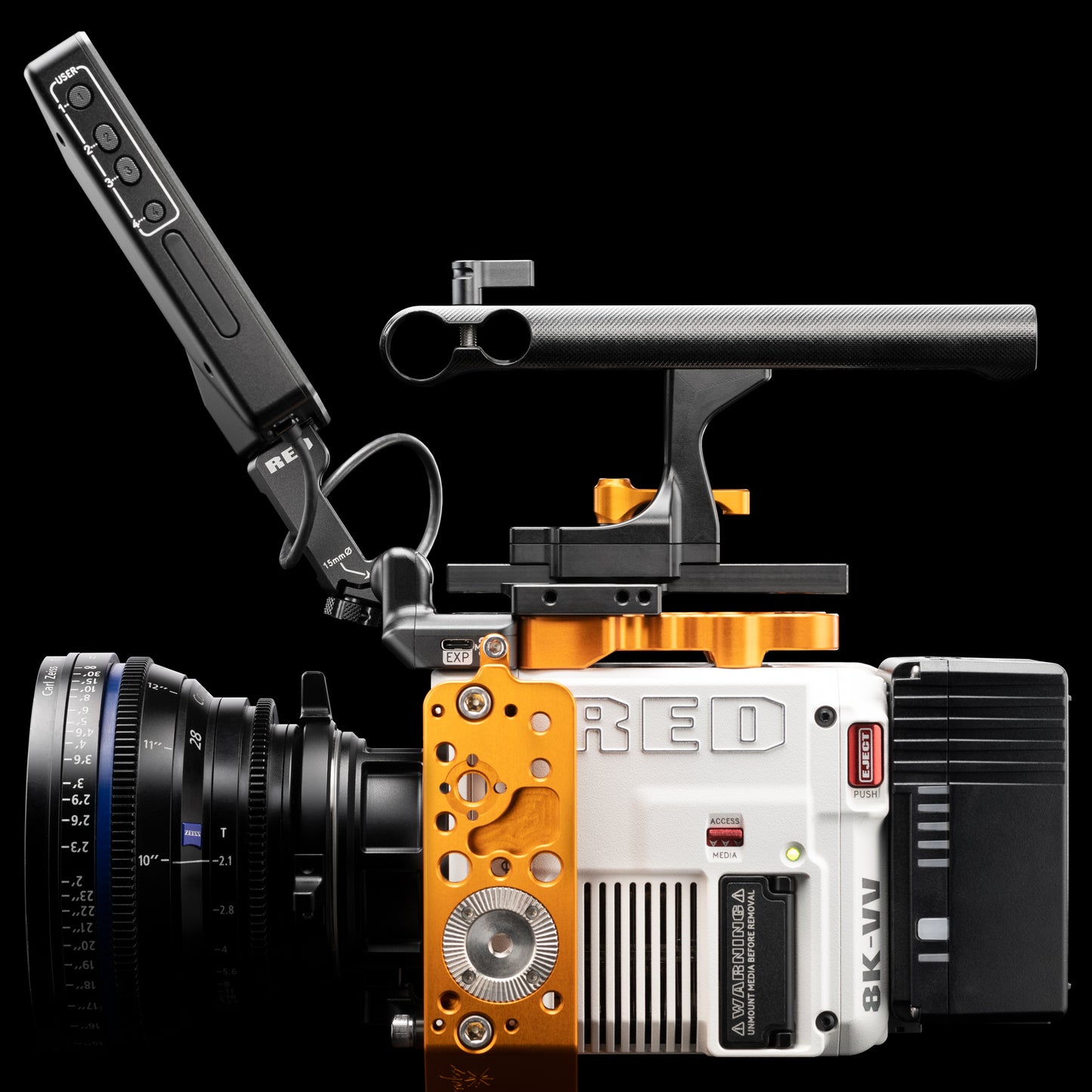

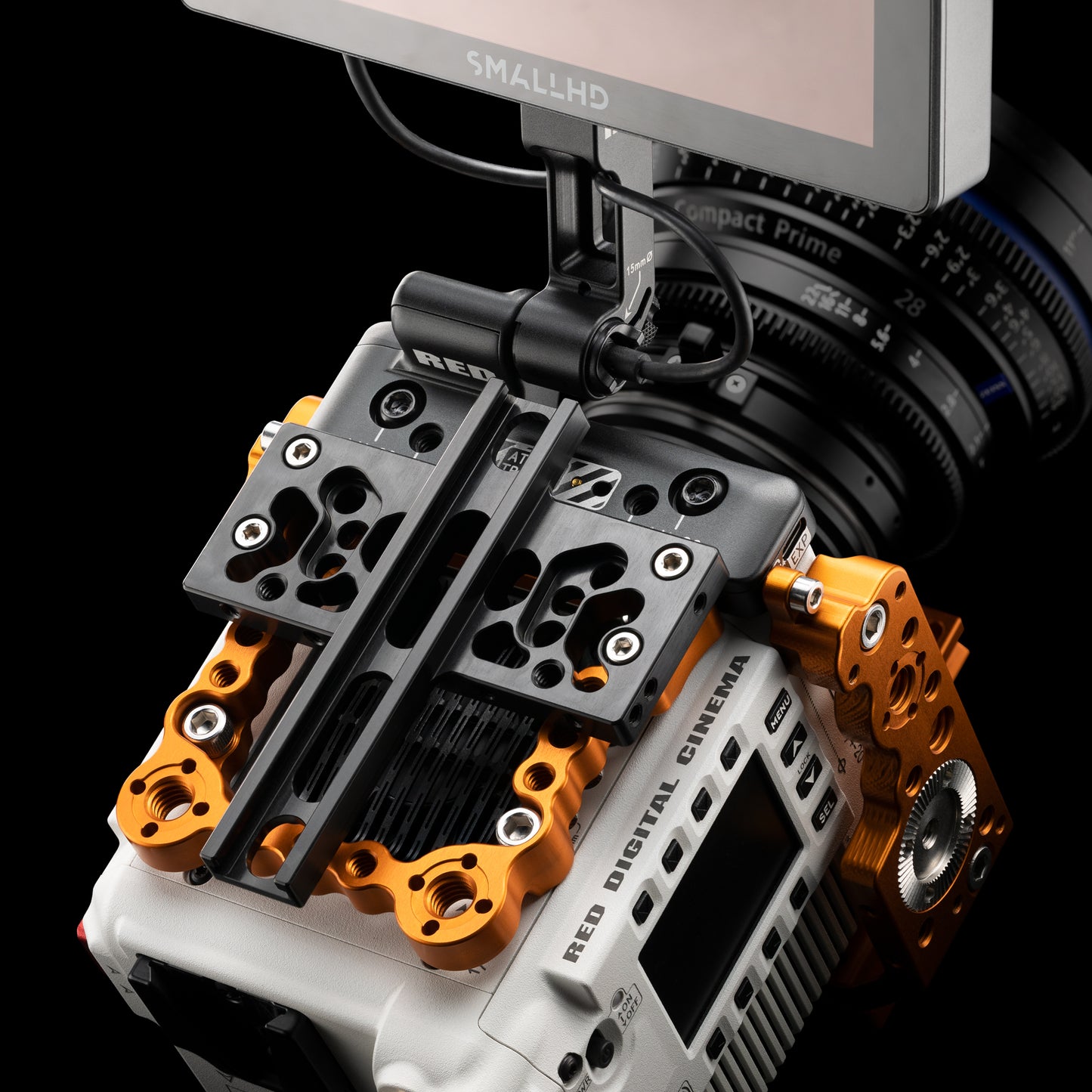

Four ARRI MAP spaced M4 threads can be used to mount our Camera Top Plate. This Top Plate enables you to slide into MōVI Pro or Ronin 2, or attach our popular Quick Release Top Handle!
It's a great alternative for mounting our Camera Top Plate to V-RAPTOR if you don't own KEYSTONE Chopped.
TECHNICAL DETAILS
EXO Plate RMI mounts to V-RAPTOR with four ¼”-20 x ½" socket head cap screws for a secure connection.
The side ¼”-20 threads are spaced 10mm apart.
The rear ¼”-20 threads are spaced ½" apart.
MADE FROM
High-grade 6061-T651 aluminium billet
Hard anodised
SHIPS WITH
Eight ¼”-20 x ½" socket head cap screws
WEIGHT
2.32oz / 66g solo
2.99oz / 85g with four screws
DIMENSIONS
3.7 x 3.5 x 0.6” / 94 x 90 x 15mm
USE CASE & DESCRIPTION

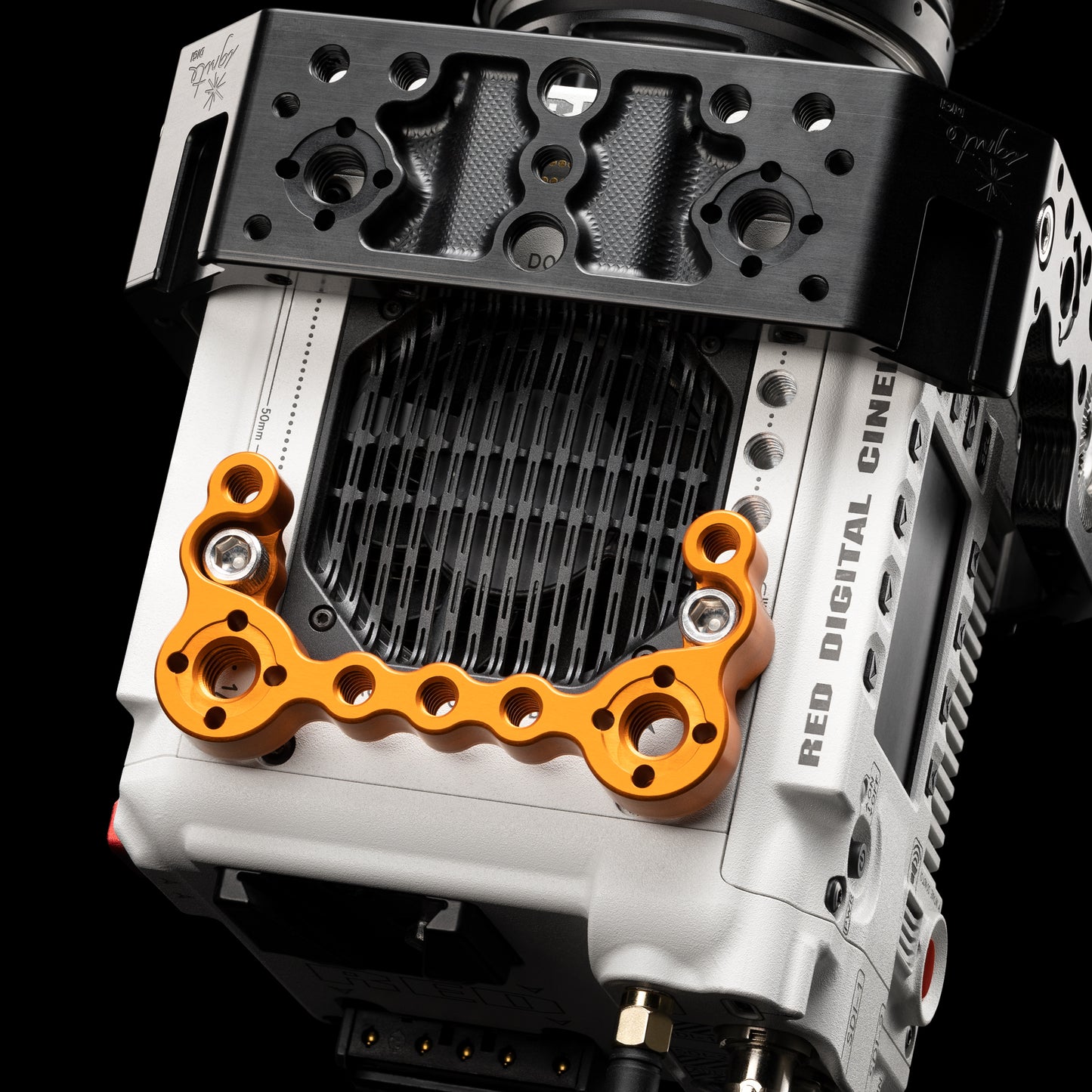

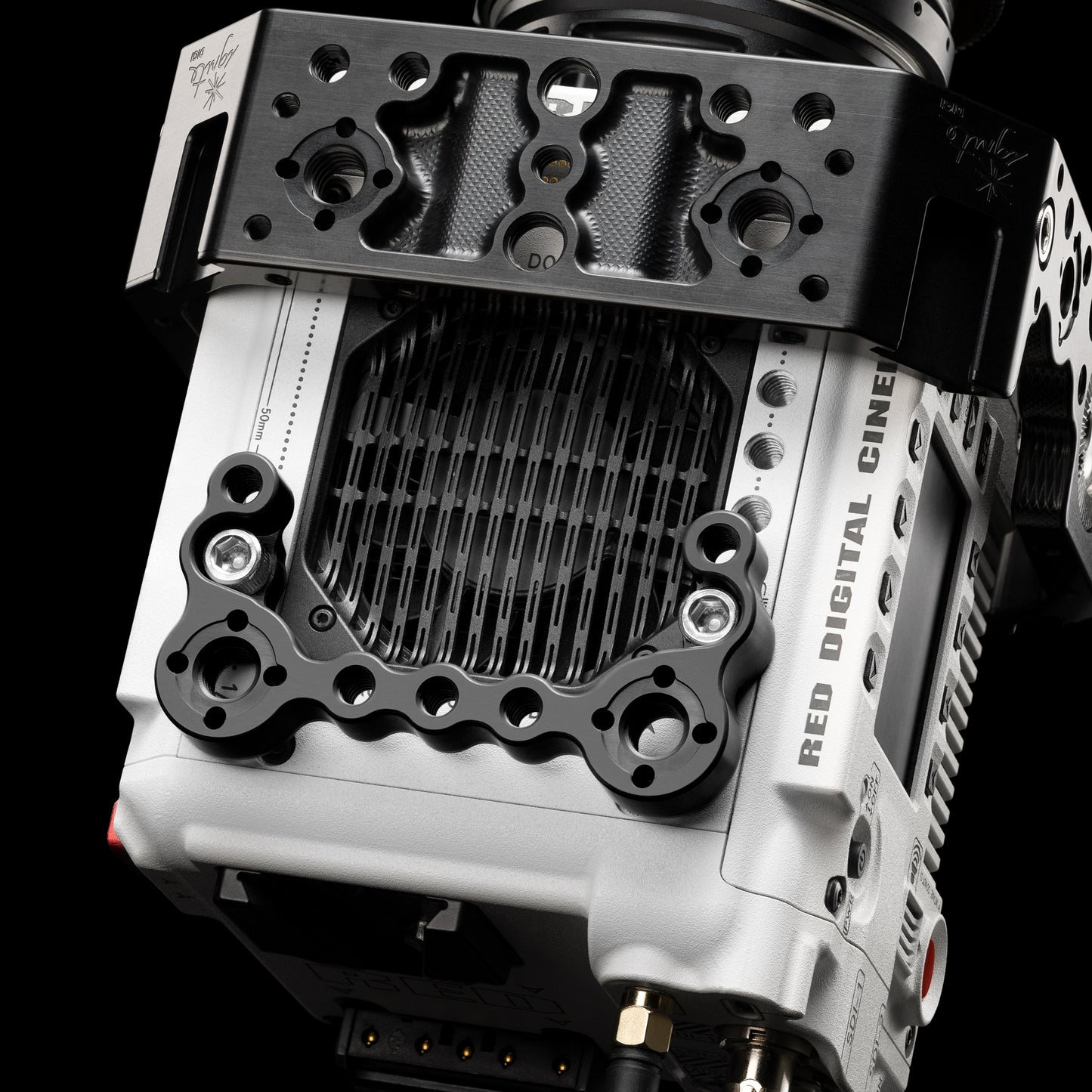

At just 34g, EXO Plate mini weighs very little, but adds ⅜"-16 Pic-Locs right where you need them.

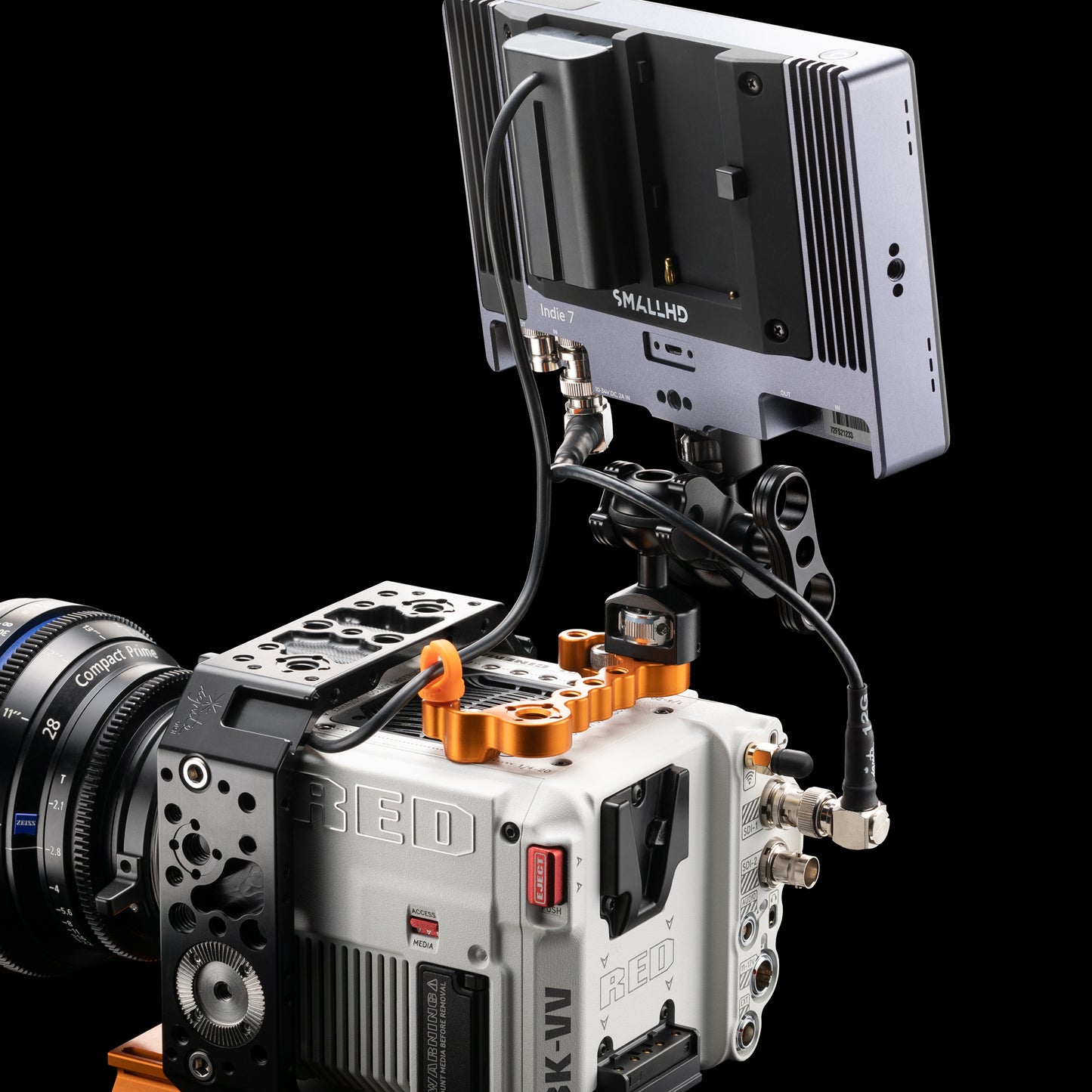

Mount your preferred articulating arm into the ⅜"-16 Pin-Loc for a firm, anti twist connection.
TECHNICAL DETAILS
EXO Plate mini mounts to V-RAPTOR with two ¼”-20 x ½" socket head cap screws.
The rear ¼”-20 threads are spaced ½" apart.
MADE FROM
High-grade 6061-T651 aluminium billet
Hard anodised
SHIPS WITH
Four ¼”-20 x ½" socket head cap screws
WEIGHT
1.19oz / 34g solo
1.55oz / 44g with two screws
DIMENSIONS
3.4 x 1.7 x 0.6” / 88 x 43 x 15mm
.
