EXT Breakout

$701.80 AUD

Unlock the full potential of the KOMODO, KOMODO-X and V-RAPTOR 9-Pin EXT port!

EXT Breakout allows you to sync the camera sensor for virtual production, while controlling camera settings on a SmallHD Smart Monitor, at the same time trigger run/stop on a Hi-5 and feed in Timecode from your sound recordist 🔥

You'll require a 9-Pin Lemo to 9-Pin Lemo Control Cable to connect EXT Breakout to the camera. If you don't have this cable in your kit, we offer three lengths, made with super flexible TPU!

KEY FEATURES

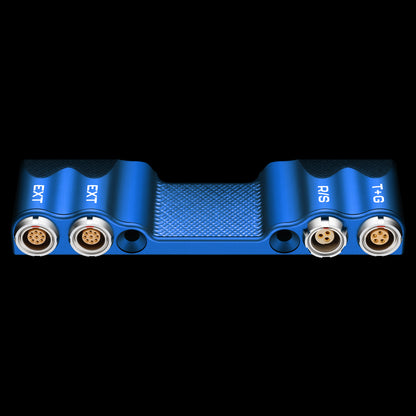

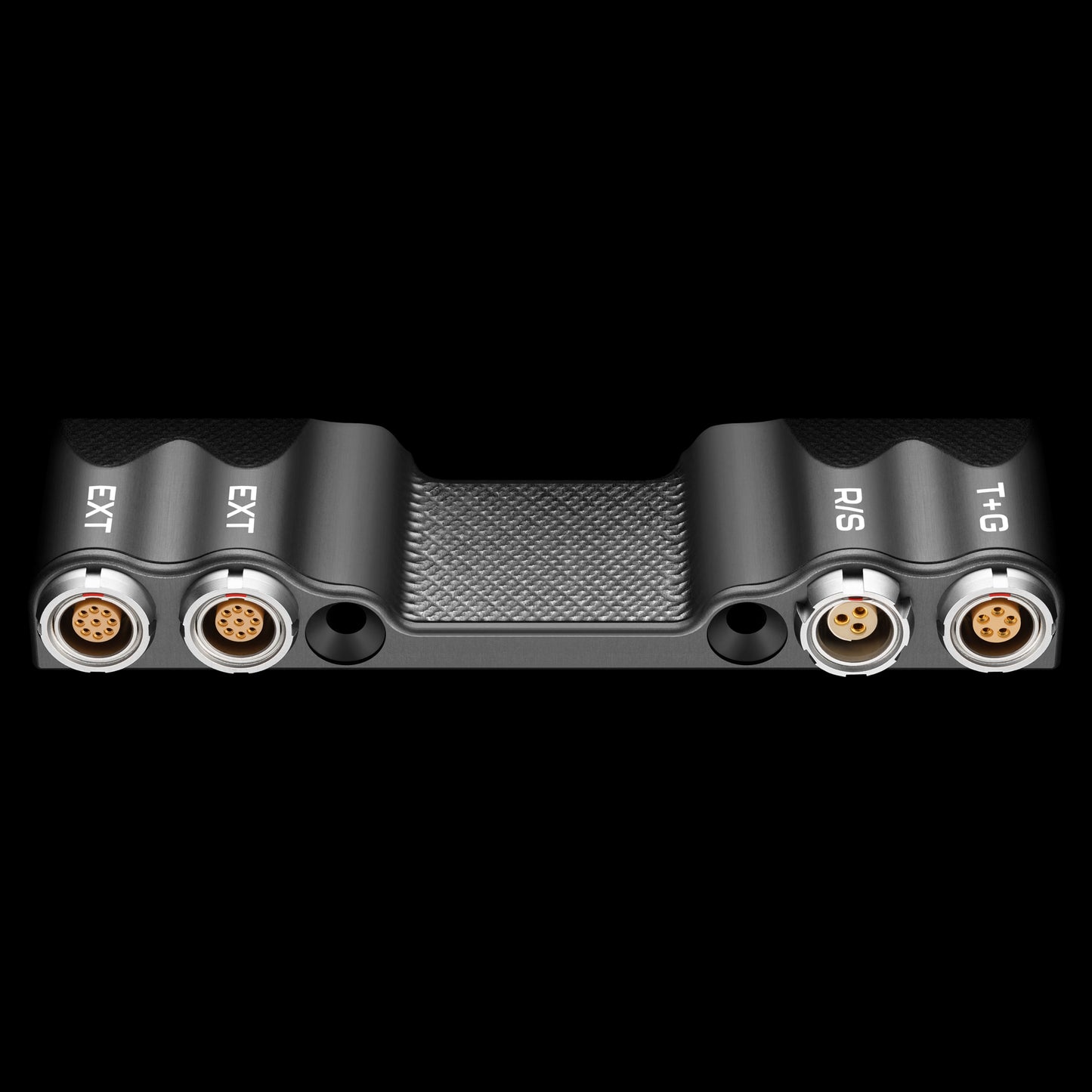

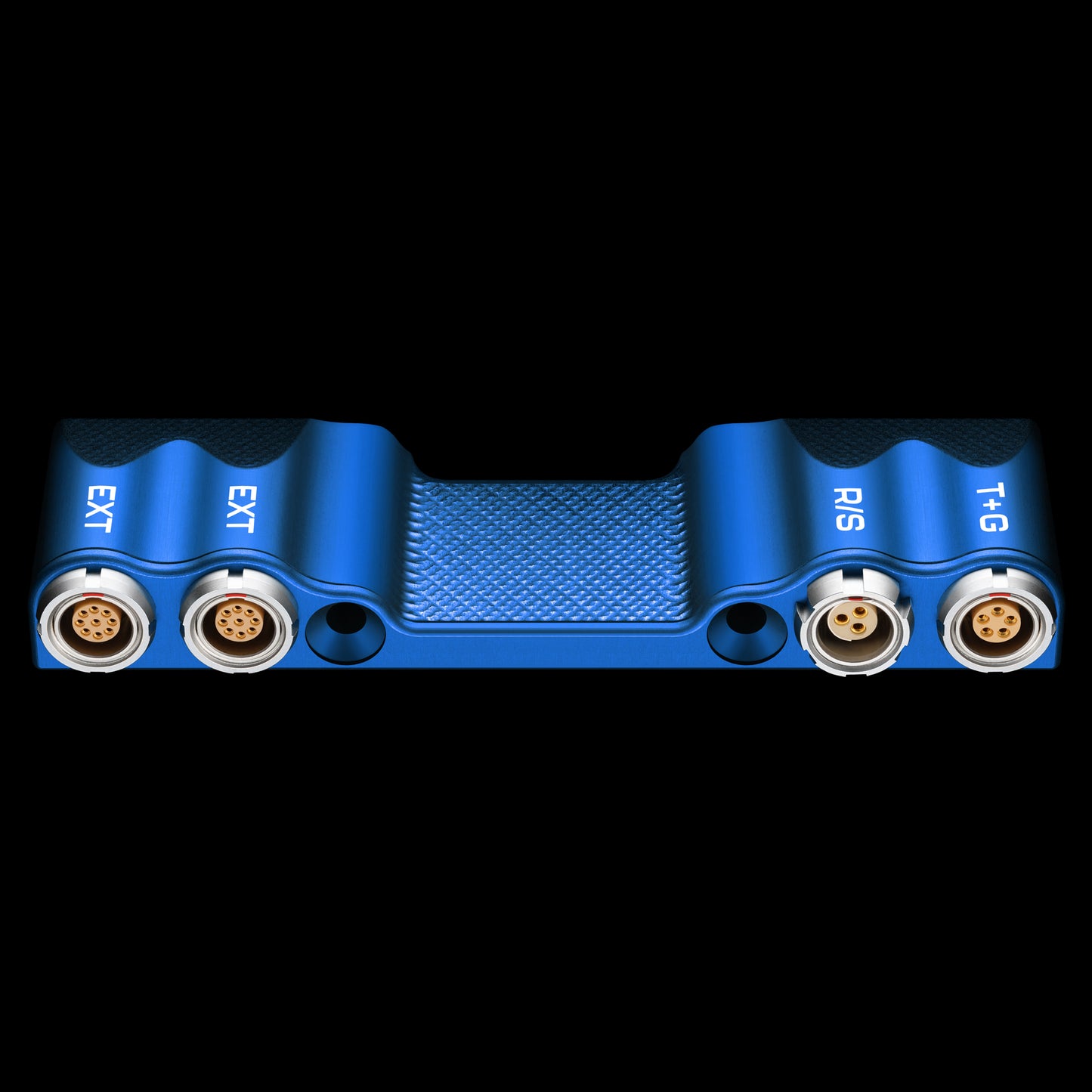

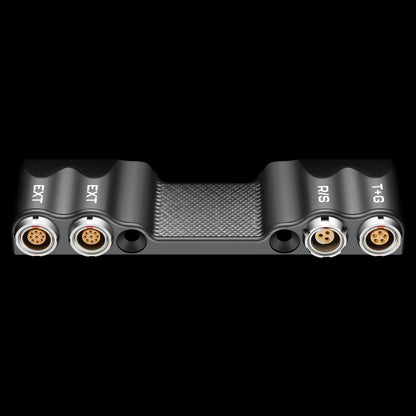

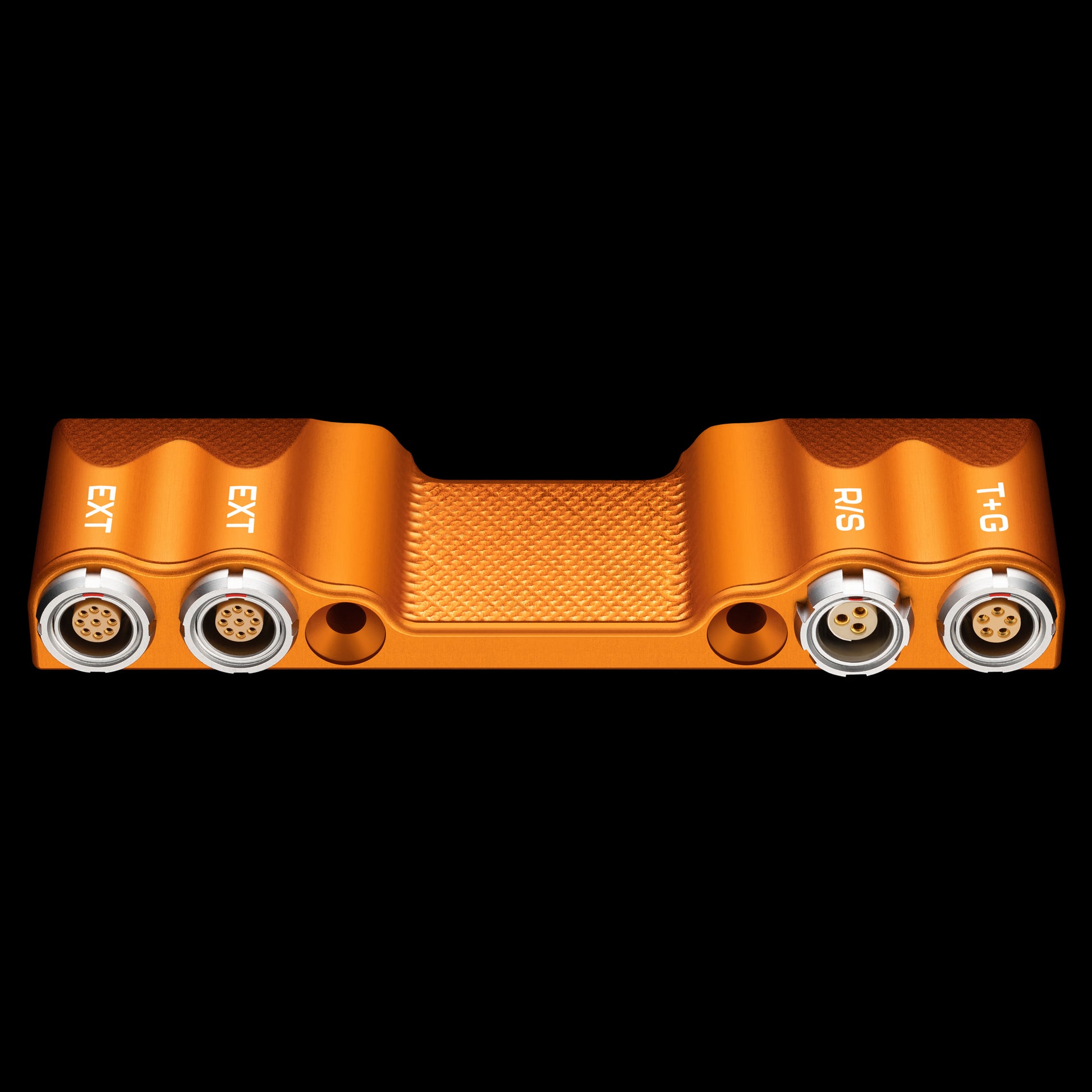

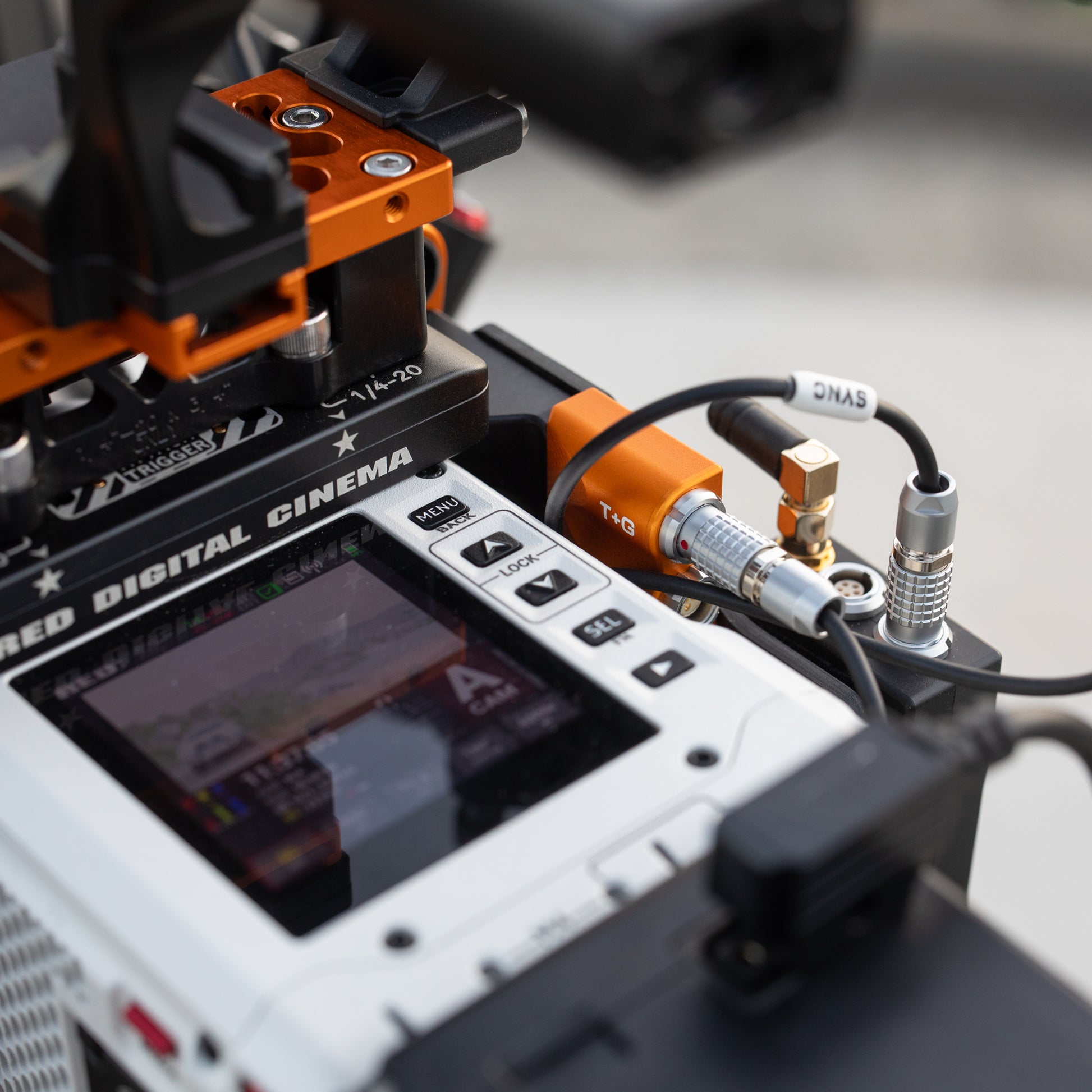

Two 9-Pin Lemo EXT ports
One 3-Pin Fischer Run/Stop port
(Fischer does not carry power)
One 5-Pin Lemo Timecode/Genlock port

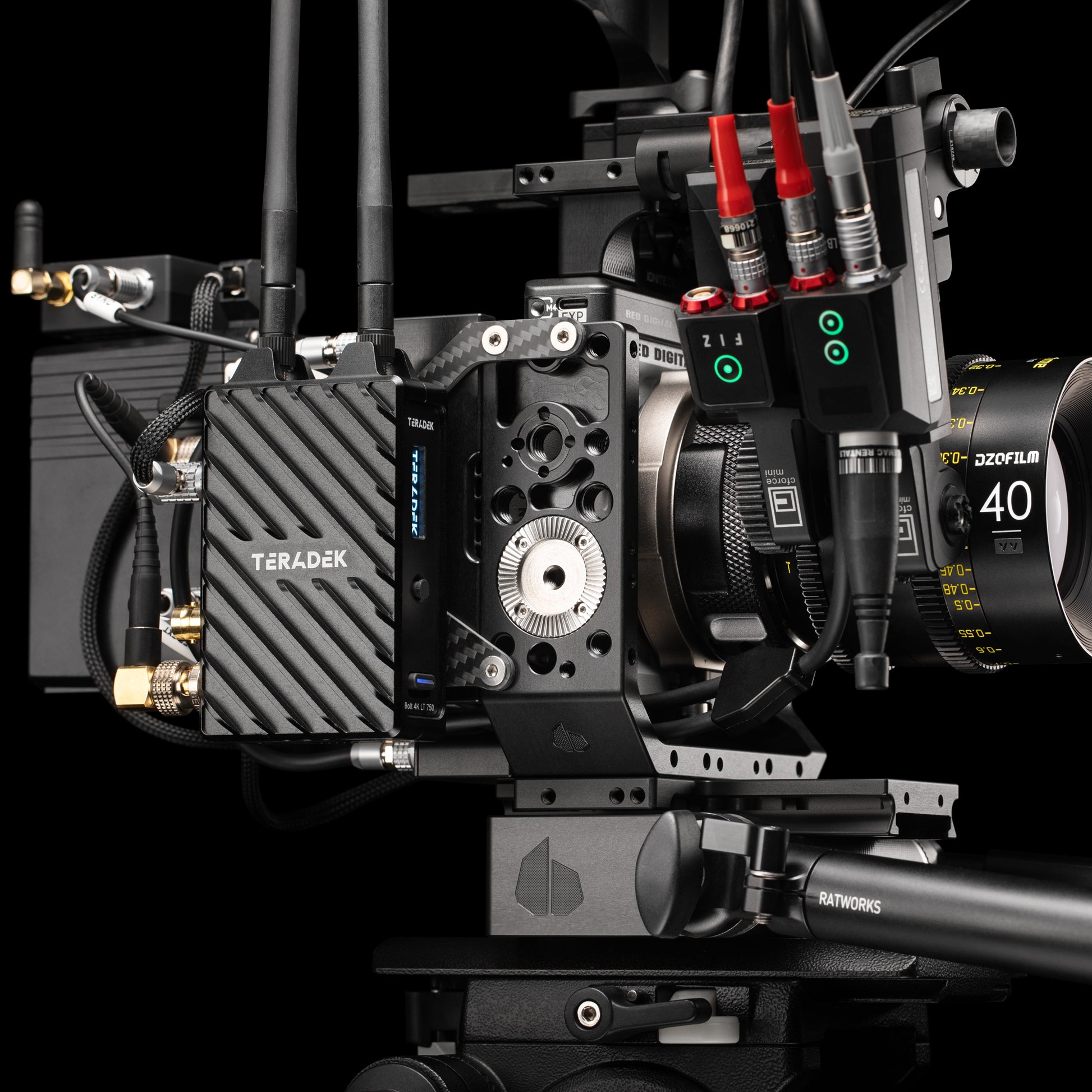

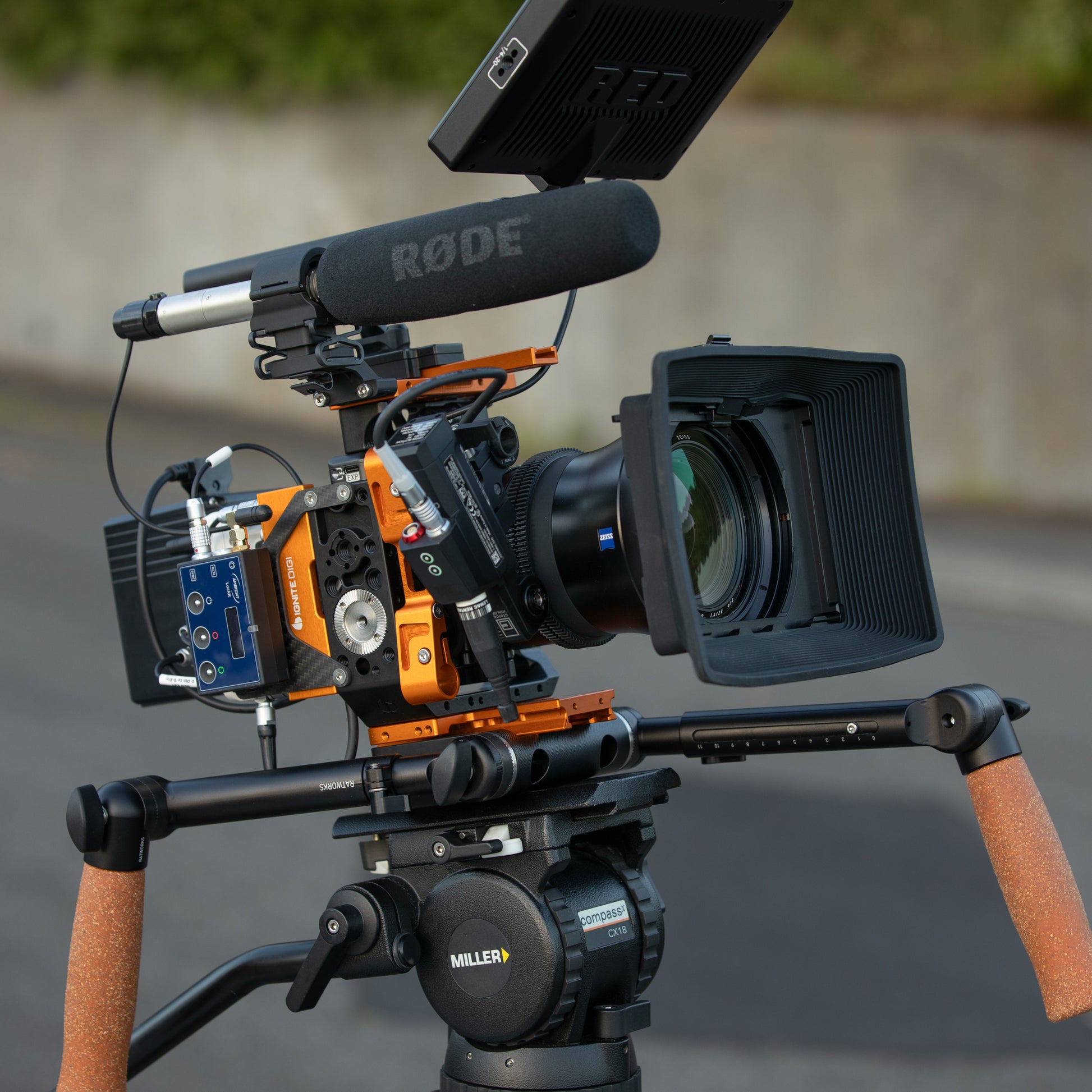

Mounts to all KEYSTONES
Mounts to Camera Top Plate A
Mounts to Camera Top Plate B
Mounts to Bridge Plate Booster Seat

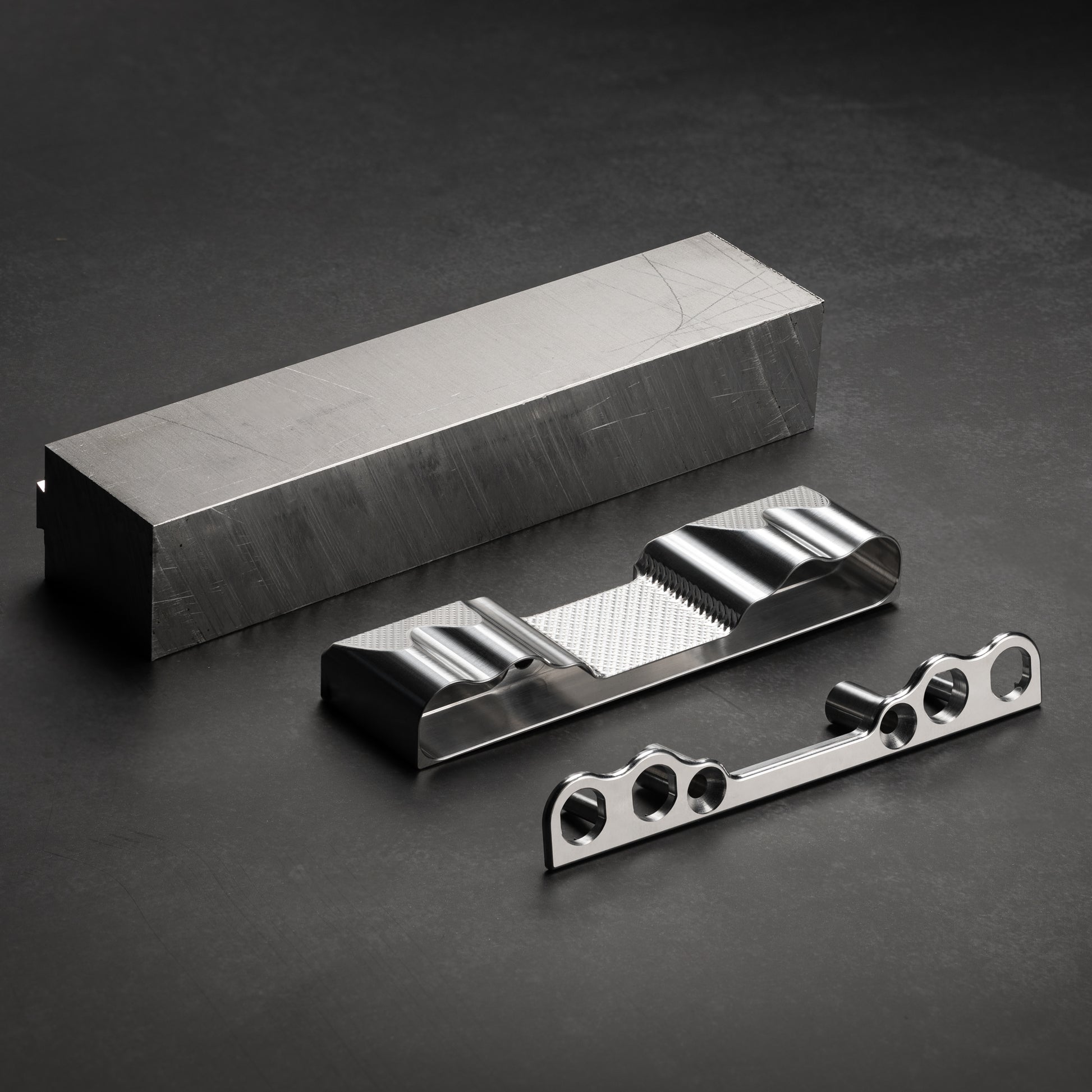

CNC machined from 6061-T651 aluminium billet

WHY TWO 9-PIN EXT PORTS?

To put it briefly, flexibility and reliability.

One port connects to the camera, the other can be used for many functions: Control, Run/Stop, Timecode, or Genlock!

For example Control is useful for devices like a SmallHD Smart Monitor or wired control with RCP Translator.

The 9-Pin 0B Lemo socket is also more robust than a 4-Pin 00 CTRL port found on DSMC2. The small 00 connectors are notorious for breaking on set!

WHAT DOES EXT BREAKOUT MOUNT TO?

EXT Breakout mounts with M4 x 35mm countersunk screws. We include four - two to use and two spare.

SPECS

MADE FROM
High-grade 6061-T651 aluminium billet
Hard anodised

SHIPS WITH
Four M4 x 35mm countersunk screws

WEIGHT
2.04oz / 58g

DIMENSIONS
4.01 x 1.25 x 0.59” / 102 x 32 x 15mm

9-PIN LEMO EXT

Recommended cables:

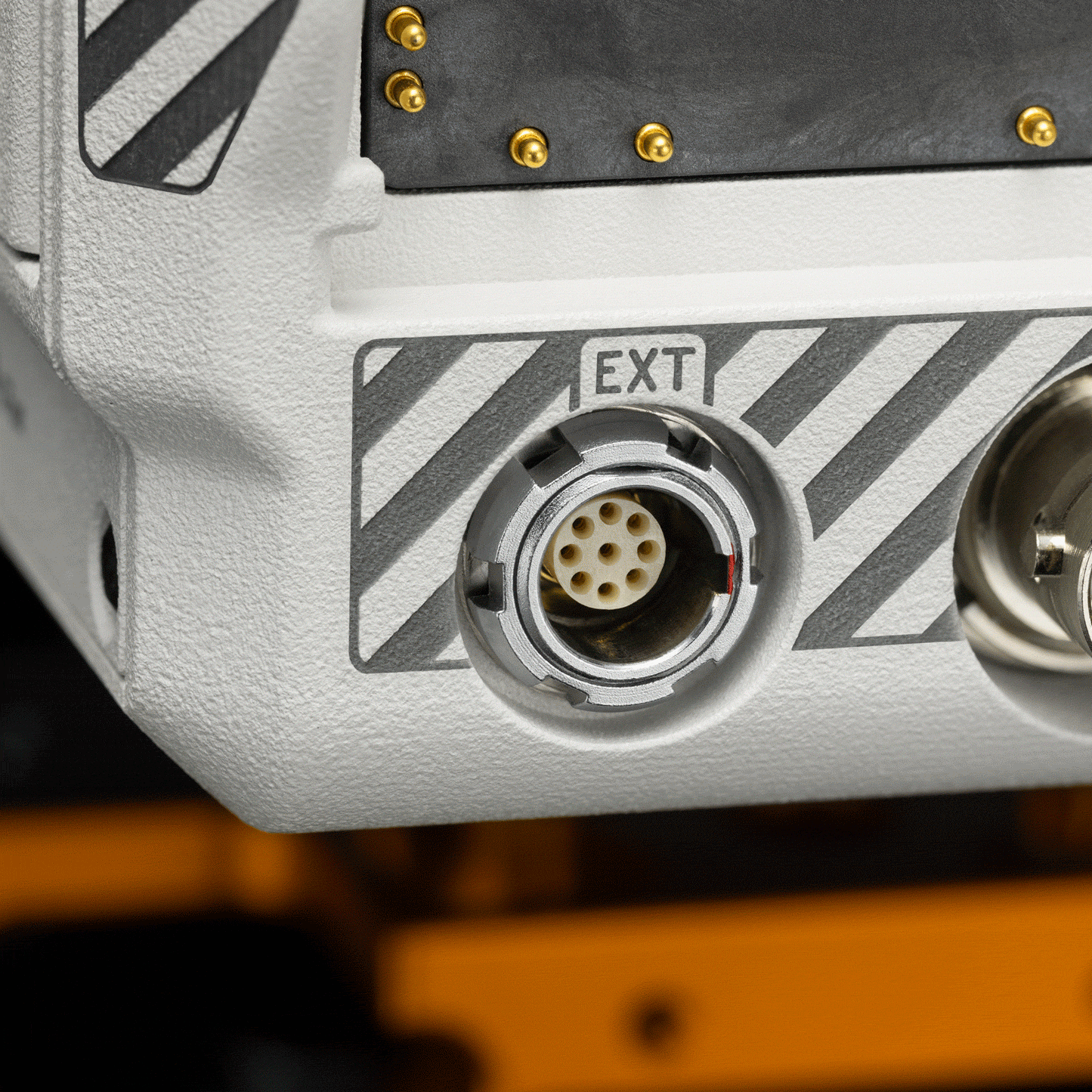

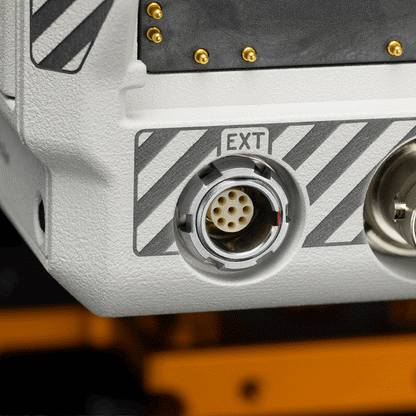

Connect EXT Breakout to KOMODO or V-RAPTOR with this cable: 9-Pin Lemo to 9-Pin Lemo

Connect EXT Breakout to a SmallHD Smart 5 or 7 Monitor that has RED RCP2 control licence with this cable: 9-Pin Lemo to 5-Pin Lemo

Connect EXT Breakout to RCP Translator to enable 'wired mode' with this cable: 9-Pin Lemo to 9-Pin Lemo

RCP Translator allows MōVI Pro, Ronin 2 and other RCP1 devices to work with KOMODO, V-RAPTOR and V-RAPTOR XL. 'Wired mode' is best used in busy WiFi environments.

3-PIN FISCHER RUN/STOP

As mentioned above, the 3-Pin Fischer does not carry power, only R/S. Power FIZ motors separately with a 2-Pin Lemo cable:

5-PIN LEMO TIMECODE + GENLOCK

Recommended cables:

Connect Ambient Lockit to EXT Breakout with this cable: 5-Pin Lemo to 5-Pin Lemo

Connect Tentacle Sync to EXT Breakout with this cable: 5-Pin Lemo to Neutrik 3.5mm Mini Jack
