FUSION HUB for DJI Transmission

SKU:IK.200095

In stock

$2,498.00 AUD

Sale Sold out

Variant Complete Pack Ronin Pack MōVI Pack

Breakout for Tilta Nucleus Nano II Yes No

Quantity

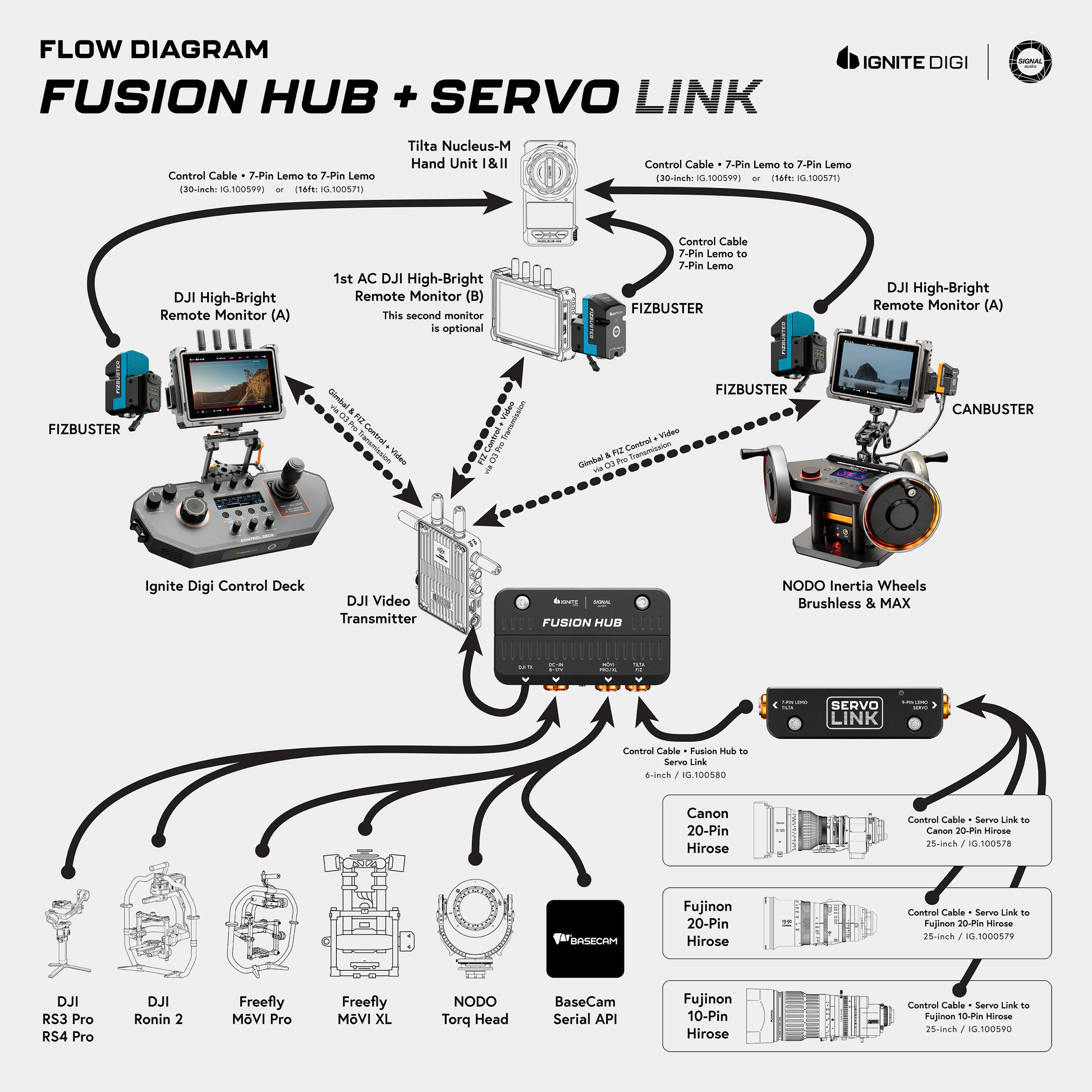

FUSION HUB is a smart module that further enhances Control Deck and CANBUSTER for Inertia Wheels.

It allows 3-Channel FIZ control using Tilta motors, via the ultra long range DJI Transmission signal! Compatible with Nucleus M and Nano II.

That means video feed, gimbal control, FIZ control, and run/stop — up to 3.7miles / 6km!

Last but not least, for the first time ever....FUSION HUB allows you to control Freefly MōVI Pro and MōVI XL with Control Deck! 🔥

Our comprehensive packs include everything you need — module, cables, screws, handy storage pouch.

First batch shipping early March 🚀

More Info

————————————————

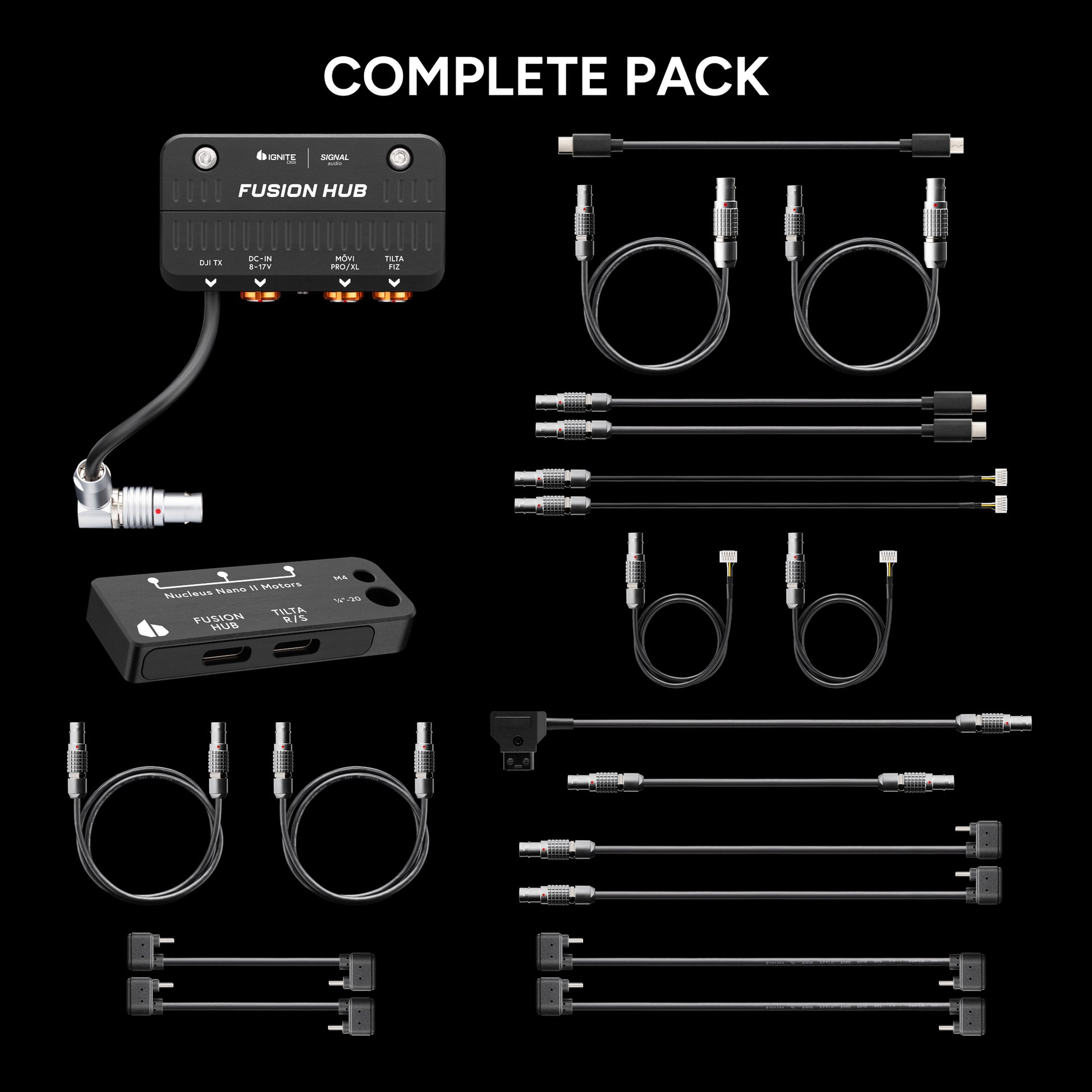

COMPLETE PACK

FUSION HUB module
Breakout for Tilta Nucleus Nano II module
1x USB-C to Micro-B Firmware Cable
2x Control Cable ‣ FUSION HUB to Ronin 2 - 20-inch / 50cm
2x Control Cable ‣ FUSION HUB to RS4 Pro - 12-inch / 30cm
2x Control Cable ‣ FUSION HUB to MōVI - 12-inch / 30cm
2x Control Cable ‣ FUSION HUB to MōVI - 35-inch / 90cm
1x Power Cable ‣ D-Tap to FUSION HUB - 14-inch / 35cm
1x Power Cable ‣ 2-Pin Lemo to FUSION HUB - 8-inch / 20cm
2x Control Cable ‣ 7-Pin Lemo to 7-Pin Lemo for Tilta Nucleus-M - 30-inch / 76cm
2x Control Cable ‣ 7-Pin Lemo to USB-C for Nano Breakout - 10-inch / 25cm
2x U-Shape USB-C Cable — 4-inch / 10cm
2x U-Shape USB-C Cable — 9-inch / 23cm

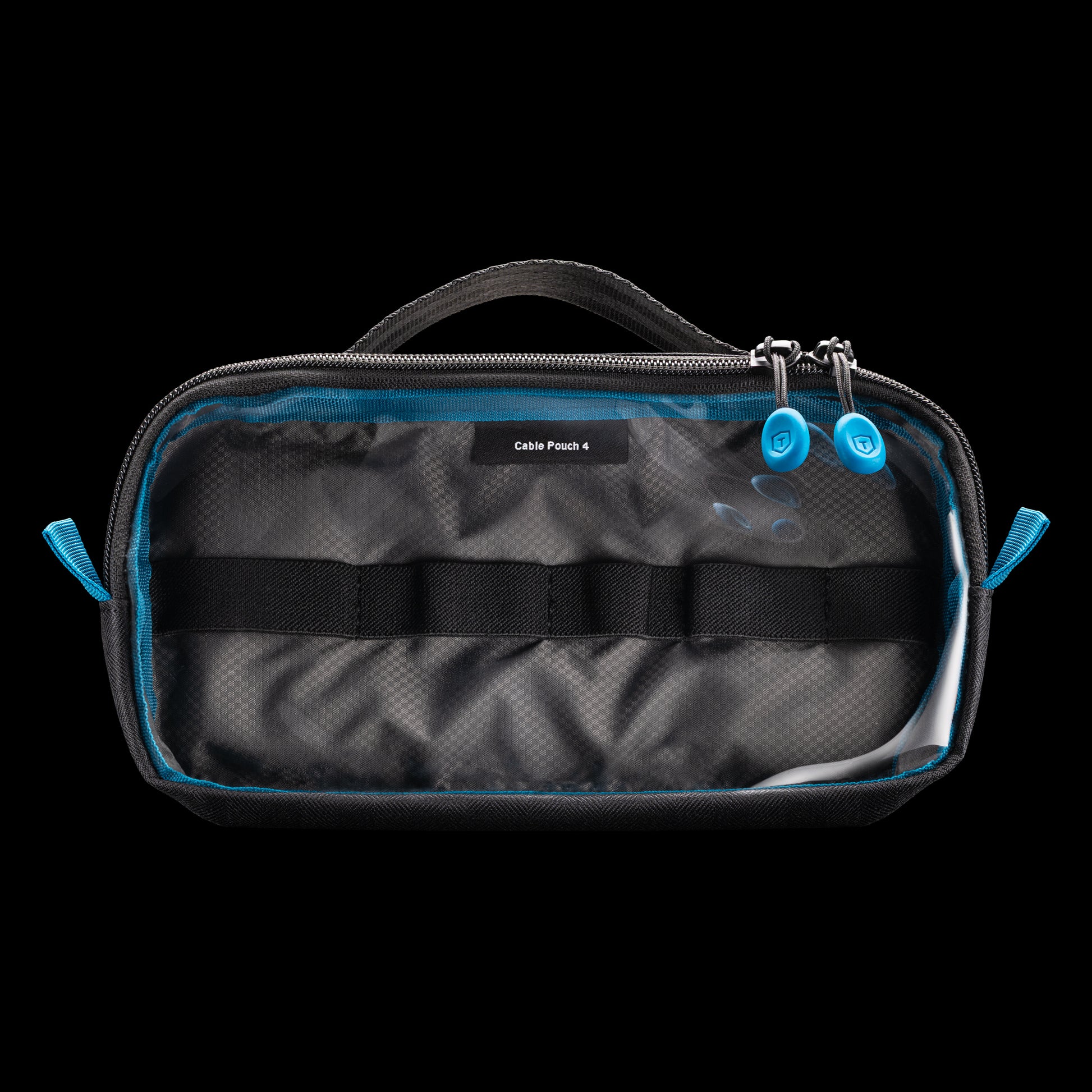

2x Tenba Tools Cable Pouches

————————————————

BREAKOUT FOR NANO II PACK

Breakout for Tilta Nucleus Nano II module
2x Control Cable ‣ 7-Pin Lemo to USB-C for Nano Breakout - 10-inch / 25cm
2x U-Shape USB-C Cable — 4-inch / 10cm
2x U-Shape USB-C Cable — 9-inch / 23cm

————————————————

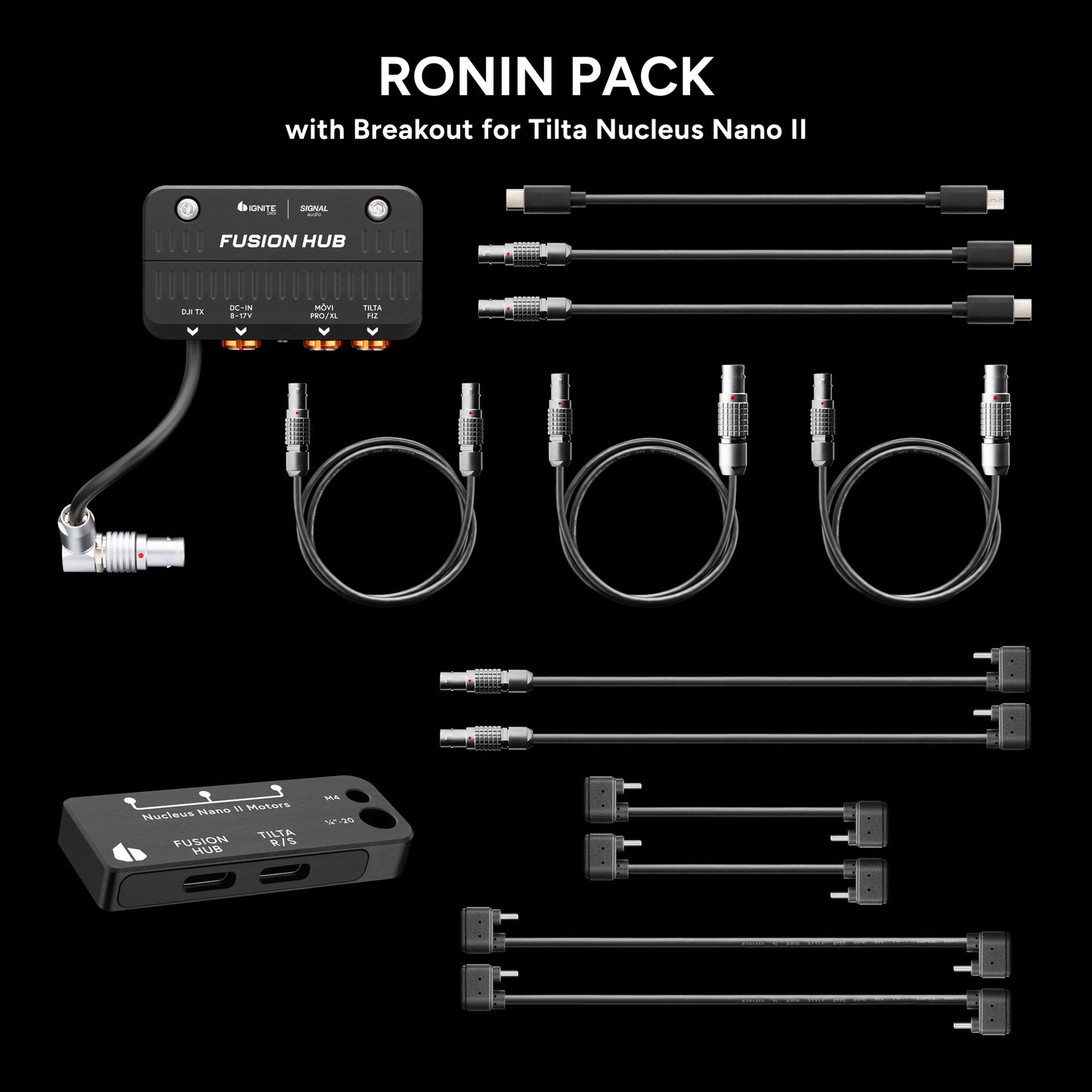

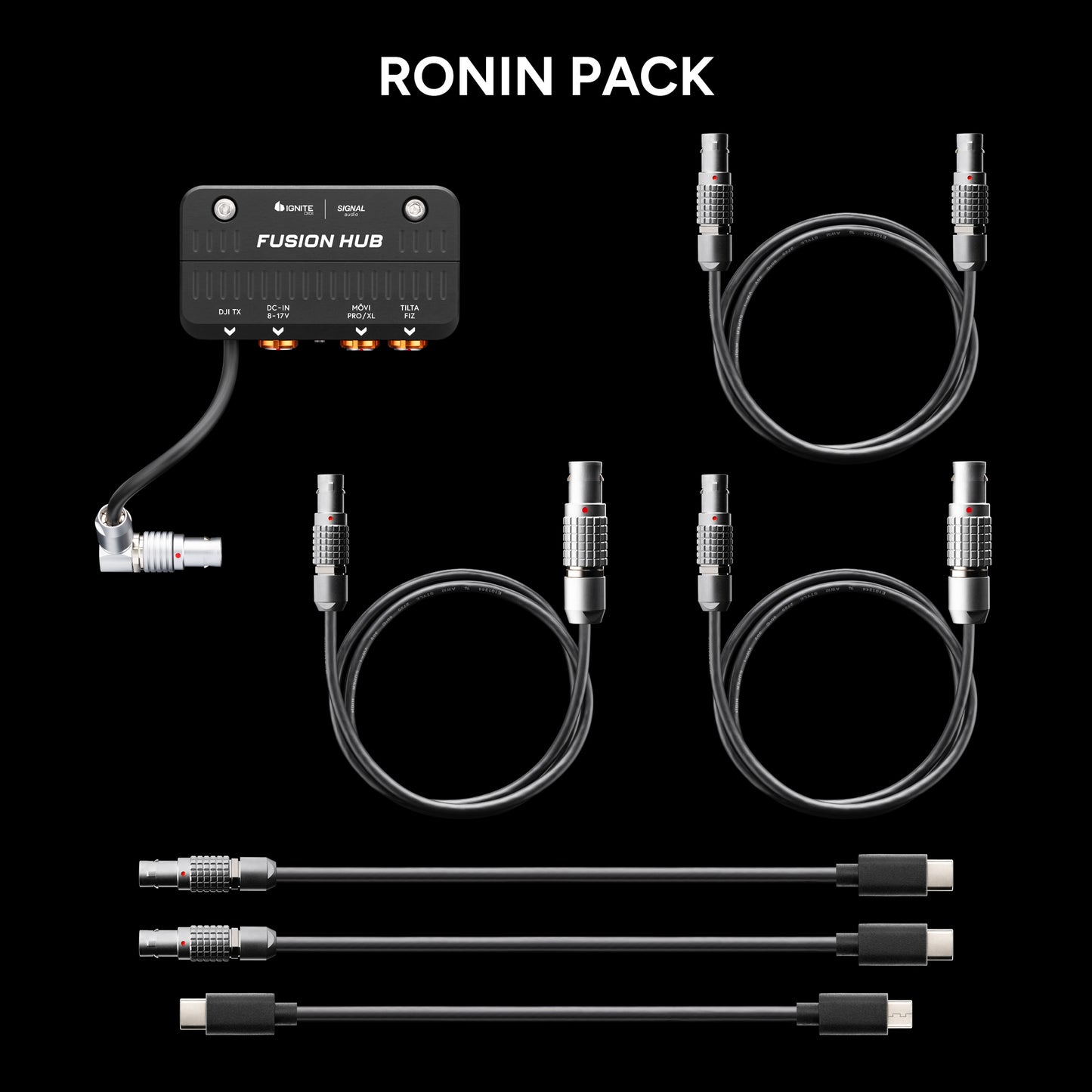

RONIN PACK

FUSION HUB module
1x USB-C to Micro-B Firmware Cable
2x Control Cable ‣ FUSION HUB to Ronin 2 - 20-inch / 50cm
2x Control Cable ‣ FUSION HUB to RS4 Pro - 12-inch / 30cm
1x Control Cable ‣ 7-Pin Lemo to 7-Pin Lemo for Tilta Nucleus-M - 30-inch / 76cm
1x Tenba Tools Cable Pouch

————————————————

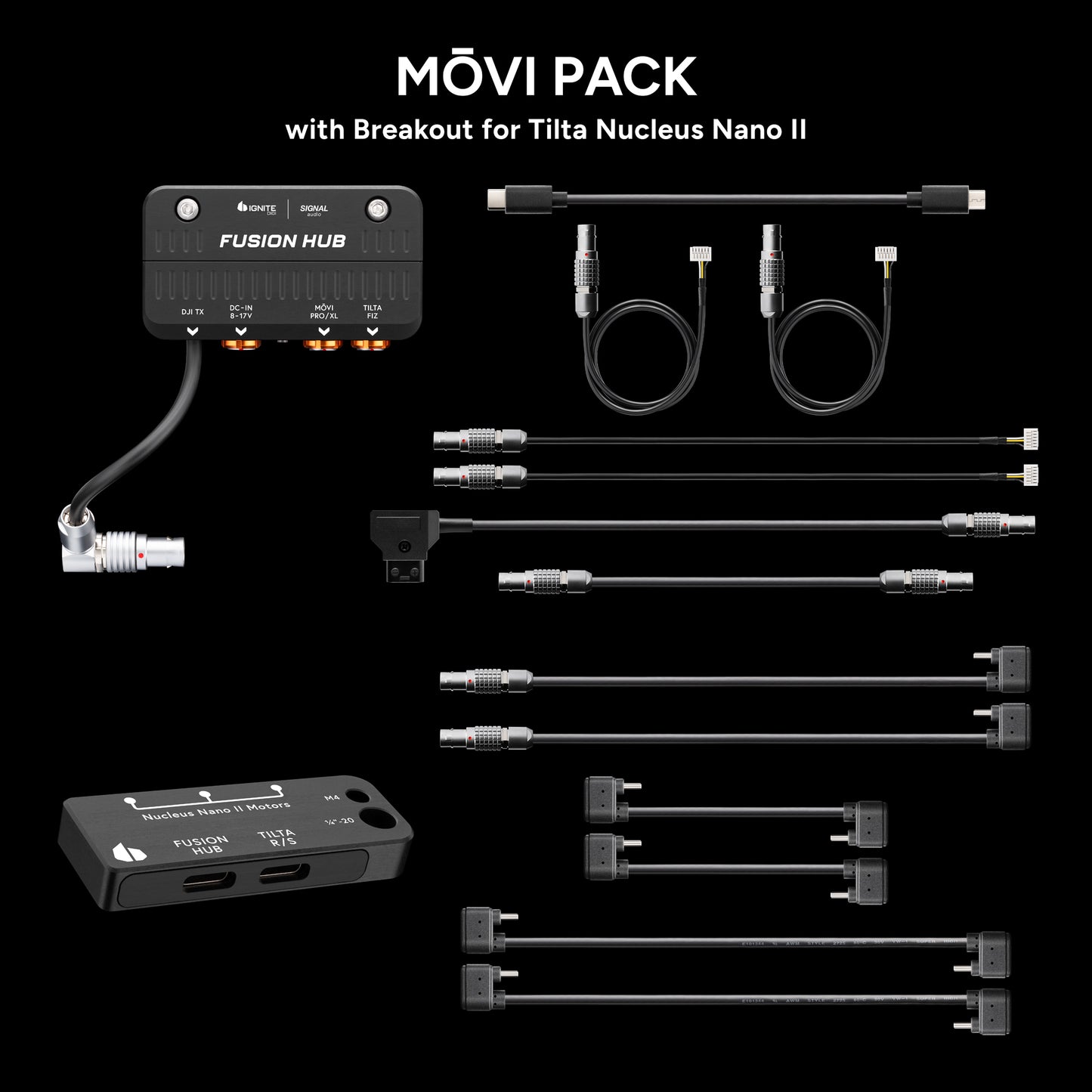

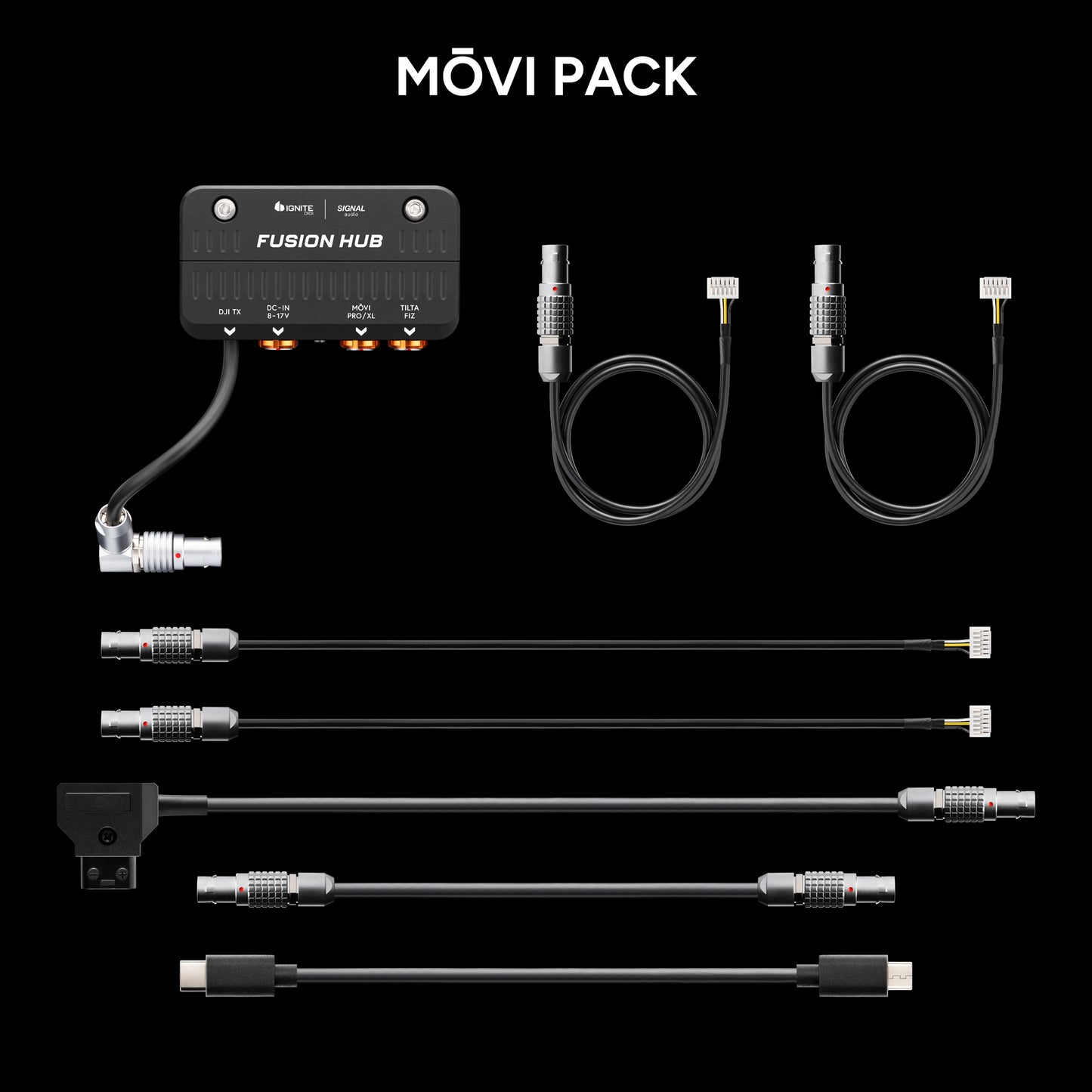

MōVI PACK

FUSION HUB module
1x USB-C to Micro-B Firmware Cable
2x Control Cable ‣ FUSION HUB to MōVI - 12-inch / 30cm
2x Control Cable ‣ FUSION HUB to MōVI - 35-inch / 90cm
1x Control Cable ‣ 7-Pin Lemo to 7-Pin Lemo for Tilta Nucleus-M - 30-inch / 76cm
1x Power Cable ‣ D-Tap to FUSION HUB - 14-inch / 35cm
1x Power Cable ‣ 2-Pin Lemo to FUSION HUB - 8-inch / 20cm
1x Tenba Tools Cable Pouch

————————————————

Specs

————————————————

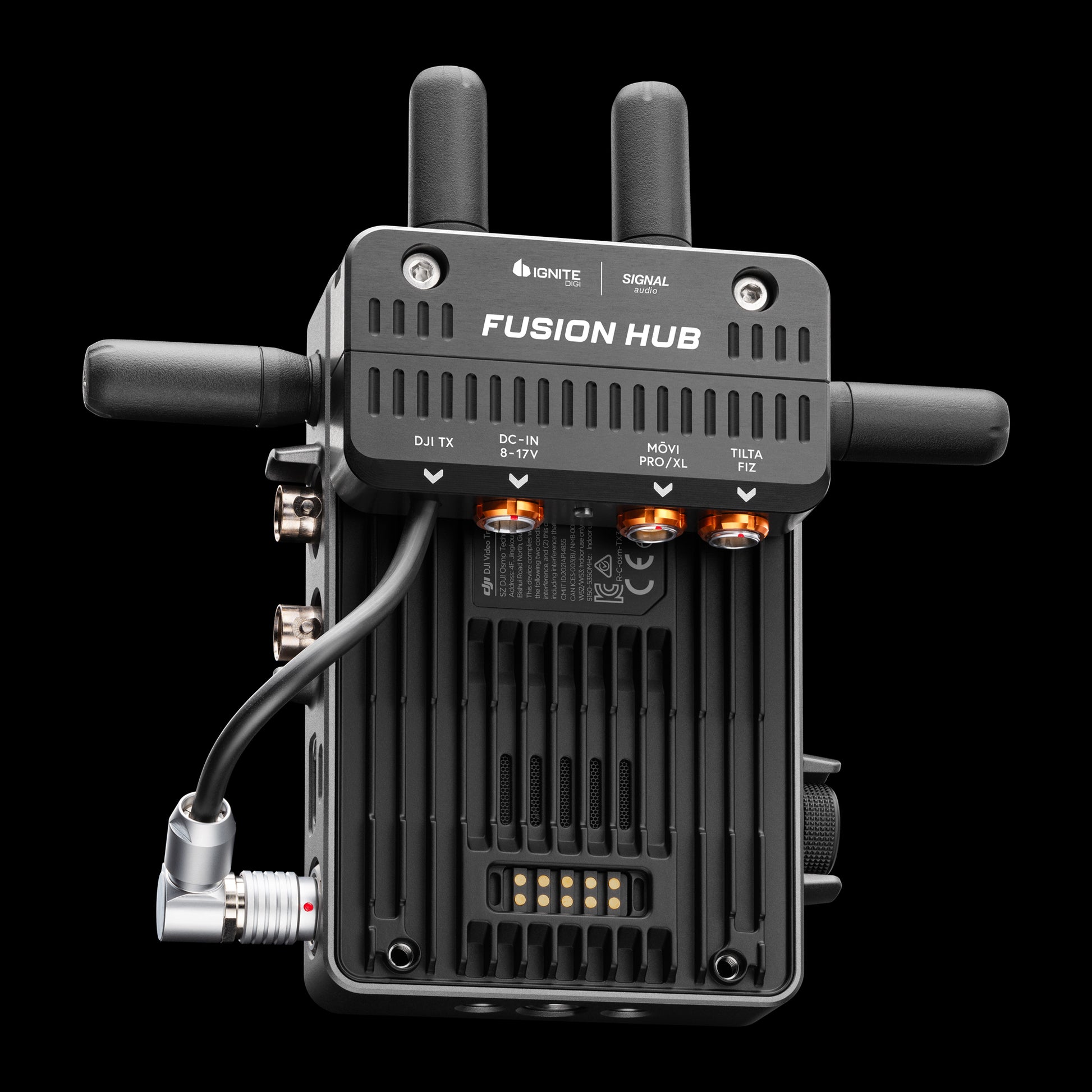

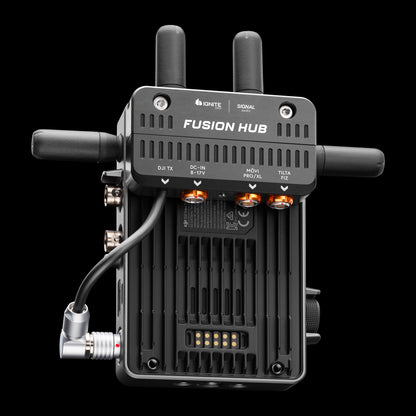

FUSION HUB MODULE

I/O

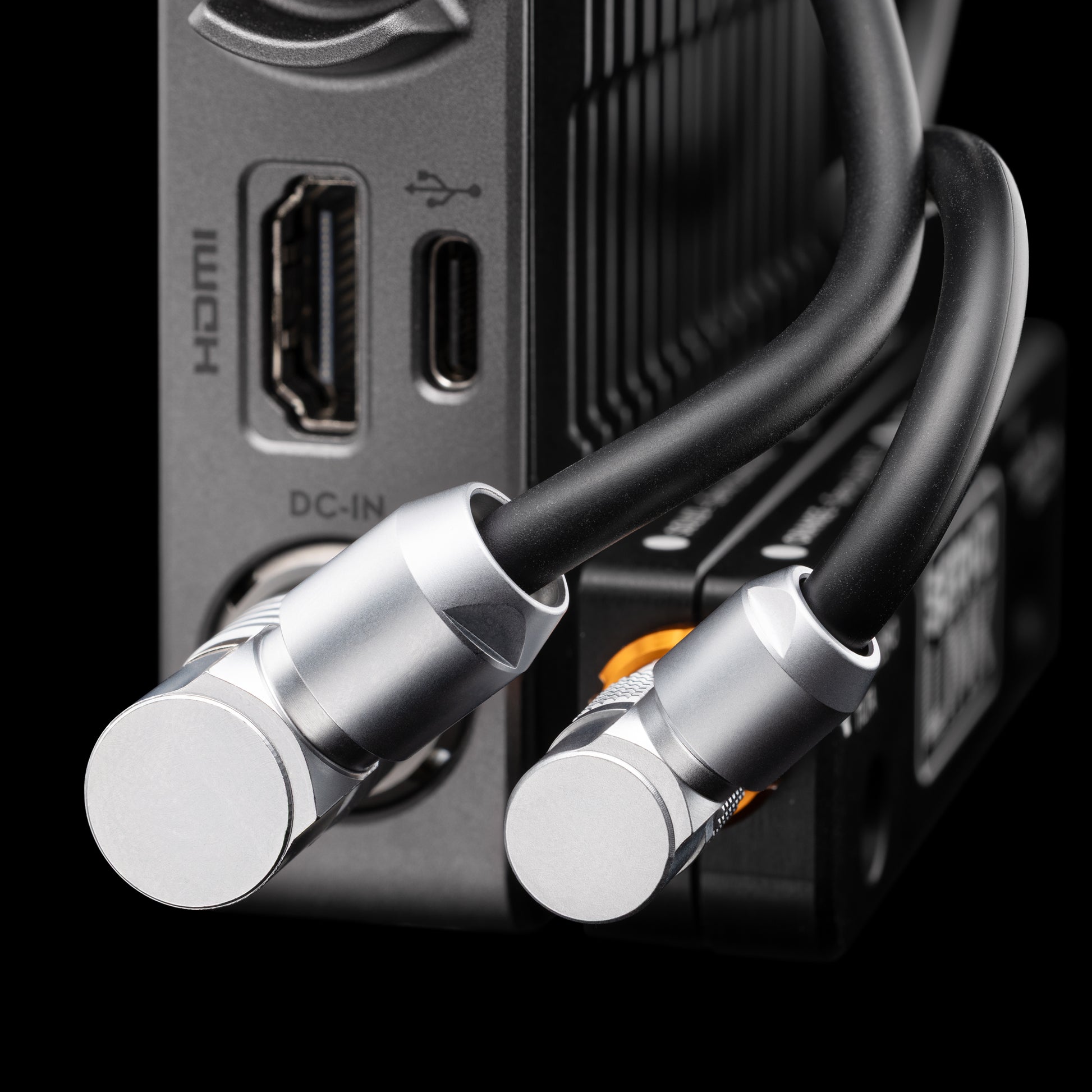

1x 3.5-inch Integrated Cable with Lemo Anglissimo Right Angle connector for DJI TX
1x 6-Pin Lemo port for DC-IN 8-17V
1x 5-Pin Lemo port for MōVI Pro/XL
1x 7-Pin Lemo port for Tilta FIZ motors/Breakout

MADE FROM
High-grade 6061-T651 aluminium billet
Hard anodised

SHIPS WITH
Two M4 x 16mm captive socket head cap screws

WEIGHT
4.16oz / 118g including integrated cable + screws

DIMENSIONS
3.18 x 1.88 x 0.74” / 81 x 48 x 19mm

————————————————

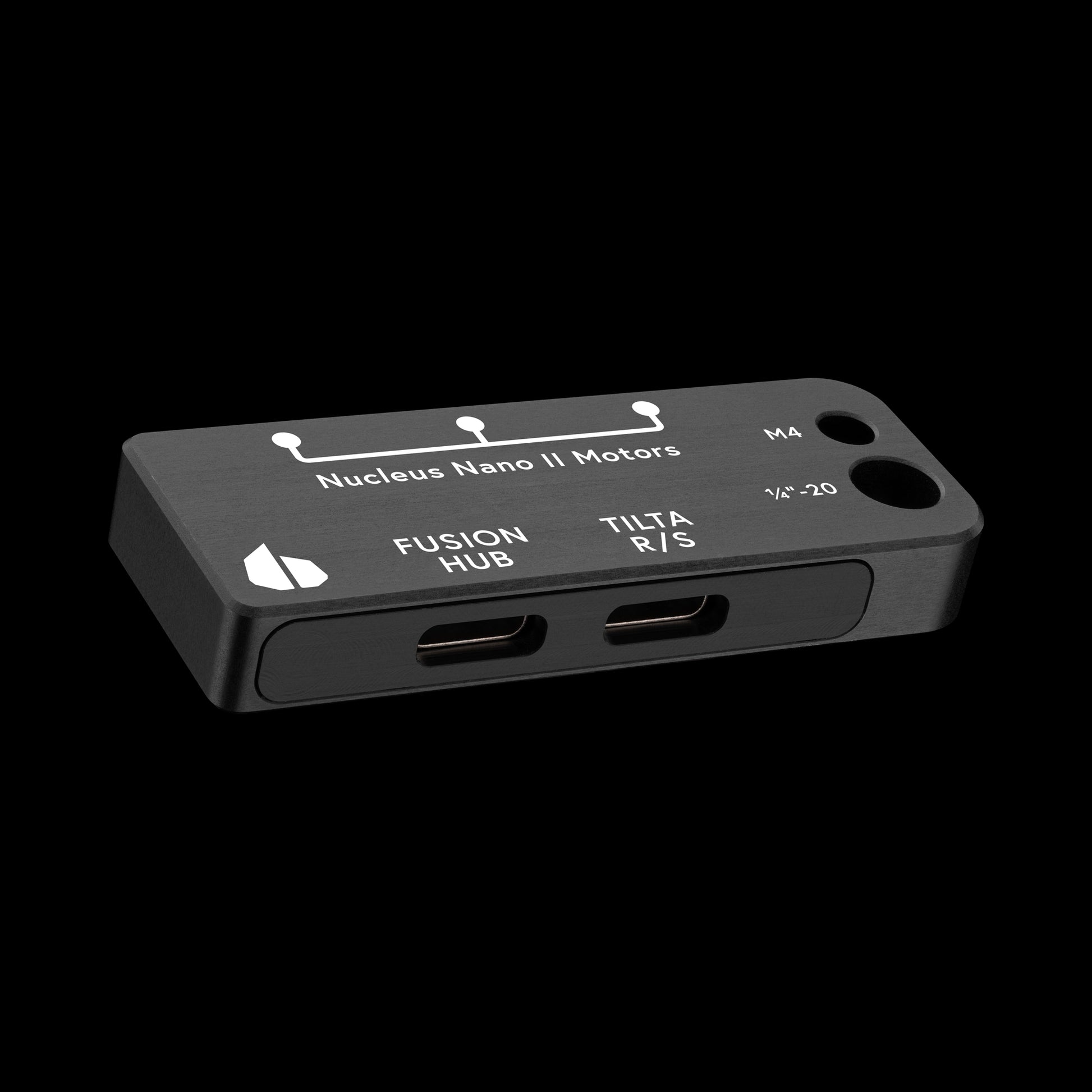

BREAKOUT FOR TILTA NUCLEUS NANO II

I/O
3x USB-C port for Nucleus Nano II motors
1x USB-C port for FUSION HUB
1x USB-C port for Tilta Run/Stop cables

MADE FROM
High-grade 6061-T651 aluminium billet
Ertacetal (high performance plastic)

SHIPS WITH
Two ¼”-20 x 1/2" socket head cap screws
Two M4 socket head cap screws

WEIGHT
0.63oz / 18g

DIMENSIONS
2.32 x 0.86 x 0.31” / 59 x 22 x 8mm

————————————————

Shipping

📦

We ship from Tasmania, Australia with DHL Express.

Orders placed before 1:00pm Australian Eastern Standard Time (AEST) will ship same day, or next business day! 🚀

Expected Delivery Times (includes weekends)

USA / Canada: 4 to 7 days
United Kingdom: 5 to 7 days
Europe: 5 to 8 days
NZ & SE Asia: 3 to 5 days
South America: 8 to 12 days
Australia: 1 to 2 days (AusPost Express)

More Info: Dispatching, shipping, VAT and duties

————
