IG.100050
$371.80 AUD
Our award winning Gimbal Mate is a camera bottom plate like no other!
Super rigid, lightweight, reversible, and features a unique dual dovetail - MōVI Pro on inside and Ronin 2 on the outside.
Compatible with a variety of cinema cameras, Gimbal Mate is the core accessory to unlock our ecosystem and workflow.
Gimbal Mate works with:

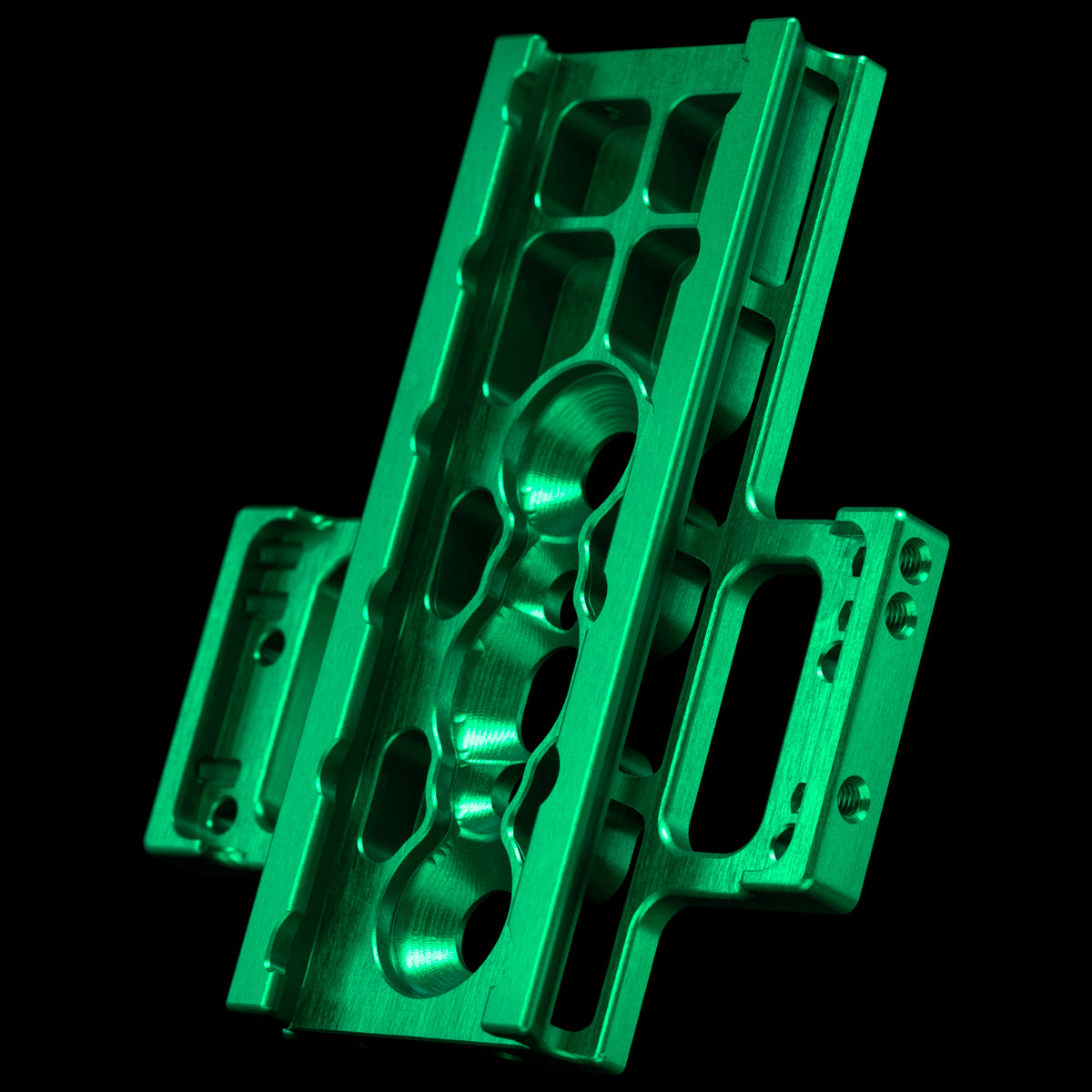

This high precision plate is CNC machined from a single block of aluminium and is available in hard anodised orange, black, blue and emerald!
Scroll ↓ for compatibility, rigging and specs.
• Integrated MōVI & Ronin 2 dovetail
• Lightweight and extremely rigid
• Reversible and low profile

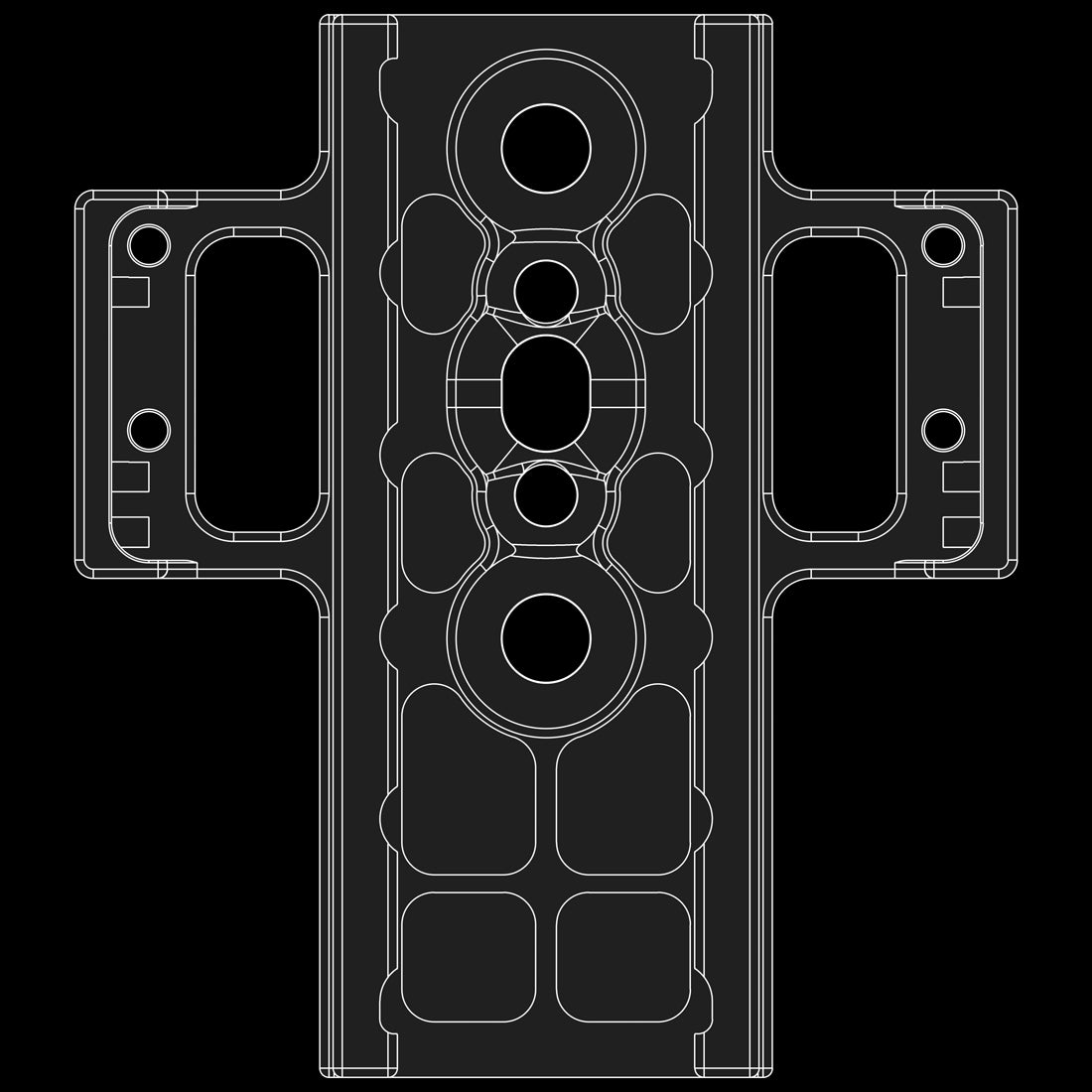

• 3x ⅜"-16 through holes
• 2x ¼”-20 through holes
• 4x M4 through holes
• 6x M4 threads
• 4x M3 threads
• Made from high-grade aluminium billet
• ARRI ALEXA Mini & Mini LF
• ARRI ALEXA 35 with Adapter Plates
• RED DSMC1 - all models
• RED DSMC2 - all models
• RED RANGER - all models

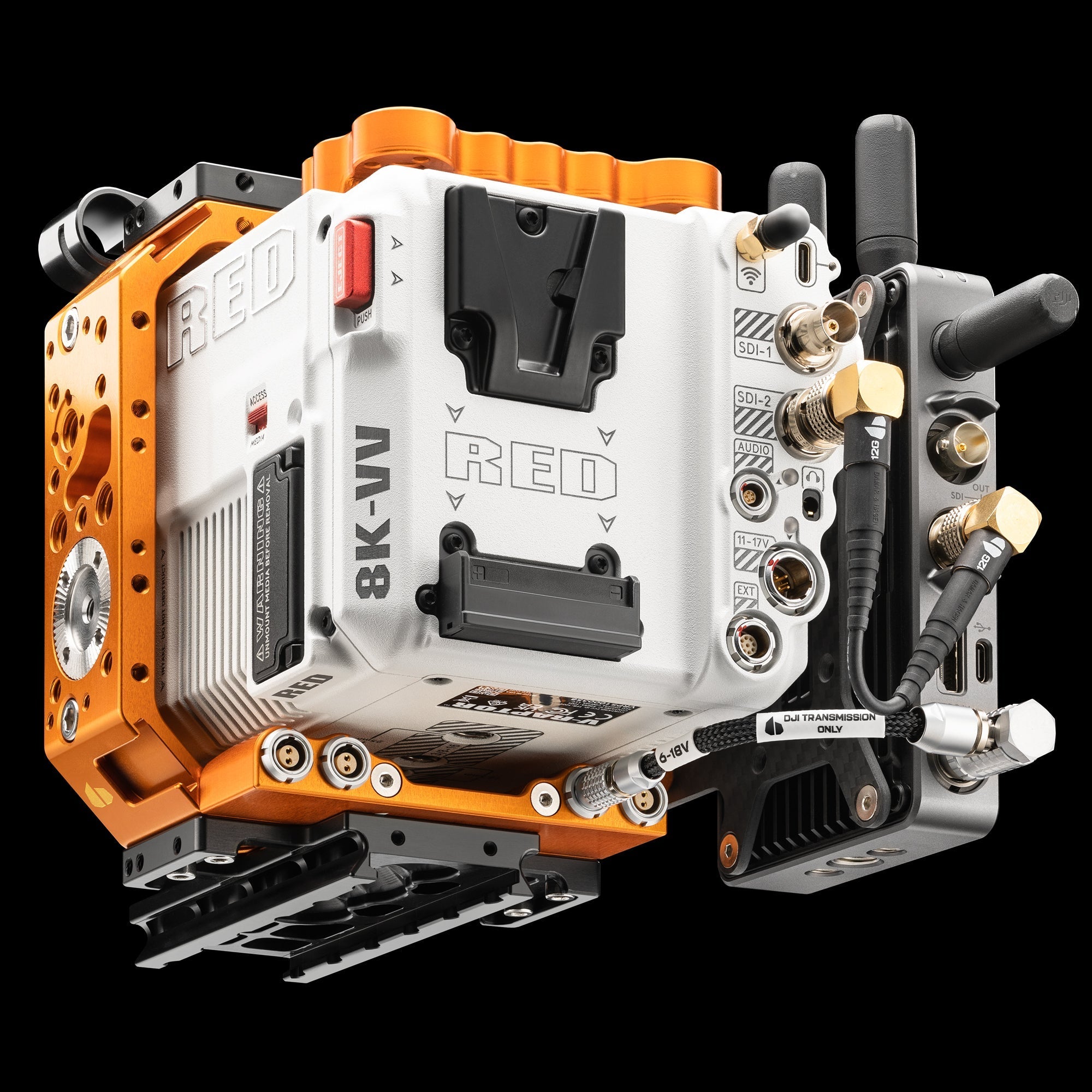

• RED KOMODO + KOMODO-X

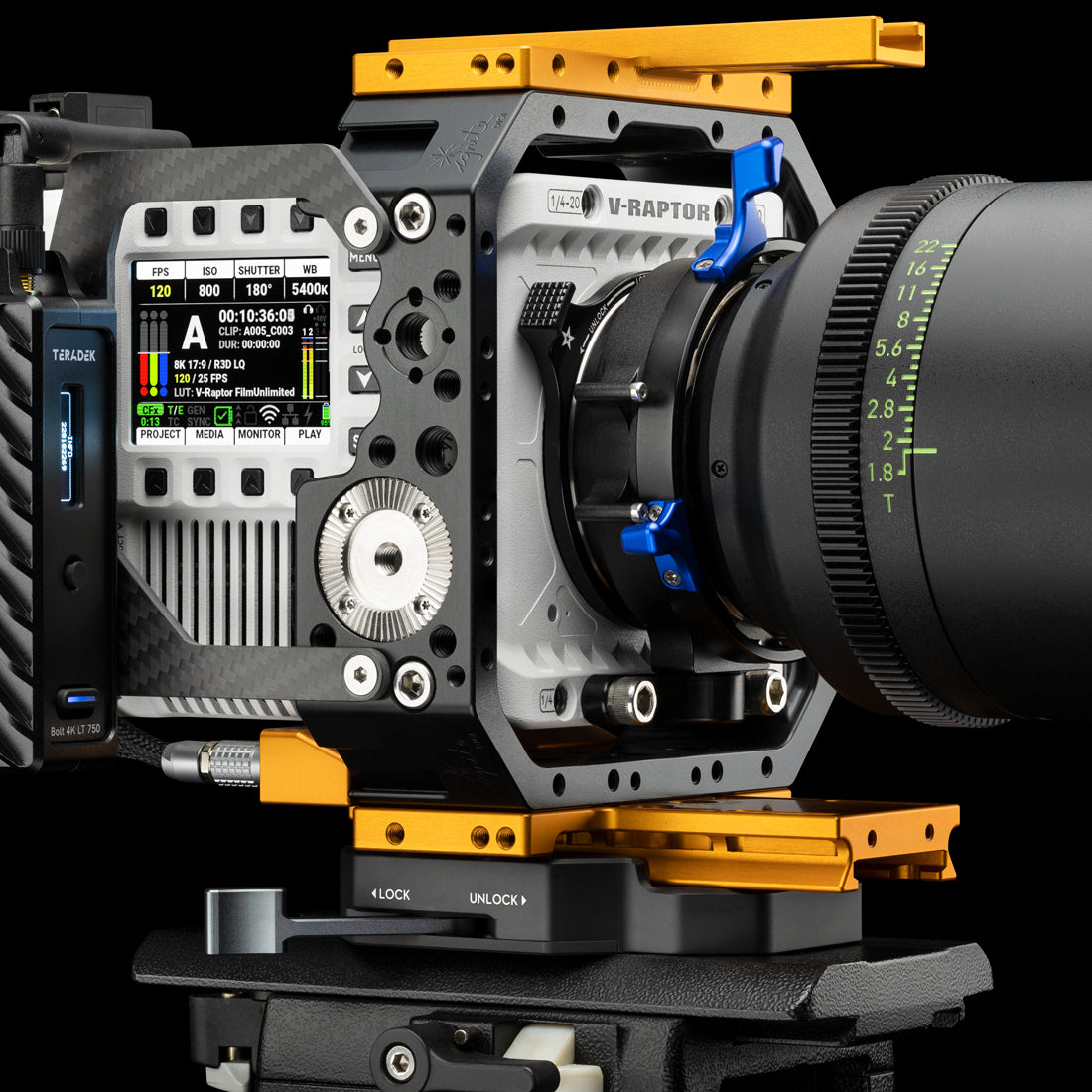

• RED V-RAPTOR + V-RAPTOR-XL
• All models of KEYSTONE
• Sony FS5 I+II, FS7 I+II, FX6, FX9
• Sony BURANO, VENICE 1&2
• Sony VENICE Extension System 1&2
• Canon C70, C200, C300III & C500II with this adapter
• Panasonic VariCam LT & EVA1
• Blackmagic URSA
• Kinefinity MAVO Edge & MAVO LF

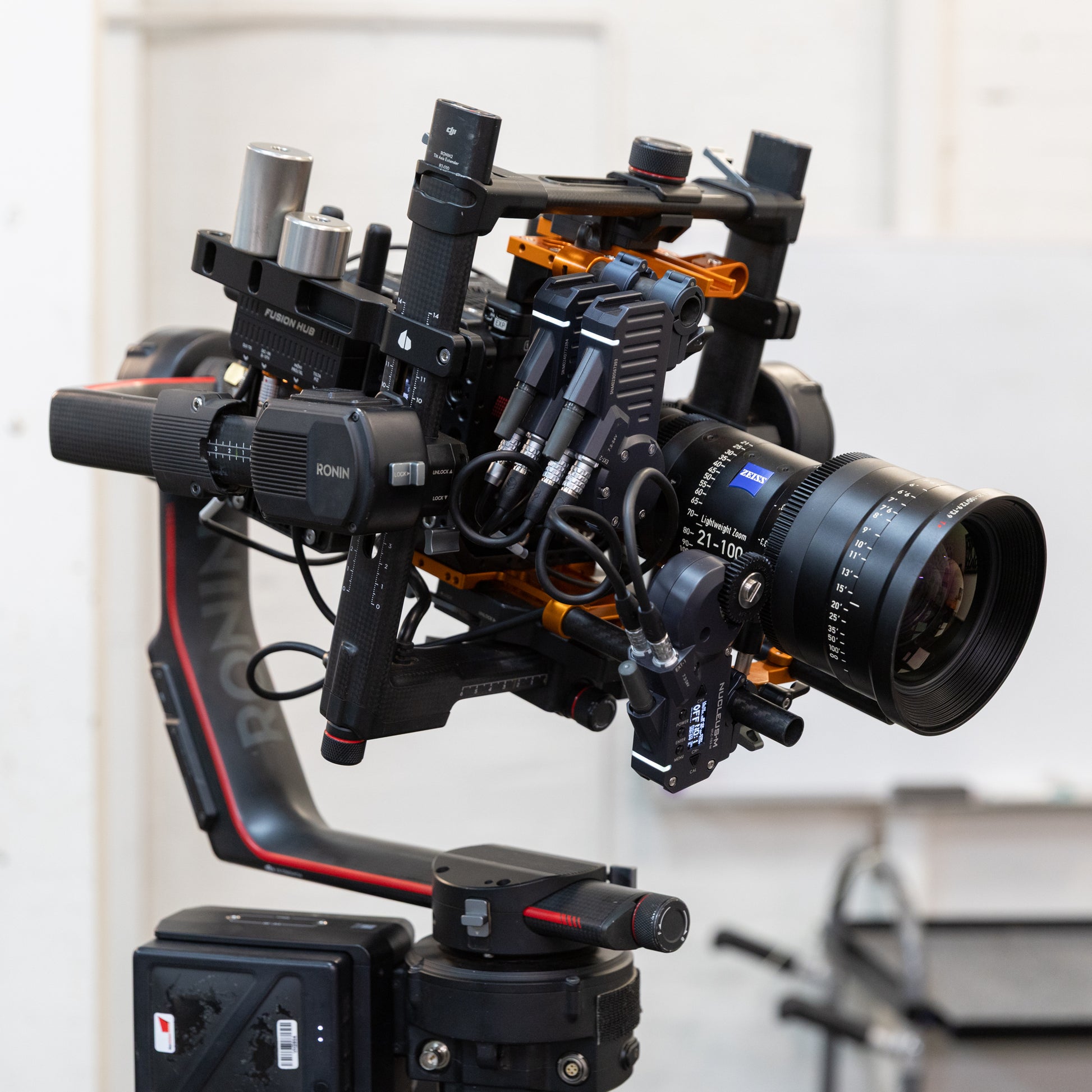

Gimbal Mate features a unique dual dovetail.

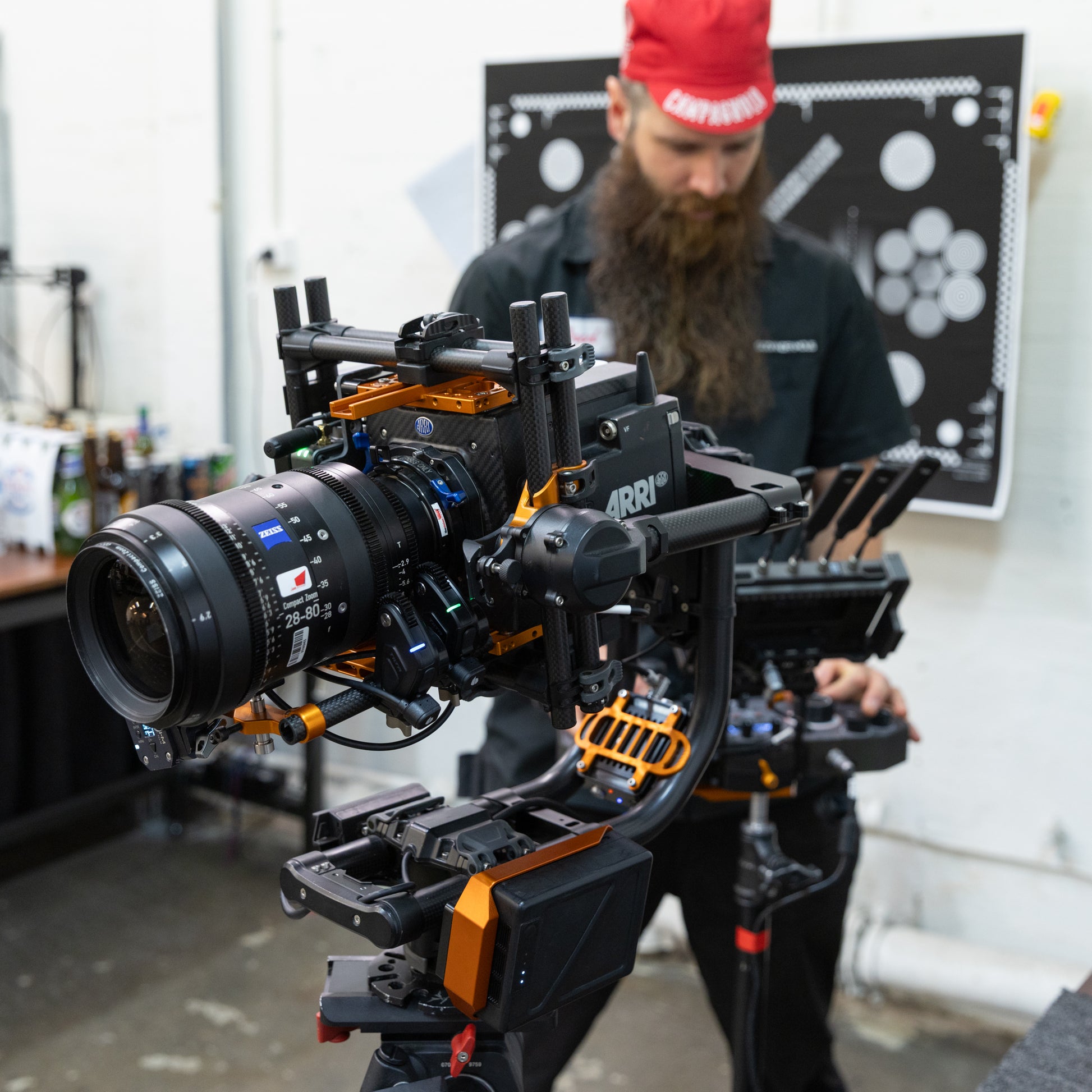

MōVI Pro on the inside, Ronin 2 on the outside.
This means you can easily transfer the camera package between those gimbals, handheld and tripod.
Say goodbye to constantly unscrewing and reattaching plates during time critical shoots!
Helping you refine the balance point!
Gimbal Mate is reversible allowing you to position the dovetail towards the front or rear of the camera.
And no twist!
Gimbal Mate firmly mounts to your camera with either four M4 x 10mm SHCS or ¼”-20 and ⅜"-16 countersunk screws, depending on model.
You'll find M3 threads on the front and rear faces of Gimbal Mate. Use these threads to mount our:
These both support 15mm rods for your FIZ system and matte box.

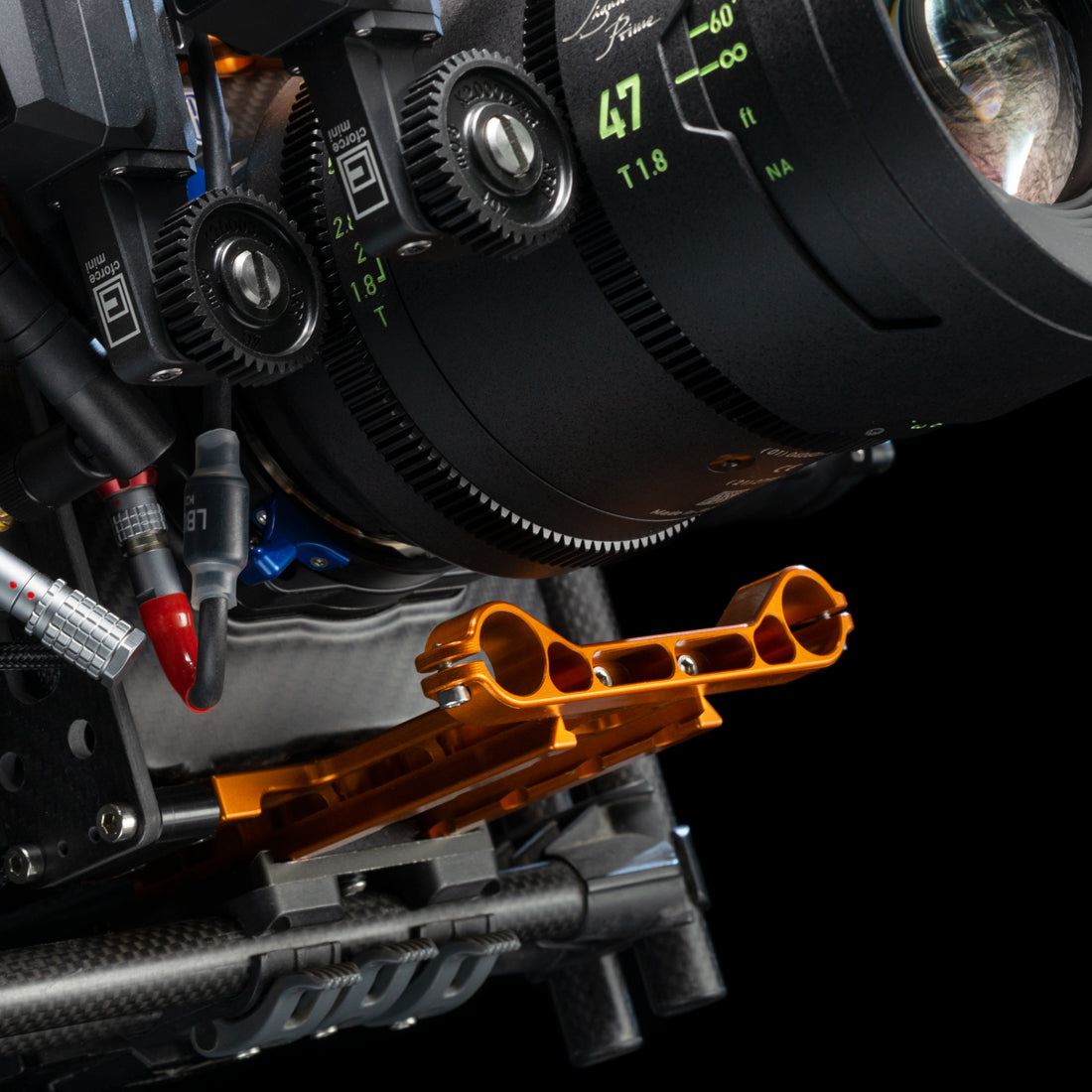

The 80mm Rod Mount works in tandem with our 80mm Lens Support for bracing heavy primes and large diameter cinema zooms!
The side faces of Gimbal Mate and Camera Top Plate feature M4's which follow the ARRI MAP standard, allowing you to mount an ARRI RMB-3 and other accessories.
We use these M4 threads to mount our lightweight Carbon Side Plates.

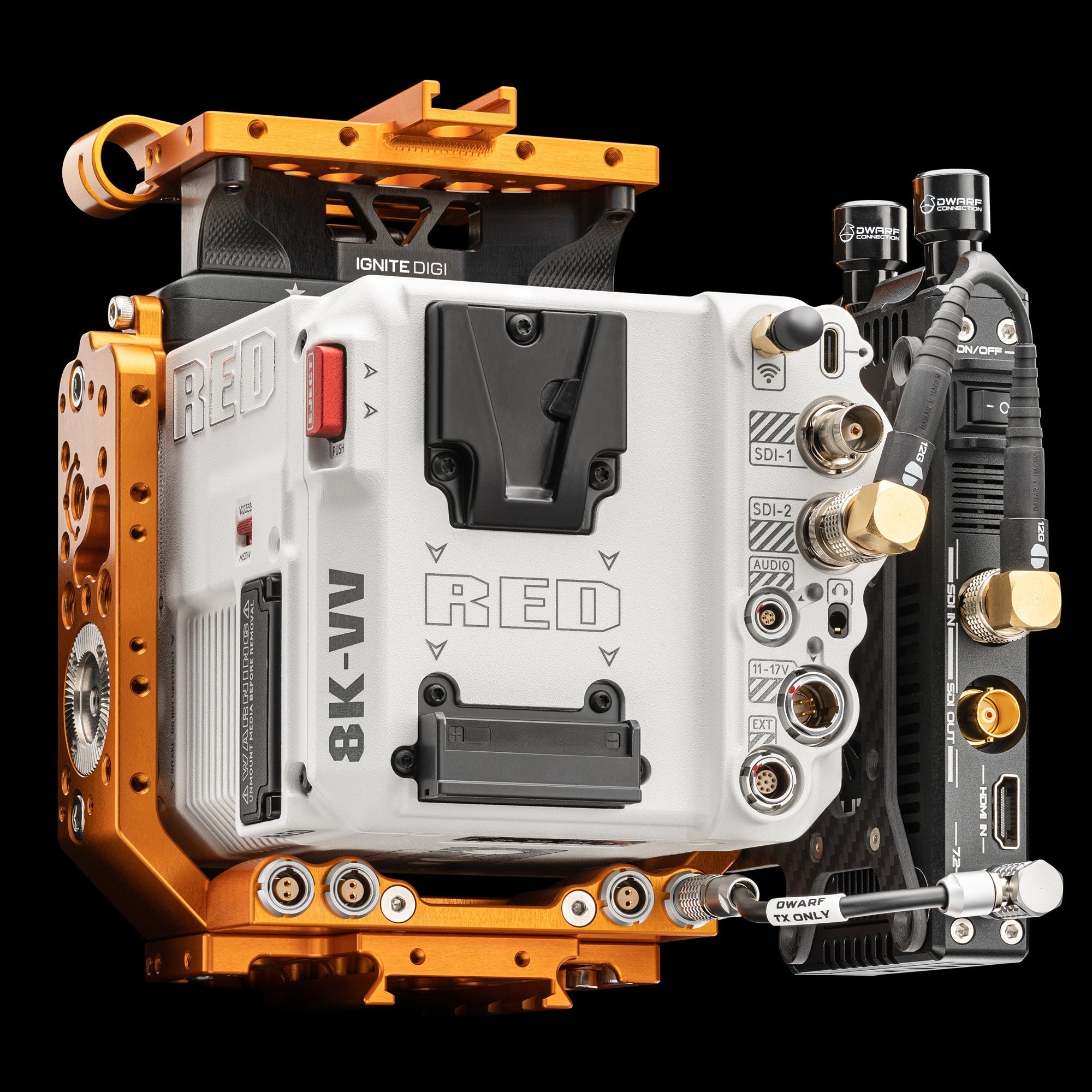

Ensure transmitters, MDR lens controllers and cables are neatly secured to the camera package!
Attach your favourite handgrips in more places!
These adapters mount to our Camera Plates as well as ARRI MAP plates and side brackets.
Two sizes, four colours!
A combination of the accessories above enables you to Quick Mode Change 🔥
This means you'll be able transition the camera package between MōVI Pro, Ronin 2, handheld and tripod modes, without tools, in less than a minute!
Co-founder Tom Waugh takes you through the range of Ignite Digi accessories that makes this all possible ↓
MADE FROM
High-grade 6061-T651 aluminium billet
Hard anodised
SHIPS WITH
Twelve M4 x 10mm socket head cap screws
Three ⅜"-16 x 5/8” countersunk screws
One ¼”-20 x ½” countersunk screw
WEIGHT
3.17oz / 90g plate only
3.42oz / 97g with four M4 screws
DIMENSIONS
4.52 x 4.0 x 0.59” / 115 x 102 x 15mm
We do our best to populate our store with as much technical info as possible!
If you have further questions or need advice for camera builds and projects, please get in touch with co-founder Tom Waugh.
Direct message via the Ignite Digi Instagram, or drop him an email: tom@ignitedigi.com.au
Just keep in mind he's living in Australian Eastern Standard Time (GMT/UTC+10).
