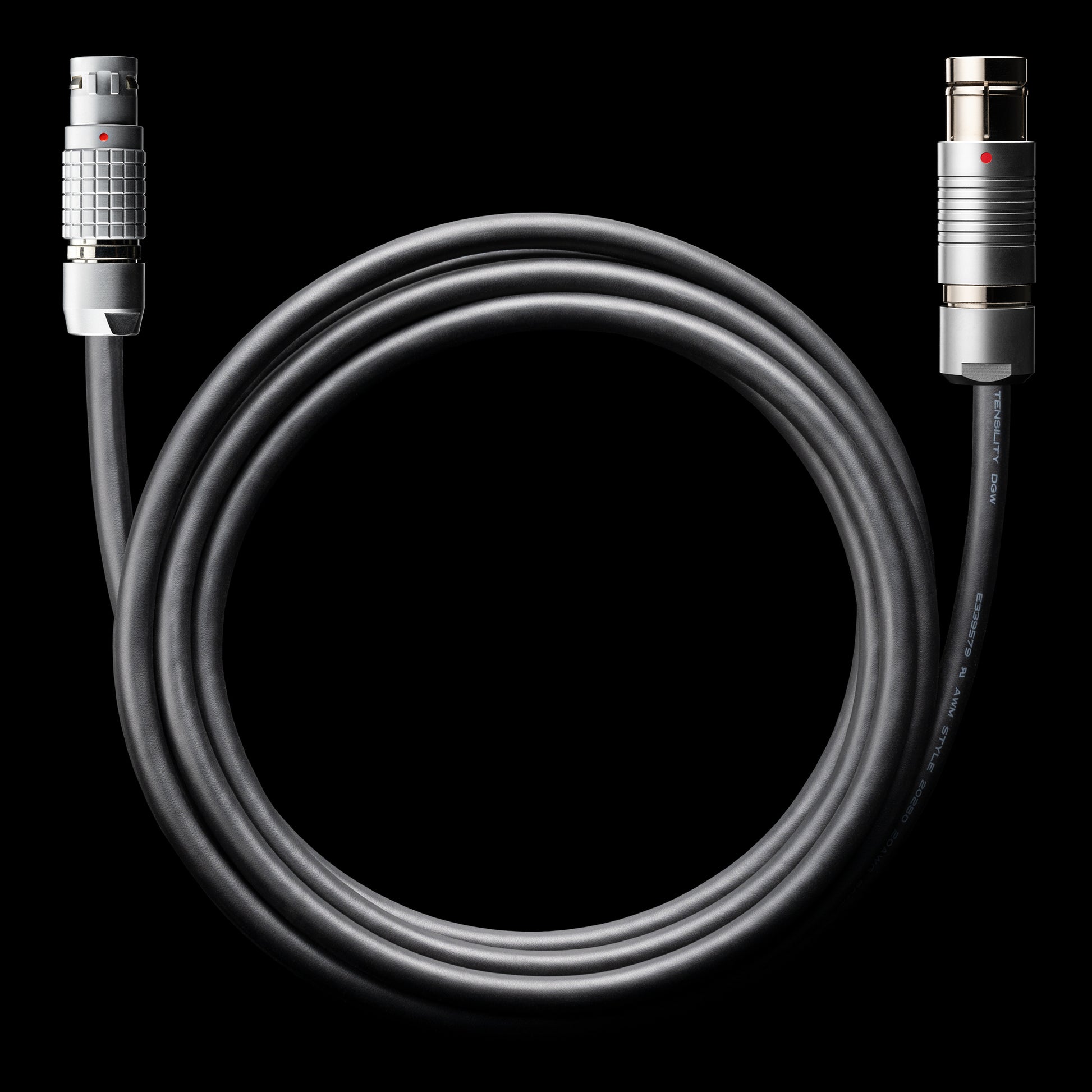

Power Cable ‣ Ronin 2 to 2-Pin Fischer for ALEXA SXT + LF + Film Cameras

POWER

Voltage range requirements:

ARRI ALEXA Classic, Studio, XT, SXT
10.5 – 34V

ARRI ALEXA LF
19.5 – 34V

ARRI ALEXA 65
22 – 35V
A minimum of 22V means you won't be able to use the full capacity of the TB50 batteries before ALEXA 65 says no and refuses to record, or powers down.

ARRIFLEX 416
20.6 – 35V

ARRIFLEX 235
20.6 – 35V

ARRIFLEX 435
20.6 – 35V for 1-130fps
24.0 – 35V for 131-150fps

LENGTH

We believe 40-inch is the optimal length in order to avoid coiling but at the same time provides slack.

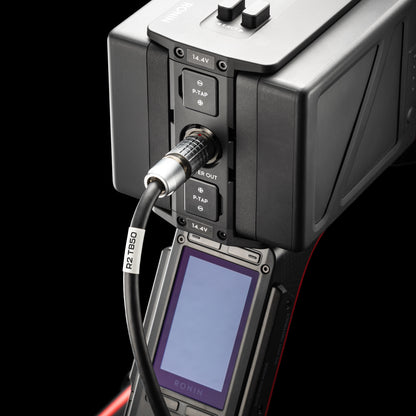

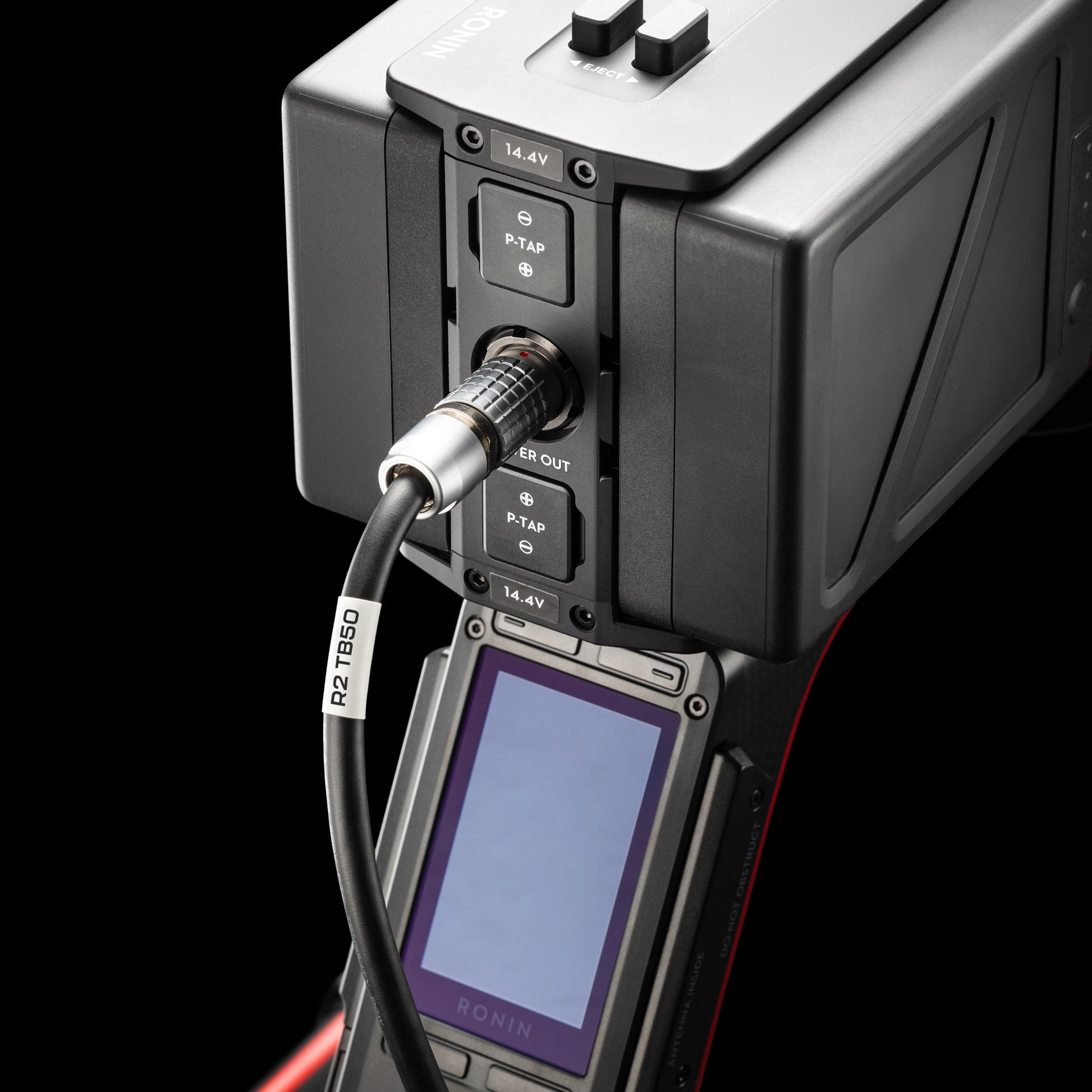

Keep in mind, rigging with this cable tethers a non-moving part to a moving part of the gimbal. Meaning you won't have unlimited pan.

TPU

This cable is made with premium TPU (Thermoplastic Polyurethane) coated 6-core wire.

TPU maintains flexibility while being waterproof and resistant to abrasion, making it an excellent choice for use on set!

Operators can stand on it, while it maintains high amp delivery, and coils up like a dream.

Assembled and tested in Tasmania, Australia.

COMPATIBLE CAMERAS
ARRI ALEXA Classic, Studio, XT, SXT
ARRI ALEXA LF
ARRI ALEXA 65
ARRIFLEX 416
ARRIFLEX 235
ARRIFLEX 435

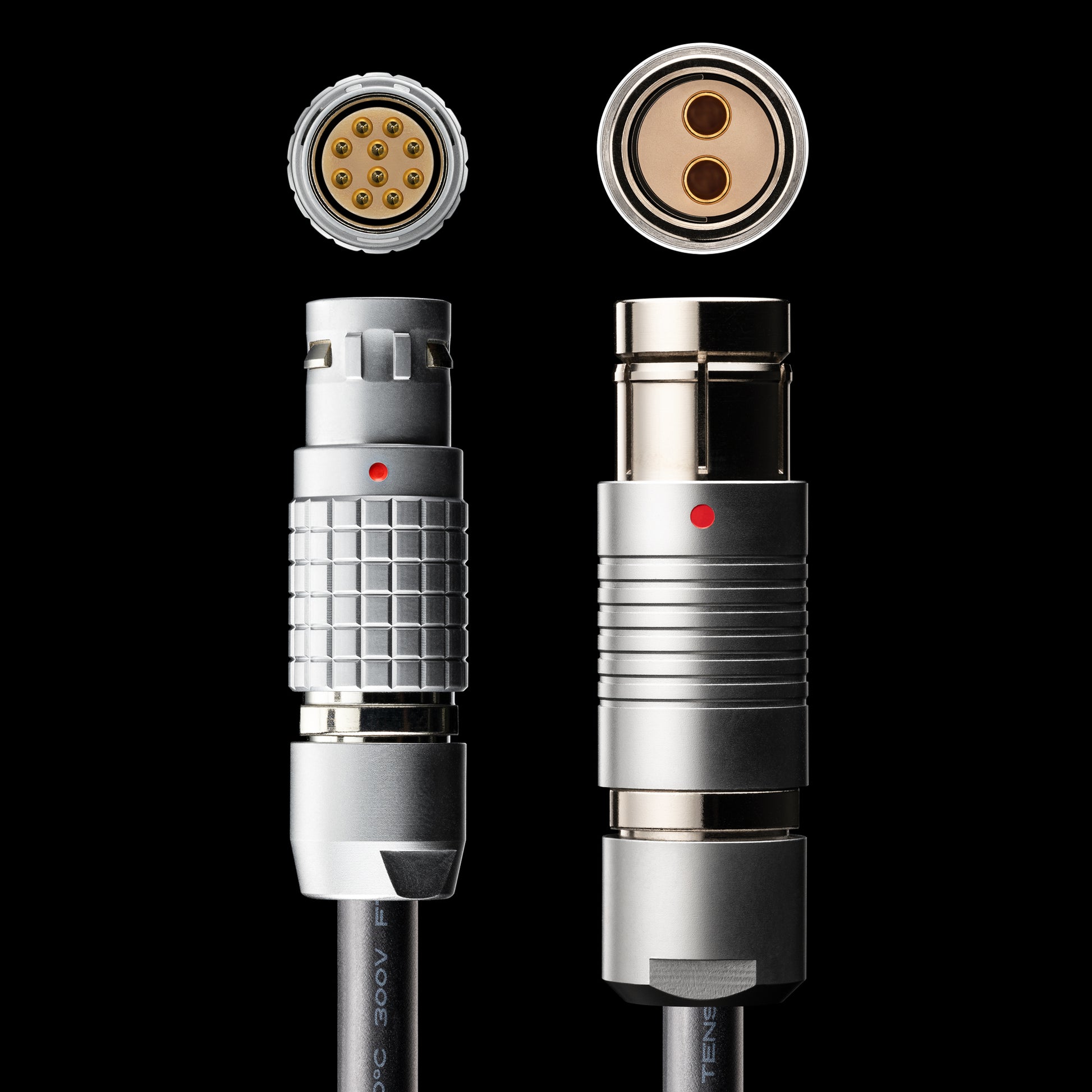

CONNECTOR SPECS
10-Pin (male) 2B Lemo Straight connector
2-Pin (female) 105 Fischer Straight connector

LENGTH
40-inch / 102cm

WEIGHT
5.64oz / 160g
