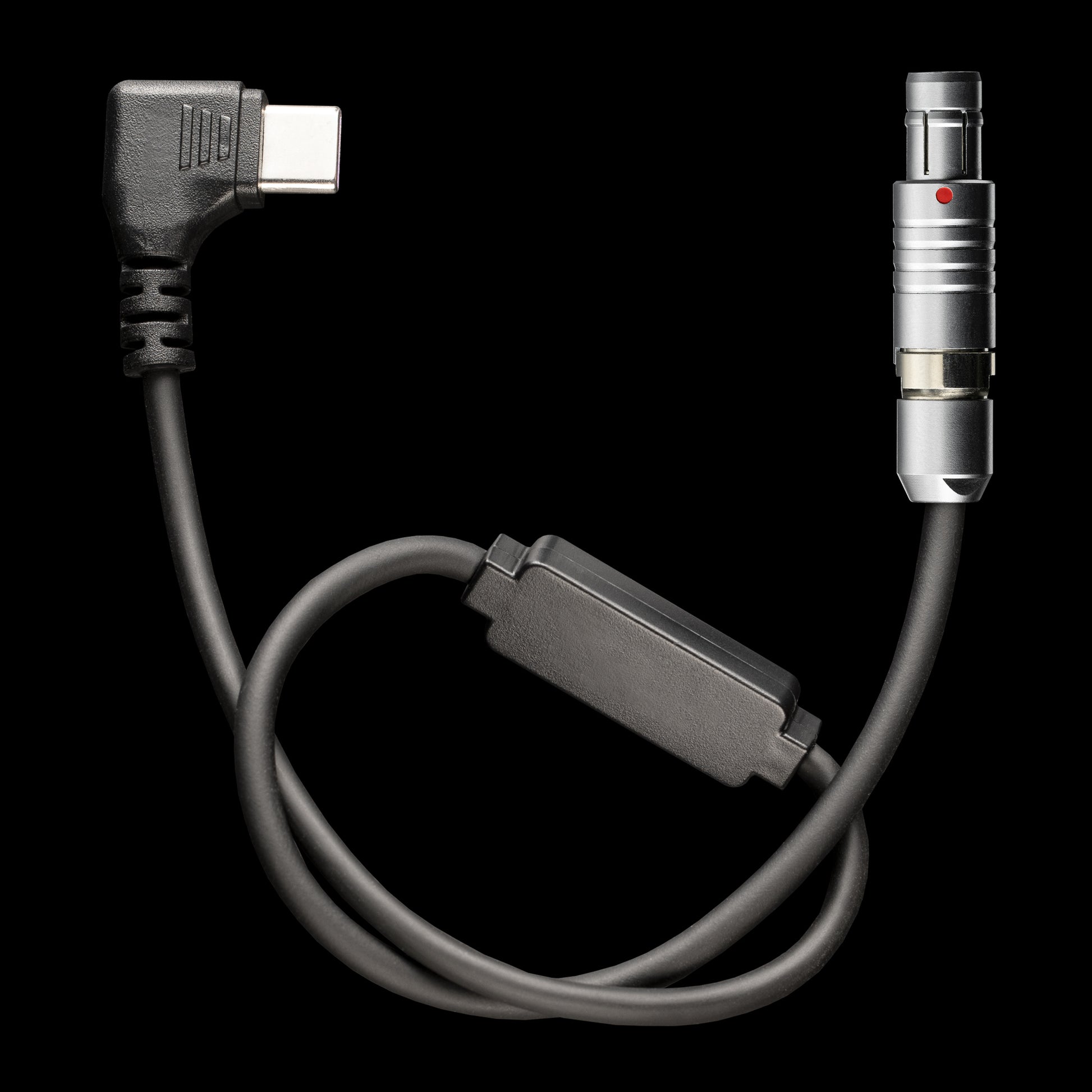

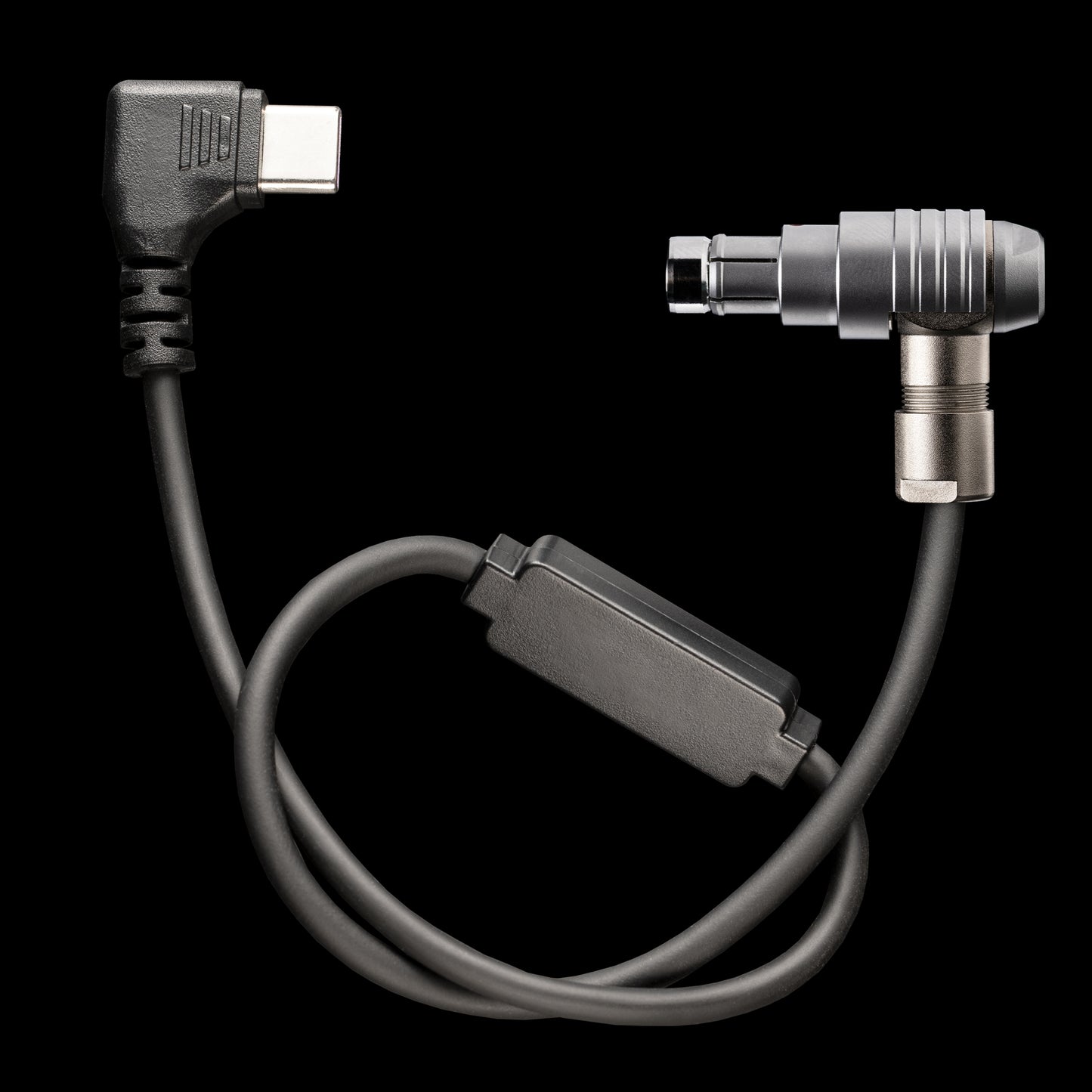

R/S Cable ‣ RS4 Pro + Focus Pro Grip to 3-Pin Fischer

We offer the 3-Pin Fischer as a Straight and Right Angle. Select Right Angle for use with ALEXA Mini LF.

It's as simple as plug and play! — no additional settings required.

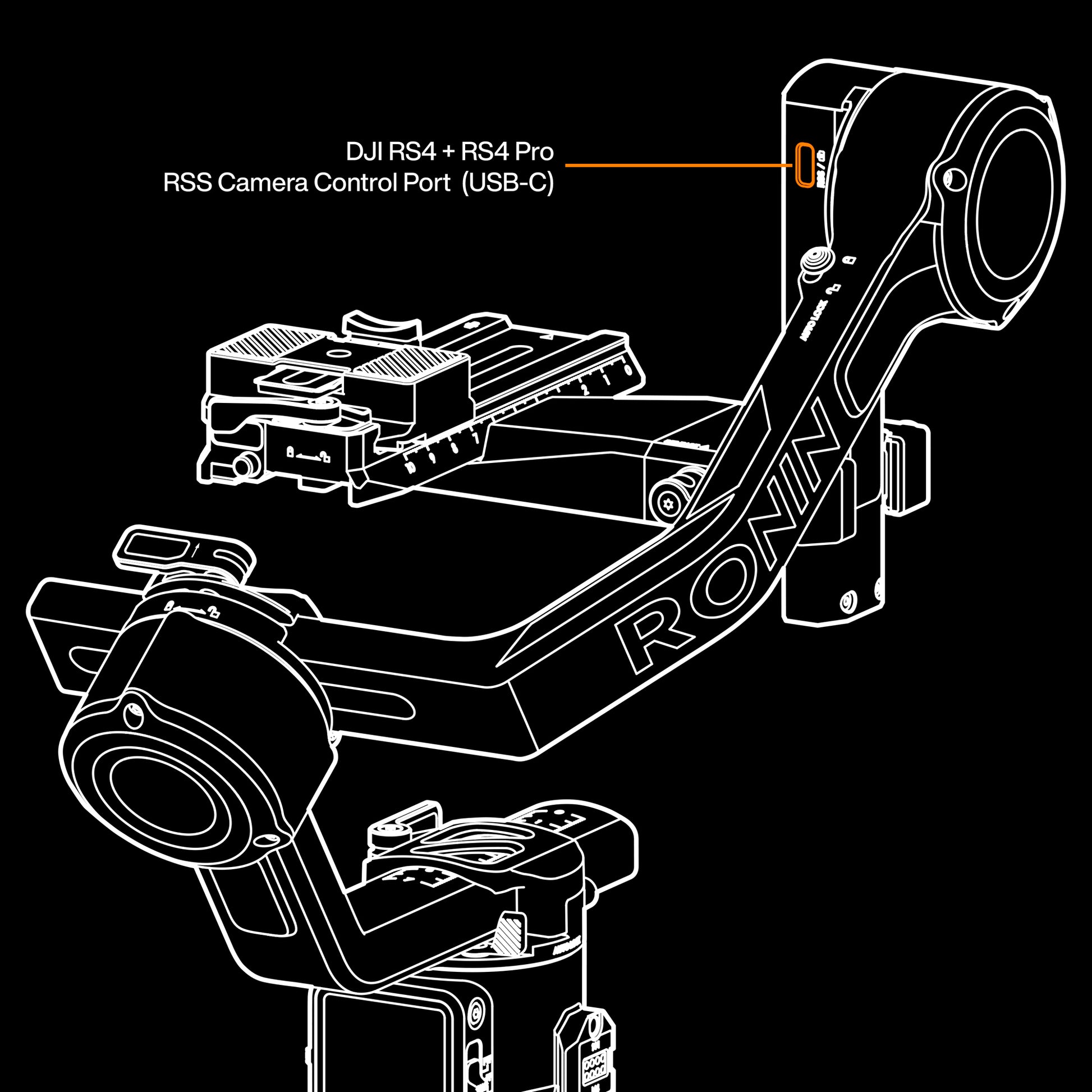

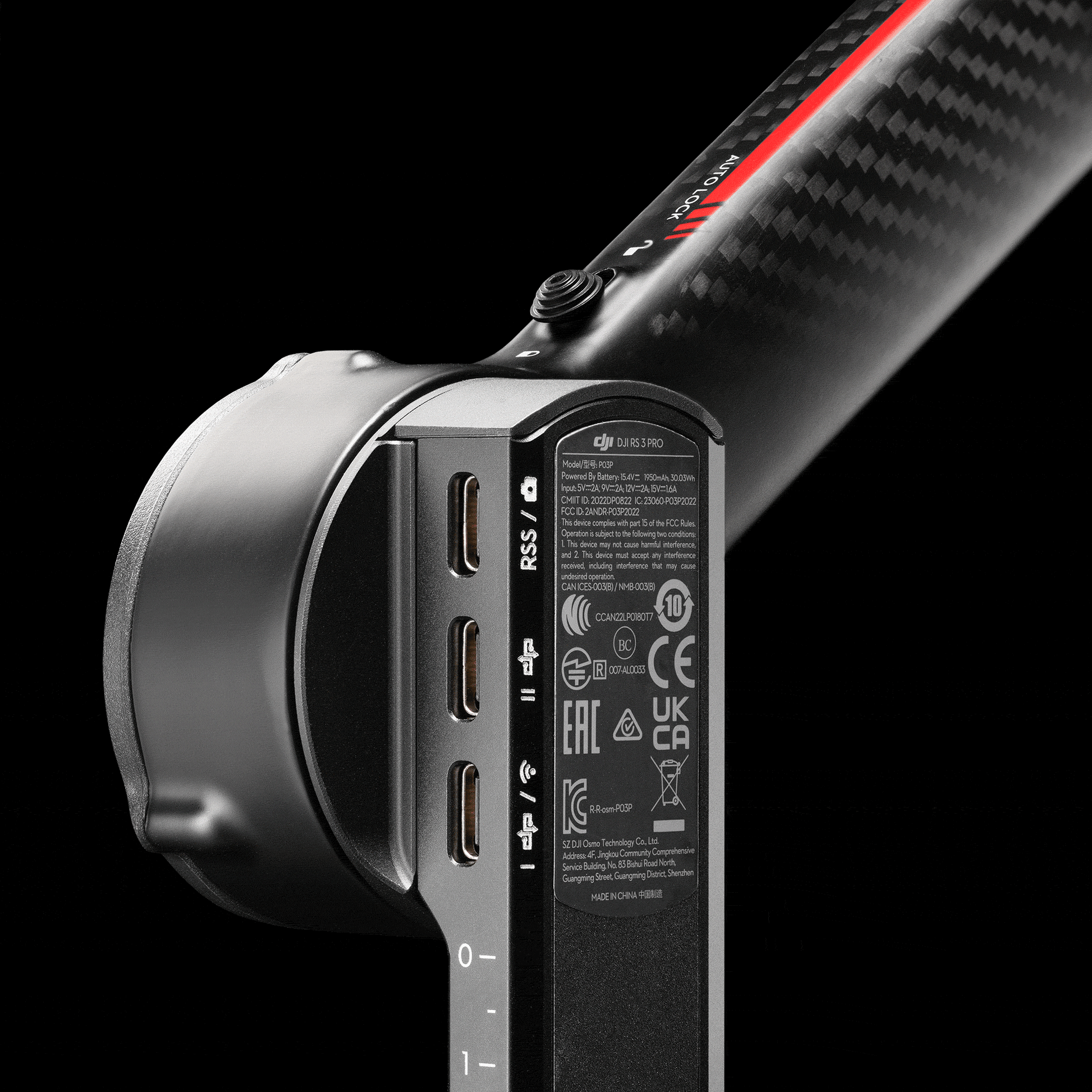

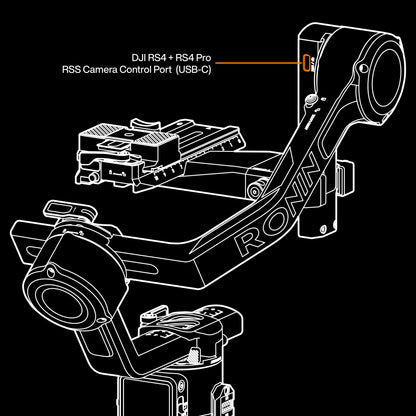

On the gimbals, the USB-C plugs into the RSS Camera Control Port located next to the Tilt Motor.

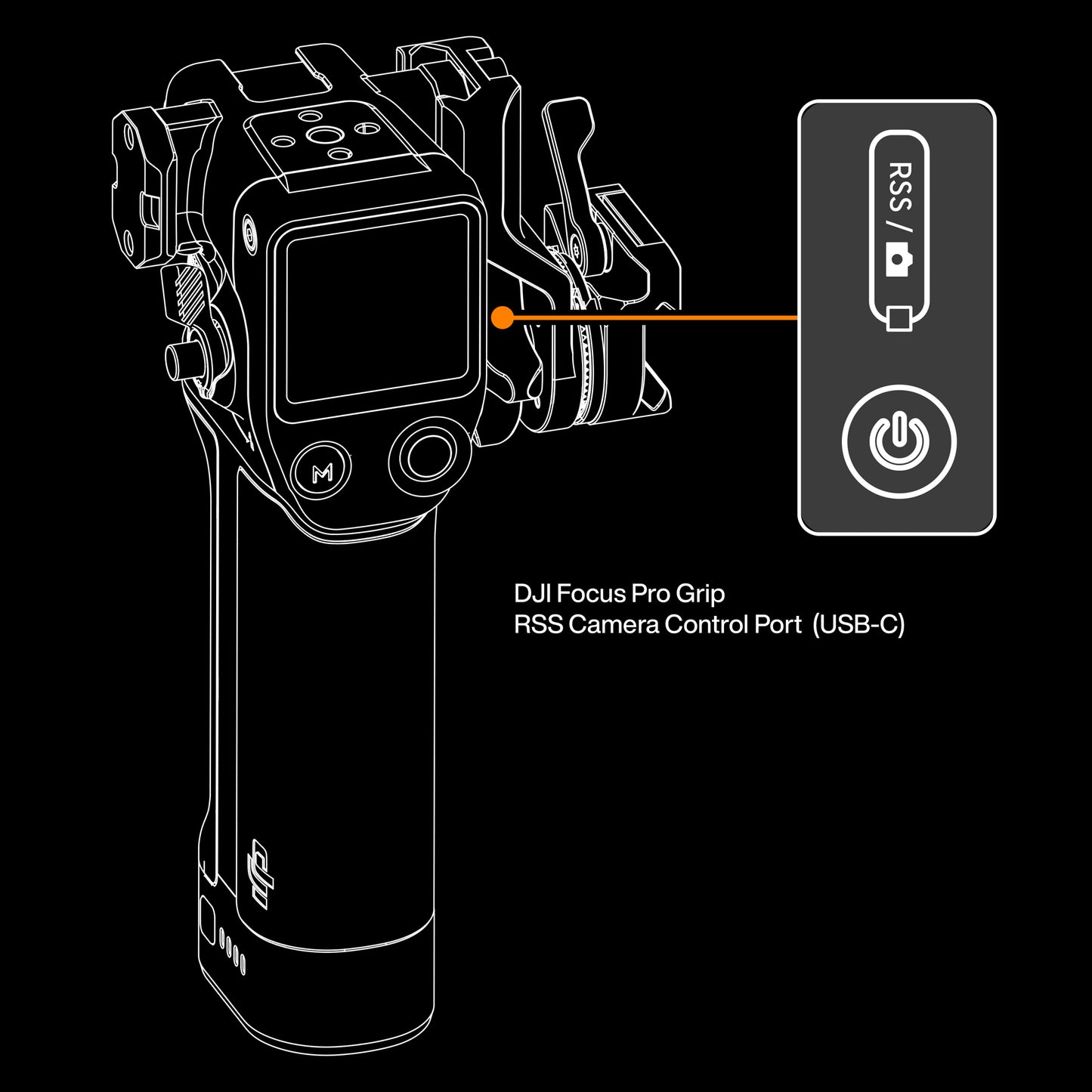

On the DJI Focus Pro Grip, the USB-C plugs into the RSS Camera Control Port located above the power button.

———————————————

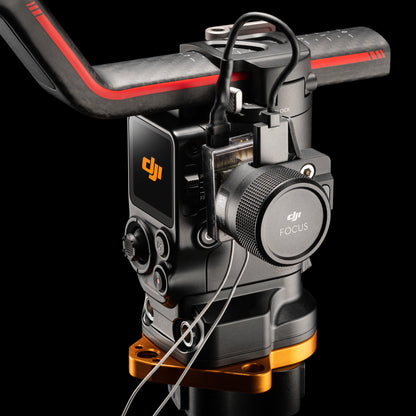

Remote run/stop is also possible when you combine the DJI R Focus Wheel and the DJI Pro Wireless Receiver (switch to CAN on RX and Focus Wheel). Works with these controllers:

• DJI Master Wheels
• DJI Force Pro
• DJI Ronin 2 Remote Controller (joystick)
  or
• via SBUS: Futaba or similar, when you combine the DJI R Focus Wheel (switch to SBUS) Set Channel 5 on your controller to a Sprung Switch like SH, and set subtrims range of that channel to 0/100 and 140/155

COMPATIBLE GIMBALS + DEVICES
DJI RS2
DJI RS3
DJI RS3 Pro
DJI RS4
DJI RS4 Pro
DJI Focus Pro Grip

COMPATIBLE CAMERAS
ARRI ALEXA Mini
ARRI ALEXA Mini LF
ARRI ALEXA 35
Kinefinity TERRA 4K
Kinefinity TERRA 6K
Kinefinity MAVO Edge 6K
Kinefinity MAVO Edge 8K
Kinefinity MAVO S35 Mark1
Kinefinity MAVO S35 Mark2
Kinefinity MAVO LF Mark1
Kinefinity MAVO LF Mark2

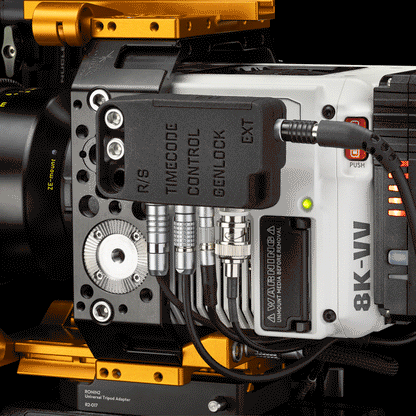

RED KOMODO/V-RAPTOR with EXT Breakouts:
RED V-RAPTOR Expander Blade
Mutiny I/O Port Expanders
Modern Film Tools MICRO I/O
Modern Film Tools HORSESHOE I/O
Tilta Advanced I/O Module

CONNECTOR SPECS
USB-C Right Angle connector
3-Pin (male) 102 Fischer Straight connector
3-Pin (male) 102 Fischer Right Angle connector

LENGTH
12-inch / 30cm

WEIGHT
0.74oz / 21g
