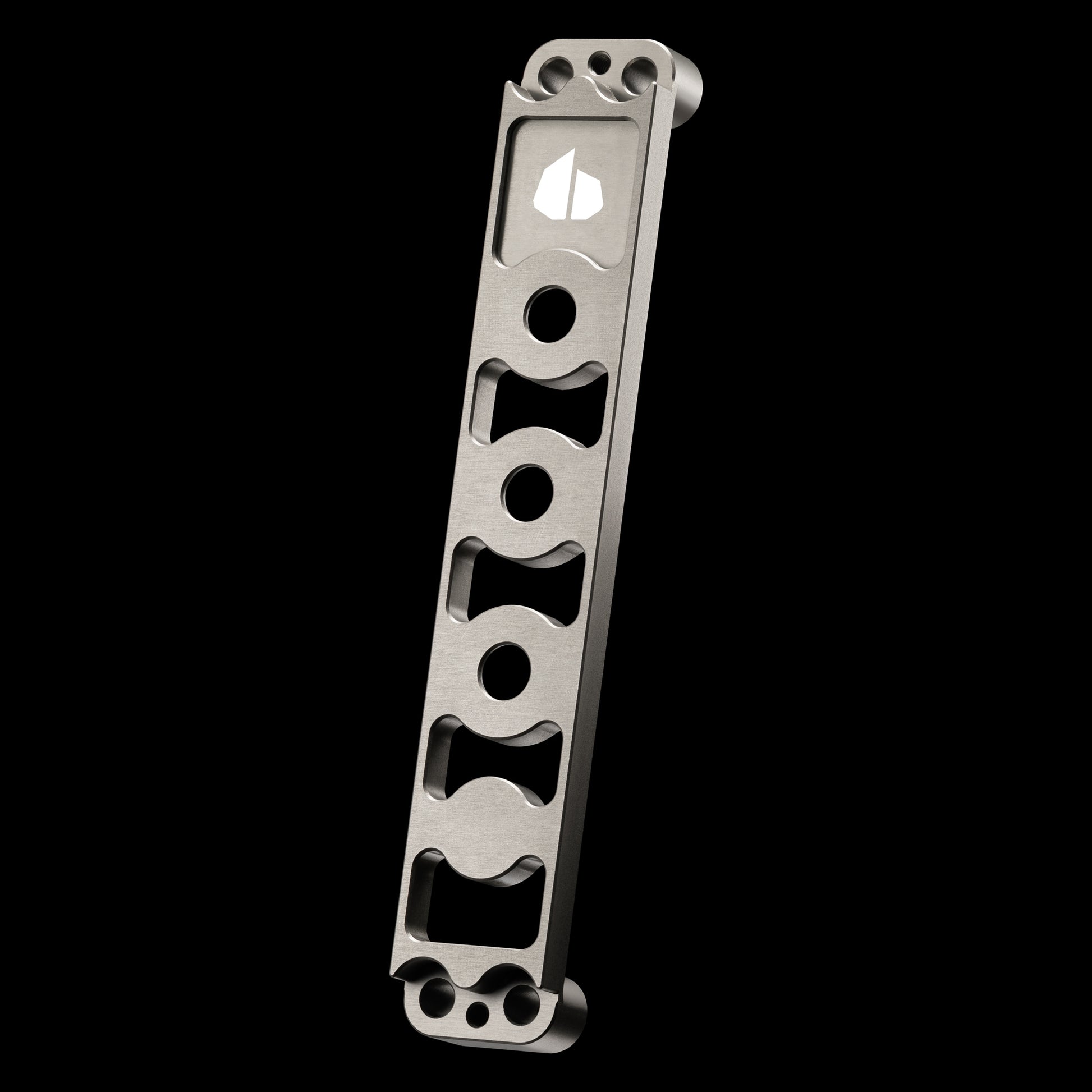

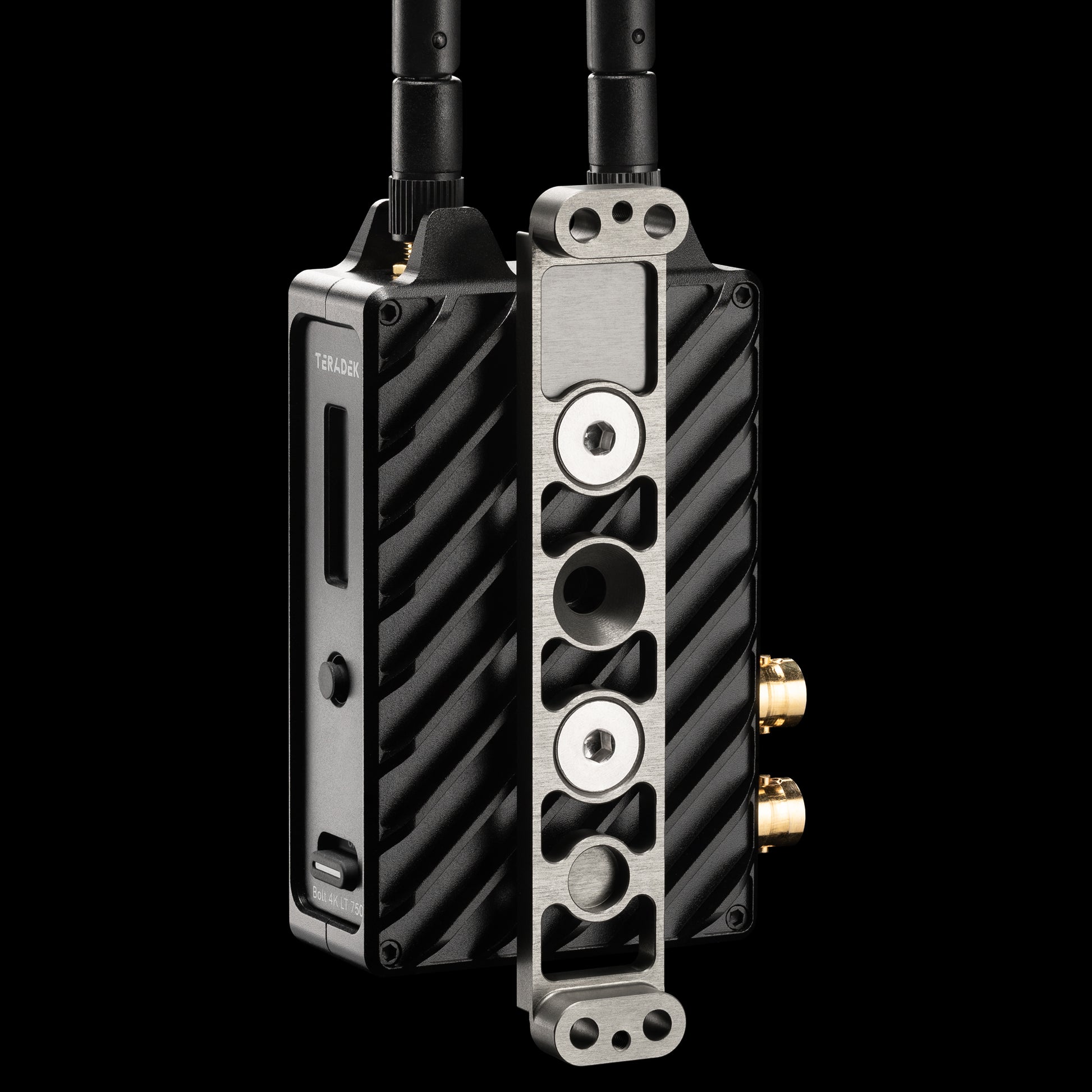

Side Bracket for Teradek / ALEXA 35

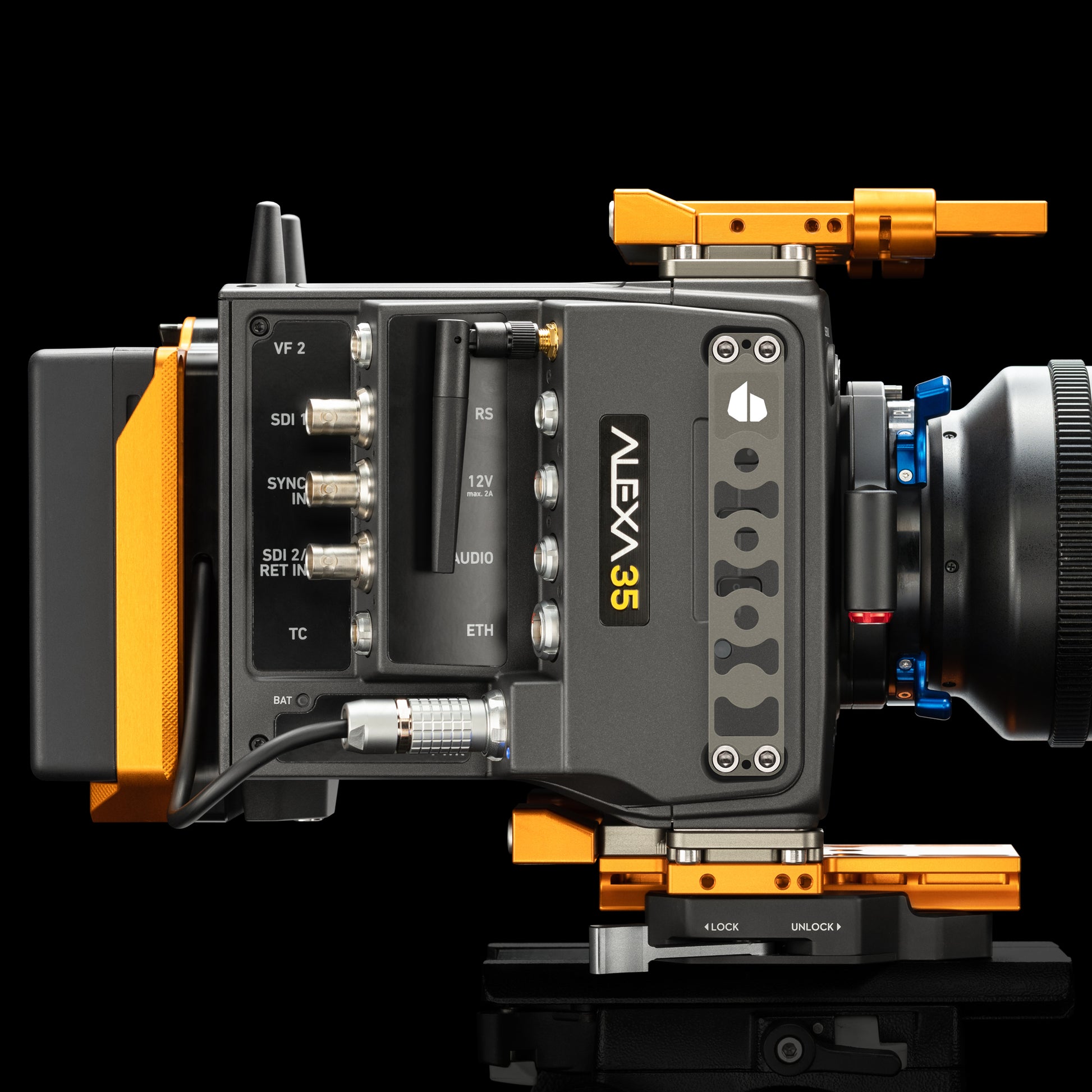

We designed this Side Bracket to be positioned as close as possible to the non op side of the camera body.

In this position it won't obstruct air vents or clash with I/O ports, card door, record button, wifi antennas or FIZ system.

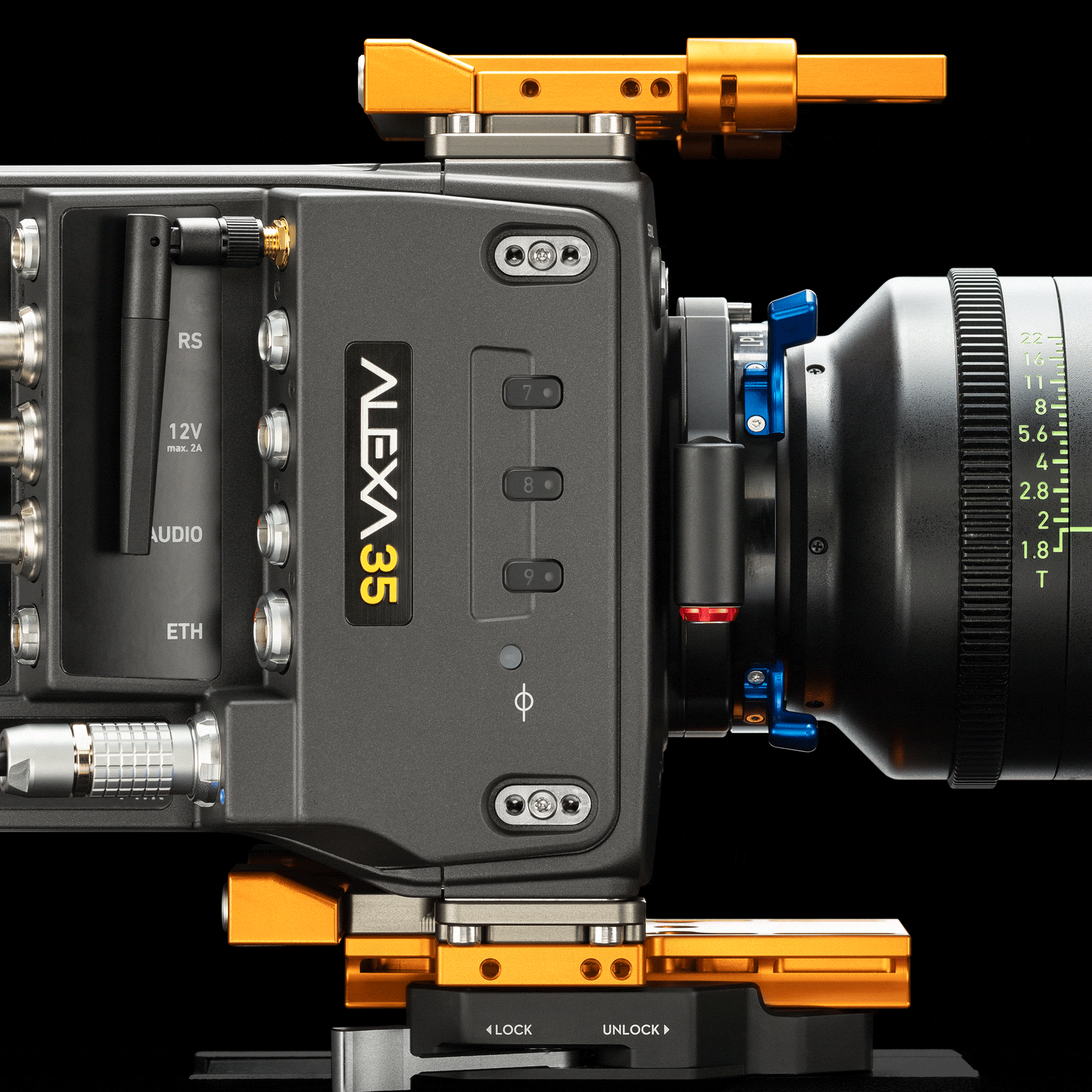

One downside, it does sacrifice user buttons 7, 8 & 9.

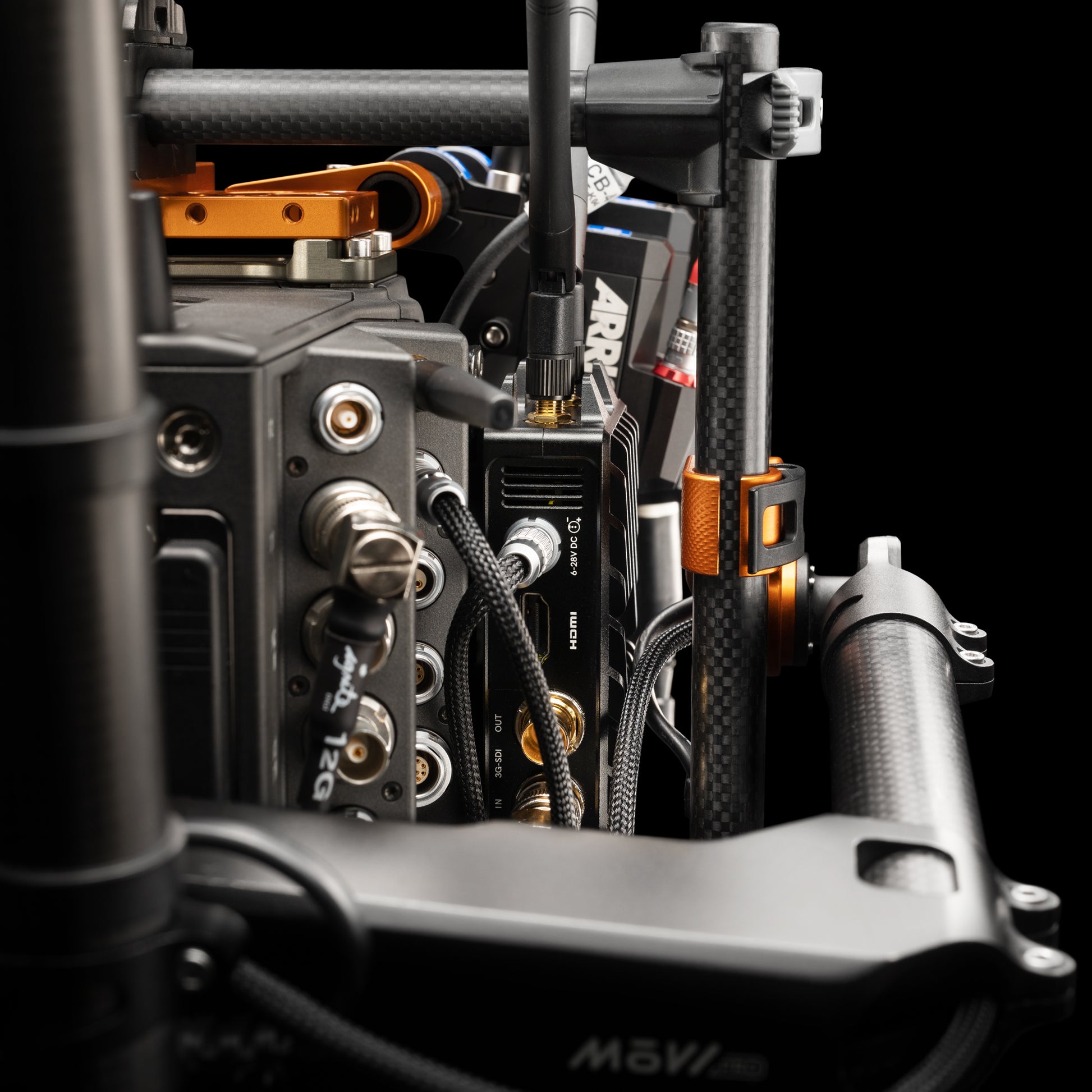

On the plus side, the SDI and power cable exit the Teradek in the optimal direction keeping cables short and tidy, and the antennas can be positioned in multiple configurations.

————————————————

The Side Bracket mounts with four M4 x 12mm socket head cap screws. We supply eight in total - four to use and four spare.

We also include four ¼”-20 x ½" countersunk screws to mount the Teradek.

Designed and manufactured in Tasmania, Australia.

————————————————

We recommend these cables to keep your build fast and clutter free!

Recommended SDI cable:

12G-SDI Right Angle to Right Angle / 9-inch

--------------------------

If you're sourcing power from the onboard ALEXA 35 12V Lemo output, we recommend this cable:

2-Pin Lemo Straight to 2-Pin Lemo Straight / 5-inch

--------------------------

If you're sourcing power from our Power Breakout module, we recommend this cable:

2-Pin Lemo Straight to 2-Pin Lemo Straight / 8-inch

COMPATIBLE WITH
Gen 5: Teradek Bolt 4K LT 750
Gen 5: Teradek Bolt 4K LT 1500
Gen 5: Teradek Bolt 4K LT MAX
Gen 6: Teradek Bolt 6 LT 750
Gen 6: Teradek Bolt 6 LT 1500
Gen 6: Teradek Bolt 6 LT MAX

❌ NOT COMPATIBLE WITH
❌ Gen 4: Teradek Bolt LT / XT 500
❌ Gen 4: Teradek Bolt LT / XT 1000
❌ Gen 4: Teradek Bolt LT / XT 3000

MADE FROM
High-grade 6061-T651 aluminium billet
Hard anodised

SHIPS WITH
Eight M4 x 12mm socket head cap screws
Four ¼”-20 x ½" countersunk screws

WEIGHT
0.70oz / 20g solo
9.38oz / 266g with screws + Teradek

DIMENSIONS
4.6 x 0.78 x 0.43” / 117 x 20 x 11mm
