TB50 Expansion Pack for Inertia Wheels

KEY FEATURES

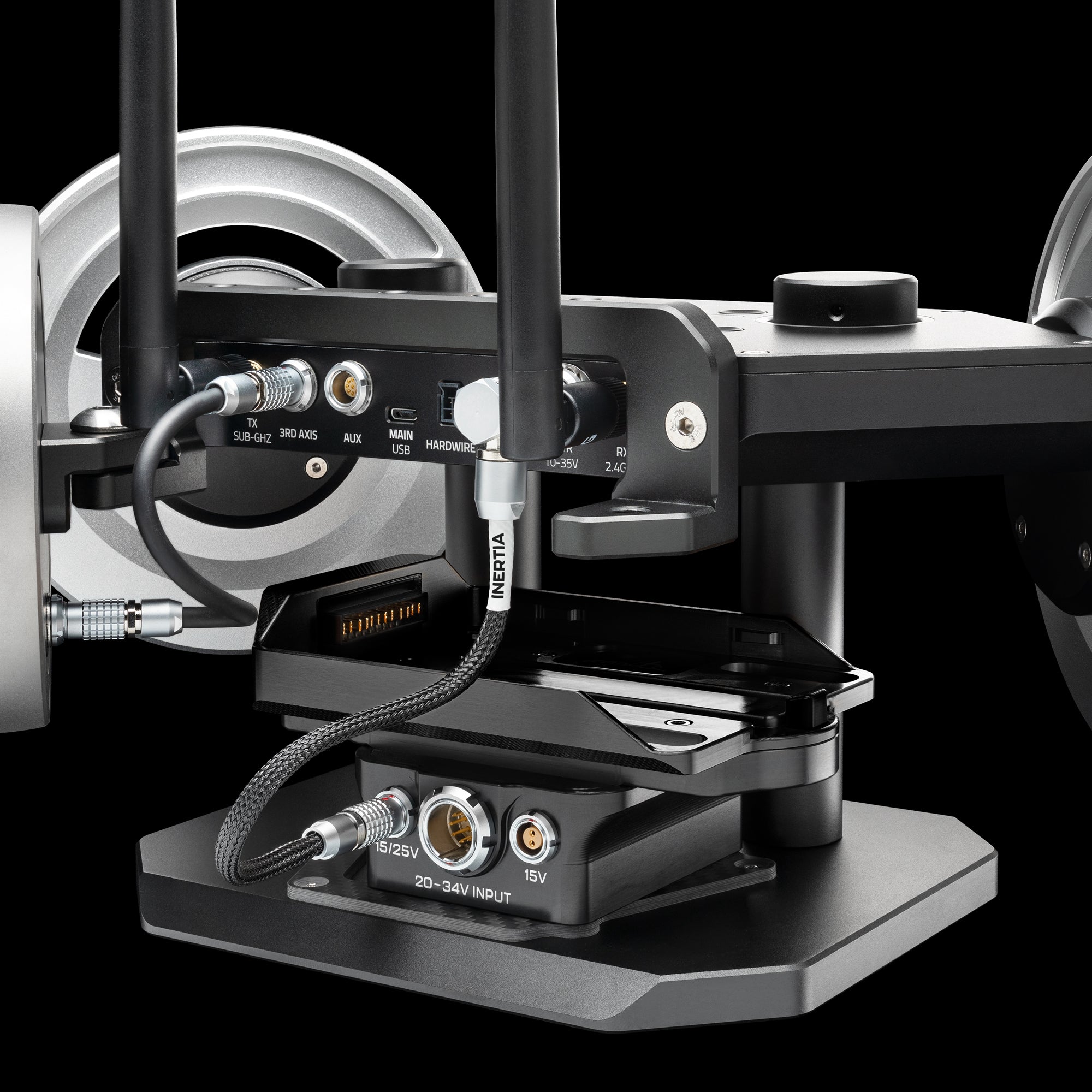

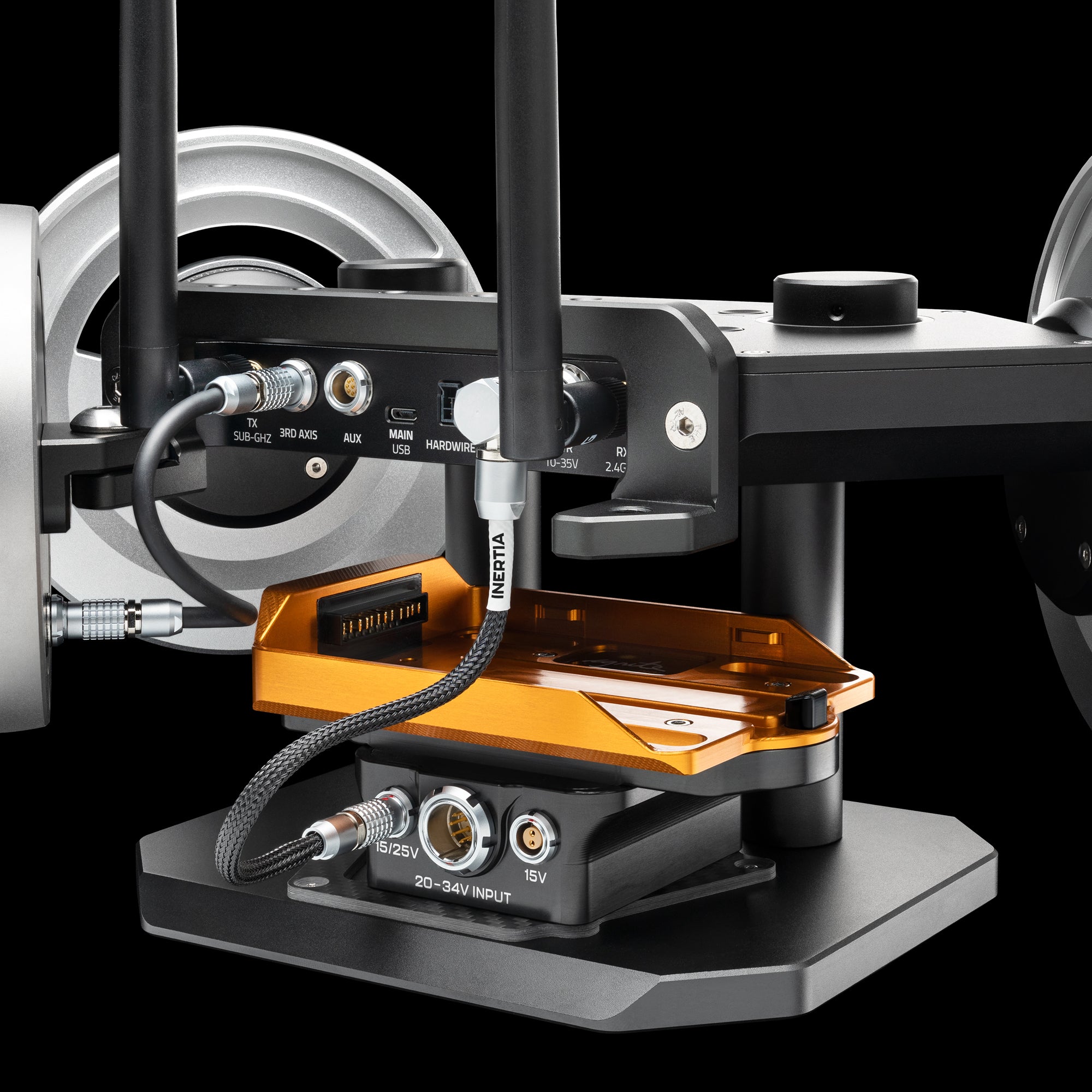

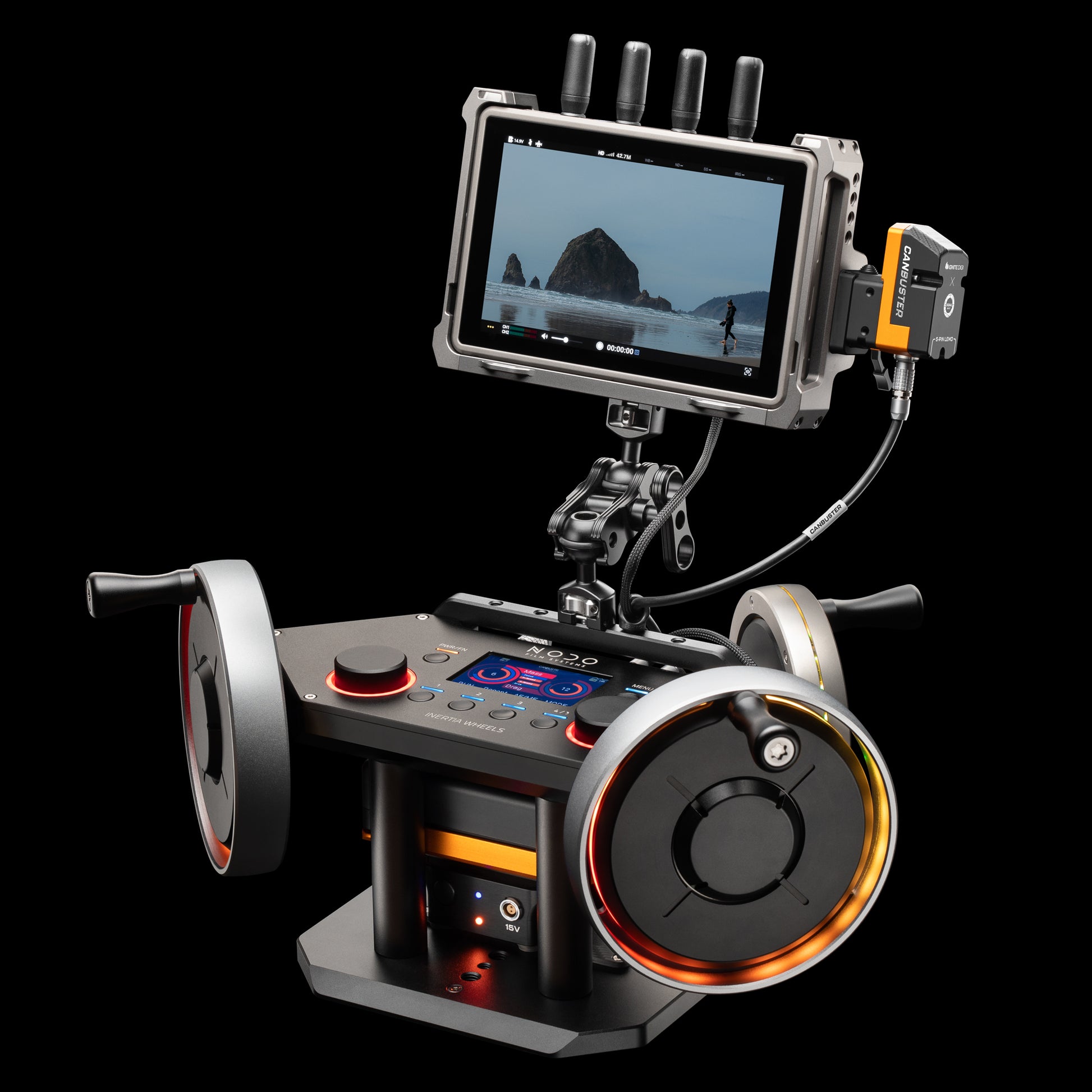

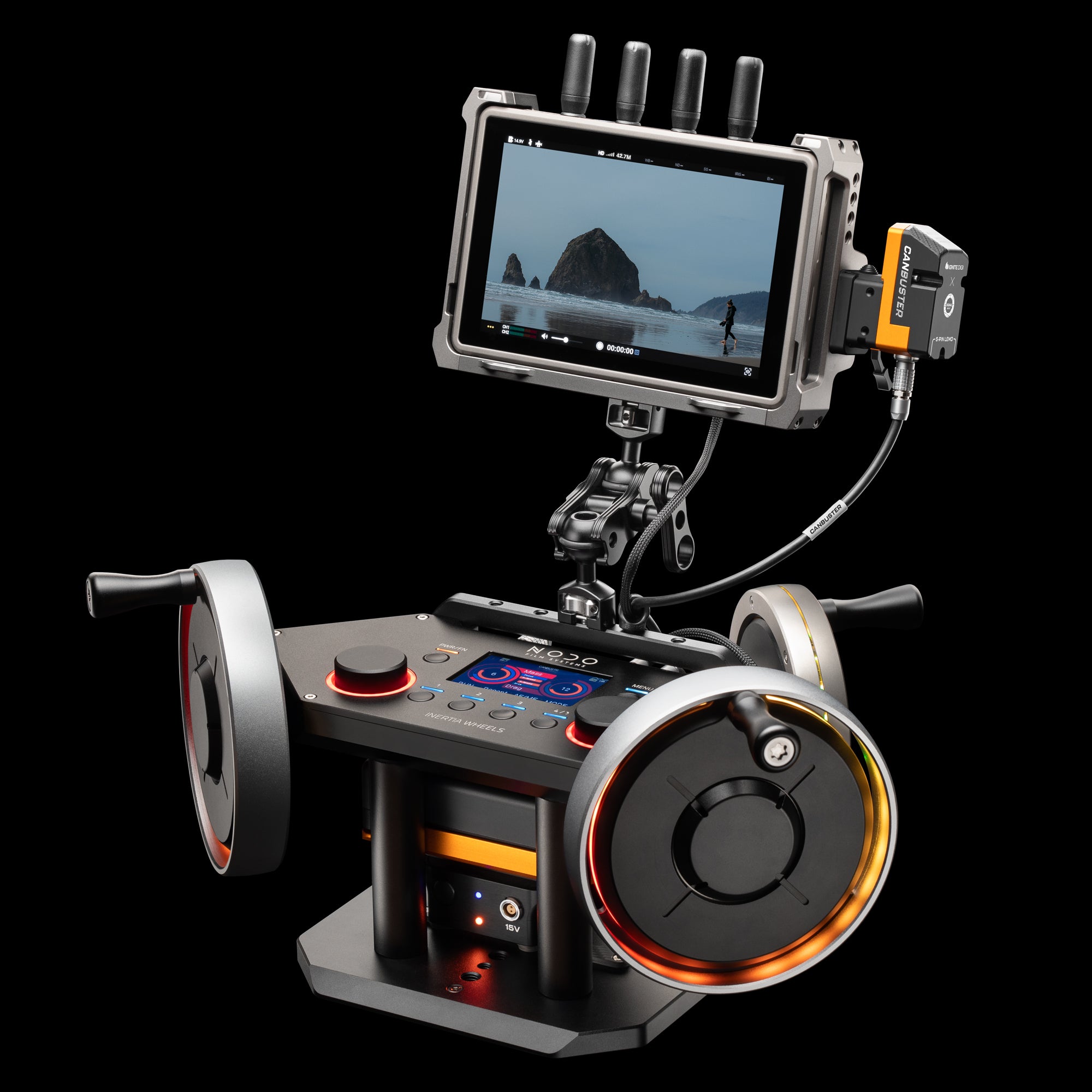

• Power Inertia Wheels as well as your preferred monitor and transmitter from a single battery — less weight, streamlined workflow, ideal for travel
• TB50 battery delivers higher voltage (20-25.5V) than a V-Lock or Gold Mount battery (11-17V). This provides the Inertia Motors more strength which means higher drag or mass settings before slipping
• TB50 batteries are built for high-draw. They're also compact, smart, affordable and air travel safe
• 8-Pin Lemo DC input enables hot-swap for the wheels and all your accessories

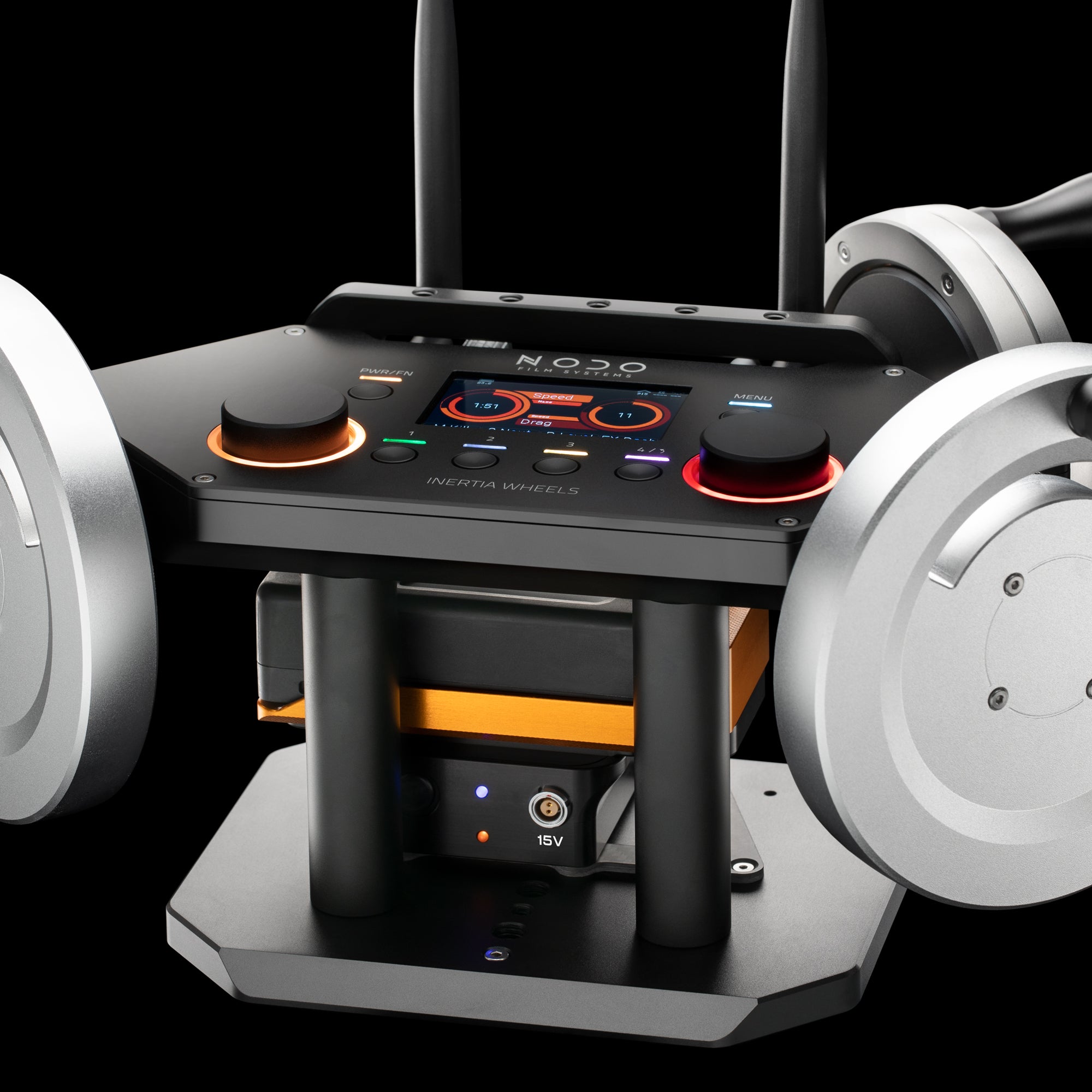

• This power solution lives within the footprint of the controller base so it fits inside the OEM foam case

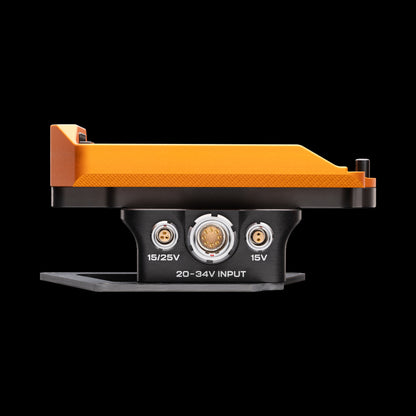

INPUTS / OUTPUTS

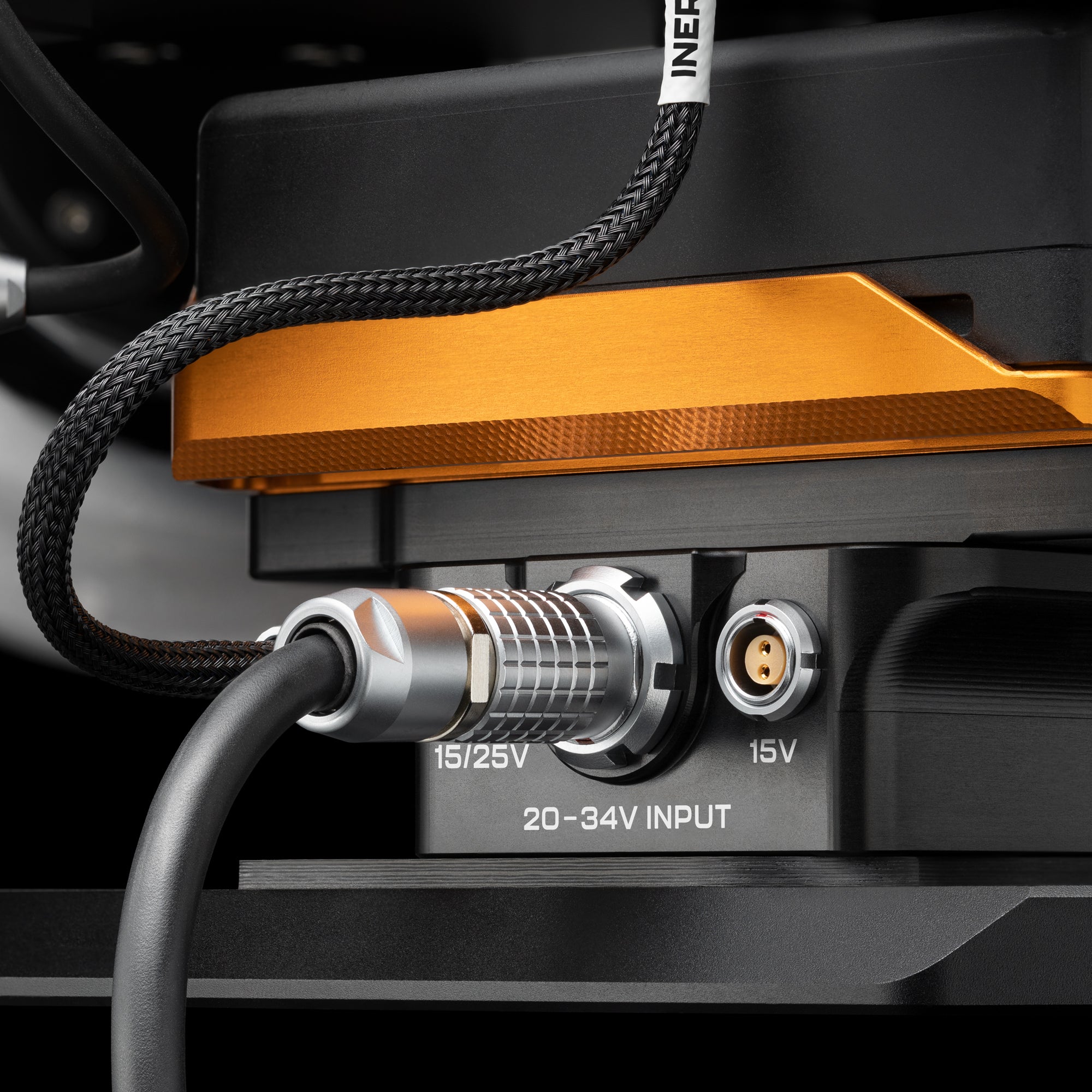

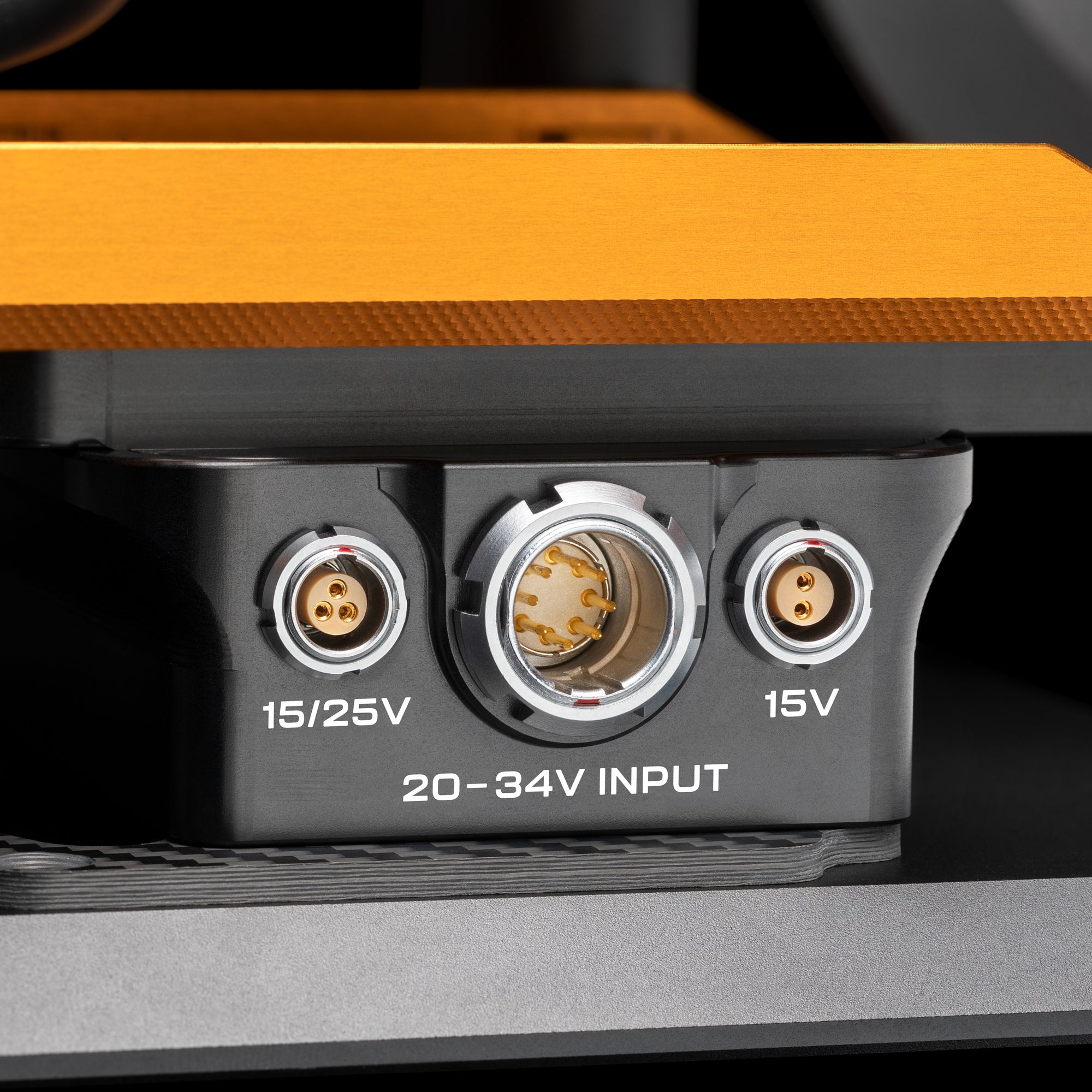

• 8-Pin 2B Lemo Input
  Feed in 20-34V from an AC Power Supply or block battery. 8-Pin 2B Lemo is the same as ALEXA Mini/Mini LF.
• 3-Pin 0B Lemo Output
  Unregulated 20-25.5V for powering Inertia Wheels

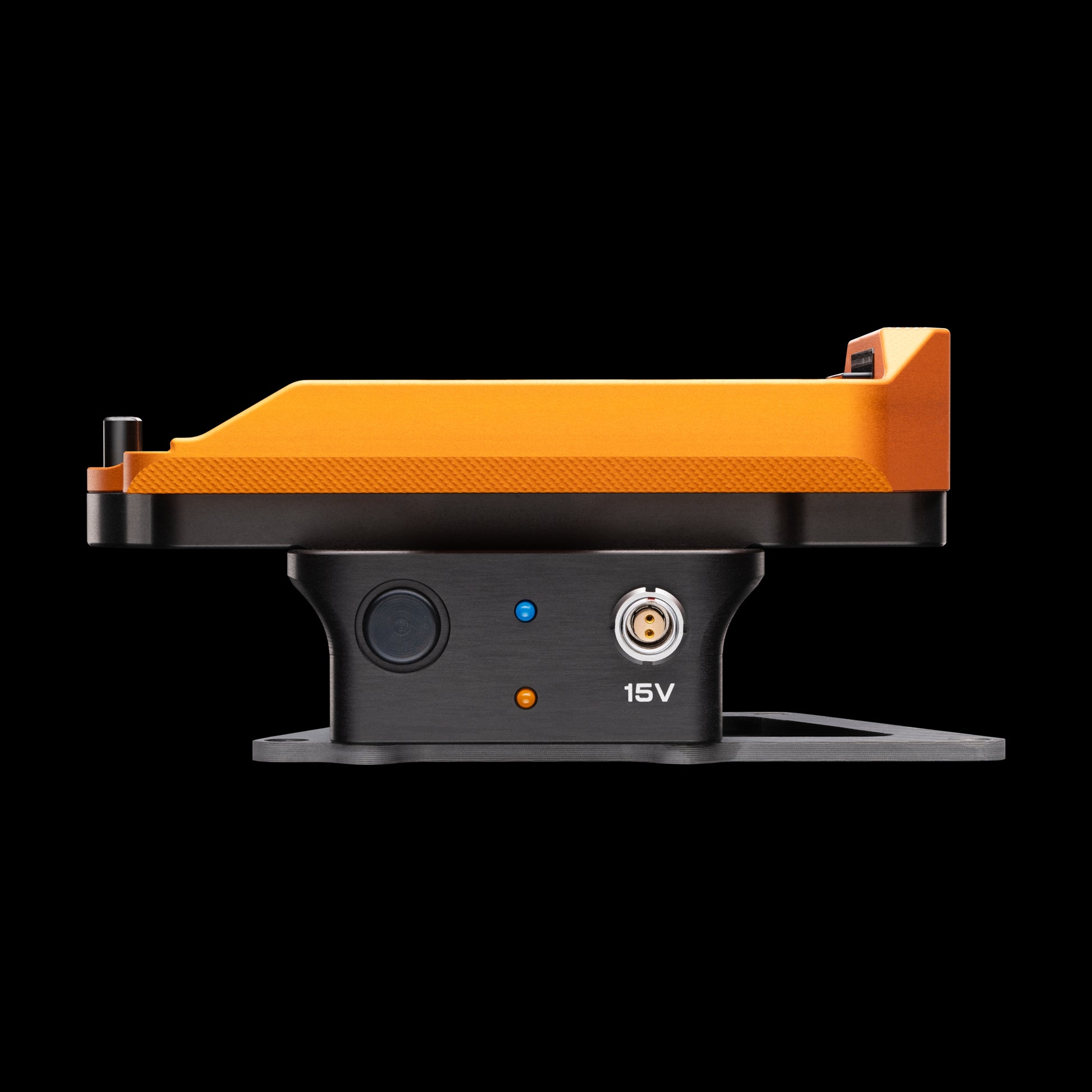

• 2-Pin 0B Lemo Output  (back)
  Regulated 15V (100W total) for powering your monitor, transmitter or other accessories
• 2-Pin 0B Lemo Output  (front)
  Regulated 15V (100W total) for powering your monitor, transmitter or other accessories


————————————————

DJI TB50 KEY FEATURES

● Built for high draw ⚡️

● 4280mAh / 97.58Wh ✈️ carry-on air travel safe

● Compact design and lightweight: 18.3oz / 519g

● TB50’s can power cameras, camera accessories, gimbals, drones, and remote controllers

● There is one capacity of TB50 battery — therefore a simplified gimbal balancing workflow

● Built-in auto heating system down to -4° F (-20° C) ❄️

● Automatic protection cutoff at 2%

● Automatic self discharging down to 60% when the battery is idle for more than 10 days — press the Power Level button to exit idle state

● Overcurrent and short circuit protection — batteries can be left unattended while charging

● TB50’s are one of the most affordable high-voltage camera batteries on the market

● TB50’s are widely available in many parts of the world

————————————————

TB50 BATTERIES WORK WITH

● Control Deck for DJI Transmission

● NODO Inertia Wheels Brushless & MAX

● DJI High-Bright Remote Monitor

● Freefly MōVI Pro

● Freefly MōVI XL

● Freefly MōVI Controller

● TB50 Hammerhead ‣ ALEXA + DSMC + VENICE

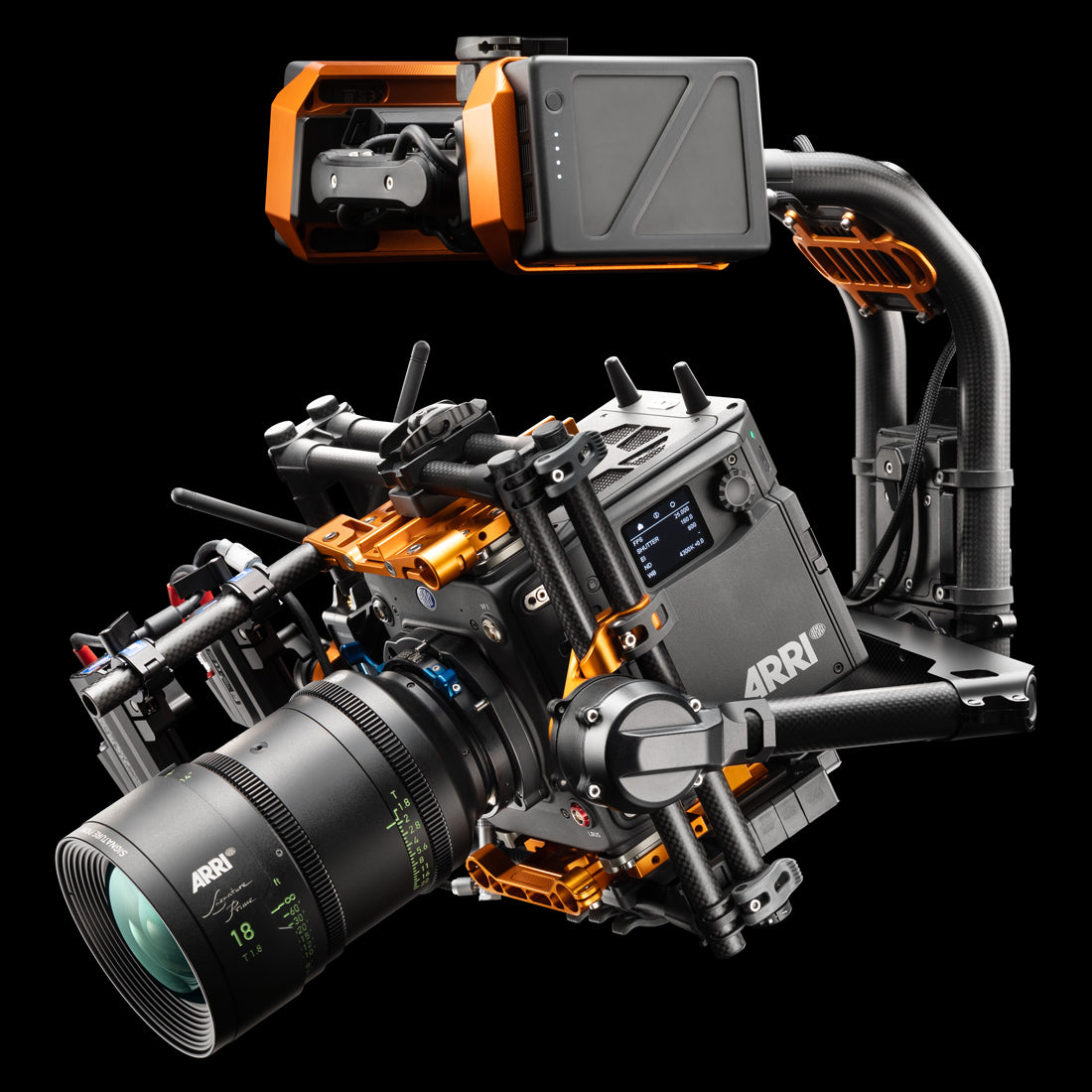

● TB50 for ALEXA 35 + URSA Cine

● TB50 Power Pack for KOMODO

● DJI Ronin 2

● DJI Inspire 2

● DJI Ronin 4D

● DJI Master Wheels

————————————————

COMPATIBLE WITH
DJI TB50 Intelligent Battery (4280mAh / 97.58Wh)

❌ NOT COMPATIBLE WITH
❌ DJI TB55 Intelligent Battery (7660mAh / 176.93Wh)

MADE FROM
High-grade 6061-T651 aluminium billet
3mm carbon fibre

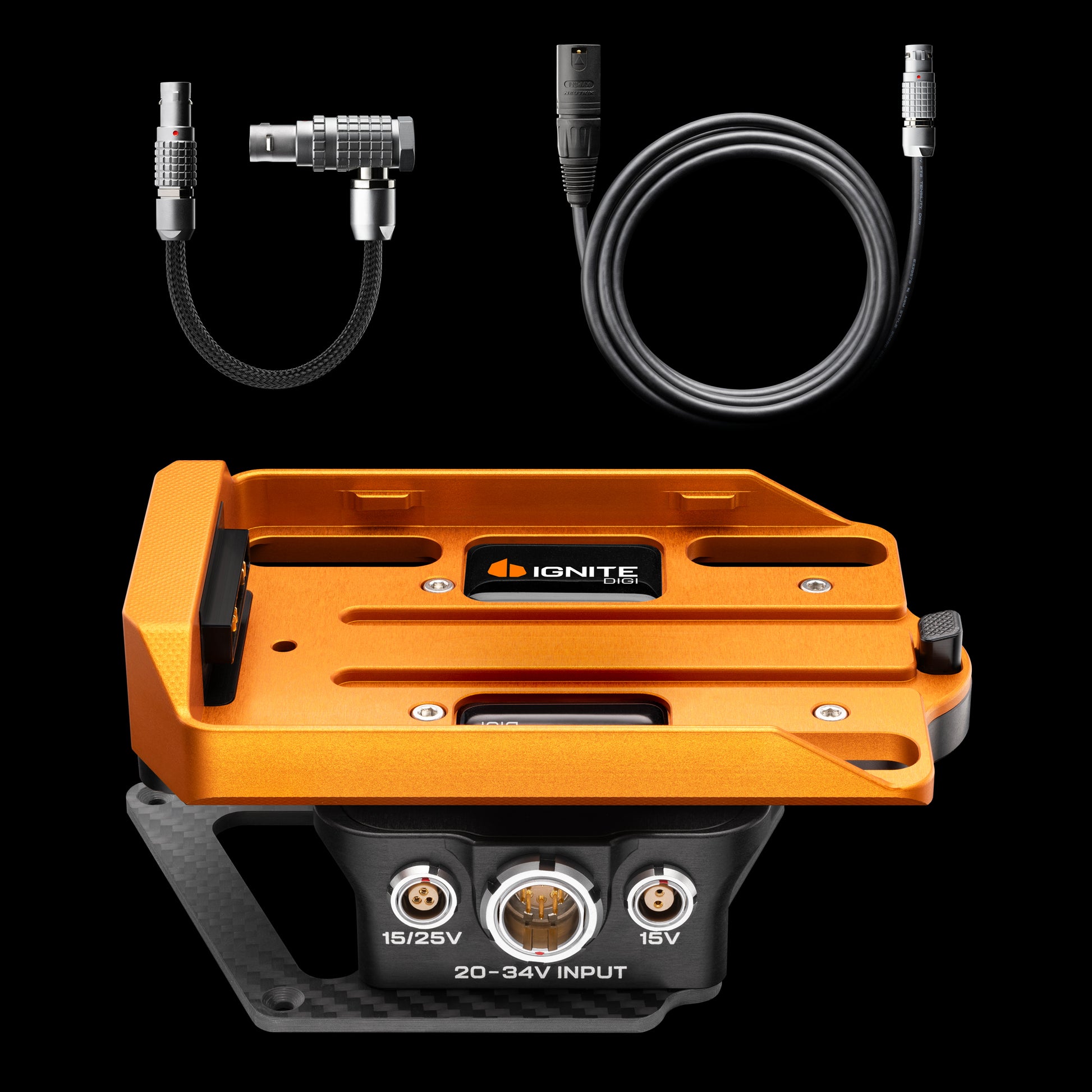

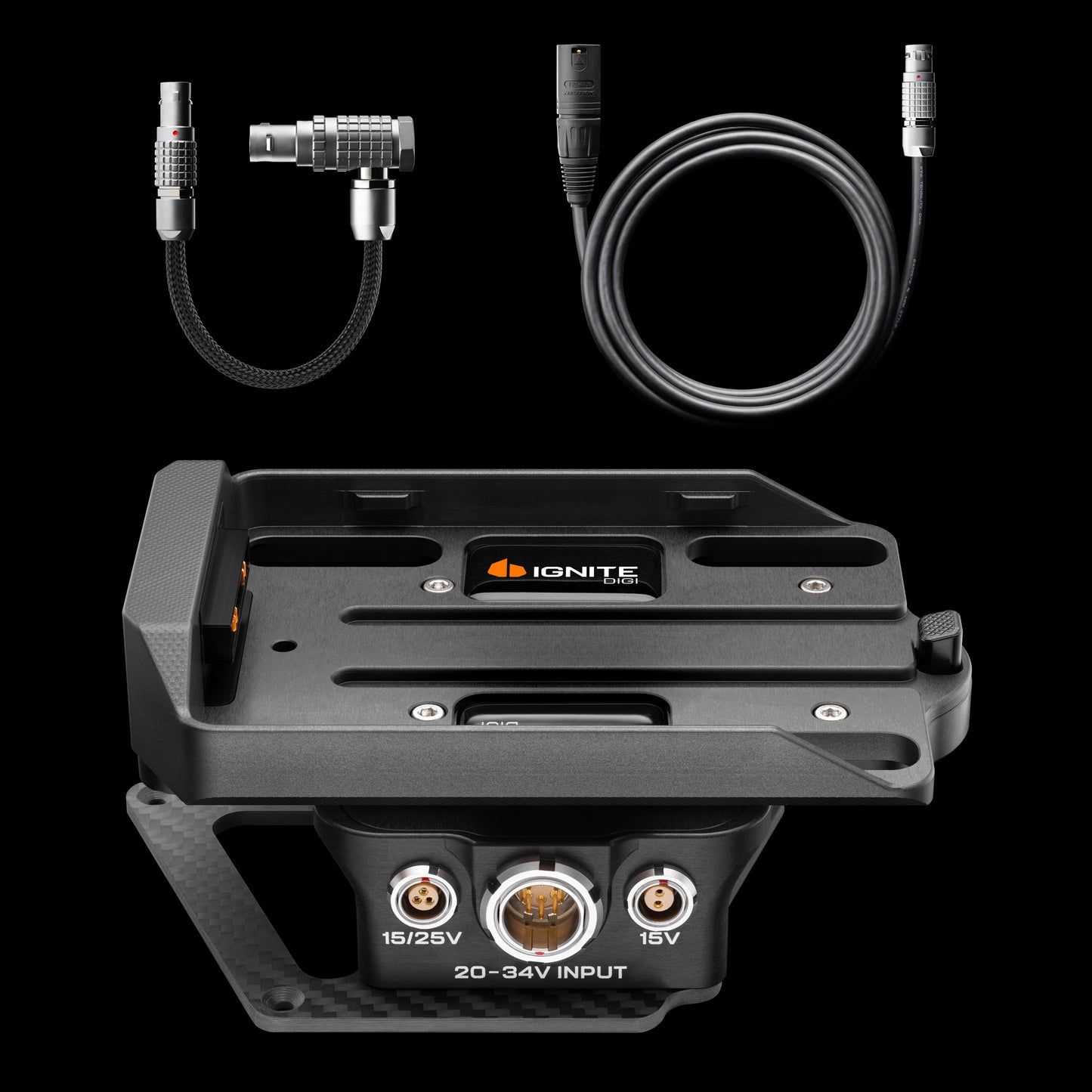

IN THE BOX
TB50 Battery Plate
Power Expansion Pack

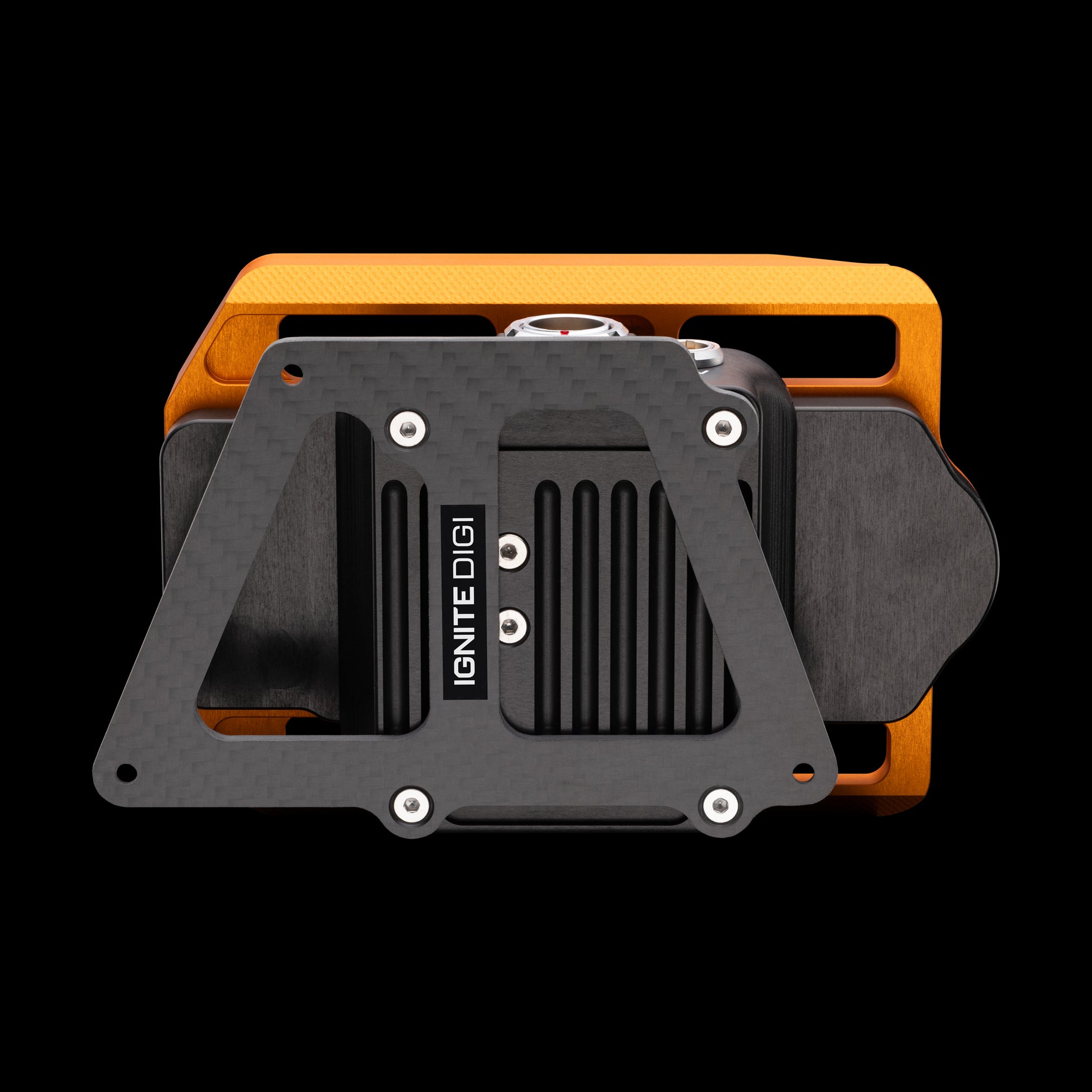

Carbon Mounting Plate
Six M3 x 8mm countersunk screws

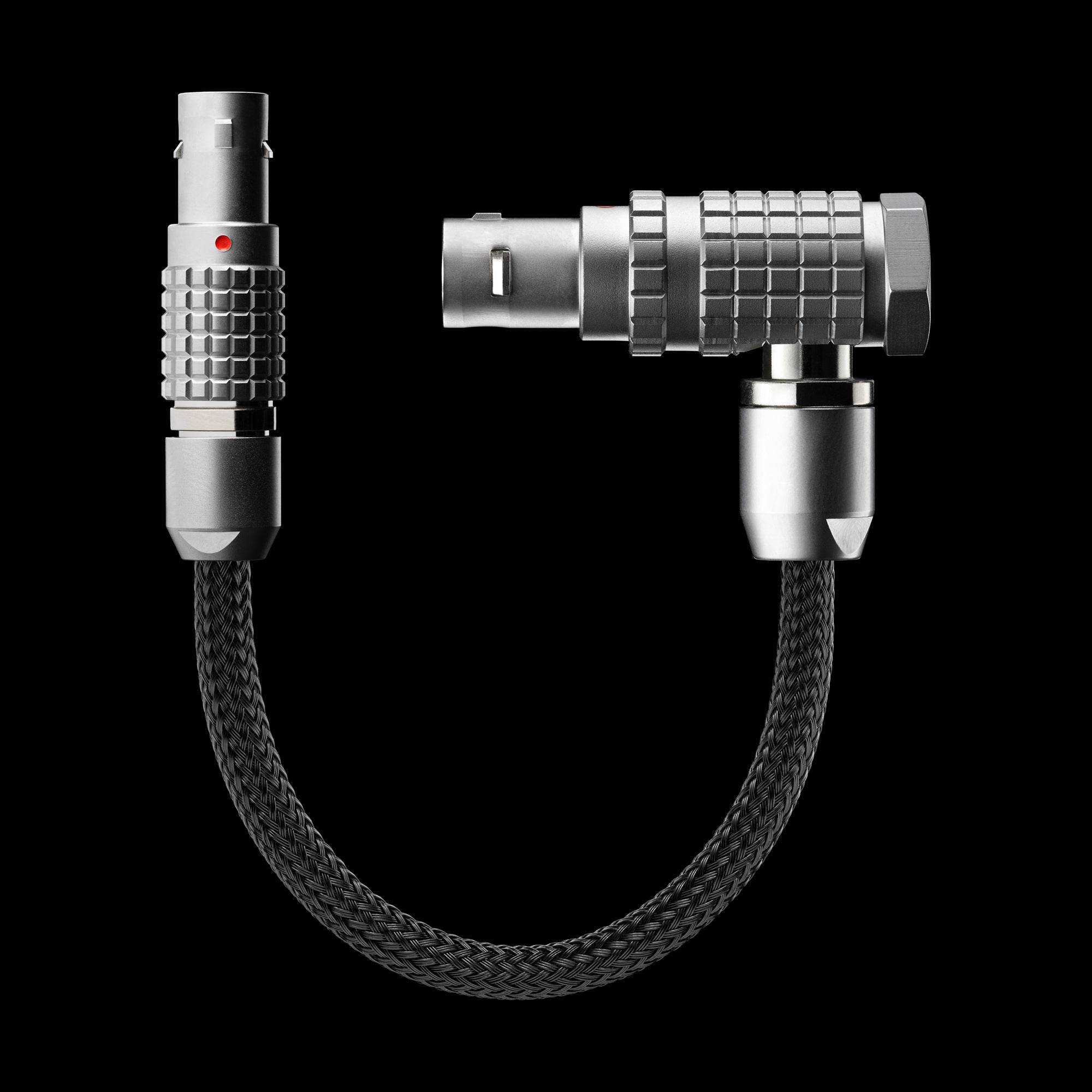

Power Cable ‣ 3-Pin Lemo Straight to 8-Pin Lemo Right Angle (7-inch/18cm)

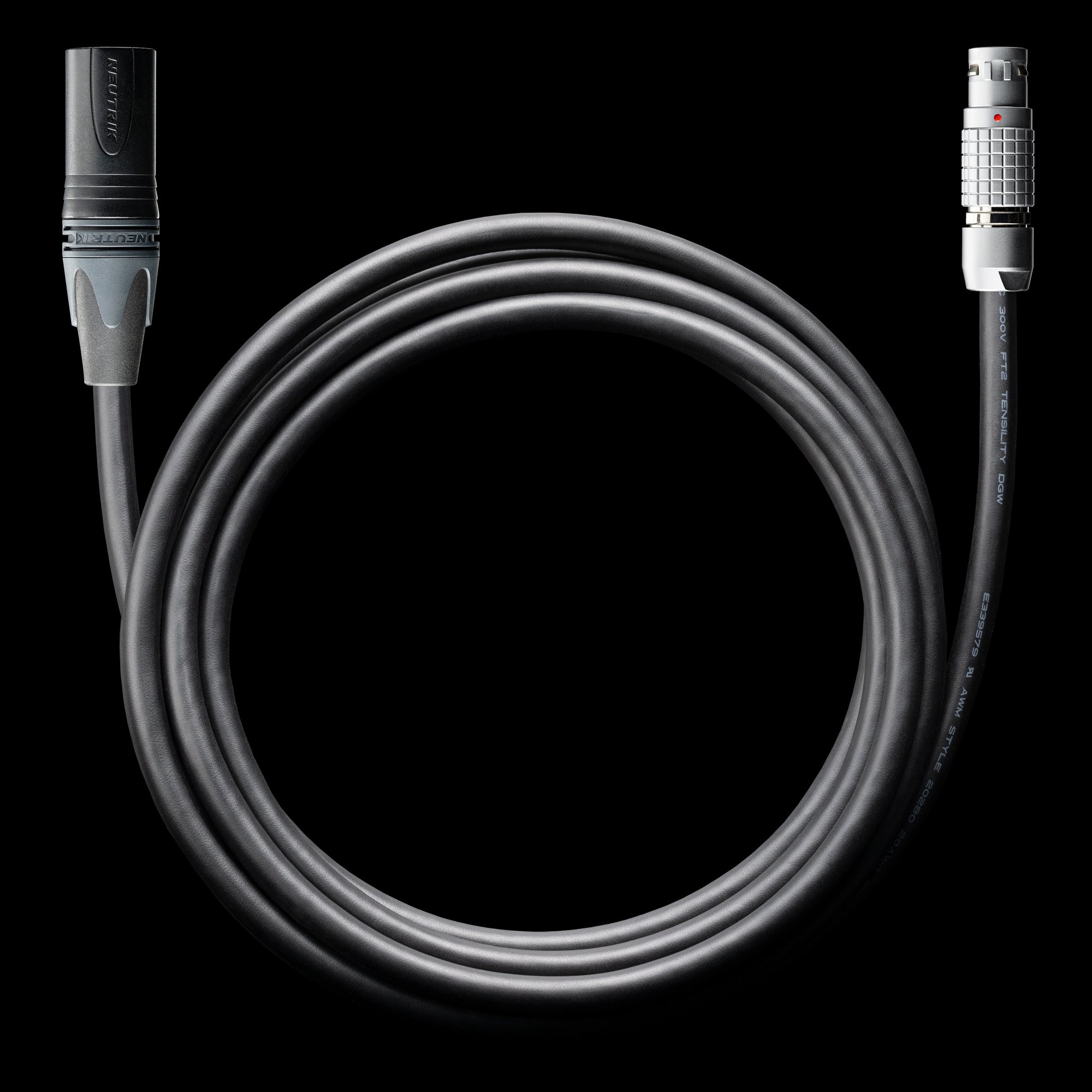

Power Cable ‣ 3-Pin XLR Straight to 8-Pin Lemo Straight (8ft/2.4m)

WEIGHT
12.7oz / 362g module + cable
31.2oz / 886g module + cable + TB50

DIMENSIONS
5.43 x 3.62 x 2.63” / 138 x 92 x 67mm
