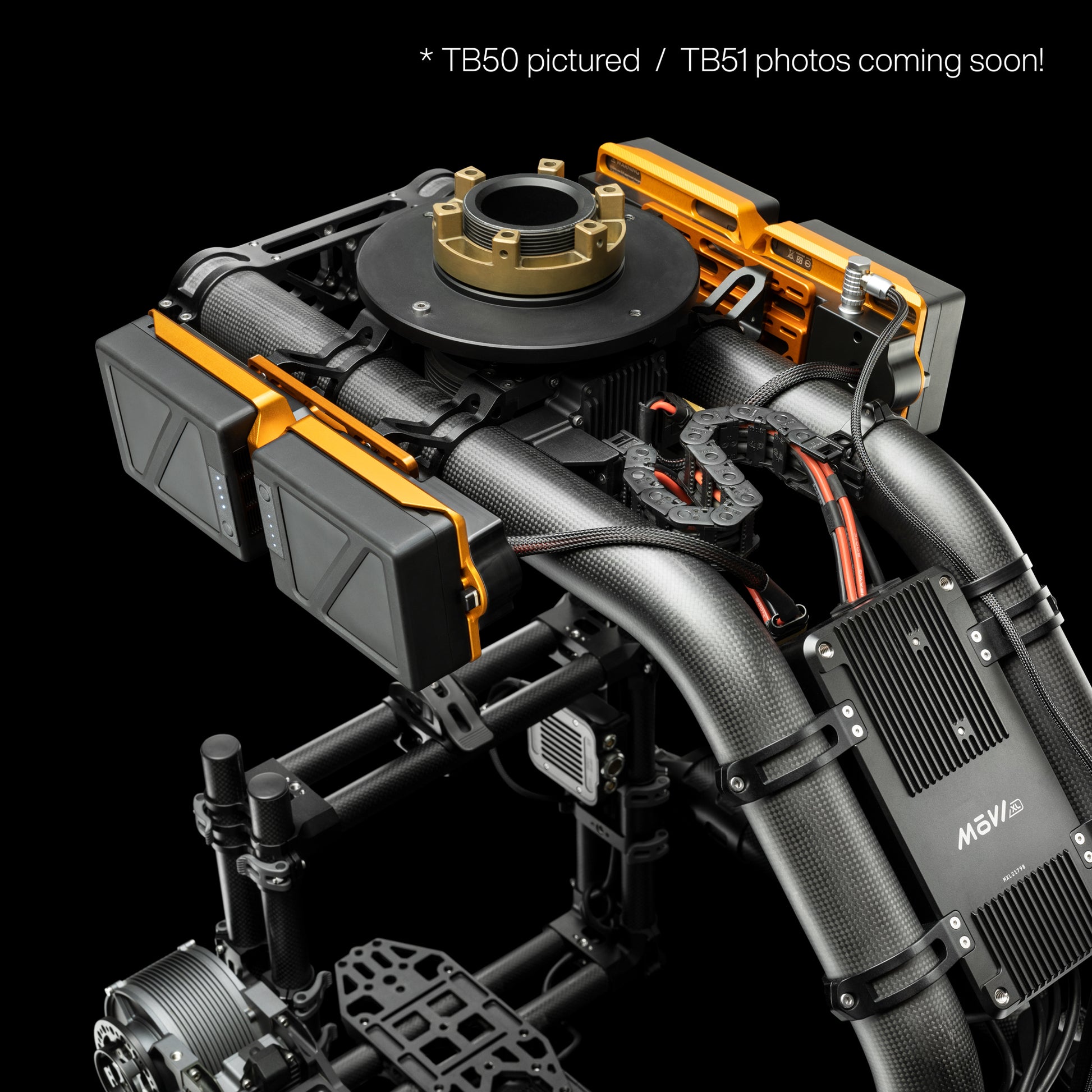

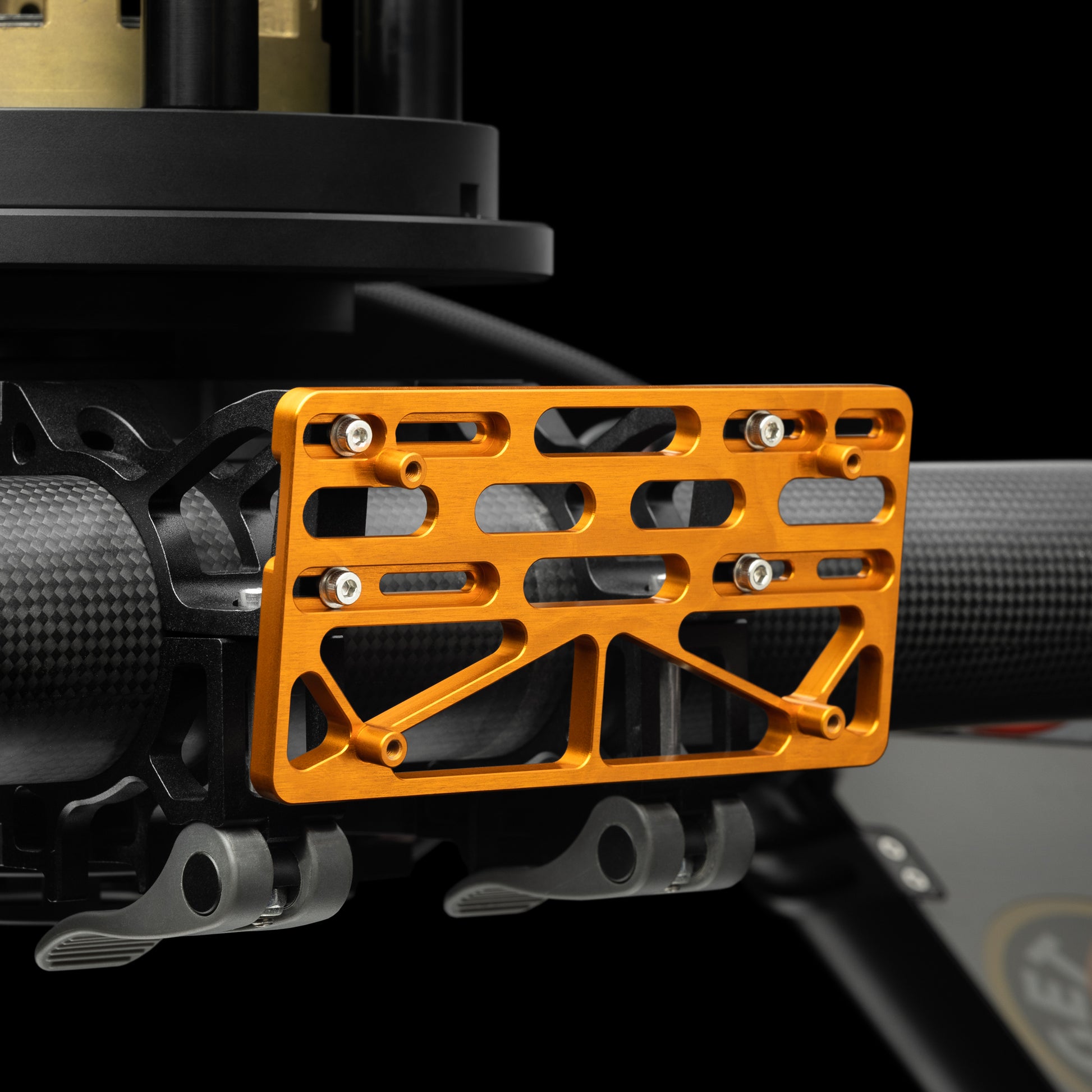

TB51 Battery Adapters for MōVI XL

-

RUN TIME

A single TB51 battery is 4280 mAh / 98.8 Wh.

Four TB51’s have 15% less milliamps than two 6S 10000mAh LiPo batteries but you can have full confidence in using the entire TB51 power because of the over discharge protection.

When installing batteries, we recommend using evenly charged TB51’s across the setup. This helps share the load, maintains battery health and maximises run times.

———————————————

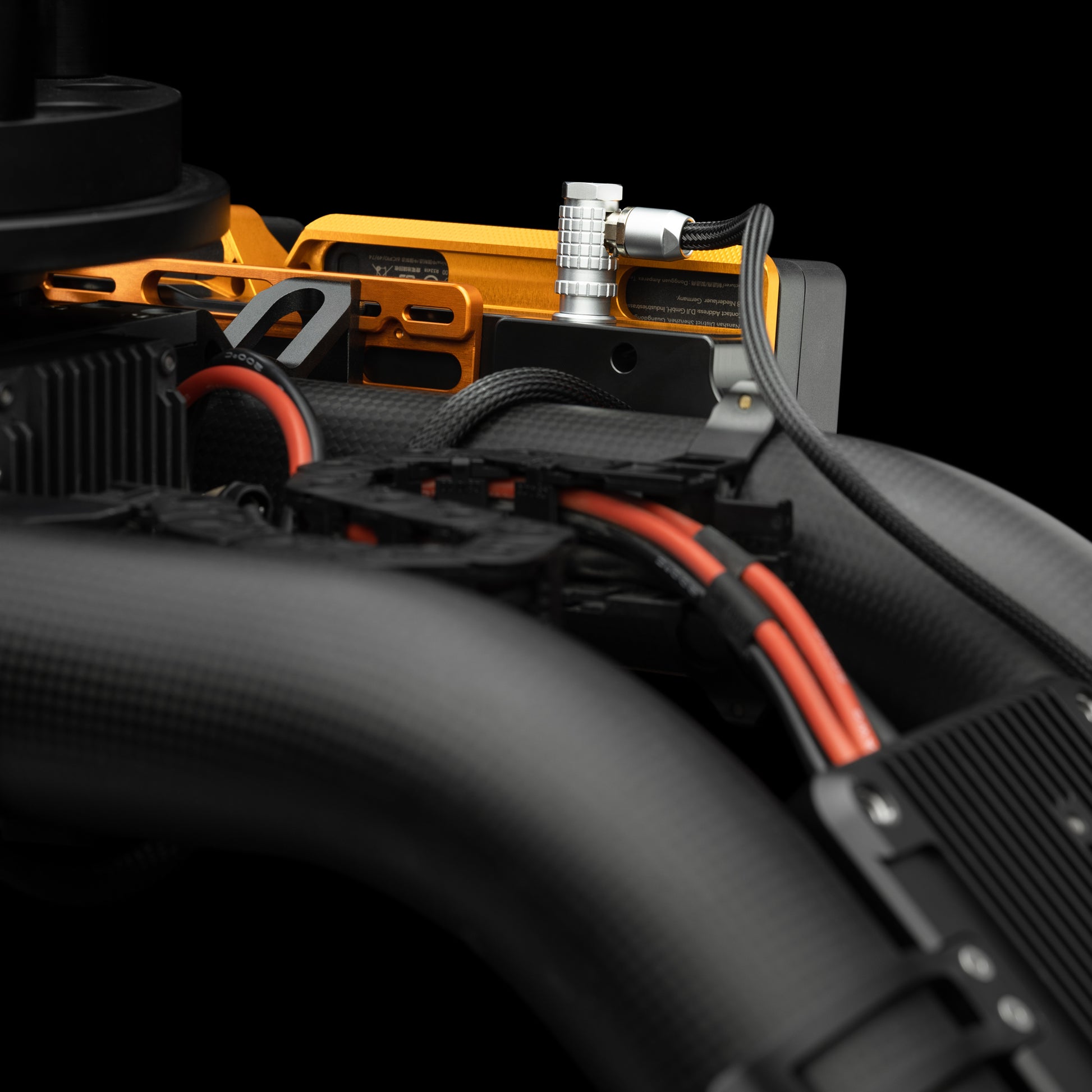

LEMO OUTPUTS

Each battery adapter features a 1B 2-Pin Lemo output which provides 20-25V.

These Lemo outputs are designed to be used with our Power Expansion Pack for MōVI XL.

The Expansion Pack includes a 63-inch braided Feed Cable.

The Feed Cable is designed to run down the spine, through the roll motor and roll beam, and enter the tilt cage through the bearing assembly.

This allows you to avoid the underpowered D-Tap TSU and reduce the amount of heavy and bulky batteries within the gimbal cage!

————————————————

DJI TB51 KEY FEATURES

● Built for high draw ⚡️

● 4280 mAh / 98.8 Wh ✈️ carry-on air travel safe

● Compact design and lightweight: 16.5oz / 468g

● TB51's can power cameras, camera accessories, gimbals, drones, and remote controllers

● There is one capacity of TB51 battery — therefore a simplified gimbal balancing workflow

● Built-in auto heating system down to -4° F (-20° C) ❄️

● Automatic protection cutoff at 2%

● Automatic self discharging down to 60% when the battery is idle for more than 10 days — press the Power Level button to exit idle state

● Overcurrent and short circuit protection — batteries can be left unattended while charging

● In Fast Mode, charge a pair of batteries up to 90% in as little as 35 minutes

● TB51’s are one of the most affordable high-voltage camera batteries on the market

● TB51’s are widely available in many parts of the world

————————————————

TB51 BATTERIES WORK WITH

● DJI Inspire 3

● Control Deck for DJI Transmission

● NODO Inertia Wheels Brushless & MAX

● NODO Torq Head

● DJI High-Bright Remote Monitor

● Freefly MōVI Pro

● Freefly MōVI XL

● TB51 Hammerhead ‣ ALEXA + DSMC + VENICE

● TB51 for ALEXA 35 + URSA Cine

————————————————

COMPATIBLE WITH
DJI TB51 Intelligent Battery (4280mAh / 98.8Wh)
Freefly Systems MōVI XL

MADE FROM
High-grade 6061-T651 aluminium billetHard anodised

IN THE BOX
TB51 Battery Adapter Left
TB51 Battery Adapter Right
Two Aluminium Mounting Plates
Eight M3 x 20mm socket head cap screws

WEIGHTS
2.73lbs / 1.24kg plates only
6.97lbs / 3.16 kg plates + batteries

DIMENSIONS
10.8 x 1.77 x 3.78” / 276 x 45 x 96mm
