TB51 for ALEXA 35 + URSA Cine

TB51 for ALEXA 35 + URSA Cine

IG.100482

In stock

$1,098.00 AUD
$1,098.00 AUD
Sale Sold out
Colour: Ignite Orange

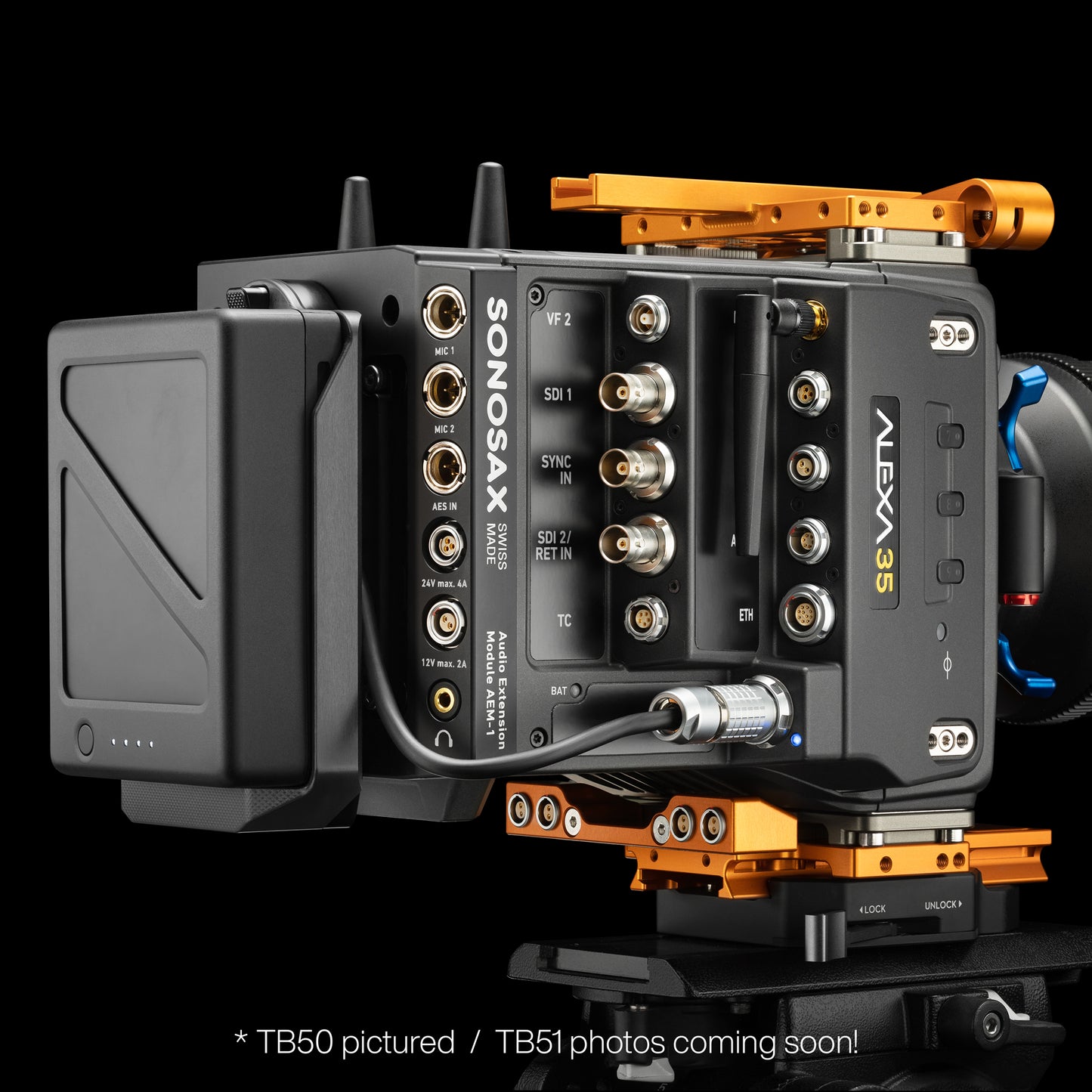

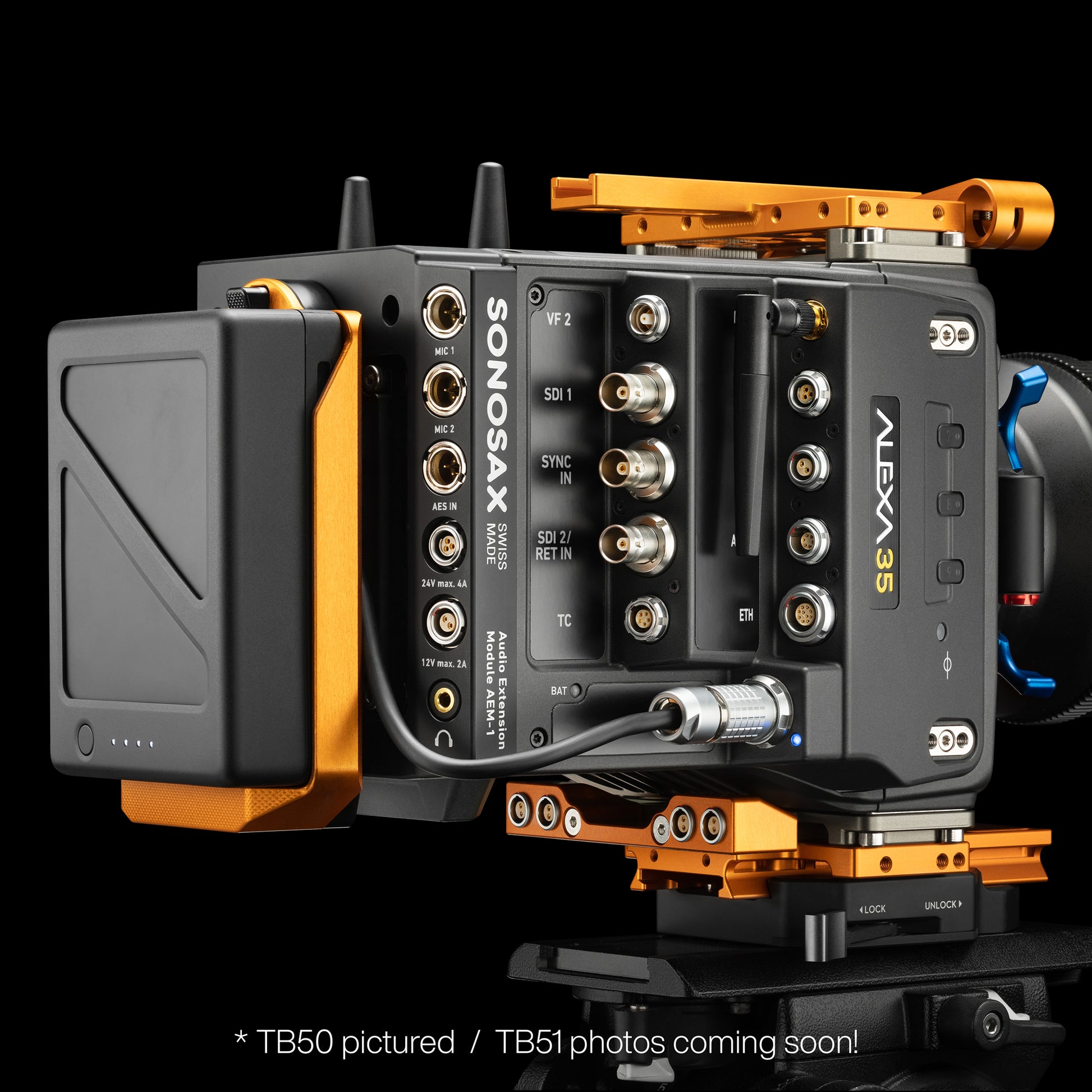

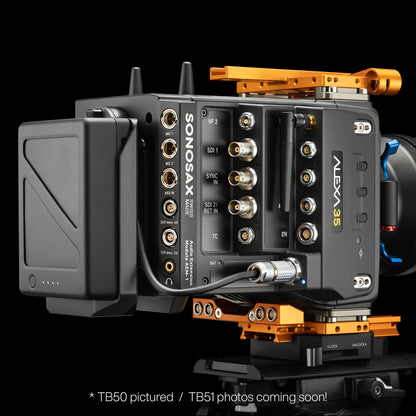

Developed for teams running ALEXA 35 and ALEXA 265 on Ronin 2, with heavy lift drones, MotoCrane or U-Crane (Russian Arm) camera systems.

Our popular Ronin 2 to ALEXA 35 power cable although useful, does limit pan rotations and becomes a safety hazard in those use cases.

This lightweight battery solution enables teams to use their existing fleet of TB51 batteries, deliver reliable high-voltage to ALEXA 35 / 265, and maintain full pan and tilt control.

Also useful for those looking for a cost effective, compact handheld and tripod rig!

CNC machined from high grade 6061-T651 aluminium. Built to withstand life on set!

Designed and manufactured in Tasmania, Australia.

————————————————

KEY FEATURES

  • Delivers 20-25.5V to ALEXA 35
  • 2-Pin Lemos & 3-Pin Fischers on camera, PDM-1 & AEM-1 remain powered
  • Fits within Ronin 2 gimbal cage
  • Use existing TB51 batteries + charging solutions
  • At 98.8 Wh, TB51's are carry-on air travel safe
  • Made from premium materials

————————————————


INSTALLATION

  1. Seperate the Ignite TB51 Battery Plate from the Mounting Bracket
  2. Remove the bebob B-Mount Adapter from the recessed area at the back of the camera or modules PDM-1 / AEM-1
  3. Mount the Ignite Mounting Bracket with four M4 x 8mm socket head cap screws
  4. Then attach the TB51 Plate with three M3 x 16mm socket head cap screws
  5. Connect 8-Pin Lemo into camera

NOTE: Removing the installed B-Mount bracket (K2.002375) that ships with ALEXA 35 will not invalidate the camera warranty.

————————————————

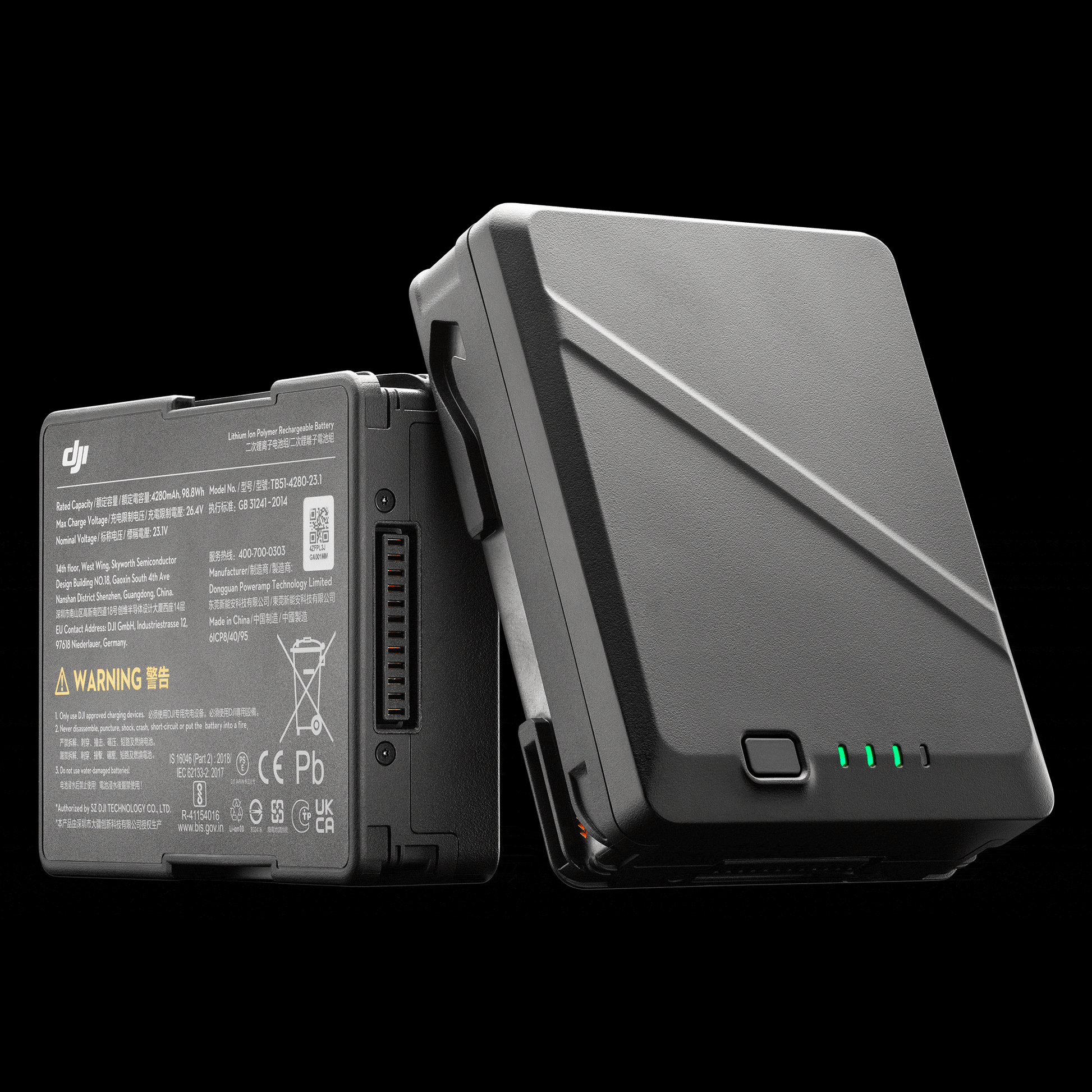

DJI TB51 KEY FEATURES

● Built for high draw ⚡️

● 4280 mAh / 98.8 Wh ✈️ carry-on air travel safe

● Compact design and lightweight: 16.5oz / 468g

● TB51's can power cameras, camera accessories, gimbals, drones, and remote controllers

● There is one capacity of TB51 battery, therefore a simplified gimbal balancing workflow

● Built-in auto heating system down to -4° F (-20° C) ❄️

● Automatic protection cutoff at 2%

● Automatic self discharging down to 60%

● Can be left unattended while charging

● In Fast Mode, charge a pair of batteries up to 90% in as little as 35 minutes

● TB51’s are one of the more affordable high-voltage camera batteries on the market

● TB51's and Charging Hub are widely available in many parts of the world

————————————————

TB51 BATTERIES WORK WITH

● DJI Inspire 3

● Control Deck for DJI Transmission

● NODO Inertia Wheels Brushless & MAX

● NODO Torq Head

● DJI High-Bright Remote Monitor

● Freefly MōVI Pro

● Freefly MōVI XL

● TB51 Hammerhead ‣ ALEXA + DSMC + VENICE

● TB51 for ALEXA 35 + URSA Cine

————————————————

COMPATIBLE WITH
ARRI ALEXA 35
ARRI ALEXA 265
Blackmagic URSA Cine 12K LF
Blackmagic URSA Cine 17K 65

MADE FROM
High-grade 6061-T651 aluminium billet
Ertacetal (high performance plastic)
6-core TPU Cable

IN THE BOX
B-Mount Mounting Bracket
TB51 Battery Plate
Four M4 x 8mm socket head cap screws

WEIGHT
10.5oz / 297g plates only
27.0oz / 765g plates + TB51 battery

DIMENSIONS
3.78 x 5.43 x 1.73” / 96 x 138 x 44mm

————————————————
